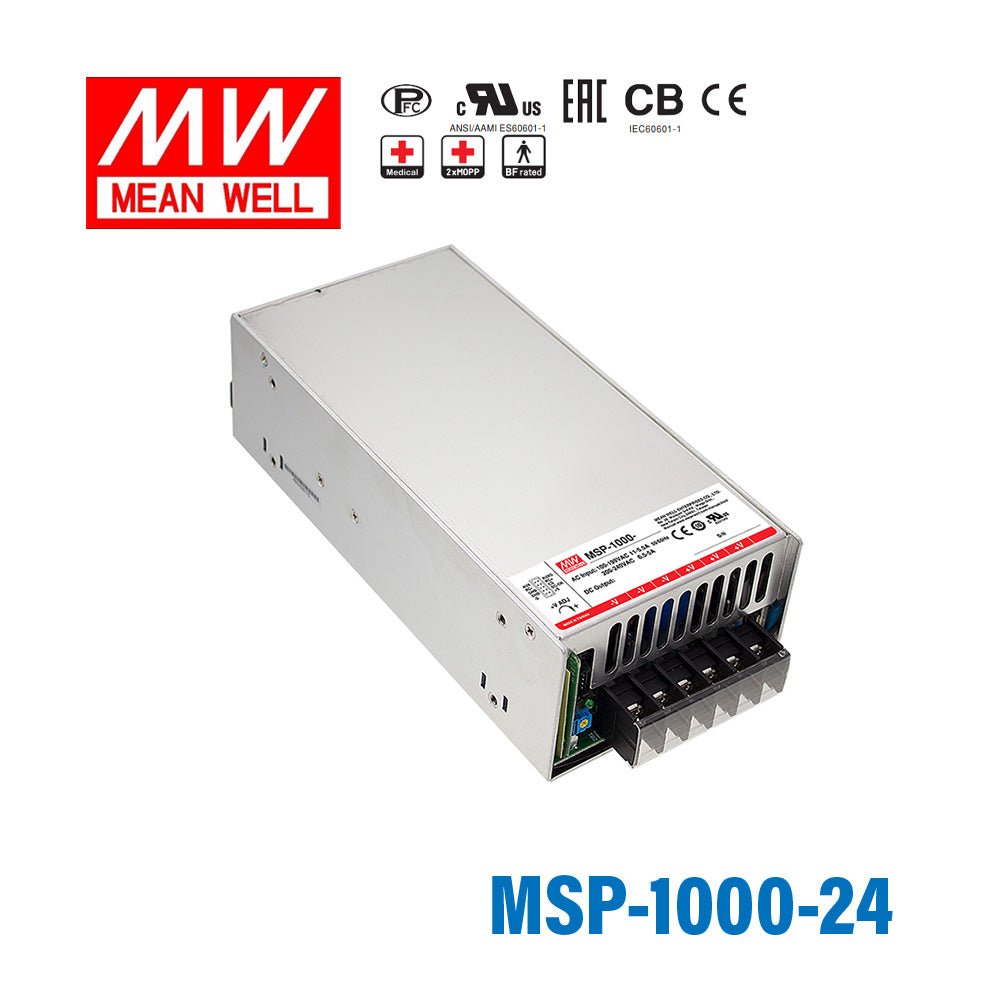

Mean Well MSP-1000-24 Power Supply 1008W 24V 42A
Notify me when it's back in stock
Your order will be processed within 24 hours

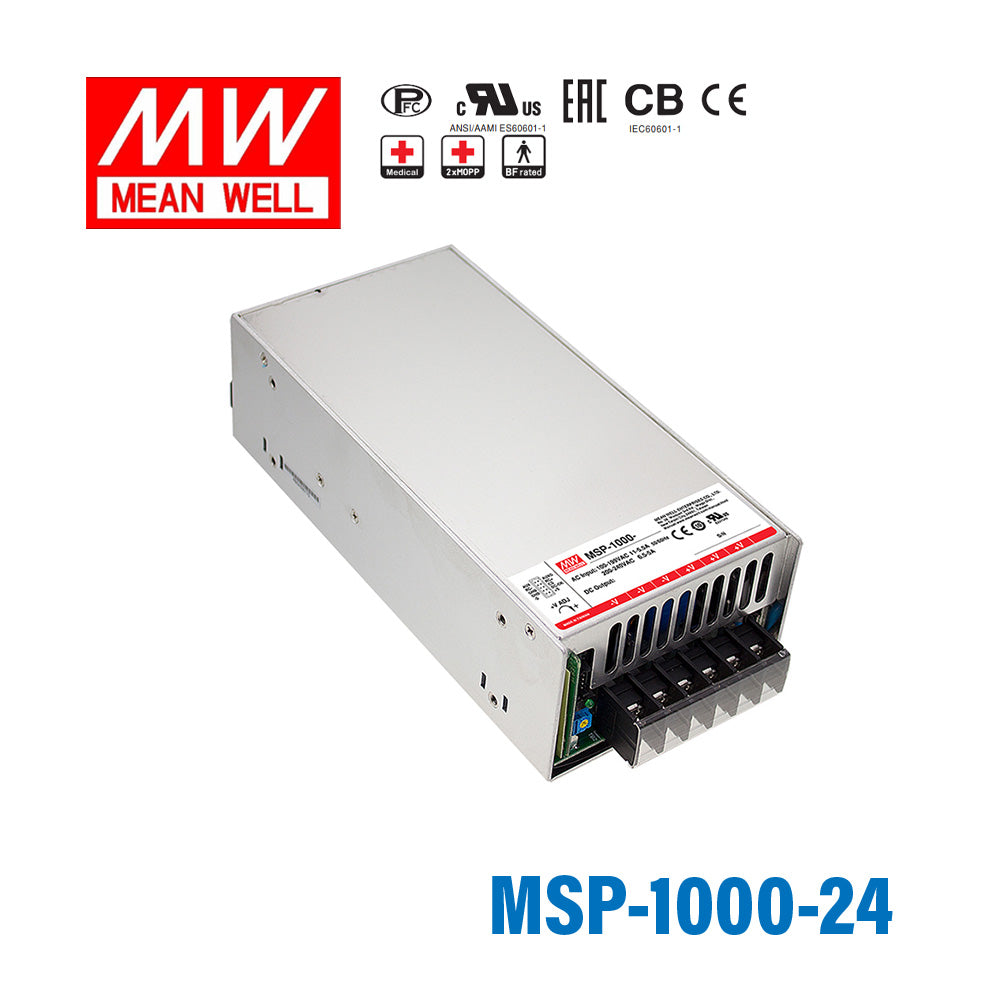

Mean Well MSP-1000-24 Power Supply 1008W 24V 42A
Overview
MSP-1000-24 is the 24V output model of this series: rated current 42A, rated power 1008W, typical efficiency 93%.
MSP-1000 is a single output enclosed type AC/DC power supply delivering 1000W output power for a wide range of medical applications. The entire series operates for 90~264 VAC input voltage and supplies different output voltages between 12V and 48V that can satisfy the demands for all kinds of medical equipments. Meanwell, the circuitry design meets the international medical standards, 2x MOPP, suitable for medical electrical devices. MSP-1000 is equipped with various built-in functions such as auxiliary power, remote sense and remote on-off control, offering vast design flexibility for the purpose of using control solutions.
Features
- Universal AC input / Full range
- Built-in active PFC function, PF>0.95
- High efficiency up to 94%
- Withstand 300VAC surge input for 5 seconds
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Medical safety approved (2×MOPP)
- Suitable for BF application with appropriate system consideration
- Built-in cooling fan ON-OFF control
- Current sharing up to 4000W (3+1)
- Built-in DC OK signal
- Built-in remote ON-OFF control
- Standby 5V@0.3A
- Built-in remote sense function
- No load power consumption<0.75W (Note.6)
- 5 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 24V
- RATED CURRENT
- 42A
- CURRENT RANGE
- 0 ~ 42A
- RATED POWER
- 1008W
- RIPPLE & NOISE (max.)Note.2
- 200mVp-p
- VOLTAGE ADJ. RANGE
- 22 ~ 28V
- VOLTAGE TOLERANCENote.3
- ±1.0%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±0.5%
- SETUP, RISE TIME
- 1000ms, 50ms/230VAC 2000ms, 50ms/115VAC at full load
- HOLD UP TIME (Typ.)
- 16ms/230VAC 16ms/115VAC at full load
INPUT
- VOLTAGE RANGENote.4
- 90 ~ 264VAC(300VAC for 5 sec.) 127 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)
- PF>0.95/230VAC PF>0.98/115VAC at full load
- EFFICIENCY (Typ.)
- 93%
- AC CURRENT (Typ.)
- 8.5A/115VAC 5A/230VAC
- INRUSH CURRENT (Typ.)
- 20A/115VAC 40A/230VAC
- LEAKAGE CURRENT
- Earth leakage current < 360μA/264VAC , Touch leakage current < 100μA/264VAC
PROTECTION
- OVERLOAD
- 105 ~ 135% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 29 ~ 33V Protection type : Shut down o/p voltage, re-power on to recover
- OVER TEMPERATURE
- Shut down o/p voltage, recovers automatically after temperature goes down
FUNCTION

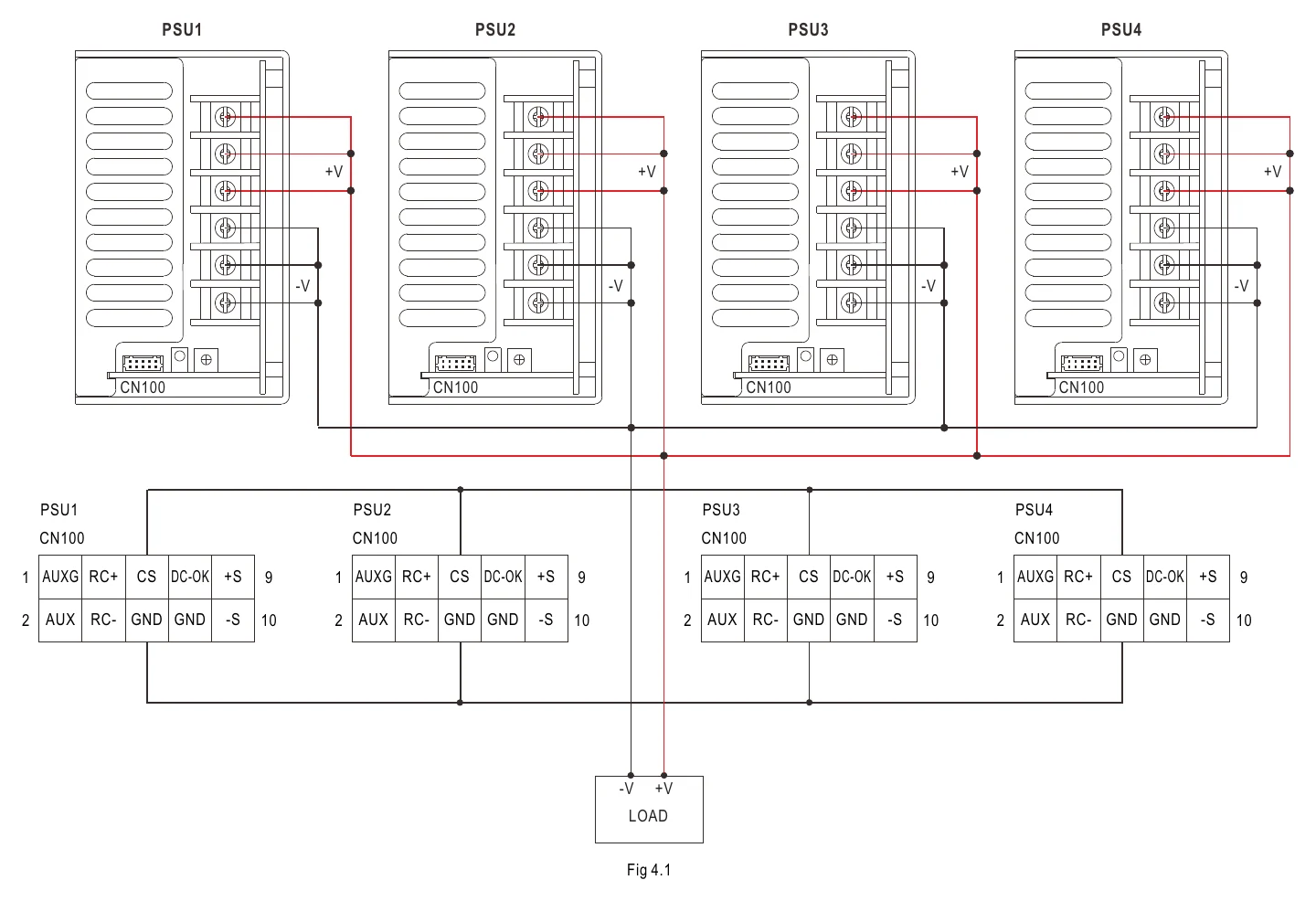

- CURRENT SHARING
- Up to 4000W or (3+1) units. Please refer to the Function Manual.

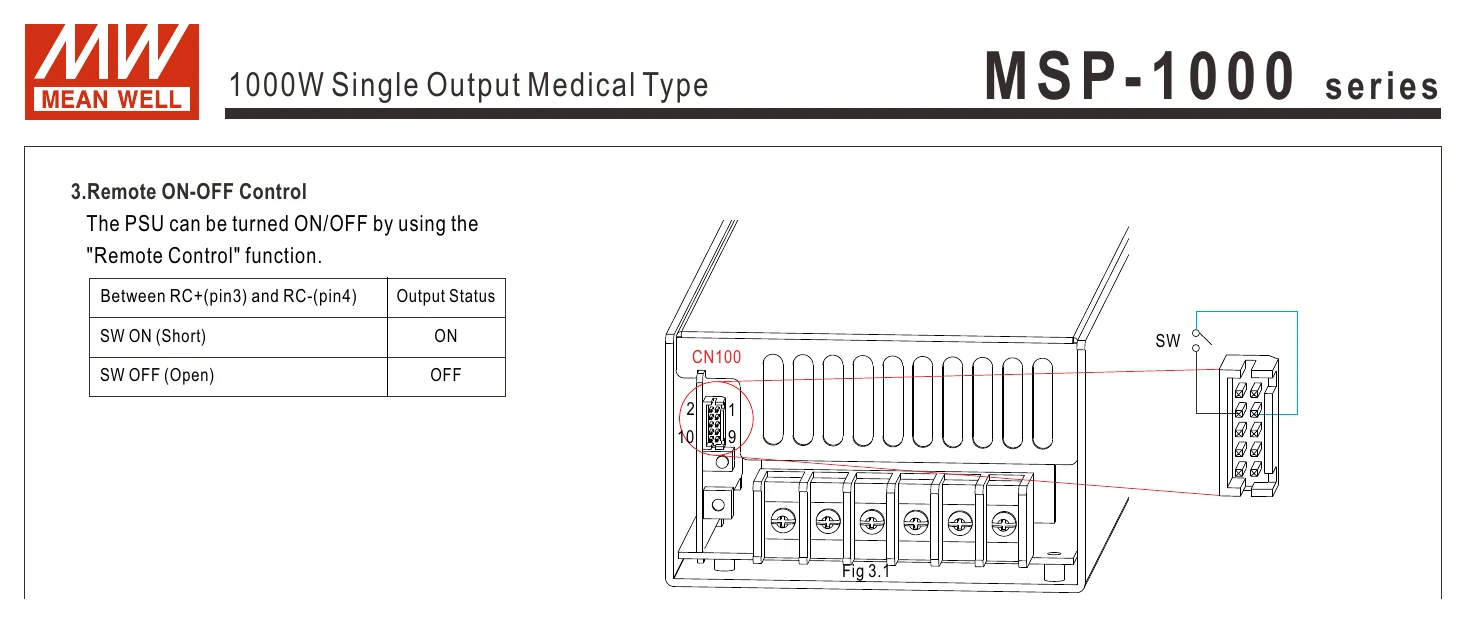

- REMOTE ON-OFF CONTROL
- Power ON : short; Power OFF : open. Please refer to the Function Manual.

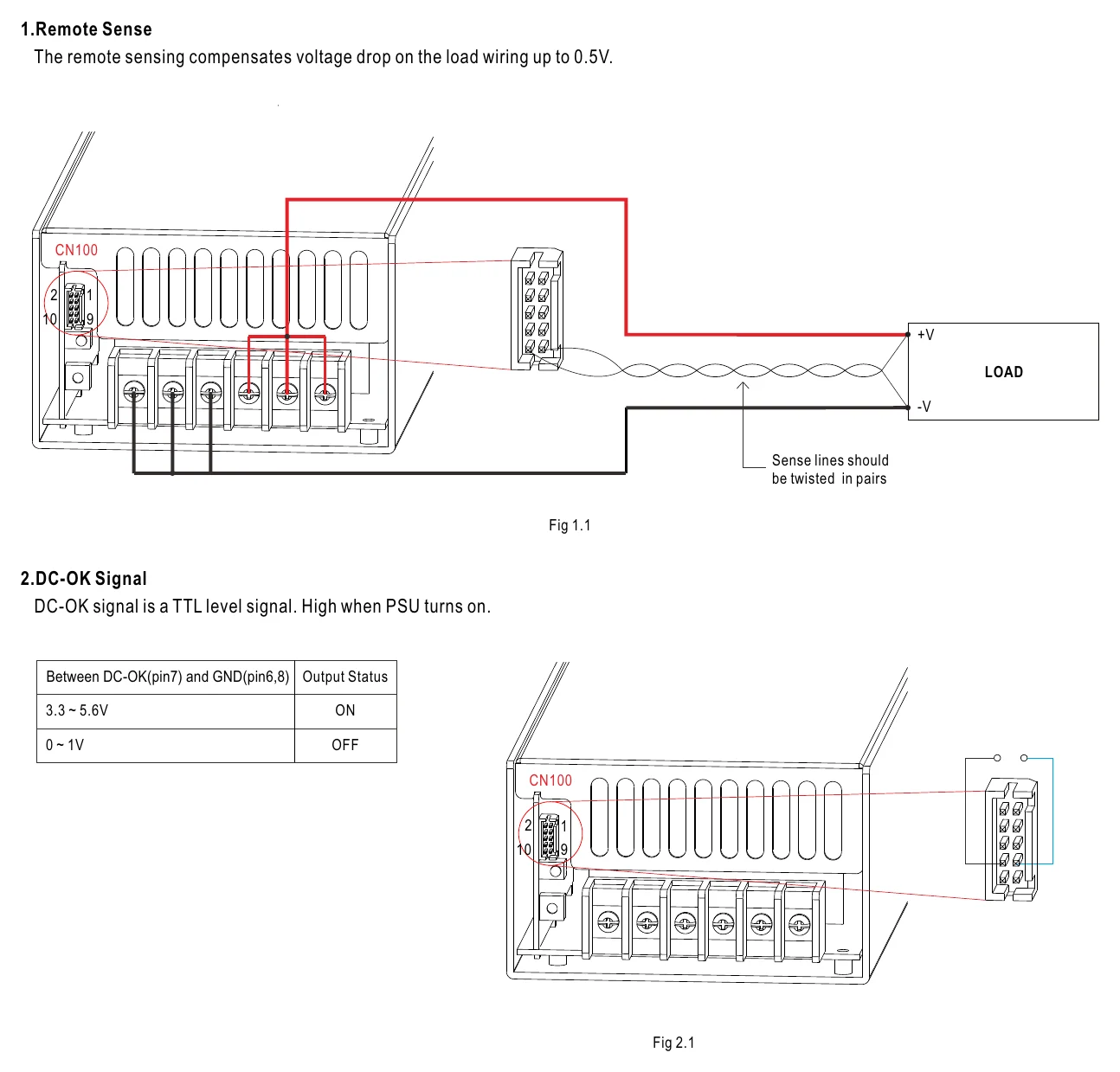

- REMOTE SENSE
- Compensate voltage drop on the load wiring up to 0.5V. Please refer to the Function Manual.
- DC-OK SIGNAL
- The TTL signal out, PSU turn on = 3.3 ~ 5.6V ; PSU turn off = 0 ~ 1V. Please refer to the Function Manual.
- 5V STANDBY
- 5VSB : 5V@0.3A ; tolerance±5%, ripple : 50mVp-p(max.)
- FAN CONTROL
- Fan on/off by NTC(RT50) or 30% load min.
ENVIRONMENT
- WORKING TEMP.

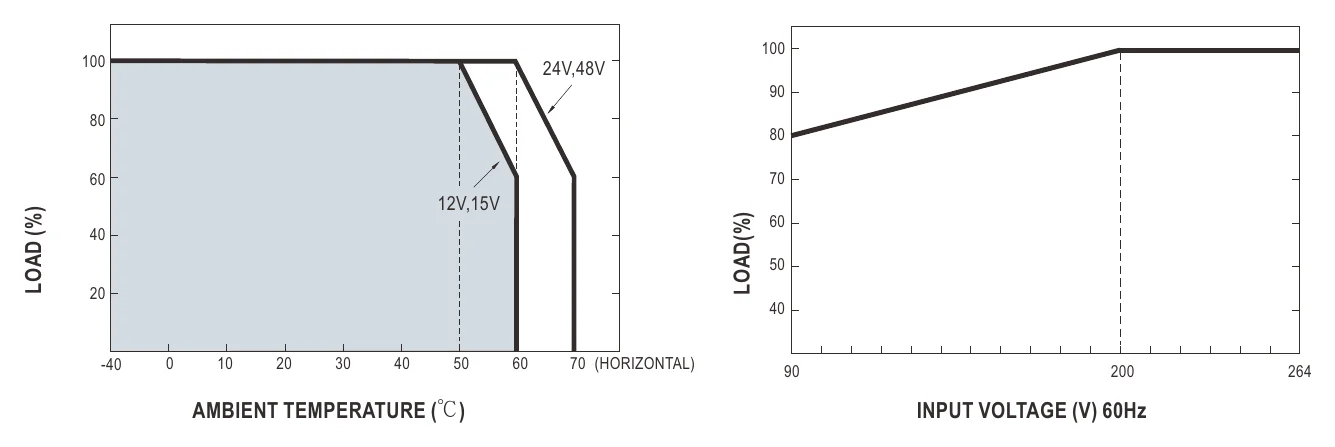

- -40 ~ +70℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +85℃, 10 ~ 95% RH non-condensing
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- IEC 60601-1:2005+A1+A2, ANSI/AAMI ES60601-1:2005+A2, CAN/CSA C22.2 No. 60601-1:2014+A2, EAC TP TC 004 approved; Design refer to BS EN/EN60335-1, BS EN/EN 62368-1(by request)
- ISOLATION LEVEL
- Primary-Secondary: 2×MOPP, Primary-Earth: 1×MOPP, Secondary-Earth: 1×MOPP
- WITHSTAND VOLTAGE
- I/P-O/P:4.5KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
-
Parameter Standard Test Level Conducted BS EN/EN55011 (CISPR11) Class B Radiated BS EN/EN55011 (CISPR11) Class B Harmonic Current BS EN/EN61000-3-2 Class A Voltage Flicker BS EN/EN61000-3-3 - EMC IMMUNITY
-
BS EN/EN55035, BS EN/EN60601-1-2
Parameter Standard Test Level ESD BS EN/EN61000-4-2 Level 4, 15KV air; Level 4, 8KV contact Radiated BS EN/EN61000-4-3 Level 3 EFT / Burst BS EN/EN61000-4-4 Level 3 Surge BS EN/EN61000-4-5 Level 4, 2KV/Line-Line 4KV/Line-Earth Conducted BS EN/EN61000-4-6 Level 3 Magnetic Field BS EN/EN61000-4-8 Level 4 Voltage Dips and Interruptions BS EN/EN61000-4-11 100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods
OTHERS
- MTBF
- 850.5K hrs min. Telcordia SR-332 (Bellcore) ; 105.8K hrs min. MIL-HDBK-217F (25℃)

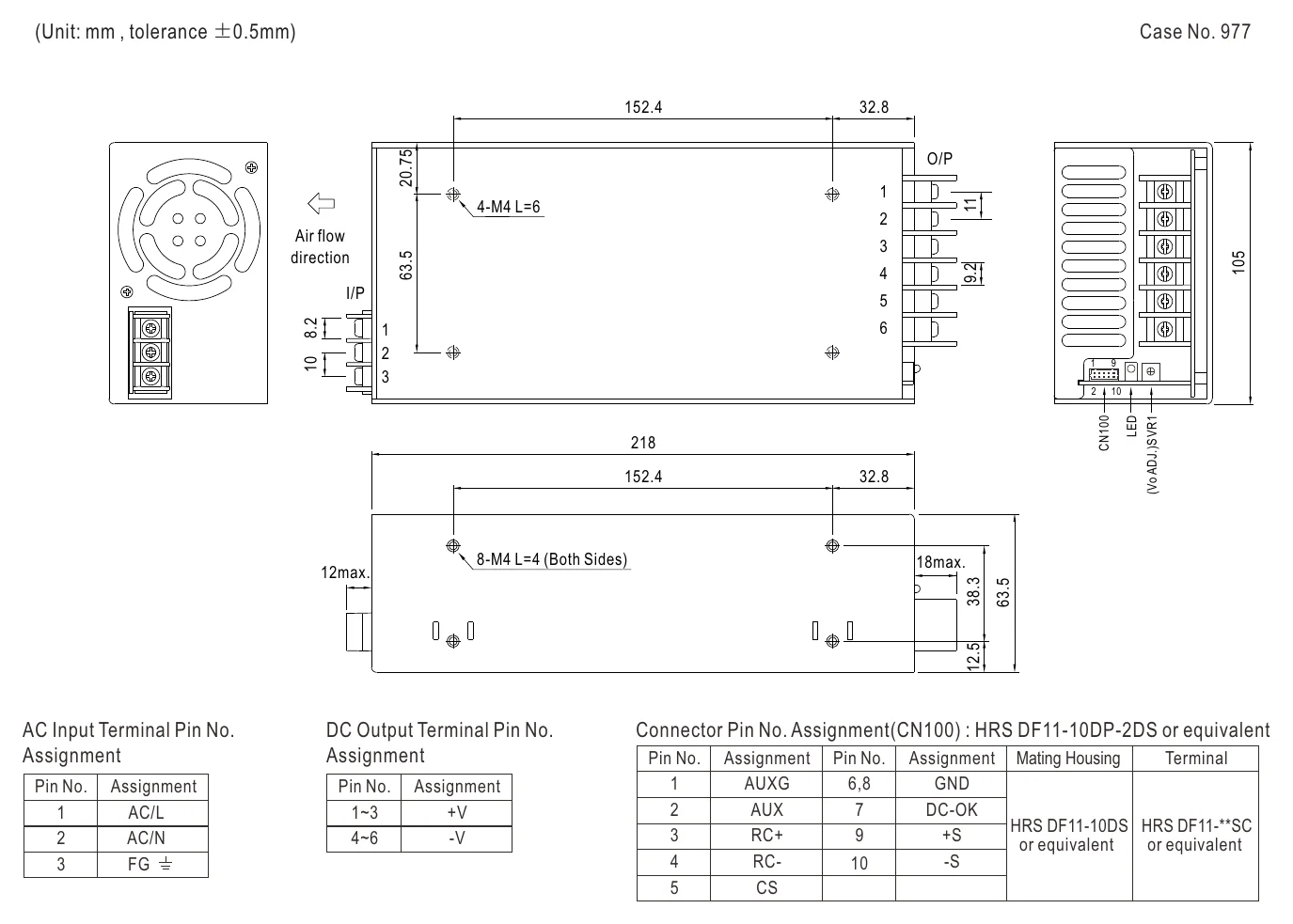

- DIMENSION
- 218*105*63.5mm (L*W*H)
- PACKING
- 1.53Kg;8pcs/13.3Kg/1.34CUFT
Test conditions and notes9
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. Derating may be needed under low input voltages. Please check the derating curve for more details.
- 5. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
- 6. No load power consumption<0.75W when RC+ & RC- (CN100 pin3,4) open.
- 7. When the input voltage is less than 40VAC, the SPS may exhibit degradation of performance. The final product manufacturers must re-confirm this deviation that does not affect basic safety or essential performance.
- 8. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*700mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies." (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

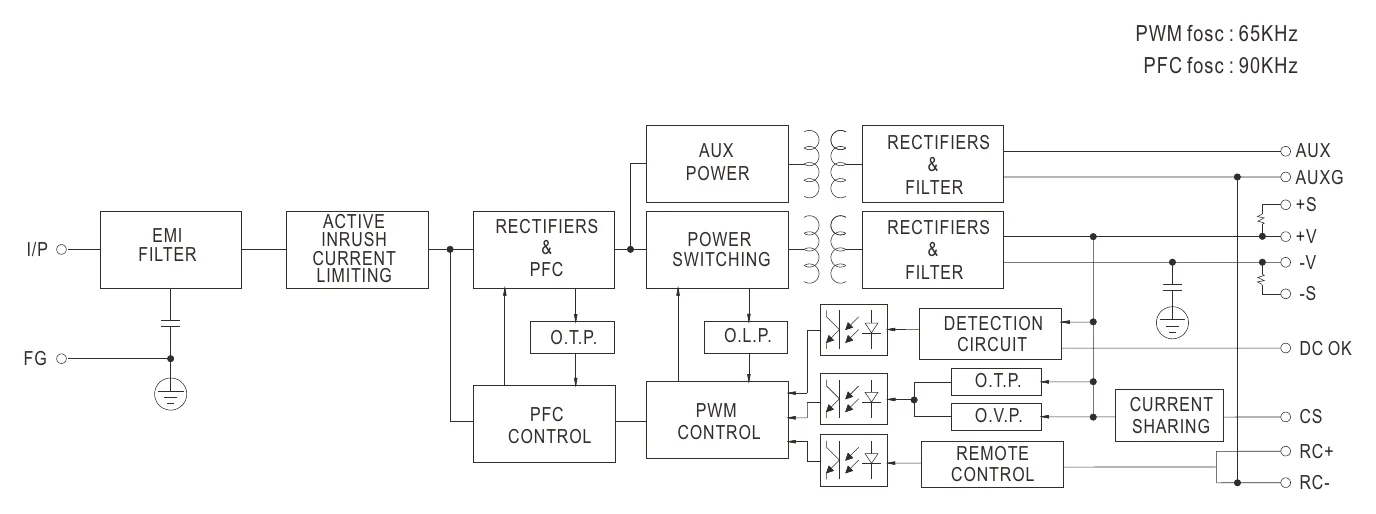

Technical drawings
Typical applications
- MRI scanner
- CT and PET scanner
- Medical bed
- Surgery table
- Medical measurement device
Downloads
Datasheet1
Certificates4
Test reports1
Catalogues1
FAQ
Can I use the MSP-1000-24 for a 24V industrial automation or control system?
Yes, this model is a constant voltage 24V supply rated for 42A and 1008W. That makes it suitable for larger 24V automation and control systems that need significantly more power than standard lower-wattage 24V supplies.
Is the MSP-1000-24 a fit for 24V sensors, actuators, and control devices on one DC bus?
It can support a 24V DC bus feeding multiple sensors, actuators, and control devices if the combined demand remains within 42A and 1008W. The 90-264VAC input range also allows use across a broad AC input range.
Can this model power a 24V embedded or edge-computing cabinet with supporting peripherals?
It can be used for a 24V embedded or edge cabinet when all connected 24V loads together stay within 42A and 1008W. Its constant voltage output is intended for equipment designed around a regulated 24V DC supply.
Would the MSP-1000-24 work for 24V medical or laboratory platforms with higher power demand?
It can be considered for 24V medical or laboratory platforms because it is medical safety approved to IEC 60601-1, ANSI/AAMI ES60601-1 and CAN/CSA C22.2 No. 60601-1, with EAC approval. From an electrical standpoint, the load needs to match the 24V output and remain within the 42A and 1008W limits.
Is the MSP-1000-24 suitable for outdoor environments or only indoor use?
The operating temperature range is -40°C to +70°C, with output derating at higher ambient temperatures per the derating curve. No IP rating appears in the provided specs, so weather exposure or outdoor enclosure suitability cannot be confirmed from this data alone.
How does the MSP-1000-24 compare with other 24V MSP models?
Within the MSP-1000 series covered by this spec sheet, the MSP-1000-24 is the only 24V model, rated 1008W at 42A. The other versions are 12V at 80A (960W), 15V at 64A (960W) and 48V at 21A (1008W); ratings of other MSP series are not part of this sheet.
