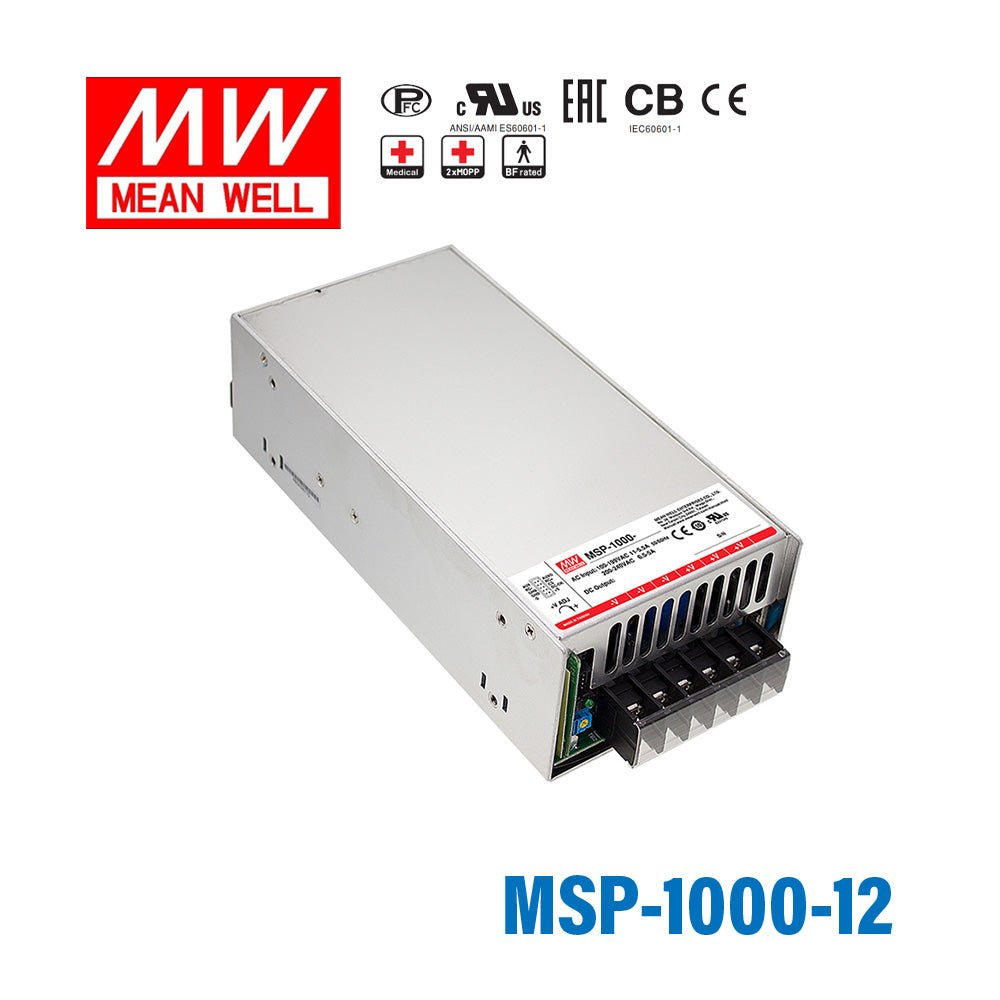

Mean Well MSP-1000-12 Power Supply 960W 12V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MSP-1000-12 Power Supply 960W 12V
Description
Description
Features
| Universal AC input / Full range |
| Built-in active PFC function, PF>0.95 |
| High efficiency up to 94% |
| Withstand 300VAC surge input for 5 seconds |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Medical safety approved (2xMOOP) |
| Built-in cooling Fan ON-OFF control |
| Built-in DC OK signal |
| Built-in remote ON-OFF control |
| No load power consumption<0.75W |
| Standby 5V@0.3A |
| Built-in remote sense function |
| Current sharing up to 4000W (3+1) |
| 5 years warranty |
General Specification
| AC input voltage range | 90~264VAC ; 120~370VDC |
| AC inrush current (max.) | 20A/115VAC 40A/230VAC |
| Over current protection | 105% ~135% rated output power;Protection type : Constant current limiting for Vo=50 ~ 100% of rated voltage, recovers automatically after fault condition is removed |
| Over voltage protection | 110%~140% Protection type : Shut down o/p voltage, re-power on to recover |
| Withstand voltage | I/P-O/P:4.5KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC |
| Working temperature | -40~+70ºC |
| Safety standards | ANSI/AAMI ES60601-1, IEC60601-1 approved |
| EMC standards | Compliance to EN55011 (CISPR11) Class B, EN61000-3-2,-3 |
| Dimension (LxWxH)(mm) | 218x 105x 63.5 mm |
| Packing | 8pcs/13.3Kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesMSP Series
-
Power Rating960 Watt
-
Output Voltage12 Volt
-
Rated Current80 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length8.58 in
-
Width4.13 in
-
Height2.5 in
-
Weight3.37 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the MSP-1000-12 for a high-current 12V industrial automation system?
Yes, this model is built for constant voltage 12V output and provides up to 80A, with a total rating of 960W. That makes it suitable for large 12V automation loads that need substantially more current than lower-power 12V supplies.
Is the MSP-1000-12 suitable for 12V PLC panels, relays, and control peripherals with heavy total load?
It can be a fit for 12V control panels and peripheral groups when the combined requirement stays within 80A and 960W. The wide 90-264VAC input range is also useful where incoming AC power may vary by facility or region.
Can the MSP-1000-12 power a 12V communications or monitoring rack with many devices?
It can support dense 12V communications or monitoring equipment if the total draw does not exceed 80A at 12V. Compared with smaller 12V models in the series, this unit is intended for much higher aggregate load capacity.
Would this supply make sense for 12V medical equipment or mobile clinical carts with high DC demand?
It can be considered for 12V medical equipment because it is medical safety approved and certified to CB, CE, EAC, and UL. The main electrical fit is its 12V constant voltage output with up to 80A available and 960W total power.
Is the MSP-1000-12 rated for outdoor installation?
The unit has an operating temperature range of -40°C to +70°C, so it is specified for a broad temperature envelope. No IP rating is listed in the provided specs, so outdoor or weather-exposed use should not be assumed from this information alone.
How does the MSP-1000-12 compare with other 12V MSP models?
The listed 12V MSP models are MSP-100-12 at 102W and 8.5A, MSP-200-12 at 200.4W and 16.7A, MSP-300-12 at 324W and 27A, MSP-450-12 at 450W and 37.5A, MSP-600-12 at 636W and 53A, MSP-1000-12 at 960W and 80A, and MSP-1600-12 at 1500W and 125A. The MSP-1000-12 sits near the high end of that 12V range, below only the MSP-1600-12 in listed output capacity.
