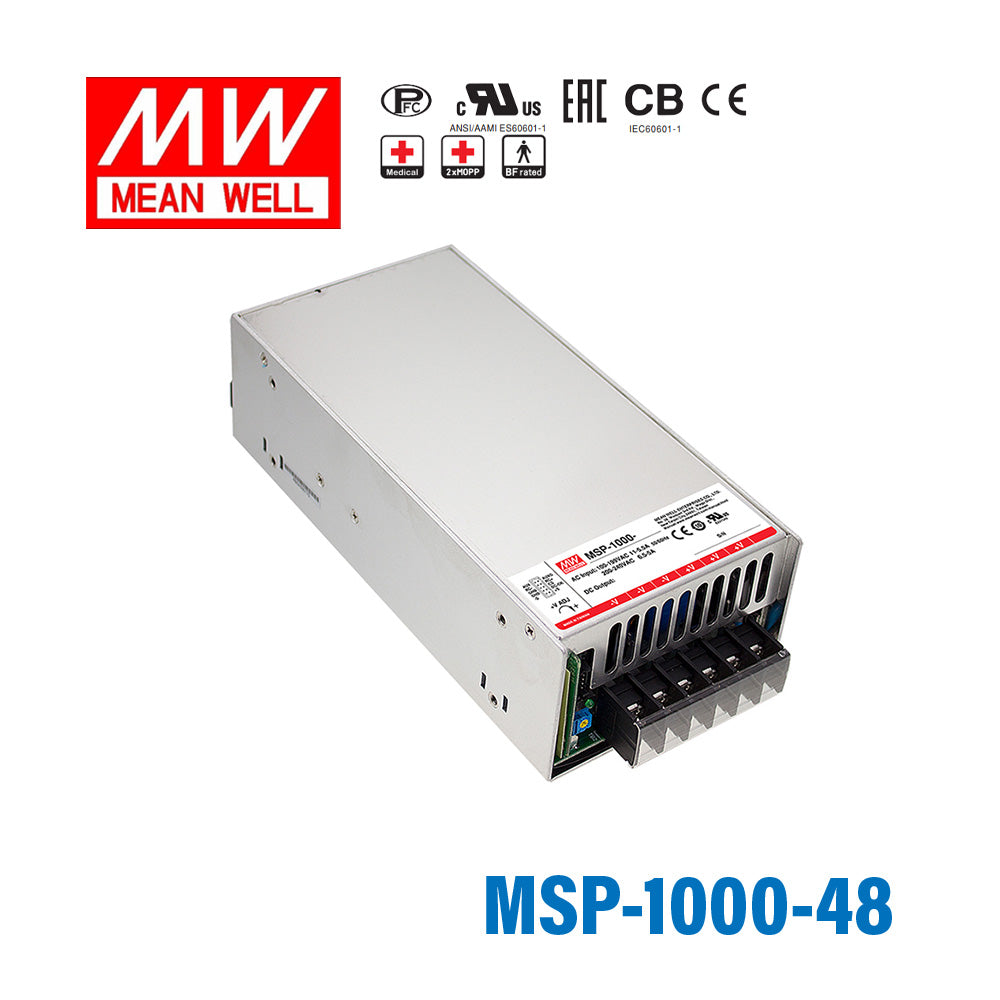

Mean Well MSP-1000-48 Power Supply 1008W 48V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MSP-1000-48 Power Supply 1008W 48V
Description
Description
Features
| Universal AC input / Full range |
| Built-in active PFC function, PF>0.95 |
| High efficiency up to 94% |
| Withstand 300VAC surge input for 5 seconds |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Medical safety approved (2xMOOP) |
| Built-in cooling Fan ON-OFF control |
| Built-in DC OK signal |
| Built-in remote ON-OFF control |
| No load power consumption<0.75W |
| Standby 5V@0.3A |
| Built-in remote sense function |
| Current sharing up to 4000W (3+1) |
| 5 years warranty |
General Specification
| AC input voltage range | 90~264VAC ; 120~370VDC |
| AC inrush current (max.) | 20A/115VAC 40A/230VAC |
| Over current protection | 105% ~135% rated output power;Protection type : Constant current limiting for Vo=50 ~ 100% of rated voltage, recovers automatically after fault condition is removed |
| Over voltage protection | 110%~140% Protection type : Shut down o/p voltage, re-power on to recover |
| Withstand voltage | I/P-O/P:4.5KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC |
| Working temperature | -40~+70ºC |
| Safety standards | ANSI/AAMI ES60601-1, IEC60601-1 approved |
| EMC standards | Compliance to EN55011 (CISPR11) Class B, EN61000-3-2,-3 |
| Dimension (LxWxH)(mm) | 218x 105x 63.5 mm |
| Packing | 8pcs/13.3Kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesMSP Series
-
Power Rating1008 Watt
-
Output Voltage48 Volt
-
Rated Current21 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length8.58 in
-
Width4.13 in
-
Height2.5 in
-
Weight3.37 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the MSP-1000-48 for a 48V industrial automation cabinet with multiple loads?
This model is a constant-voltage 48V supply rated for 1008W and 21A, so it fits 48V systems that combine several loads on one DC bus. It is better suited to higher-power 48V automation equipment than lower-output models in the series.
Is the MSP-1000-48 suitable for powering a 48V embedded or edge computing system?
It can be a fit for embedded or edge systems that require a regulated 48V DC source and have a higher total power draw, since the unit is rated for 1008W at 21A. The wide 90-264VAC input also helps when the AC source varies across sites or regions.
Can this power supply support a centralized 48V DC power bus in an IT or communications rack?
For equipment designed to run from constant-voltage 48V DC, this unit provides up to 1008W and 21A from a single supply. That makes it appropriate for centralized 48V distribution where the connected load stays within those output limits.
How does the MSP-1000-48 compare with the other MSP-1000 models?
Within the MSP-1000 group, the 12V model is 960W at 80A, the 15V model is 960W at 64A, the 24V model is 1008W at 42A, and this 48V model is 1008W at 21A. The main difference is the output voltage and matching current capacity for each version, while all are high-power members of the same series.
Is the MSP-1000-48 appropriate for harsh indoor or exposed outdoor environments?
The published operating temperature range is -40°C to +70°C, so the temperature specification is broad for demanding environments. The provided specs do not list an IP rating, so dust and water protection are not specified here.
Other MSP-1000 Models
3 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well MSP-1000-24 Power Supply 1008W 24V | 1008W | 24V | 42A | Indoor | $246.42 | View |
| Mean Well MSP-1000-15 Power Supply 960W 15V | 960W | 15V | 64A | Indoor | $248.01 | View |
| Mean Well MSP-1000-12 Power Supply 960W 12V | 960W | 12V | 80A | Indoor | $246.42 | View |
