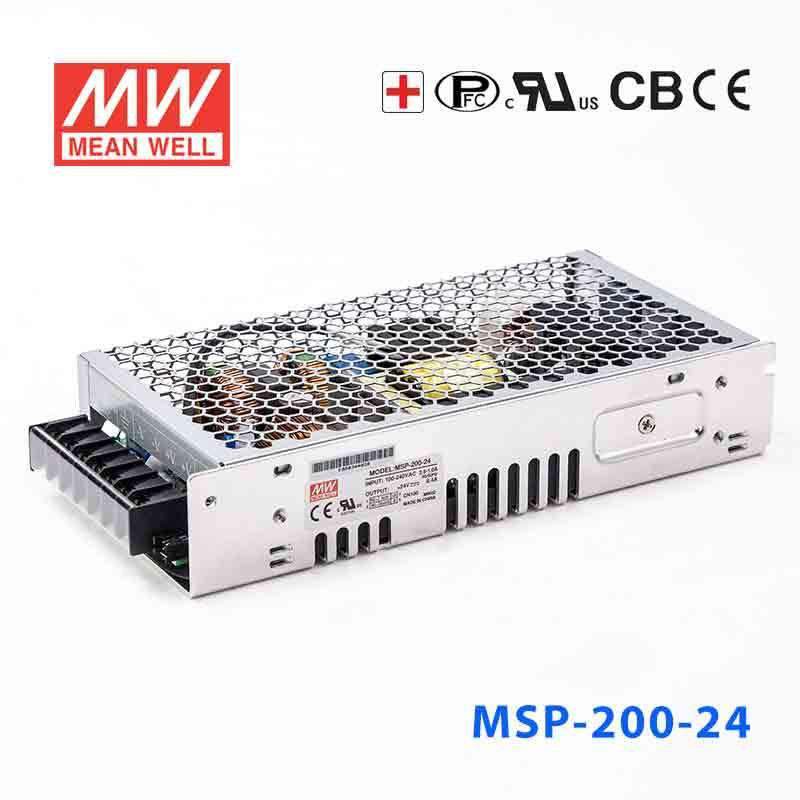

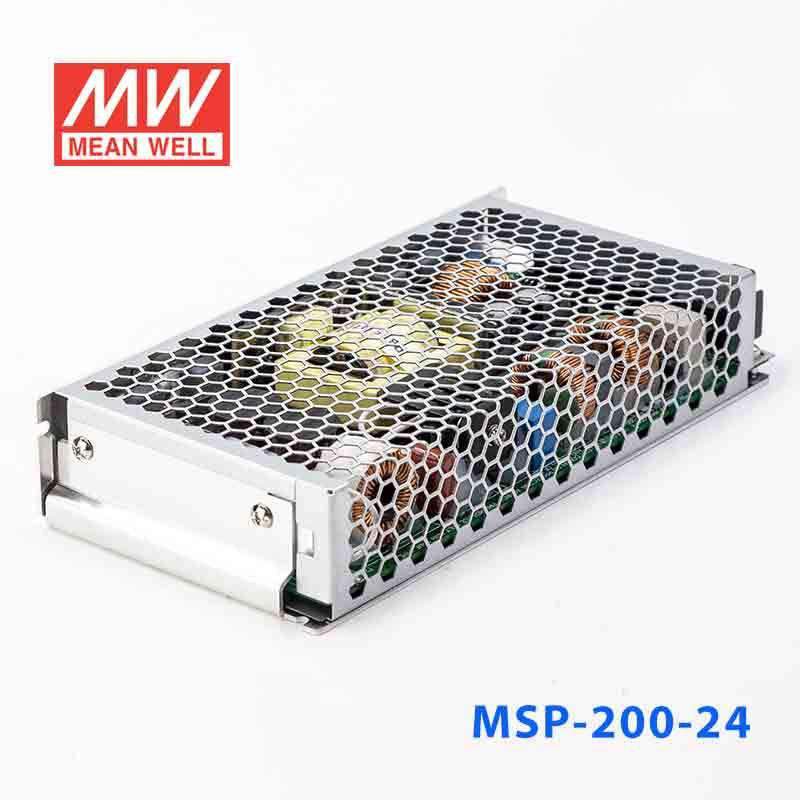

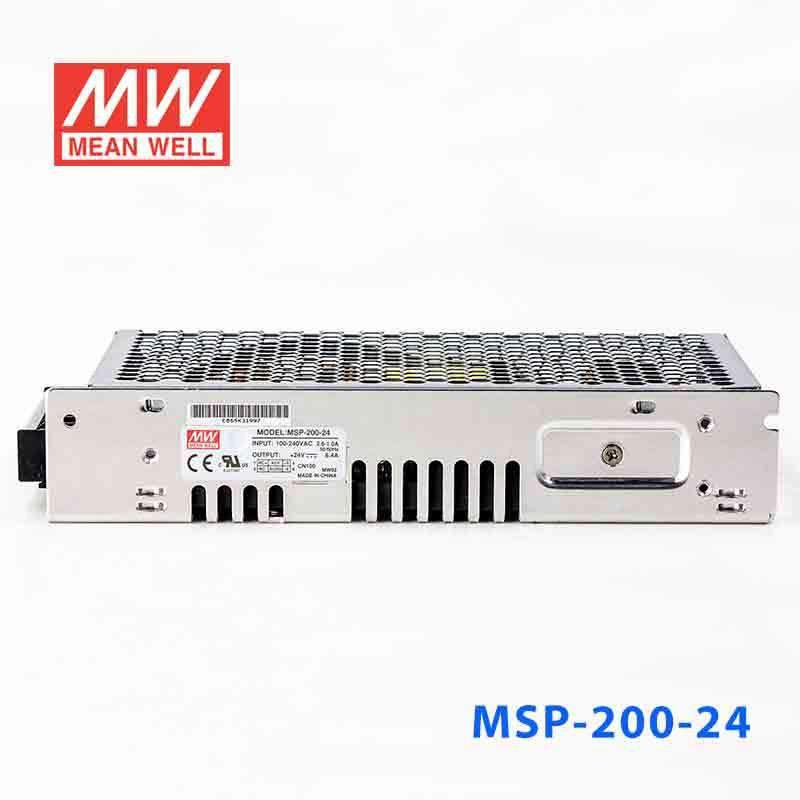

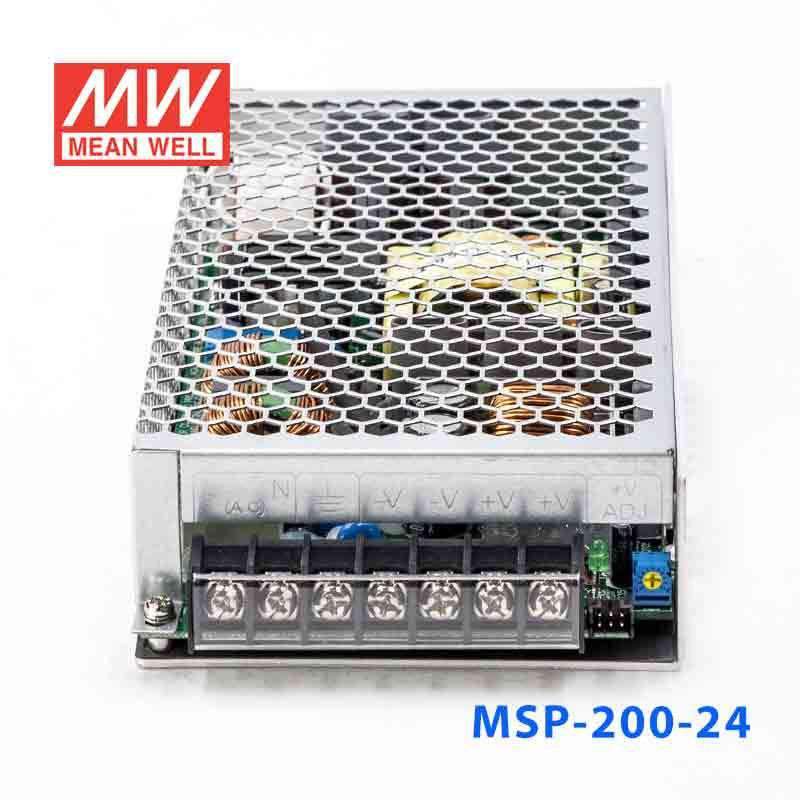

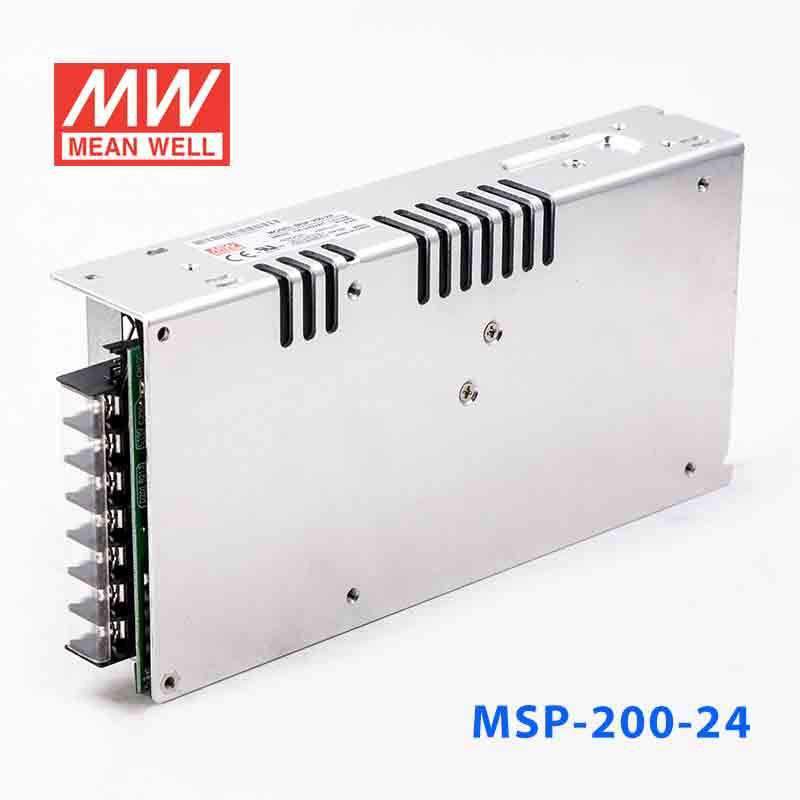

Mean Well MSP-200-24 Power Supply 201.6W 24V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MSP-200-24 Power Supply 201.6W 24V
The MSP-200 is a 200W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 4KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesMSP Series
-
Power Rating201.6 Watt
-
Output Voltage24 Volt
-
Rated Current8.4 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length7.83 in
-
Width3.86 in
-
Height1.5 in
-
Weight1.7 lb
::specification::
Frequently Asked Questions
Can I use the MSP-200-24 for a 24V PLC or industrial I/O system?
Yes, this model is a constant-voltage 24V supply rated for 201.6W and 8.4A, which aligns well with many 24V PLC, I/O, and control applications. It is intended for systems that need a regulated 24V bus rather than a lower- or higher-voltage rail.
Is the MSP-200-24 suitable for powering 24V sensors, relays, and control accessories together?
It can be used for a grouped 24V control load as long as the total draw remains within 201.6W and 8.4A. That makes it practical for compact automation assemblies built around standard 24V DC power.
Can the MSP-200-24 work for 24V embedded or industrial communication equipment?
For equipment that expects constant-voltage 24V DC input, this supply provides a regulated 24V output with up to 8.4A available. The 85-264VAC input range also supports use in installations with a wide AC input range.
How does the MSP-200-24 compare with the rest of the MSP-200 series?
The MSP-200 variants are 3.3V at 132W and 40A, 5V at 175W and 35A, 7.5V at 200.3W and 26.7A, 12V at 200.4W and 16.7A, 15V at 201W and 13.4A, 24V at 201.6W and 8.4A, 36V at 205.2W and 5.7A, and 48V at 206.4W and 4.3A. This 24V version is the one matched to standard 24V control systems while staying in the same approximate power class as the other MSP-200 models.
Can this 24V supply be used in hot or cold industrial spaces?
The stated operating temperature range is -40°C to +70°C, so it is specified for a wide thermal range. The provided specs do not include an IP rating, so resistance to dust or water exposure is not defined here.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other MSP-200 Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well MSP-200-7.5 Power Supply 200.3W 7.5V | 200.3W | 7.5V | 26.7A | Indoor | $93.83 | View |
| Mean Well MSP-200-5 Power Supply 175W 5V | 175W | 5V | 35A | Indoor | $93.83 | View |
| Mean Well MSP-200-48 Power Supply 206.4W 48V | 206.4W | 48V | 4.3A | Indoor | $93.83 | View |
| Mean Well MSP-200-36 Power Supply 205.2W 36V | 205.2W | 36V | 5.7A | Indoor | $93.83 | View |
| Mean Well MSP-200-3.3 Power Supply 132W 3.3V | 132W | 3.3V | 40A | Indoor | $93.83 | View |
| Mean Well MSP-200-15 Power Supply 201W 15V | 201W | 15V | 13.4A | Indoor | $93.83 | View |
| Mean Well MSP-200-12 Power Supply 200.4W 12V | 200.4W | 12V | 16.7A | Indoor | $93.83 | View |
