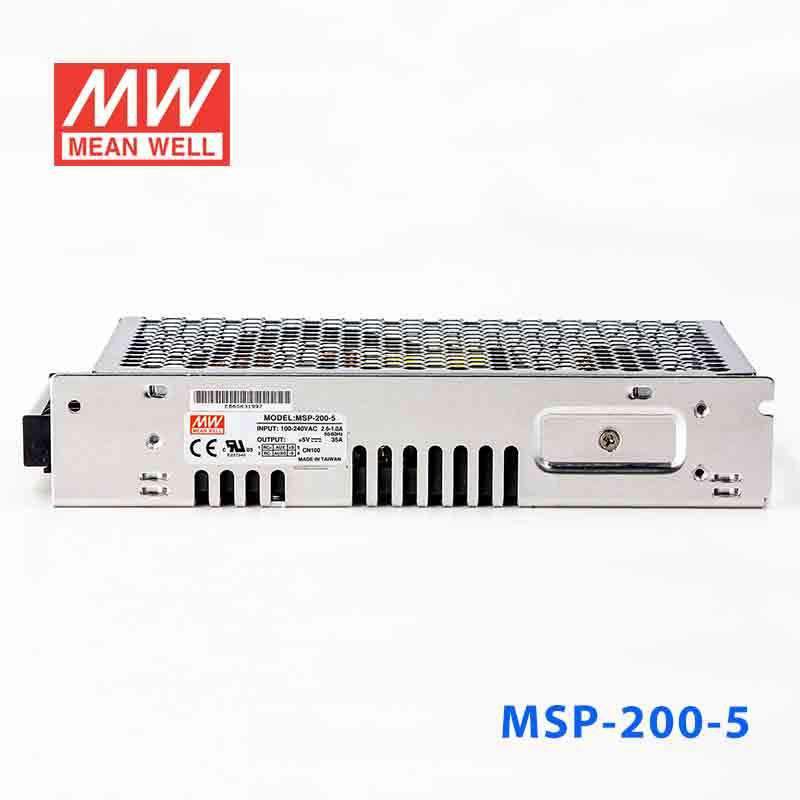

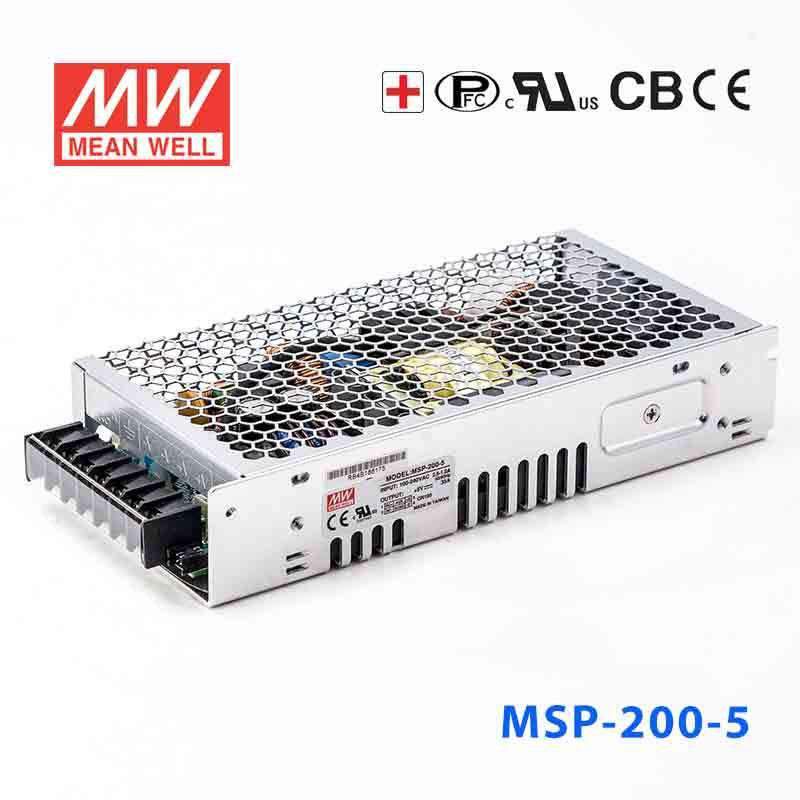

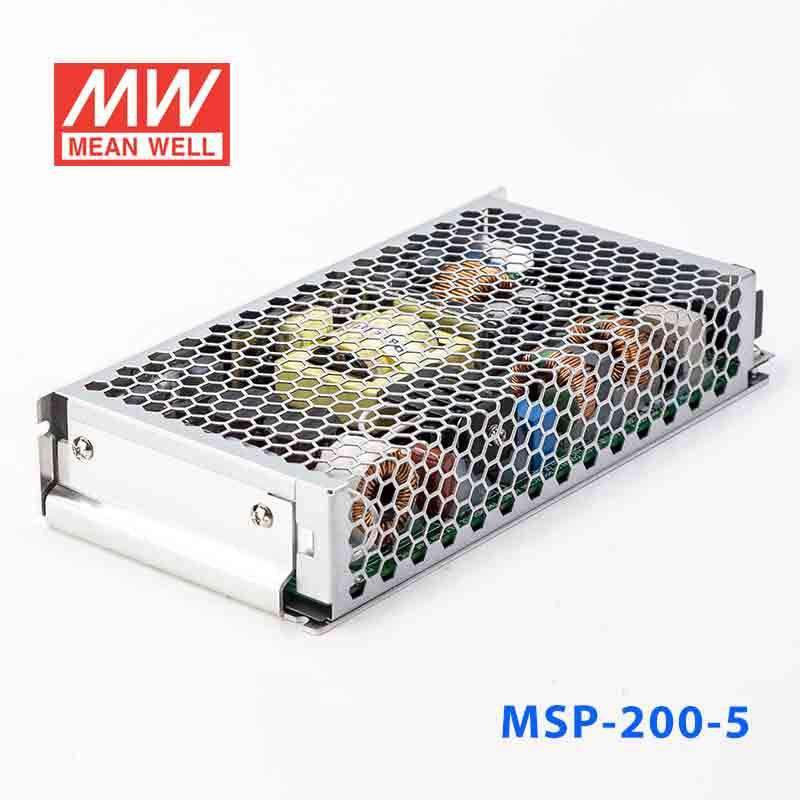

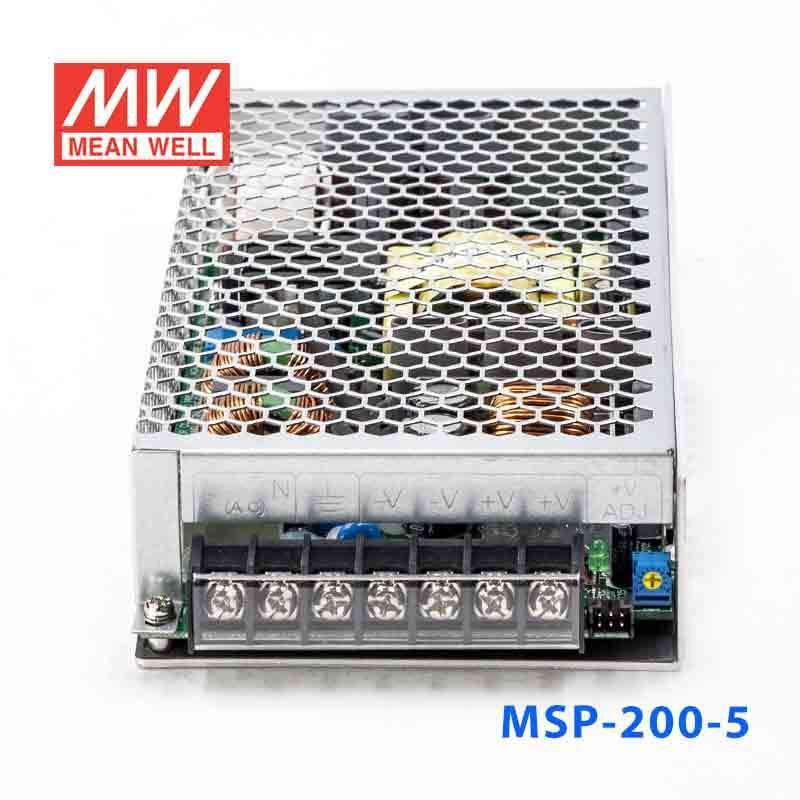

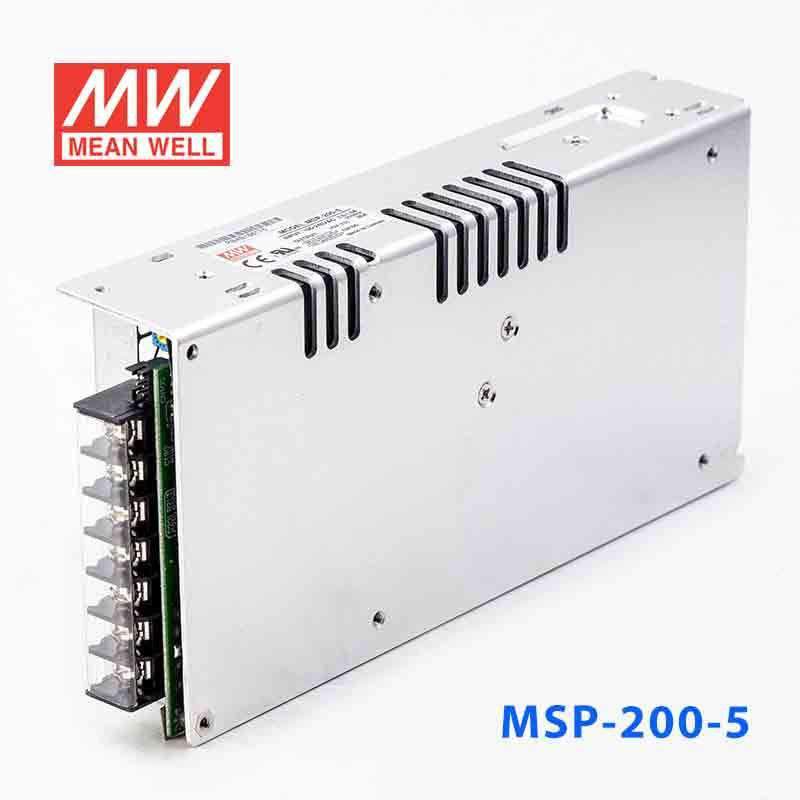

Mean Well MSP-200-5 Power Supply 175W 5V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MSP-200-5 Power Supply 175W 5V
Description
Description
Features
| Universal AC input / Full range |
| Built-in active PFC function, PF>0.95 |
| High efficiency up to 89% |
| Withstand 300VAC surge input for 5 seconds |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Built-in constant current limiting circuit |
| Cooling by free air convection |
| 1U low profile 38mm |
| Medical safety approved (MOOP level) |
| Built-in remote ON-OFF control |
| No load power consumption<0.5W |
| Standby 5V@0.3A |
| Built-in remote sense function |
| 5 years warranty |
General Specification
| AC input voltage range | 85~264VAC ; 120~370VDC |
| AC inrush current (max.) | 35A/115VAC 70A/230VAC |
| Over current protection | 105% ~135% rated output power;Protection type : Constant current limiting for Vo=50 ~ 100% of rated voltage, recovers automatically after fault condition is removed |
| Over voltage protection | 110%~140% Protection type : Shut down o/p voltage, re-power on to recover |
| Withstand voltage | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC |
| Working temperature | -40~+70ºC (refer to output derating curve) |
| Safety standards | ANSI/AAMI ES60601-1, IEC60601-1 approved |
| EMC standards | Compliance to EN55011 (CISPR11) Class B, EN61000-3-2,-3 |
| Dimension (LxWxH)(mm) | 199x 98x 38 mm |
Specifications
Specifications
-
BrandMean Well
-
SeriesMSP Series
-
Power Rating175 Watt
-
Output Voltage5 Volt
-
Rated Current35 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length7.83 in
-
Width3.86 in
-
Height1.5 in
-
Weight1.7 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the MSP-200-5 for a 5V embedded computing or controller platform?
Yes, if the platform needs constant 5V DC and the full load stays within 35A and 175W. That makes it more suitable for higher-current 5V systems than lighter-load logic rails.
Is the MSP-200-5 suitable for powering a 5V industrial logic or backplane load?
It can be used where the equipment is designed for a regulated 5V constant voltage input. The available output is 5V at up to 35A, with a total power limit of 175W.
Can this model support 5V test, lab, or instrumentation equipment with higher current demand?
It is a fit for 5V equipment that needs more current headroom than smaller supplies provide, as long as the load remains within 35A and 175W. The 85-264VAC input can also simplify use in mixed AC input environments.
Is the MSP-200-5 appropriate for outdoor use or wide temperature ranges?
The temperature spec is -40°C to +70°C, so the operating range itself is broad. No IP rating is provided in these specs, which means the listing does not by itself confirm outdoor or wet-location suitability.
How does the MSP-200-5 compare to other MSP-200 voltage options?
In the MSP-200 range, outputs are 132W at 3.3V and 40A, 175W at 5V and 35A, 200.3W at 7.5V and 26.7A, 200.4W at 12V and 16.7A, 201W at 15V and 13.4A, 201.6W at 24V and 8.4A, 205.2W at 36V and 5.7A, and 206.4W at 48V and 4.3A. The MSP-200-5 is the high-current 5V option in that group, with lower wattage than the higher-voltage MSP-200 models.
