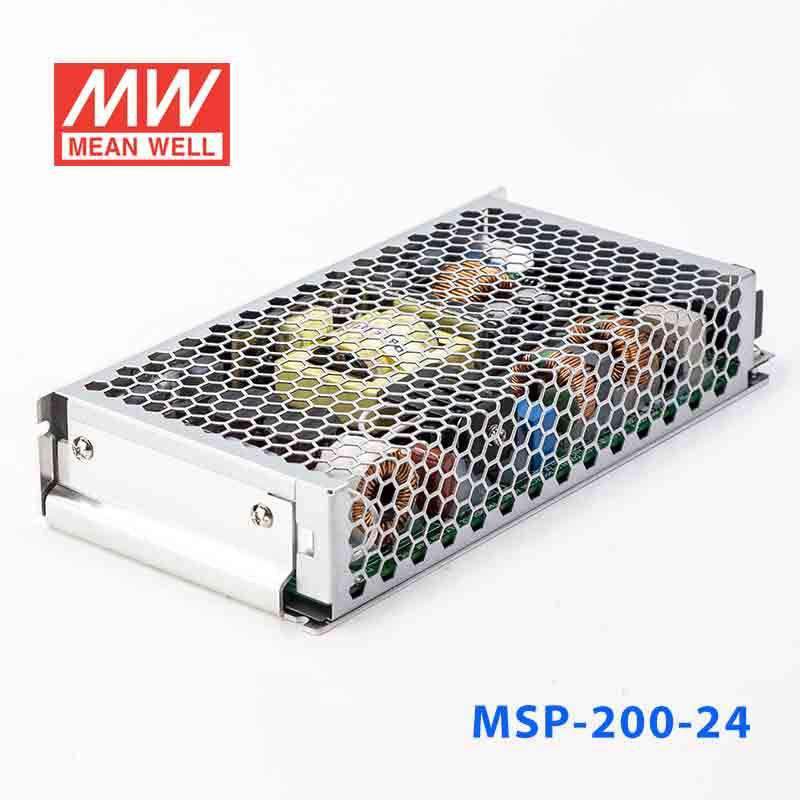

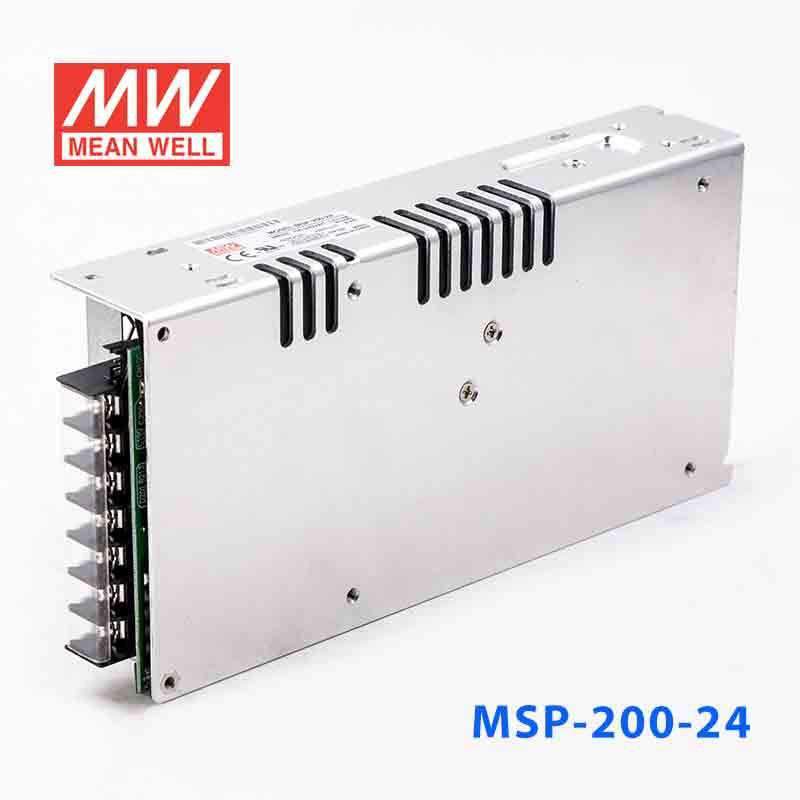

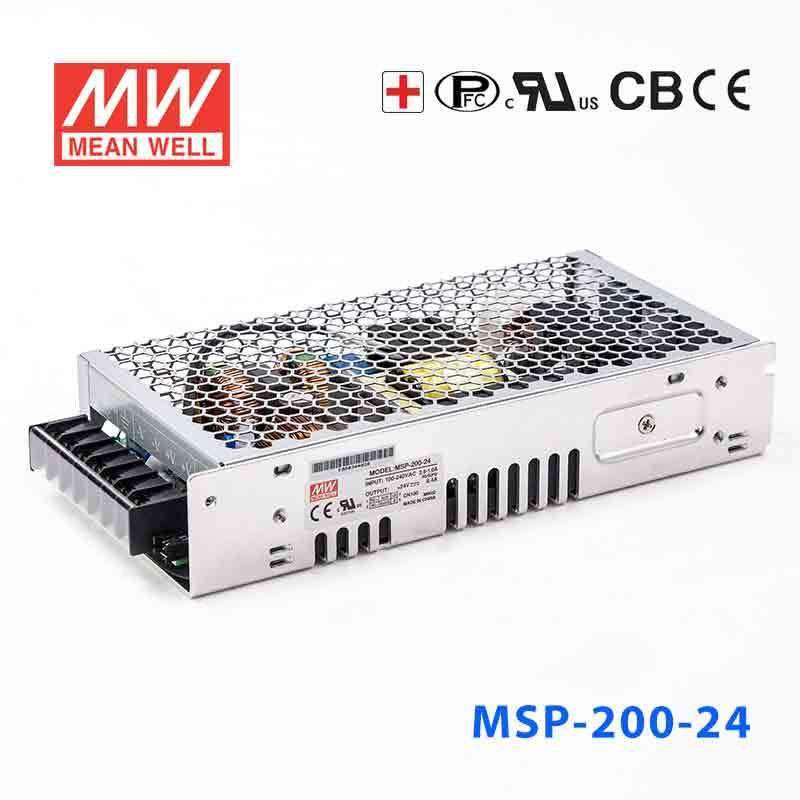

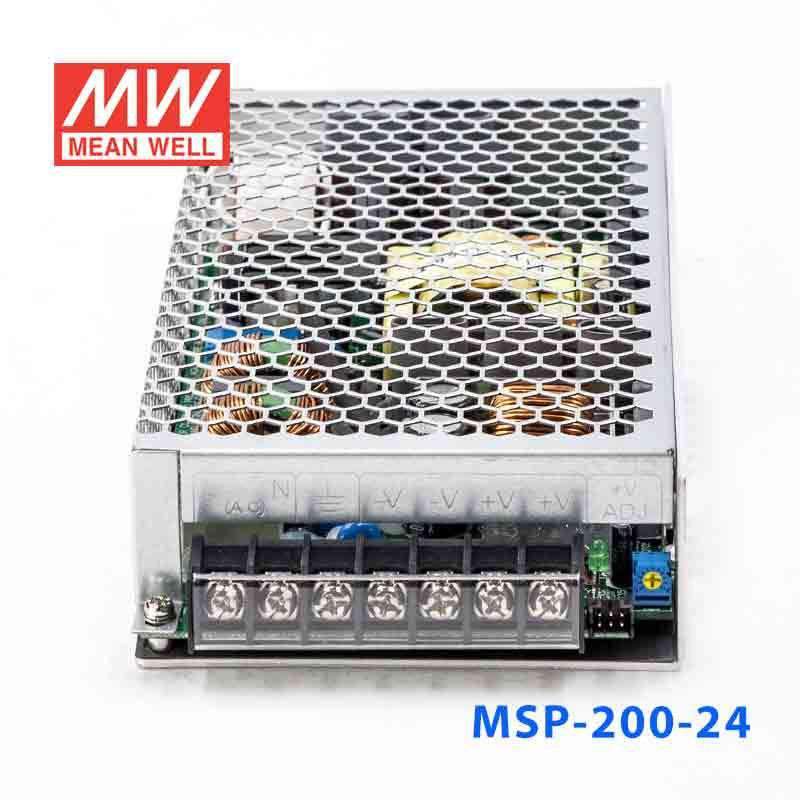

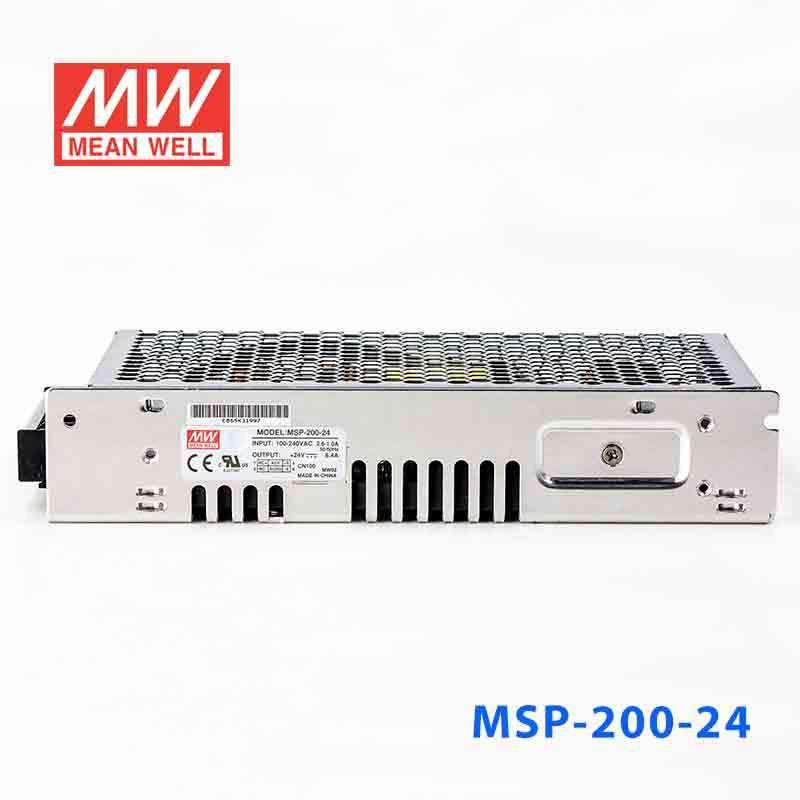

Mean Well MSP-200-24 Power Supply 201.6W 24V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MSP-200-24 Power Supply 201.6W 24V
Description
Description
Features
| Universal AC input / Full range |
| Built-in active PFC function, PF>0.95 |
| High efficiency up to 89% |
| Withstand 300VAC surge input for 5 seconds |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Built-in constant current limiting circuit |
| Cooling by free air convection |
| 1U low profile 38mm |
| Medical safety approved (MOOP level) |

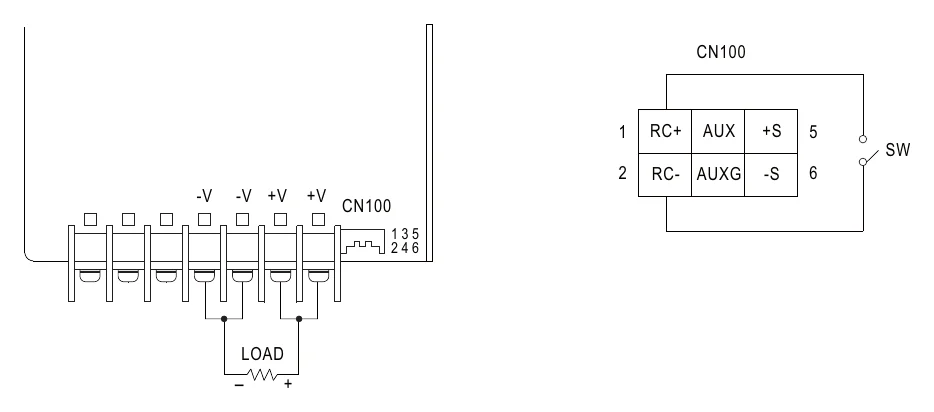

| Built-in remote ON-OFF control |
| No load power consumption<0.5W |
| Standby 5V@0.3A |

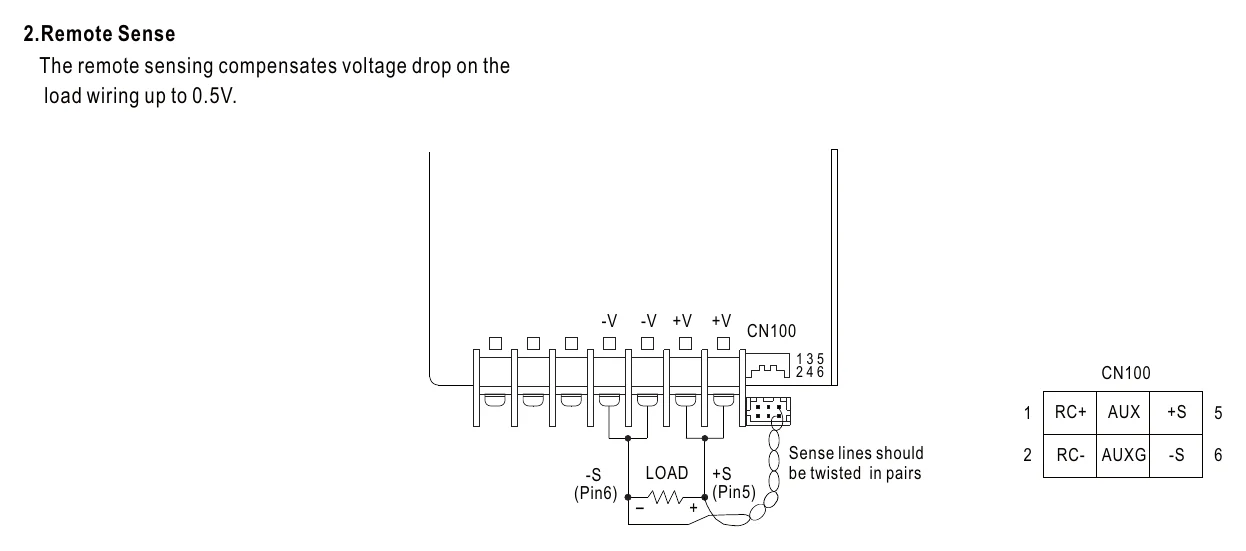

| Built-in remote sense function |
| 5 years warranty |
General Specification
| AC input voltage range | 85~264VAC ; 120~370VDC |
| AC inrush current (max.) | 35A/115VAC 70A/230VAC |
| Over current protection | 105% ~135% rated output power;Protection type : Constant current limiting for Vo=50 ~ 100% of rated voltage, recovers automatically after fault condition is removed |
| Over voltage protection | 110%~140% Protection type : Shut down o/p voltage, re-power on to recover |
| Withstand voltage | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC |

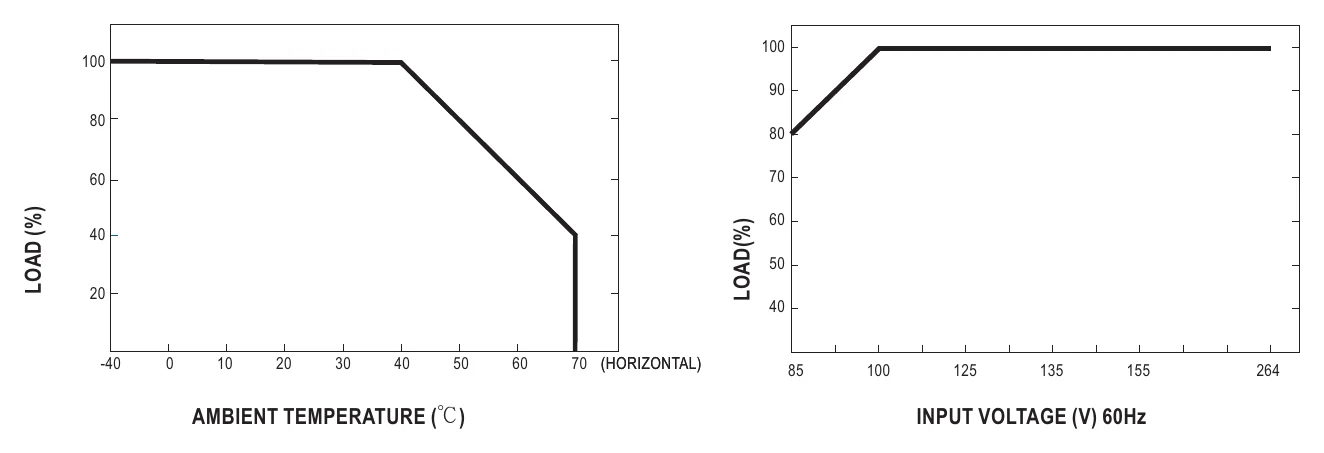

| Working temperature | -40~+70ºC (refer to output derating curve) |
| Safety standards | ANSI/AAMI ES60601-1, IEC60601-1 approved |
| EMC standards | Compliance to EN55011 (CISPR11) Class B, EN61000-3-2,-3 |

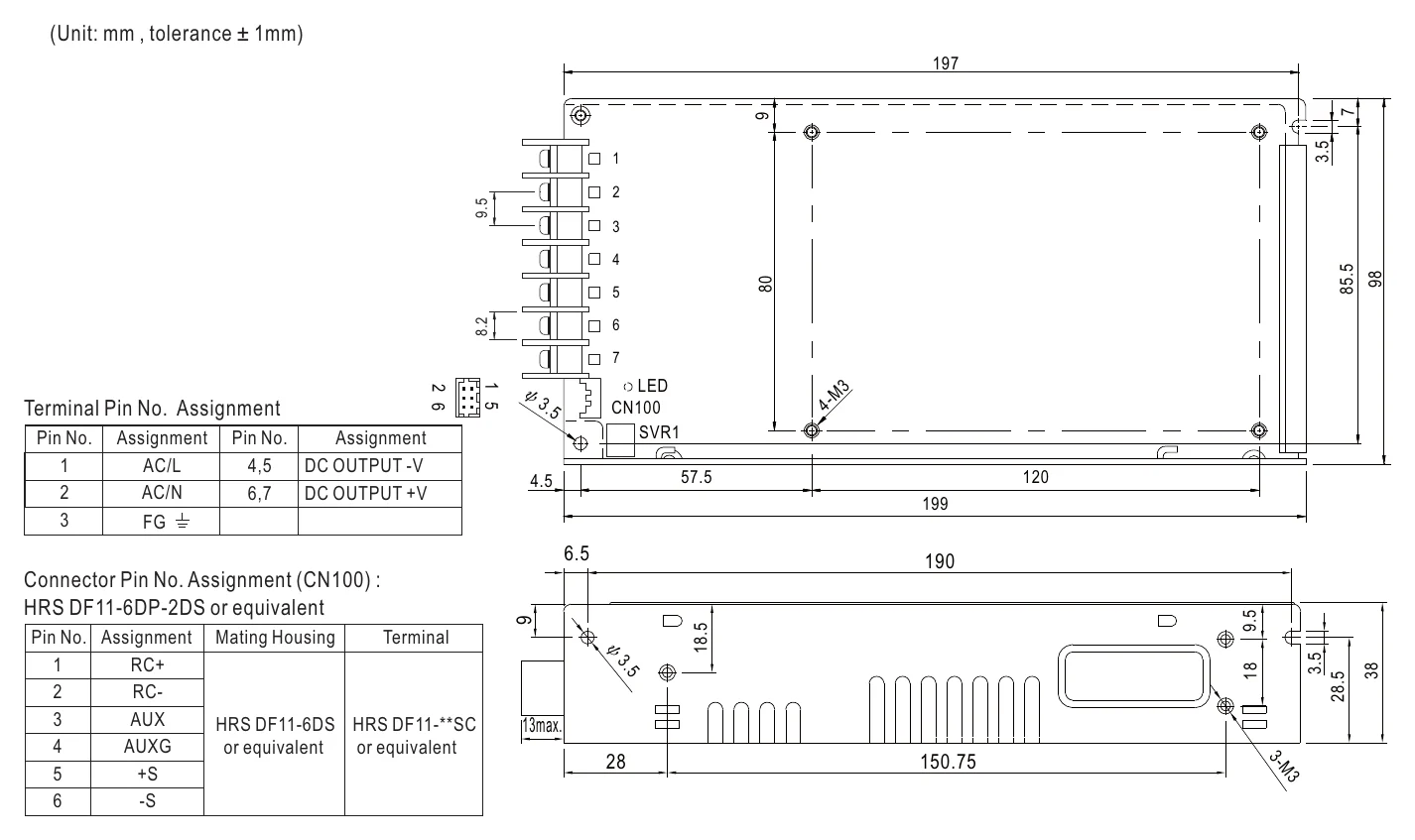

| Dimension (LxWxH)(mm) | 199x 98x 38 mm |
Specifications
Specifications
-
BrandMean Well
-
SeriesMSP Series
-
Power Rating201.6 Watt
-
Output Voltage24 Volt
-
Rated Current8.4 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length7.83 in
-
Width3.86 in
-
Height1.5 in
-
Weight1.7 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the MSP-200-24 for a 24V PLC or industrial I/O system?
Yes, this model is a constant-voltage 24V supply rated for 201.6W and 8.4A, which aligns well with many 24V PLC, I/O, and control applications. It is intended for systems that need a regulated 24V bus rather than a lower- or higher-voltage rail.
Is the MSP-200-24 suitable for powering 24V sensors, relays, and control accessories together?
It can be used for a grouped 24V control load as long as the total draw remains within 201.6W and 8.4A. That makes it practical for compact automation assemblies built around standard 24V DC power.
Can the MSP-200-24 work for 24V embedded or industrial communication equipment?
For equipment that expects constant-voltage 24V DC input, this supply provides a regulated 24V output with up to 8.4A available. The 85-264VAC input range also supports use in installations with a wide AC input range.
How does the MSP-200-24 compare with the rest of the MSP-200 series?
The MSP-200 variants are 3.3V at 132W and 40A, 5V at 175W and 35A, 7.5V at 200.3W and 26.7A, 12V at 200.4W and 16.7A, 15V at 201W and 13.4A, 24V at 201.6W and 8.4A, 36V at 205.2W and 5.7A, and 48V at 206.4W and 4.3A. This 24V version is the one matched to standard 24V control systems while staying in the same approximate power class as the other MSP-200 models.
Can this 24V supply be used in hot or cold industrial spaces?
The stated operating temperature range is -40°C to +70°C, so it is specified for a wide thermal range. The provided specs do not include an IP rating, so resistance to dust or water exposure is not defined here.
