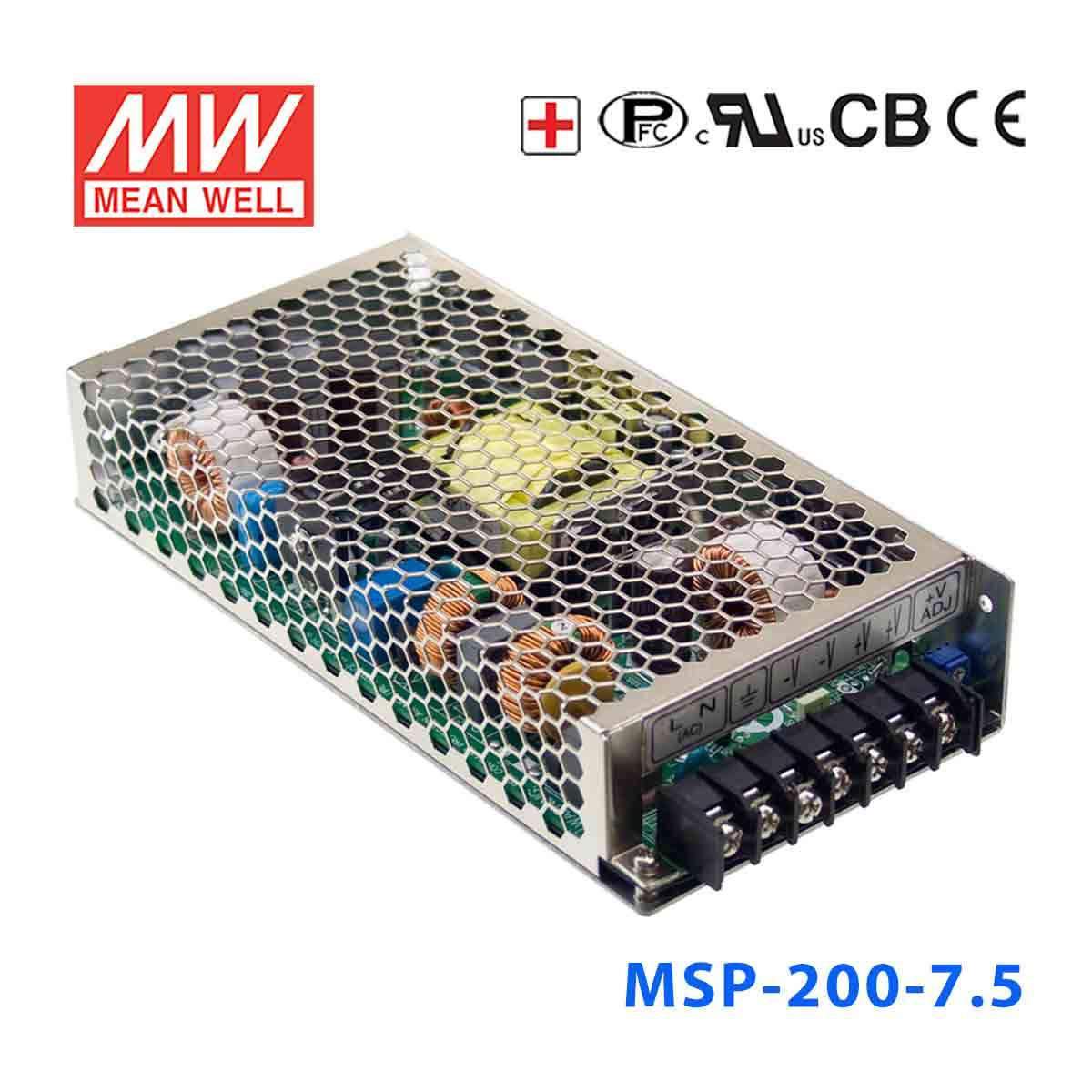

Mean Well MSP-200-7.5 Power Supply 200.3W 7.5V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MSP-200-7.5 Power Supply 200.3W 7.5V
Description
Description
Features
| Universal AC input / Full range |
| Built-in active PFC function, PF>0.95 |
| High efficiency up to 89% |
| Withstand 300VAC surge input for 5 seconds |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Built-in constant current limiting circuit |
| Cooling by free air convection |
| 1U low profile 38mm |
| Medical safety approved (MOOP level) |
| Built-in remote ON-OFF control |
| No load power consumption<0.5W |
| Standby 5V@0.3A |
| Built-in remote sense function |
| 5 years warranty |
General Specification
| AC input voltage range | 85~264VAC ; 120~370VDC |
| AC inrush current (max.) | 35A/115VAC 70A/230VAC |
| Over current protection | 105% ~135% rated output power;Protection type : Constant current limiting for Vo=50 ~ 100% of rated voltage, recovers automatically after fault condition is removed |
| Over voltage protection | 110%~140% Protection type : Shut down o/p voltage, re-power on to recover |
| Withstand voltage | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC |
| Working temperature | -40~+70ºC (refer to output derating curve) |
| Safety standards | ANSI/AAMI ES60601-1, IEC60601-1 approved |
| EMC standards | Compliance to EN55011 (CISPR11) Class B, EN61000-3-2,-3 |
| Dimension (LxWxH)(mm) | 199x 98x 38 mm |
Specifications
Specifications
-
BrandMean Well
-
SeriesMSP Series
-
Power Rating200.3 Watt
-
Output Voltage7.5 Volt
-
Rated Current26.7 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length7.83 in
-
Width3.86 in
-
Height1.5 in
-
Weight1.7 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the MSP-200-7.5 for a 7.5V embedded or industrial electronics load?
Yes, if the device is built for constant 7.5V DC input and the total draw stays within 26.7A and 200.3W. This makes it relevant for equipment that specifically needs a regulated 7.5V rail rather than 5V or 12V.
Is the MSP-200-7.5 suitable for legacy 7.5V control or instrumentation equipment?
It can be used for 7.5V equipment that requires a constant voltage supply and fits within the output limit. The rated output is 7.5V at 26.7A, with total power up to 200.3W.
Can this power supply support a 7.5V automation or test bench subsystem?
It is suitable where the subsystem expects stable 7.5V DC and the load remains under 26.7A and 200.3W. The 85-264VAC input is also useful when AC input conditions vary between locations.
Does the MSP-200-7.5 work in cold or hot operating environments?
Its specified operating range is -40°C to +70°C, so the temperature rating covers both low and high ambient conditions. The provided specs do not include an IP rating, so they do not establish outdoor or moisture-exposed use.
How does the MSP-200-7.5 fit within the MSP-200 lineup?
The MSP-200 family spans 132W at 3.3V and 40A, 175W at 5V and 35A, 200.3W at 7.5V and 26.7A, 200.4W at 12V and 16.7A, 201W at 15V and 13.4A, 201.6W at 24V and 8.4A, 205.2W at 36V and 5.7A, and 206.4W at 48V and 4.3A. The MSP-200-7.5 is the dedicated 7.5V version and sits near the middle of the family in both voltage and output power.
