Mean Well MSP-200-48 Power Supply 206.4W 48V
Notify me when it's back in stock
Your order will be processed within 24 hours

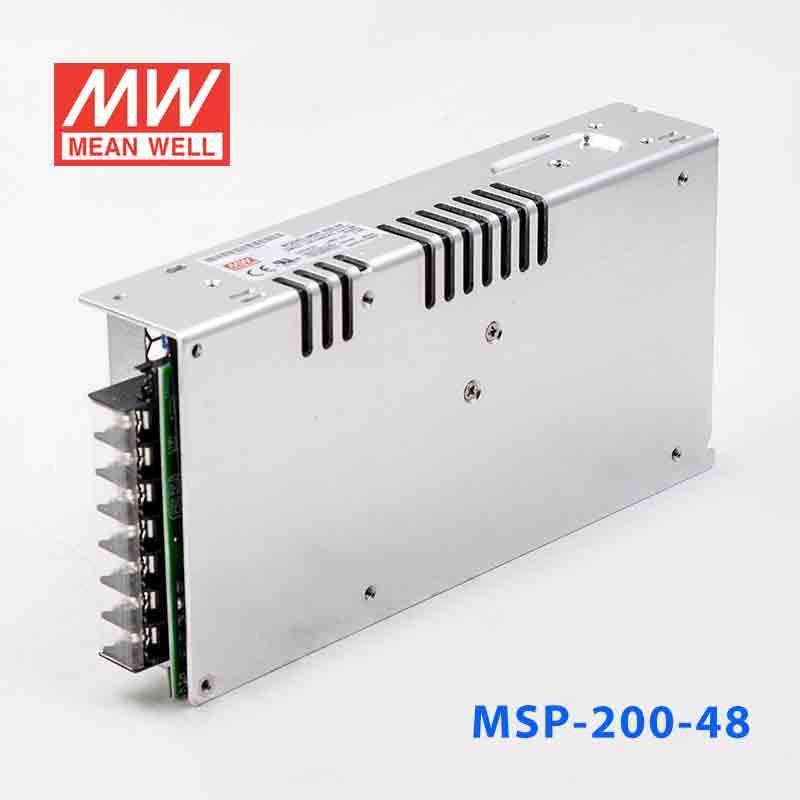

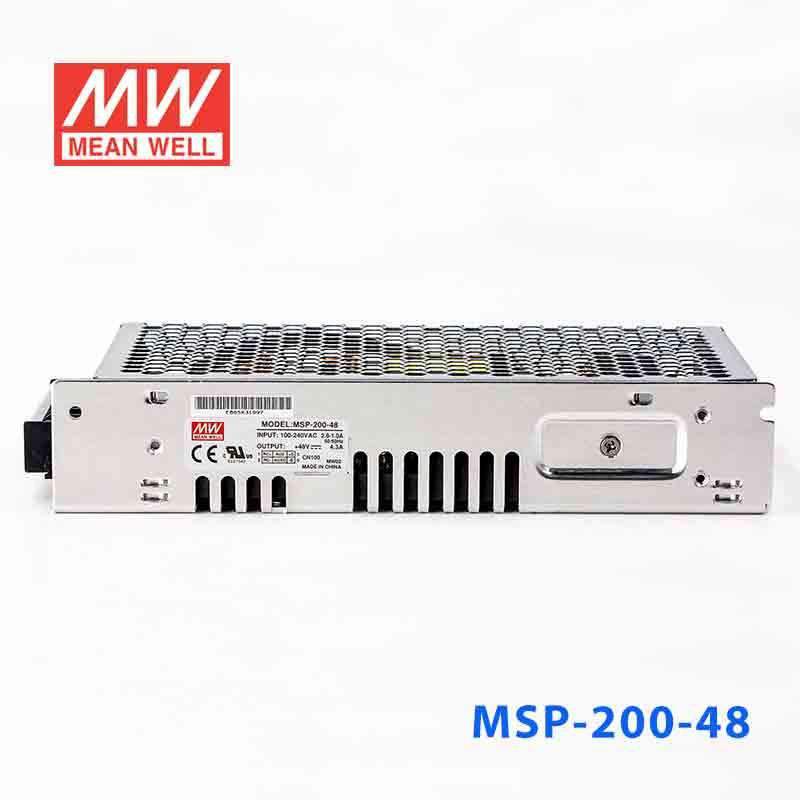

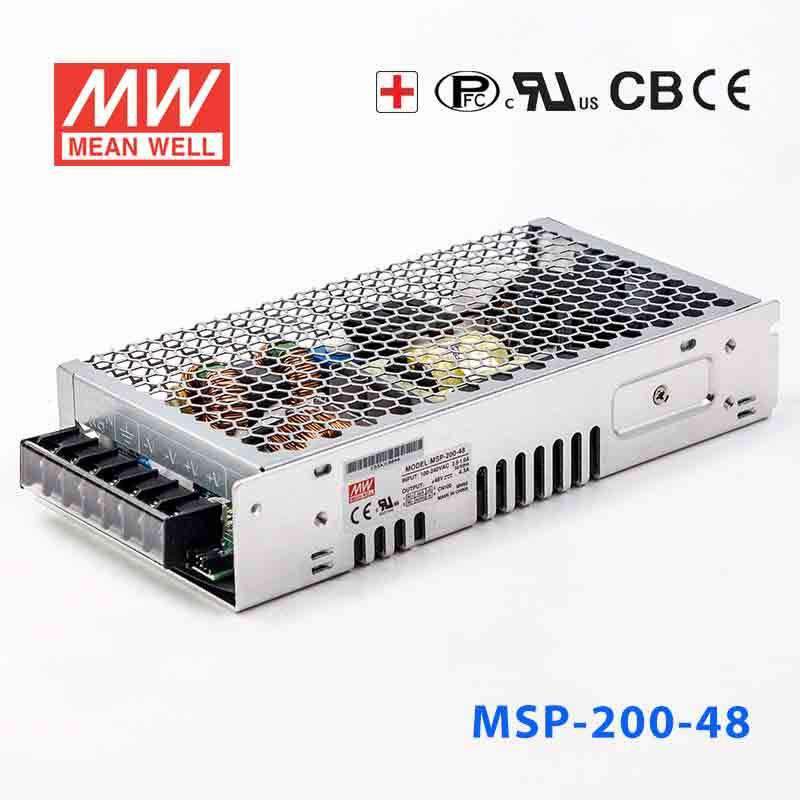

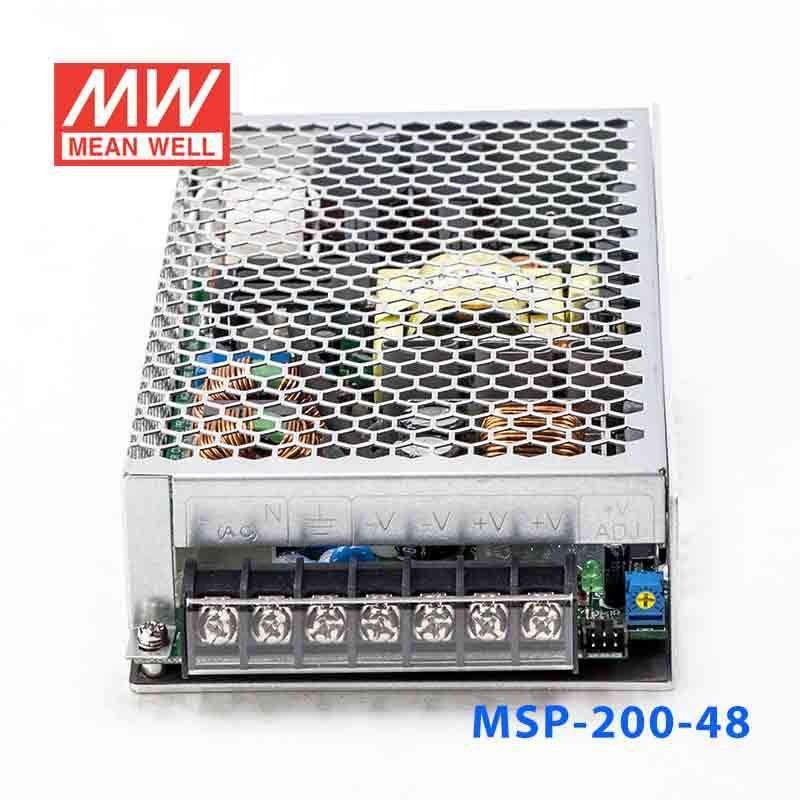

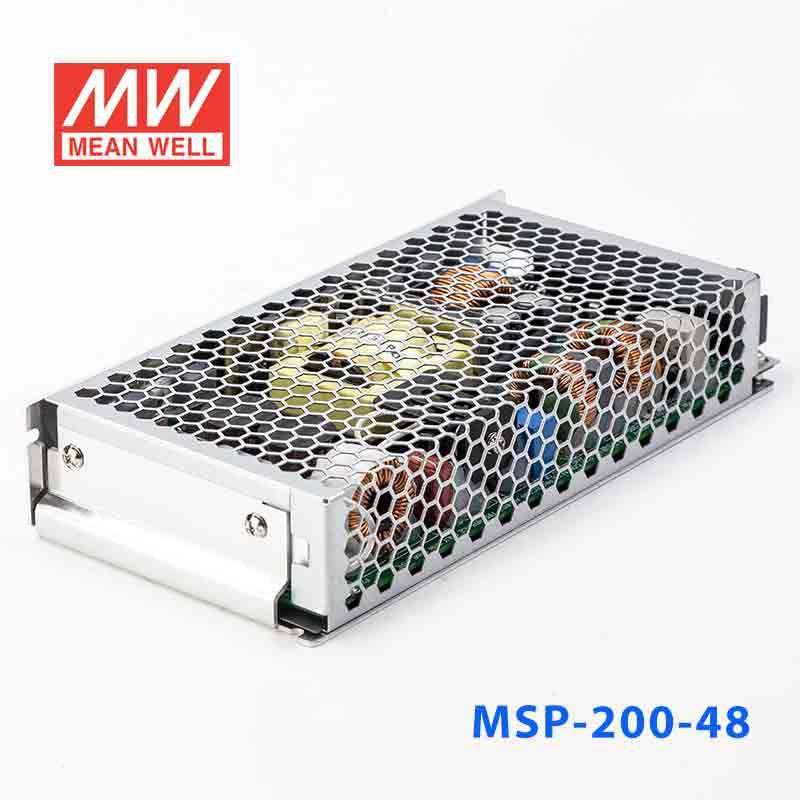

Mean Well MSP-200-48 Power Supply 206.4W 48V
The MSP-200 is a 200W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 4KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesMSP Series
-
Power Rating206.4 Watt
-
Output Voltage48 Volt
-
Rated Current4.3 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length7.83 in
-
Width3.86 in
-
Height1.5 in
-
Weight1.7 lb
::specification::
Frequently Asked Questions
Can I use the MSP-200-48 for 48V telecom or network equipment?
Yes, if the equipment requires constant 48V DC and its demand stays within 4.3A and 206.4W. Its 85-264VAC input also helps when the same power supply needs to be used across different AC input standards.
Is the MSP-200-48 suitable for 48V industrial automation devices?
It is a constant voltage 48V power supply, so it can support industrial control or automation devices built around a 48V DC bus. The load must stay at or below 4.3A and 206.4W.
Can this model power a 48V embedded or communications subsystem?
It can, provided the subsystem is designed for a regulated 48V constant voltage input. Available output is 48V at 4.3A, with a total power limit of 206.4W.
Can the MSP-200-48 be used in cold or high-heat environments?
The specified operating temperature range is -40°C to +70°C, which supports use where ambient temperature swings are a concern. The provided specs do not list an IP rating, so they do not by themselves confirm outdoor exposure or water-resistant use.
What are the main output differences across the MSP-200 family?
The MSP-200 family includes 132W at 3.3V and 40A, 175W at 5V and 35A, 200.3W at 7.5V and 26.7A, 200.4W at 12V and 16.7A, 201W at 15V and 13.4A, 201.6W at 24V and 8.4A, 205.2W at 36V and 5.7A, and 206.4W at 48V and 4.3A. The MSP-200-48 is the highest-voltage MSP-200 option listed and also the highest-power MSP-200 variant by stated wattage.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other MSP-200 Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well MSP-200-7.5 Power Supply 200.3W 7.5V | 200.3W | 7.5V | 26.7A | Indoor | $93.83 | View |
| Mean Well MSP-200-5 Power Supply 175W 5V | 175W | 5V | 35A | Indoor | $93.83 | View |
| Mean Well MSP-200-36 Power Supply 205.2W 36V | 205.2W | 36V | 5.7A | Indoor | $93.83 | View |
| Mean Well MSP-200-3.3 Power Supply 132W 3.3V | 132W | 3.3V | 40A | Indoor | $93.83 | View |
| Mean Well MSP-200-24 Power Supply 201.6W 24V | 201.6W | 24V | 8.4A | Indoor | $93.79 | View |
| Mean Well MSP-200-15 Power Supply 201W 15V | 201W | 15V | 13.4A | Indoor | $93.83 | View |
| Mean Well MSP-200-12 Power Supply 200.4W 12V | 200.4W | 12V | 16.7A | Indoor | $93.83 | View |
