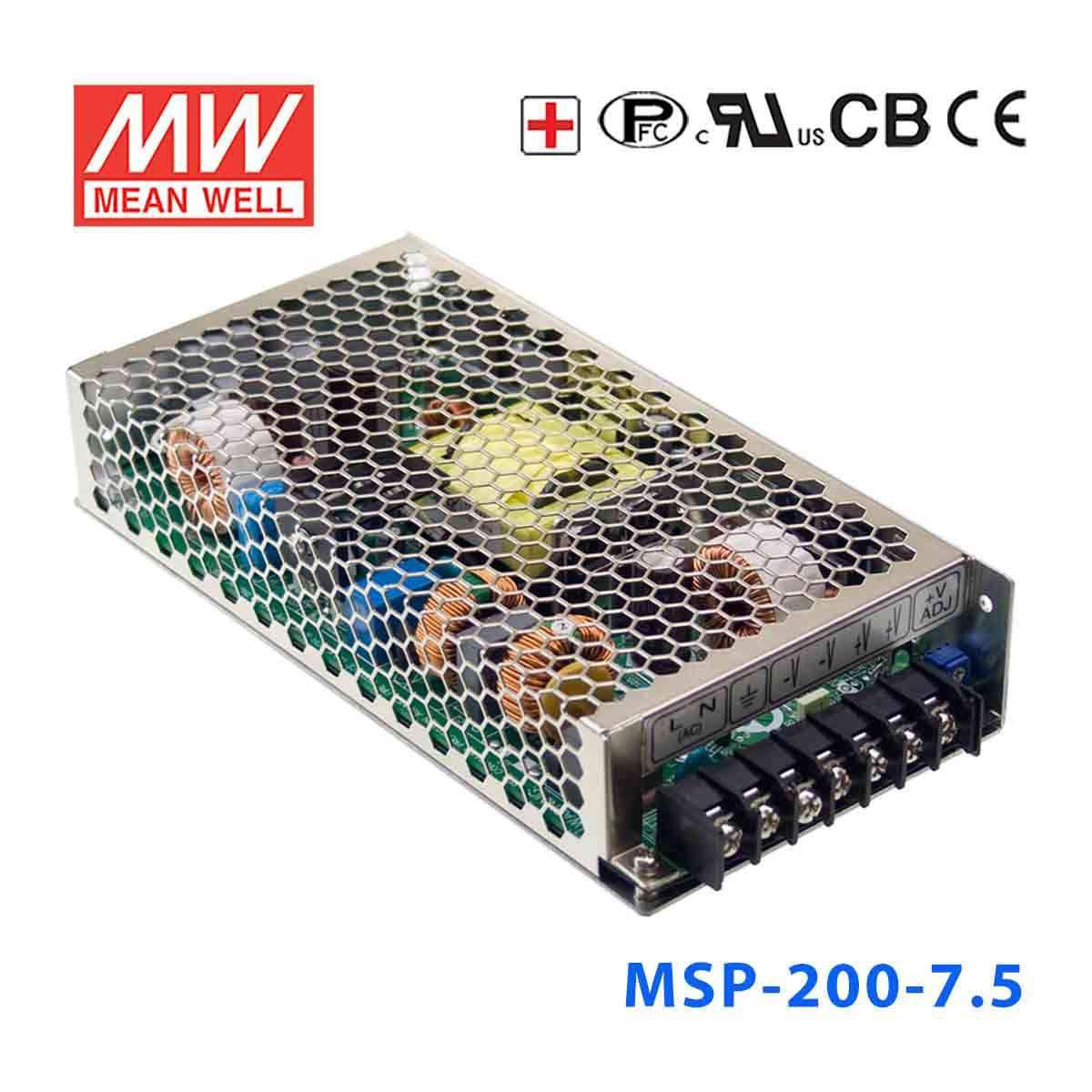

Mean Well MSP-200-7.5 Power Supply 200.3W 7.5V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MSP-200-7.5 Power Supply 200.3W 7.5V
The MSP-200 is a 200W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 4KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesMSP Series
-
Power Rating200.3 Watt
-
Output Voltage7.5 Volt
-
Rated Current26.7 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length7.83 in
-
Width3.86 in
-
Height1.5 in
-
Weight1.7 lb
::specification::
Frequently Asked Questions
Can I use the MSP-200-7.5 for a 7.5V embedded or industrial electronics load?
Yes, if the device is built for constant 7.5V DC input and the total draw stays within 26.7A and 200.3W. This makes it relevant for equipment that specifically needs a regulated 7.5V rail rather than 5V or 12V.
Is the MSP-200-7.5 suitable for legacy 7.5V control or instrumentation equipment?
It can be used for 7.5V equipment that requires a constant voltage supply and fits within the output limit. The rated output is 7.5V at 26.7A, with total power up to 200.3W.
Can this power supply support a 7.5V automation or test bench subsystem?
It is suitable where the subsystem expects stable 7.5V DC and the load remains under 26.7A and 200.3W. The 85-264VAC input is also useful when AC input conditions vary between locations.
Does the MSP-200-7.5 work in cold or hot operating environments?
Its specified operating range is -40°C to +70°C, so the temperature rating covers both low and high ambient conditions. The provided specs do not include an IP rating, so they do not establish outdoor or moisture-exposed use.
How does the MSP-200-7.5 fit within the MSP-200 lineup?
The MSP-200 family spans 132W at 3.3V and 40A, 175W at 5V and 35A, 200.3W at 7.5V and 26.7A, 200.4W at 12V and 16.7A, 201W at 15V and 13.4A, 201.6W at 24V and 8.4A, 205.2W at 36V and 5.7A, and 206.4W at 48V and 4.3A. The MSP-200-7.5 is the dedicated 7.5V version and sits near the middle of the family in both voltage and output power.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other MSP-200 Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well MSP-200-5 Power Supply 175W 5V | 175W | 5V | 35A | Indoor | $93.83 | View |
| Mean Well MSP-200-48 Power Supply 206.4W 48V | 206.4W | 48V | 4.3A | Indoor | $93.83 | View |
| Mean Well MSP-200-36 Power Supply 205.2W 36V | 205.2W | 36V | 5.7A | Indoor | $93.83 | View |
| Mean Well MSP-200-3.3 Power Supply 132W 3.3V | 132W | 3.3V | 40A | Indoor | $93.83 | View |
| Mean Well MSP-200-24 Power Supply 201.6W 24V | 201.6W | 24V | 8.4A | Indoor | $93.79 | View |
| Mean Well MSP-200-15 Power Supply 201W 15V | 201W | 15V | 13.4A | Indoor | $93.83 | View |
| Mean Well MSP-200-12 Power Supply 200.4W 12V | 200.4W | 12V | 16.7A | Indoor | $93.83 | View |
