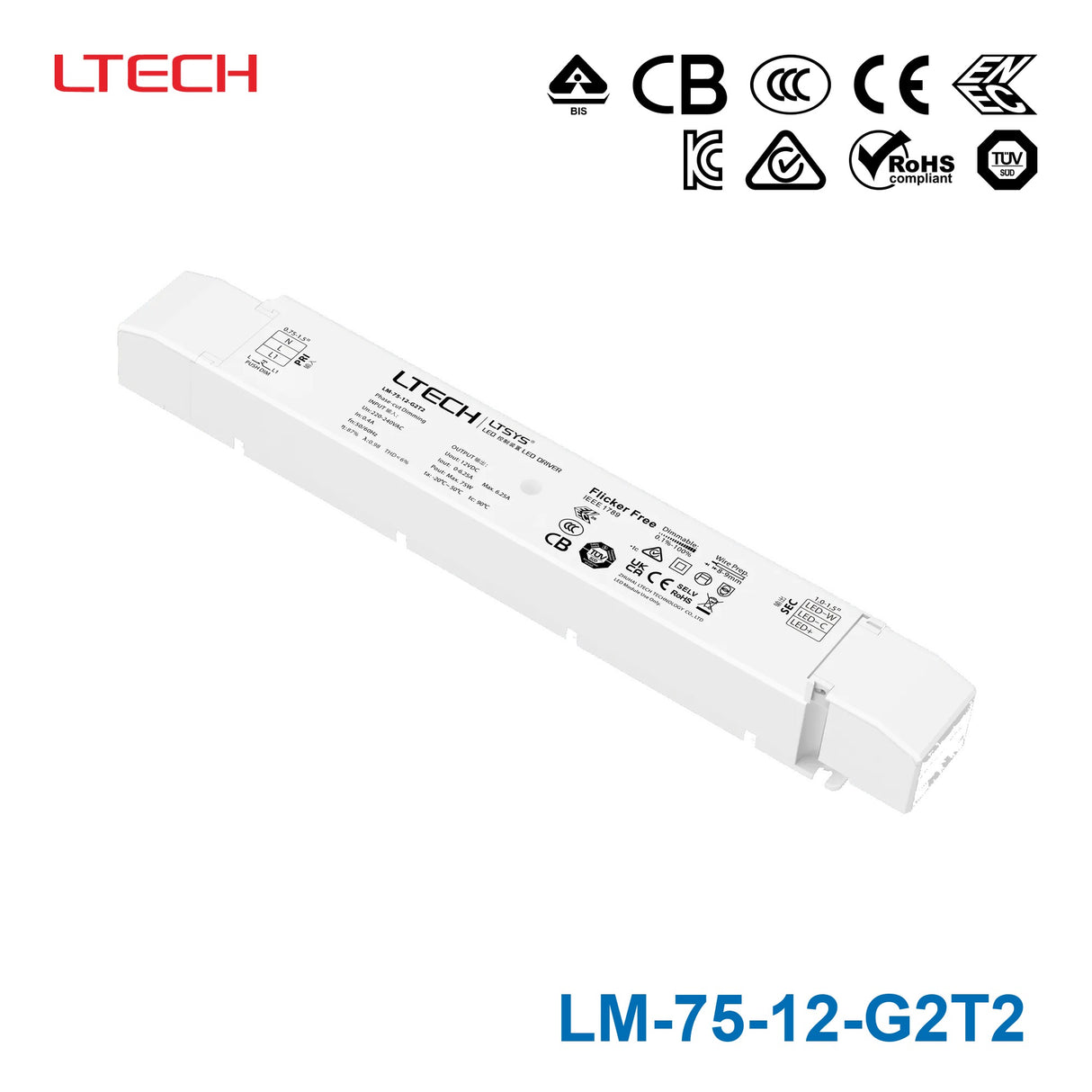

Ltech LM-75-12-G2T2 75W 12VDC CV Triac Driver
- Leading edge (Triac)
- Trailing edge (ELV) phase-cut and Push DIM/CCT.
- With soft-on and fade in function
- makes the human vision more comfortable.
- 2 independently SELV constant voltage output channels.
- Constant power design
- adjust brightness and color temperature synchronously.
- Dimming range: 0-100%
- LED start at 0.1% possible.
- 0-100% flicker-free
- High Frequency Exemption
- High Efficient driver: efficiency 88%
- PF>0.98
- THD<6%
- Innovative thermal management technology
- intelligent power life protection.
- Over load / Over temp. / Short circuit / Over voltage protection
- recover automatically.
- Suitable for internal lights application for I/II/III
- 5 years warranty (Rubycon capacitor).
-
BrandLtech
-
SeriesLtech Triac Series
-
Power Rating75 Watt
-
Output Voltage12 Volt
-
Rated Current6.25 Ampere
-
Input Voltage220V~240V
-
No of Output1
-
Dimming ControlAC Phase Cut Dimming
-
Standards MetBIS,CB,CCC,CE,ENEC,KC,RCM,ROHS,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~50°C
-
Warranty5 Year
-
Length11.54 in
-
Width1.69 in
-
Height1.18 in
-
Weight0.77 lb
::specification::
Frequently Asked Questions
What is the Ltech LM-75-12-G2T2 designed for?
The LM-75-12-G2T2 is a 75W constant-voltage LED driver for 12VDC lighting loads. It is intended for internal lighting applications and is positioned for projects that need phase-cut dimming with synchronized brightness and color temperature control.
What dimming methods does the LM-75-12-G2T2 support?
This model supports leading-edge (Triac) dimming, trailing-edge (ELV) phase-cut dimming, and Push DIM/CCT control. It also includes soft-on and fade-in behavior, with a stated dimming range of 0-100% and low-level start capability down to 0.1%.
What are the main electrical ratings of the LM-75-12-G2T2?
The LM-75-12-G2T2 is rated for 75W output at 12VDC with a rated current of 6.25A. Ltech lists efficiency at 88%, power factor above 0.98, and THD below 6% for this model.
Is the LM-75-12-G2T2 suitable for tunable white LED lighting?
Yes, this driver is built with 2 independently SELV constant-voltage output channels and supports synchronized brightness and color temperature adjustment. That makes it a fit for 12V tunable white lighting systems where dimming and CCT control are both required.
How does the LM-75-12-G2T2 differ from a standard non-dimming 12V LED driver?
The key difference is control capability: this model combines 12V constant-voltage output with Triac/ELV phase-cut dimming and Push DIM/CCT support. It also provides dual independent output channels for synchronized dimming and color temperature control, which a basic fixed-output driver does not offer.
What operating conditions and protections does the LM-75-12-G2T2 offer?
Ltech rates this model for operation from -20°C to 50°C. It includes overload, over-temperature, short-circuit, and over-voltage protection with automatic recovery, and it carries a 5-year warranty.
