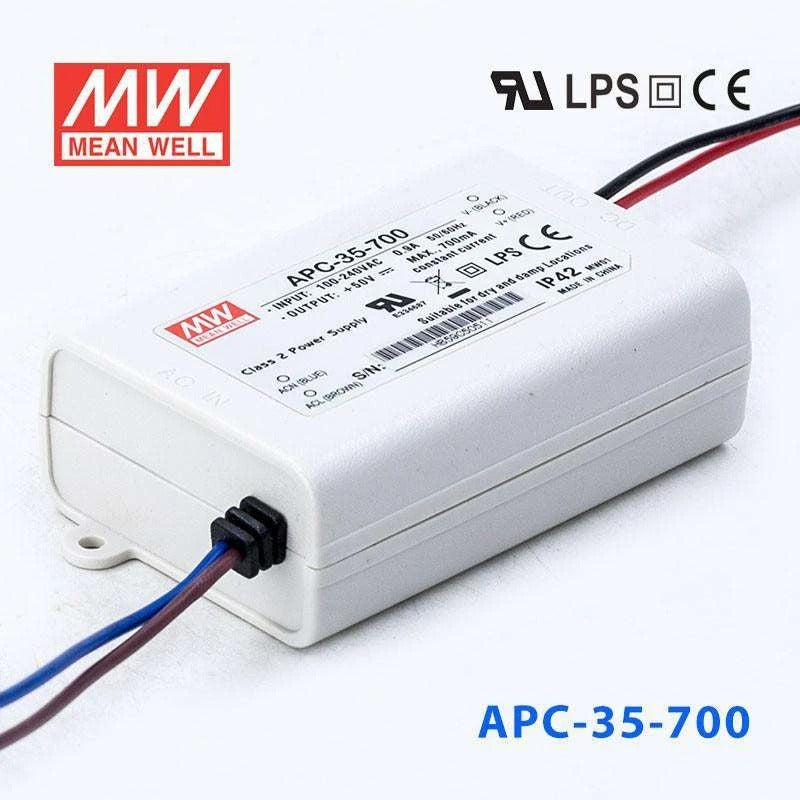

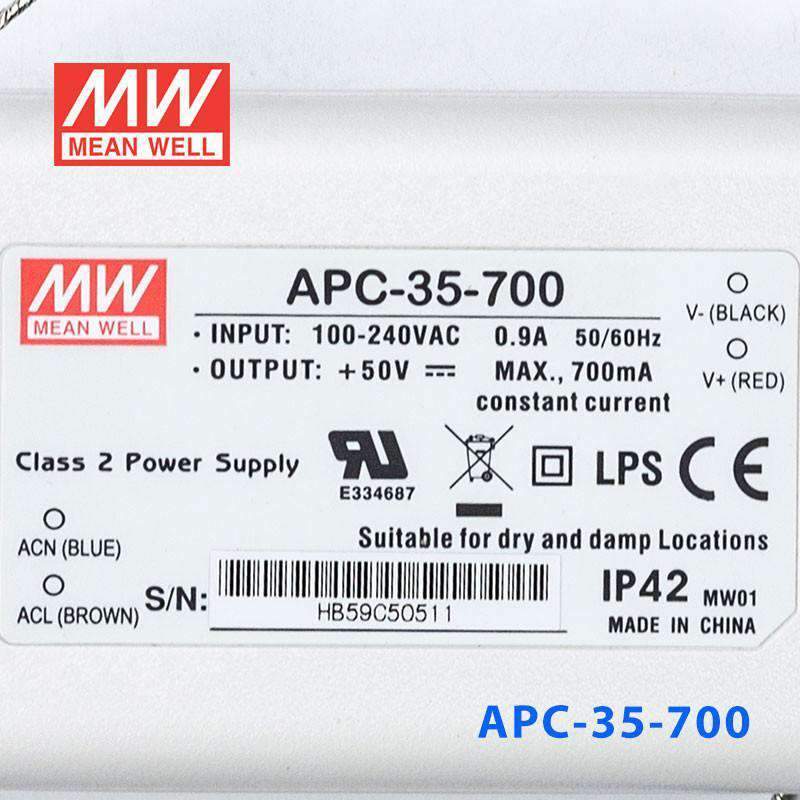

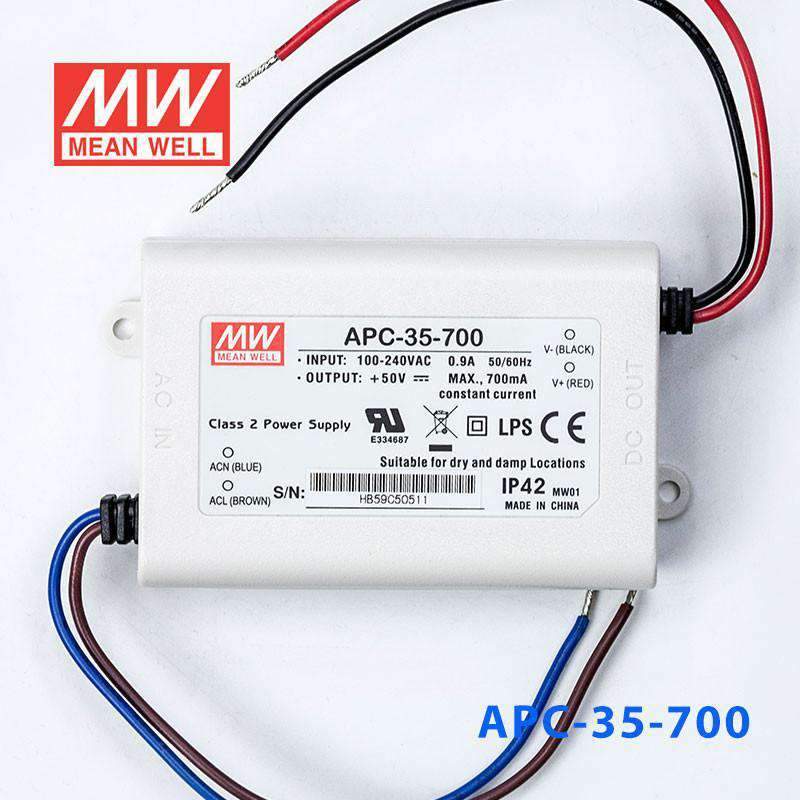

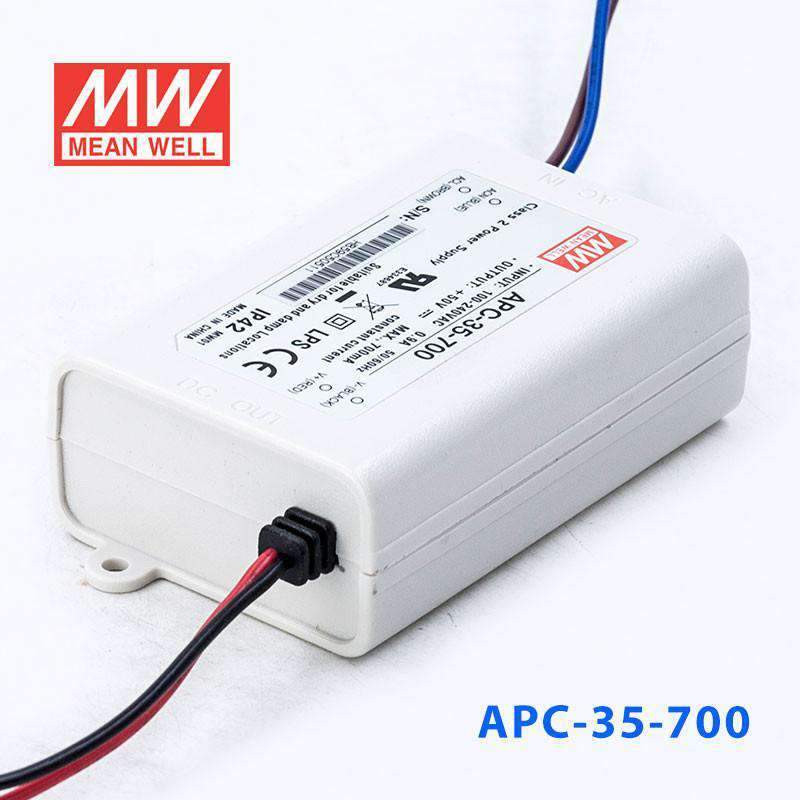

Mean Well APC-35-700 Power Supply 35W 700mA
The APC-35 is a 35W Mean Well. power converter. and an input range of 28~100V.
Key Features
- ✓ Input voltage range: 28~100V
- ✓ 3KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~70℃
- ✓ Protections: Over voltage
- ✓ Safety approvals: UL8750 (only for APC-35-700&1050), CSA-C22.2 No. 250.0-13 (only for APC-35-1050), IP42
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesAPC Series
-
Power Rating35 Watt
-
Output Voltage50 Volt
-
Rated Current0.7 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSMI,CE,cUL,EAC
-
Operation ModeConstant Current
-
Operating Temperature-30°C~70°C
-
Warranty2 Year
-
Length3.31 in
-
Width2.24 in
-
Height1.16 in
-
Weight0.4 lb
::specification::
Frequently Asked Questions
What is the APC-35-700 typically used for?
The Mean Well APC-35-700 is typically used for constant-current LED lighting and moving sign applications that need a 700mA drive current. With 35W rated power, it is a fit for 700mA LED loads that need more output capacity than the smaller APC-25-700 model.
Is the APC-35-700 a better fit than lower-current APC drivers when the LED load requires 700mA?
Yes. The APC-35-700 is the correct choice when the LED load is designed for 700mA constant current, while APC-35-350 and APC-35-500 are intended for 350mA and 500mA loads. The driver current should match the LED load requirement rather than being selected only by wattage.
Can the APC-35-700 be used for indoor LED lighting and moving sign projects?
Yes. The APC-35-700 is intended for LED lighting and moving sign applications, so it is suitable for indoor sign and lighting assemblies that are designed for 700mA constant-current operation and fit within the driver's electrical rating.
Will the APC-35-700 run on common AC mains supplies?
Yes. The specified AC input range is 90-264VAC, so the APC-35-700 can operate from common 120V and 240V mains systems within that range. That helps simplify deployments across a range of standard indoor environments.
Is the APC-35-700 suitable for direct outdoor installation?
No. The APC-35-700 has an IP30 design, so it is better suited to indoor use or installation inside a protective enclosure rather than direct weather exposure. Its listed working temperature is -30°C to +70°C, but ingress protection remains limited.
How does the APC-35-700 compare with the rest of the APC-35 family?
The APC-35-700 provides 35W at 700mA, while the APC-35-350, APC-35-500, and APC-35-1050 serve 350mA, 500mA, and 1050mA LED loads respectively. Compared with the APC-25-700, the APC-35-700 offers the same current class with a higher 35W power rating. The main decision point is matching the constant-current level to the LED load and then choosing the power class that provides adequate margin.
