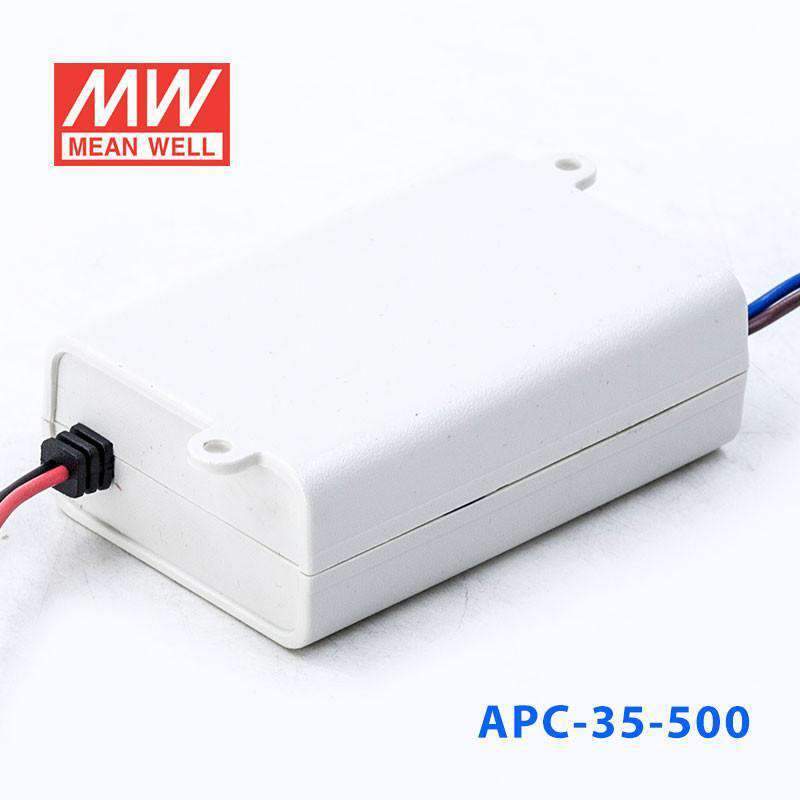

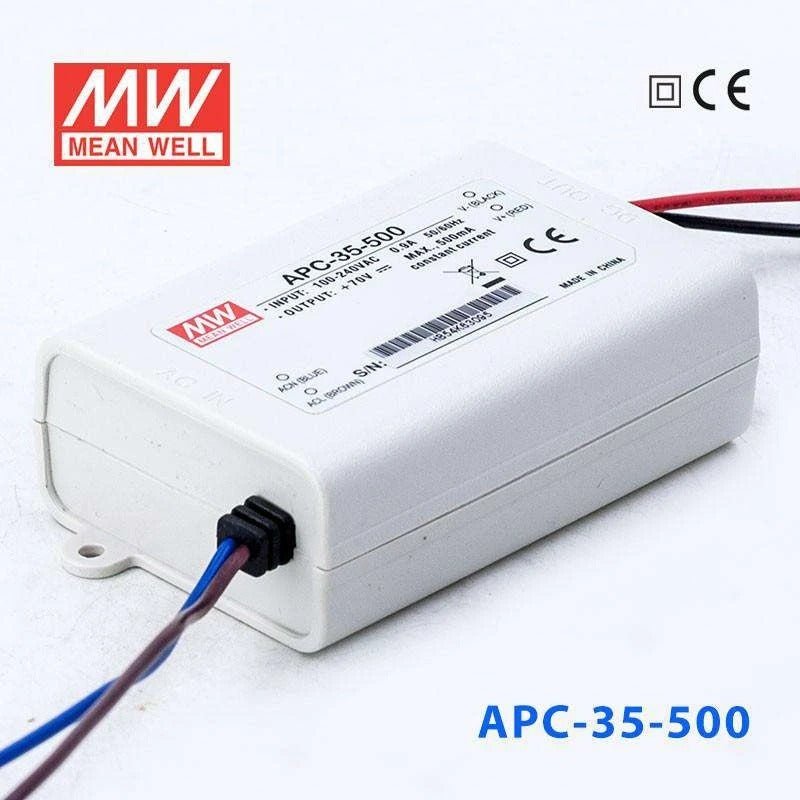

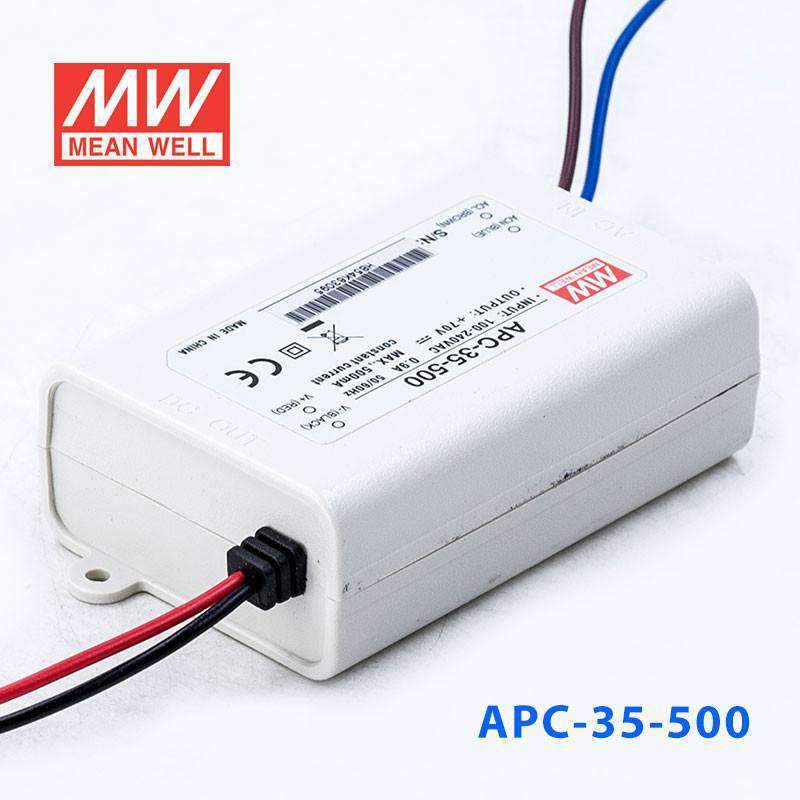

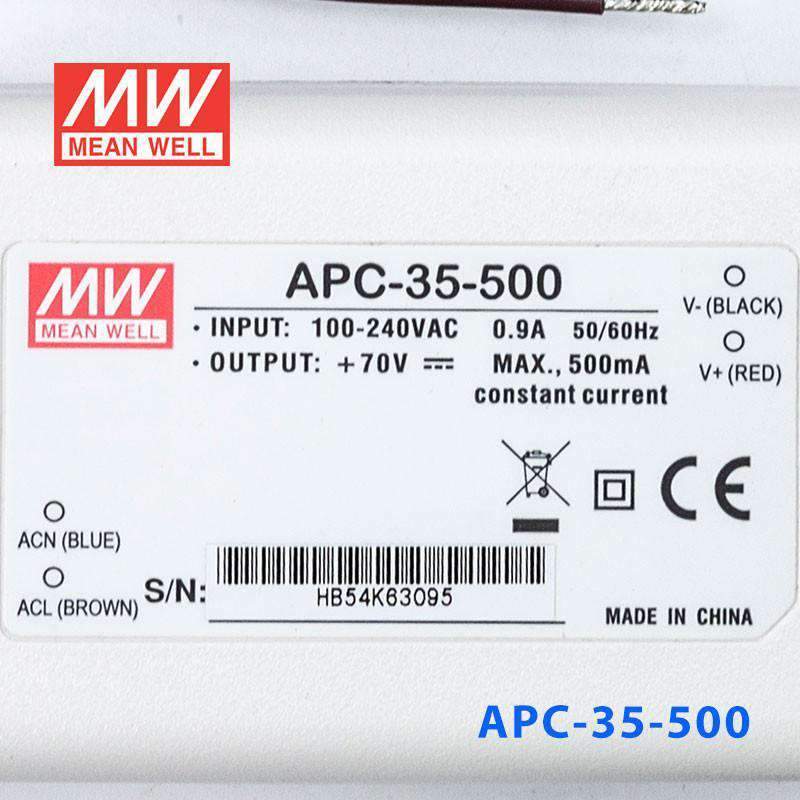

Mean Well APC-35-500 Power Supply 35W 500mA
Description
Description
The APC-35 is a 35W Mean Well. power converter. and an input range of 28~100V.
Key Features
- ✓ Input voltage range: 28~100V
- ✓ 3KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~70℃
- ✓ Protections: Over voltage
- ✓ Safety approvals: UL8750 (only for APC-35-700&1050), CSA-C22.2 No. 250.0-13 (only for APC-35-1050), IP42
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesAPC Series
-
Power Rating35 Watt
-
Output Voltage70 Volt
-
Rated Current0.5 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSMI,CE,cUL,EAC
-
Operation ModeConstant Current
-
Operating Temperature-30°C~70°C
-
Warranty2 Year
-
Length3.31 in
-
Width2.24 in
-
Height1.16 in
-
Weight0.4 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the APC-35-500 typically used for?
The Mean Well APC-35-500 is typically used for constant-current LED lighting and moving sign applications that need a 500mA drive current. With 35W rated power, it is a fit for 500mA LED loads that need more output capability than the smaller APC-25-500 model.
Is the APC-35-500 a good fit for 500mA LED loads?
Yes. The APC-35-500 is built as a constant-current LED driver rated at 500mA, so it should be paired with LED loads designed for that current level. The connected LED load also needs to stay within the driver's output capability and rated power.
Can the APC-35-500 be used for indoor LED sign and lighting assemblies?
Yes. The product family is intended for LED lighting and moving sign applications, so indoor sign and lighting assemblies are appropriate uses when the load is designed for 500mA constant-current operation and fits within the driver's electrical rating.
Will the APC-35-500 operate from common AC mains input?
Yes. The listed AC input range is 90-264VAC, so the APC-35-500 can run from common 120V and 240V AC mains systems within that range. That makes it suitable for standard indoor lighting installations.
Is the APC-35-500 suitable for exposed outdoor use?
No. The APC-35-500 has an IP30 design, so it should generally be used indoors or in a protective enclosure rather than in direct outdoor exposure. Its working temperature range is -30°C to +70°C, but ingress protection is still limited.
How does the APC-35-500 compare with other APC series drivers?
The APC-35-500 provides 35W at 500mA, while the APC-25-500 provides 25.2W at the same current, and the APC-35-350, APC-35-700, and APC-35-1050 cover 350mA, 700mA, and 1050mA current classes. The main choice is matching the current rating to the LED load and then selecting the power class with enough headroom.
Other APC-35 Models
3 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well APC-35-700 Power Supply 35W 700mA | 35W | 50V | 0.7A | Indoor | $6.35 | View |
| Mean Well APC-35-350 Power Supply 35W 350mA | 35W | 100V | 0.35A | Indoor | $12.26 | View |
| Mean Well APC-35-1050 Power Supply 35W 1050mA | 34.7W | 33V | 1.05A | Indoor | $13.91 | View |
