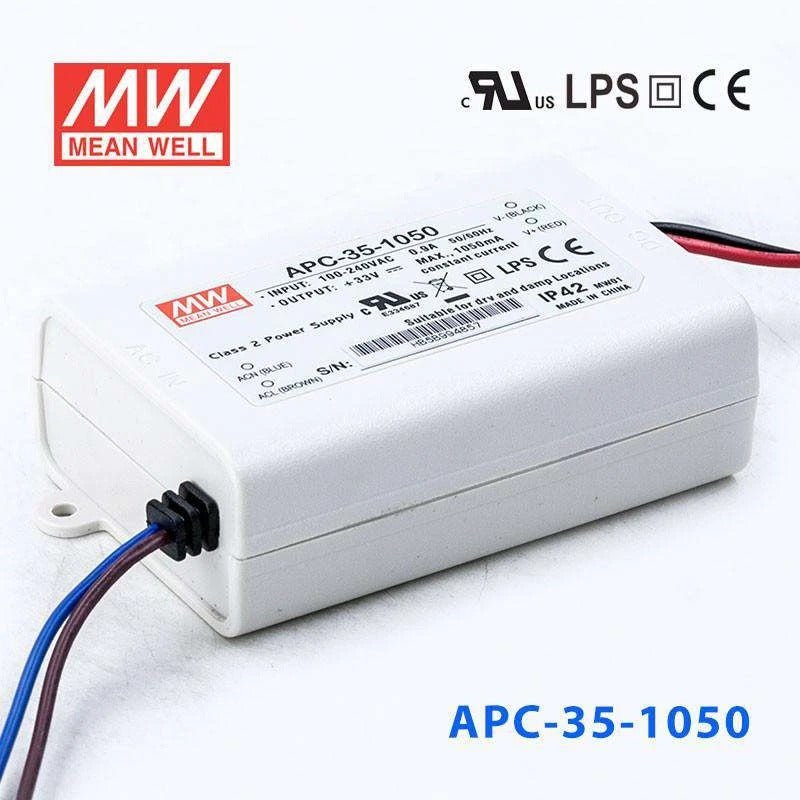

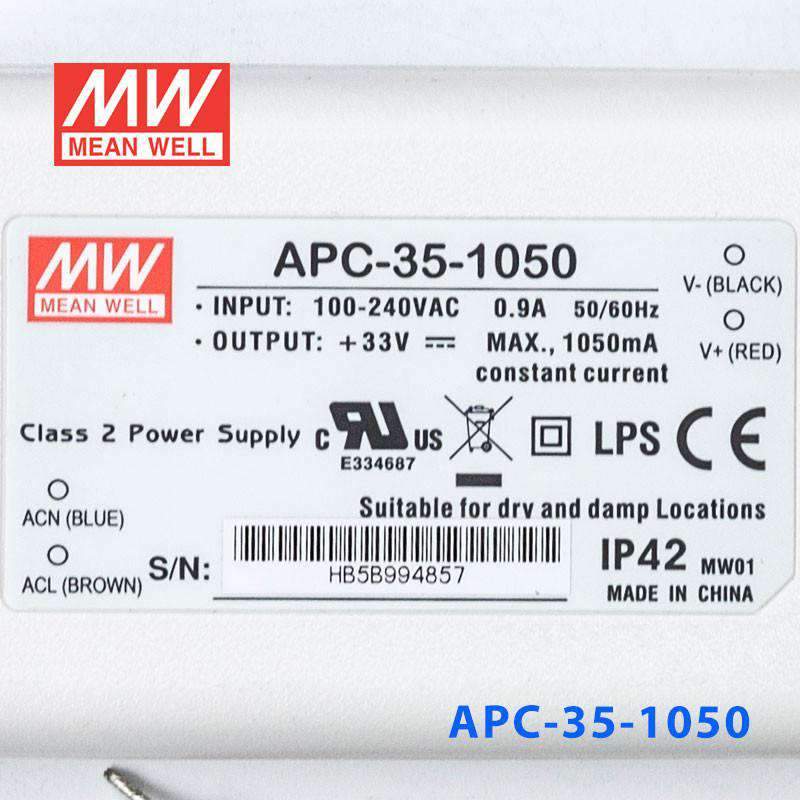

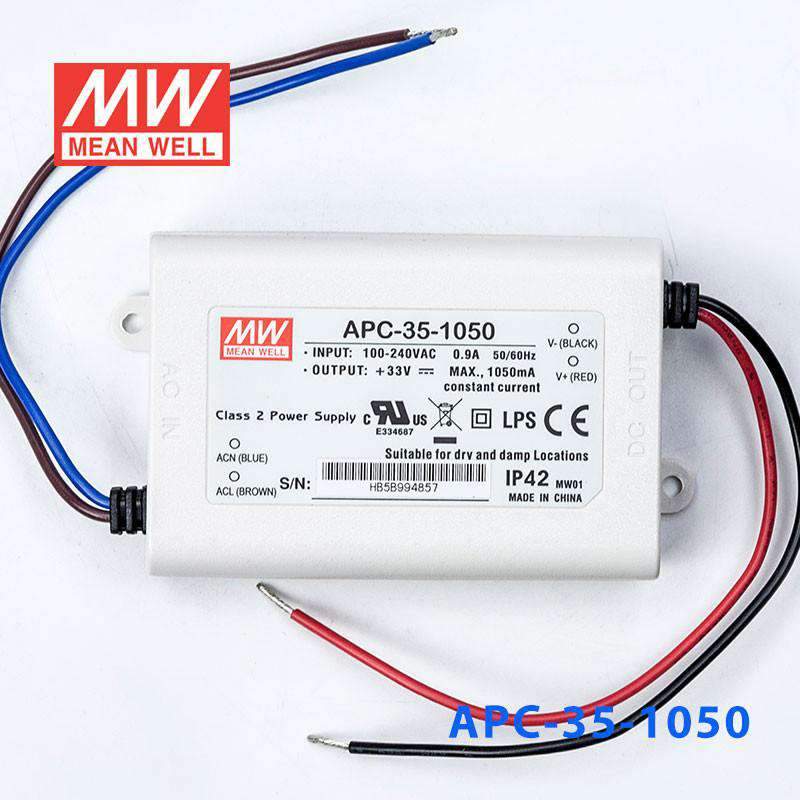

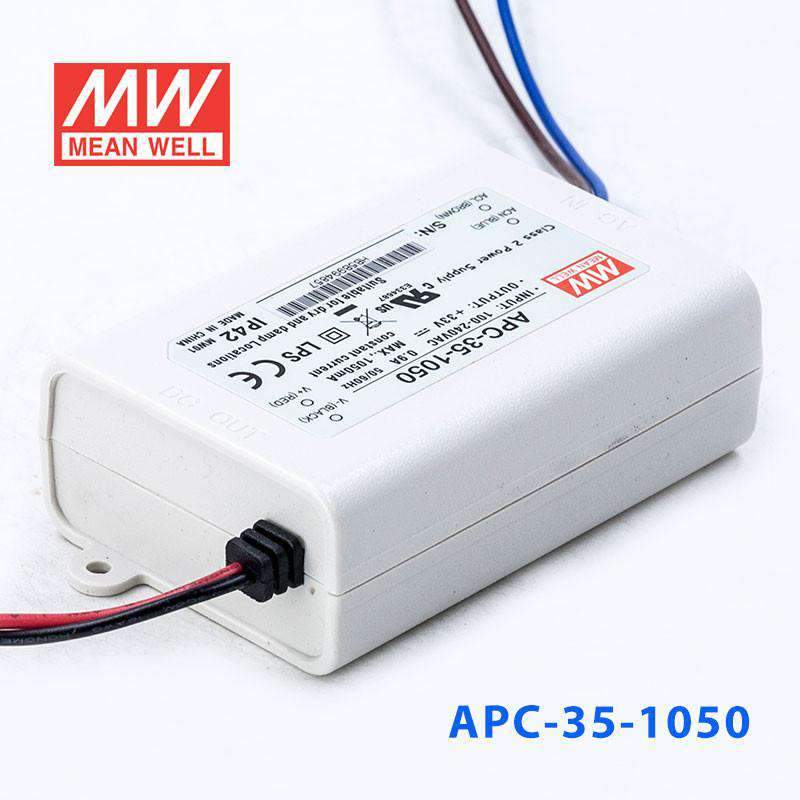

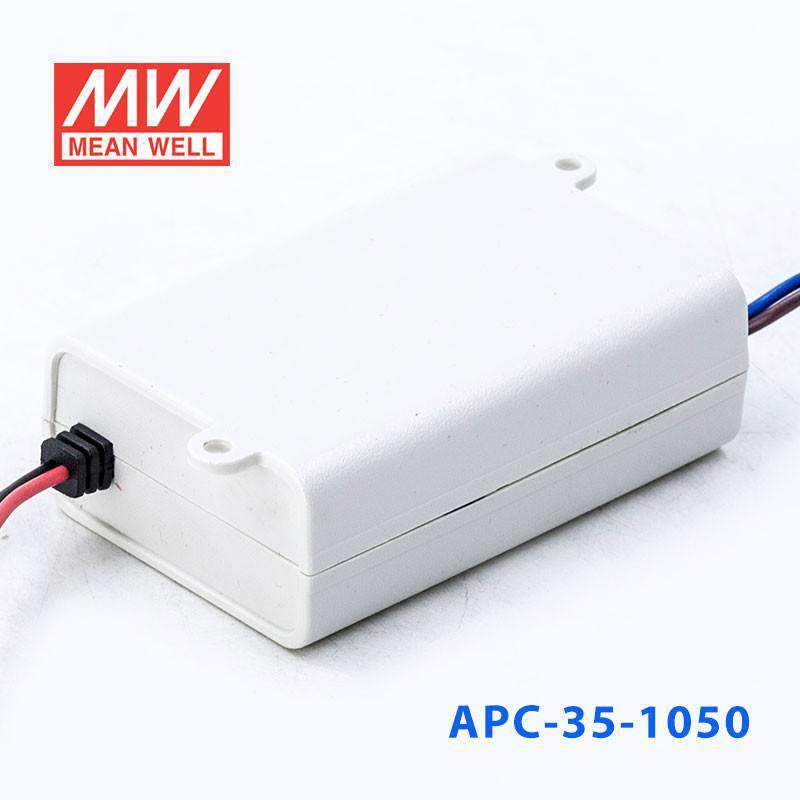

Mean Well APC-35-1050 Power Supply 35W 1050mA

Class II design, low cost, small and compact, IP42
$13.03 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

Universal AC input / Full range
Fully isolated plastic case
Protections: Short circuit / Over voltage
Constant current design (C.C. mode)
IP30 design
Withstand 300VAC surge input for 5 seconds
Isolation class II, no F.G.
Cooling by free air convection
100% full load burn-in test
Low cost, high reliability
Suitable for LED lighting and moving sign applications
2 years warranty

General Specification

AC input voltage range 90~264VAC ; 127~370VDC
AC inrush current Cold start, 45A at 230VAC
Overload Range >105% rated output current
Protection Type Hiccup up mode, auto-recovery
Over voltage protection 110%~145% rated output voltage
Withstand voltage I/P-O/P: 3kVAC
Working temperature -30~+70°C (refer to output derating curve)
Vibration 10~500Hz, 2G 10 minutes /1 cycle, period for 60 minutes each along X, Y, Z axes
Safety standards UL8750 approved (except for APC-25-350&APC-35-350/500);Design refer to TUV EN60950-1
EMC standards EN55022 class B, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11
Connection Input UL rated, 18AWGx2C (15cm)
Connection Output UL rated, 18AWGx2C (15cm)
Dimension (LxWxH)(mm) 84x 57x 29.5

Specifications

  • Brand
    Mean Well
  • Series
    APC Series
  • Power Rating
    34.7 Watt
  • Output Voltage
    33 Volt
  • Rated Current
    1.05 Ampere
  • Input Voltage
    90V~264V
  • No of Output
    1
  • Dimming Control
    None
  • Standards Met
    BSMI,CE,cUL,EAC
  • Operation Mode
    Constant Current
  • Operating Temperature
    -30°C~70°C
  • Warranty
    2 Year
  • Length
    3.31 in
  • Width
    2.24 in
  • Height
    1.16 in
  • Weight
    0.4 lb

File Downloads
