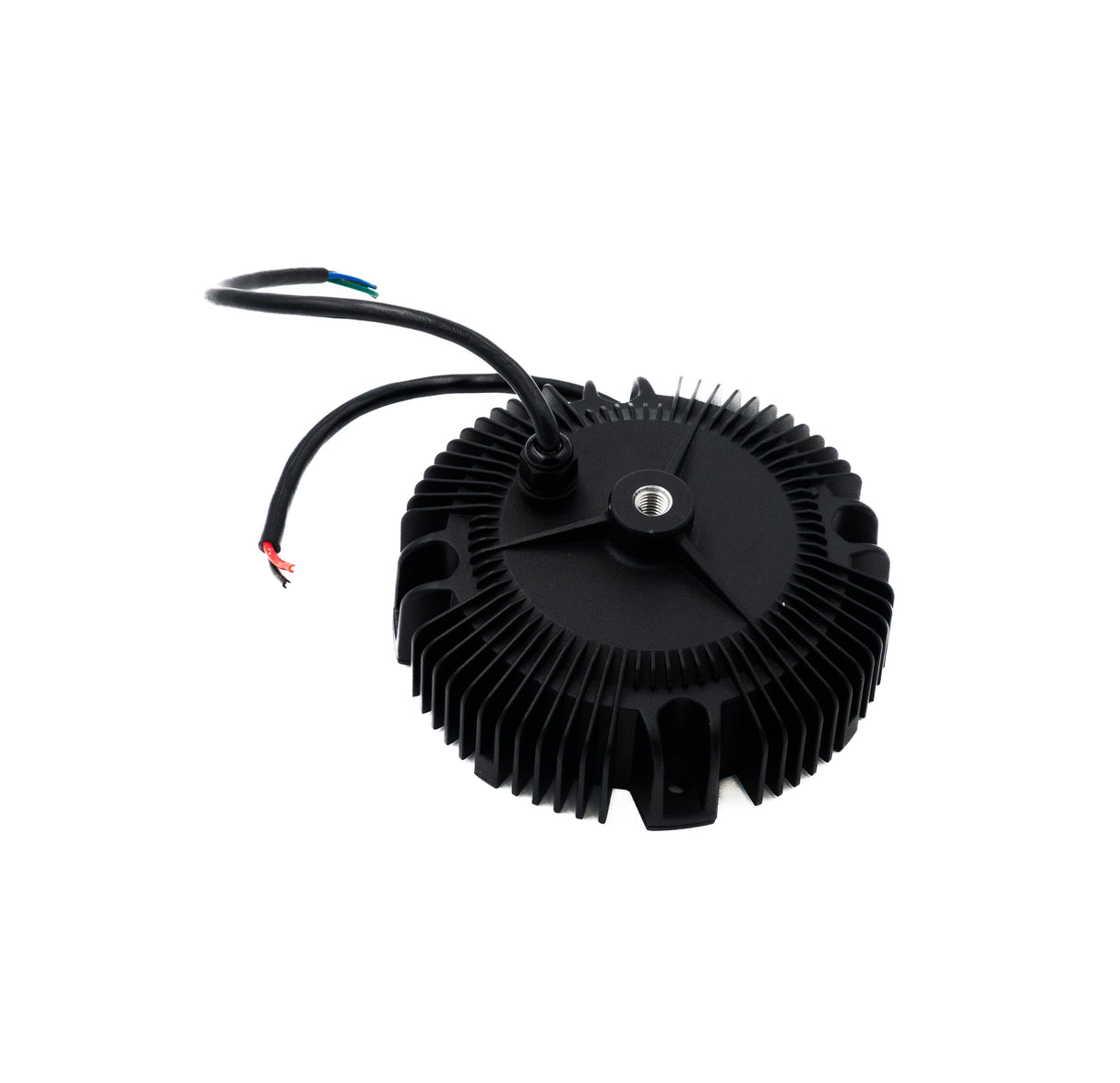

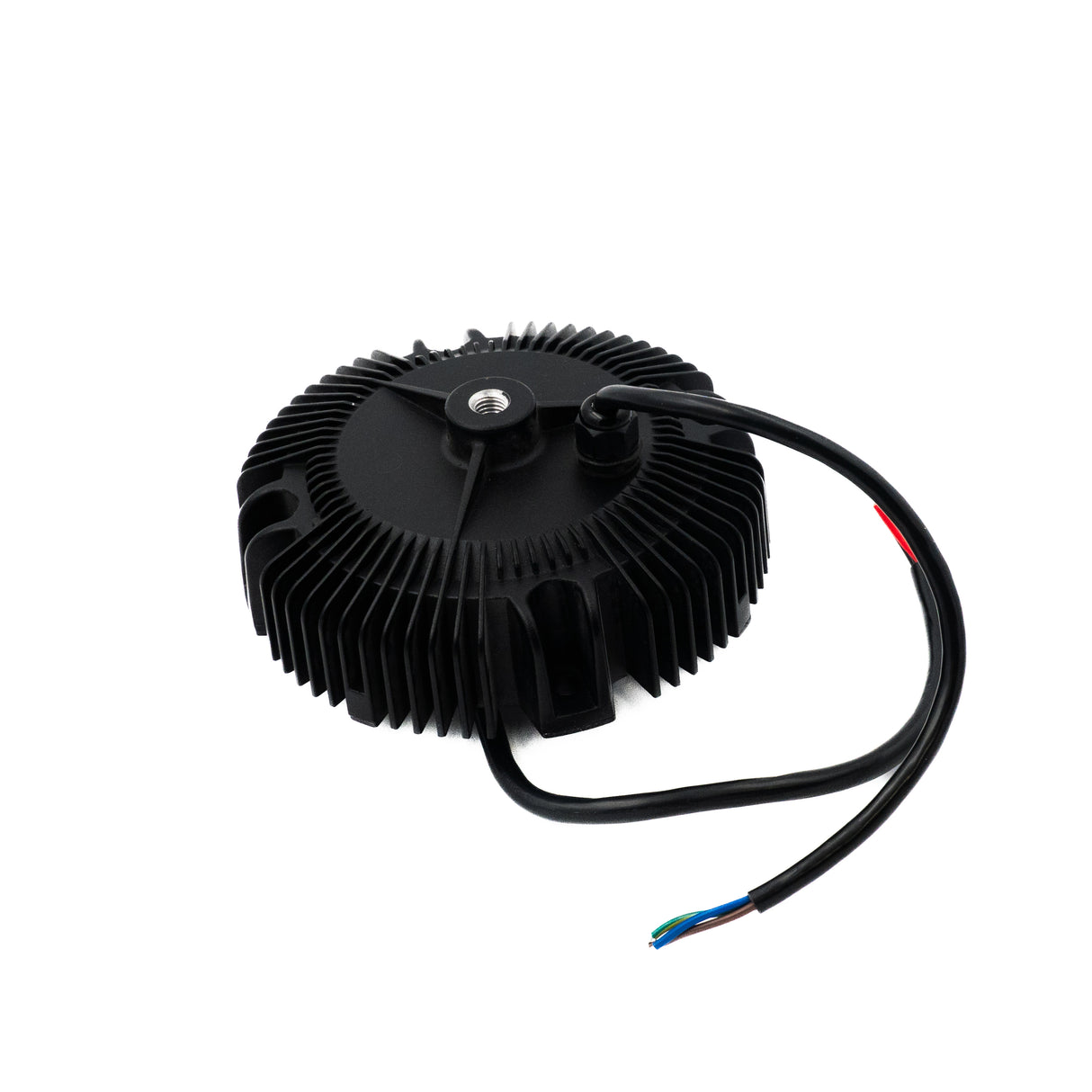

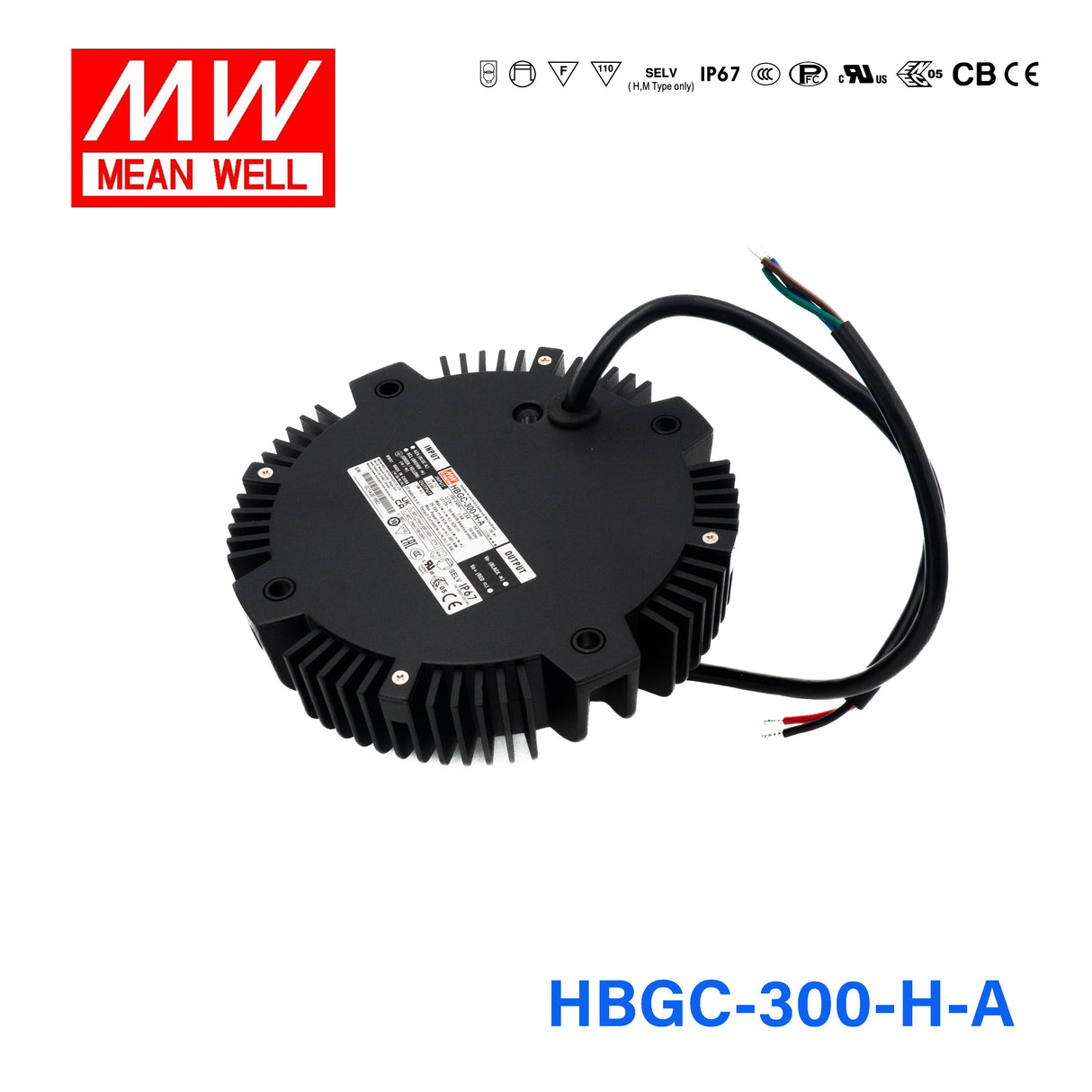

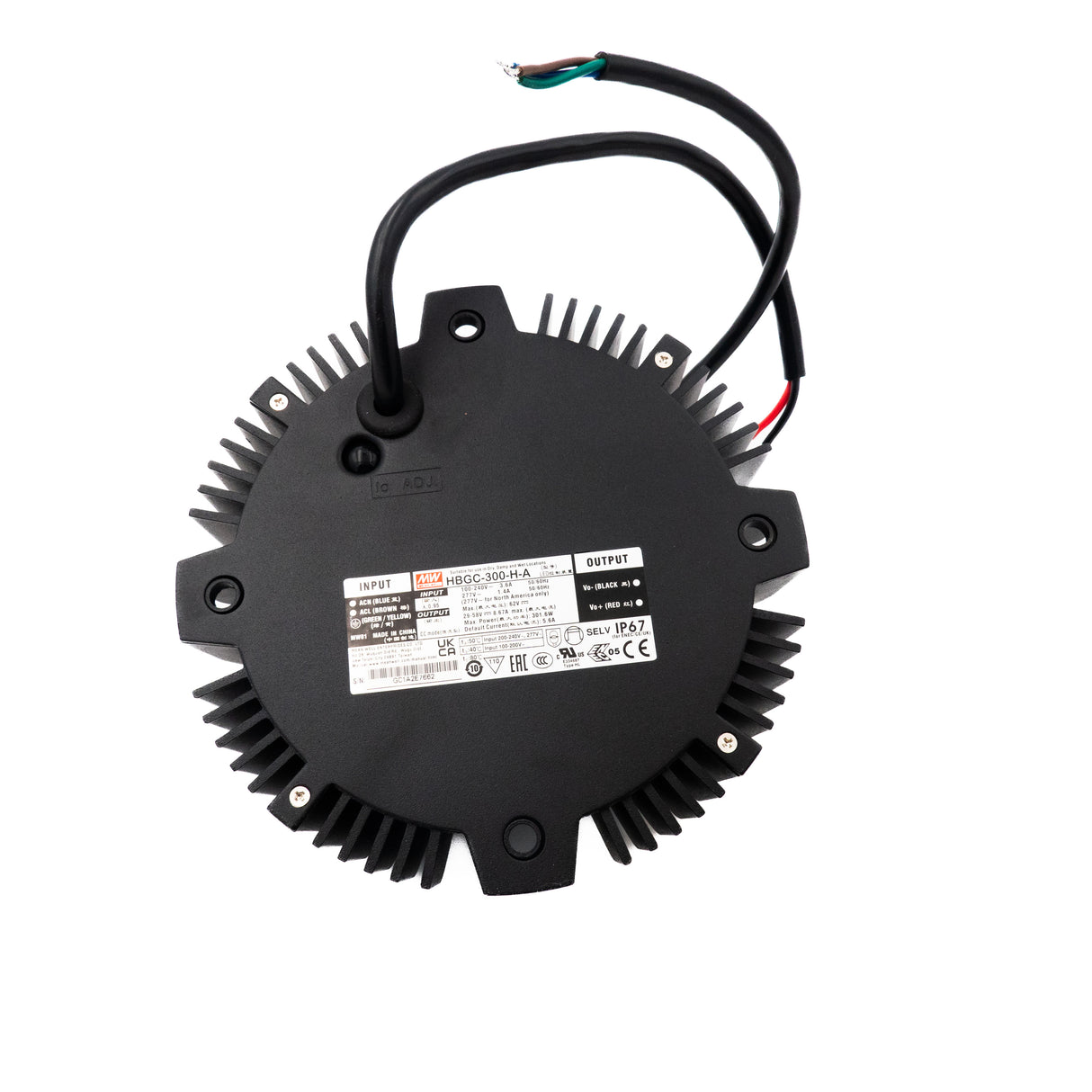

Mean Well HBGC-300-H-A Power Supply 300W 5600mA - Adjustable
The HBGC-300-H is a 300W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHBGC Series
-
Power Rating301.6 Watt
-
Output Voltage62 Volt
-
Rated Current5.6 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CCC,CE,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length7.54 in
-
Width7.54 in
-
Height2.72 in
-
Weight4.85 lb
::specification::
Frequently Asked Questions
Can I use the HBGC-300-H-A for LED downlights that need a constant current driver?
Yes, if the downlight array is designed for a constant current driver and the total LED forward voltage stays within the 29-58V constant current range. This model is a 301.6W constant current LED driver, so it is not a constant voltage power supply for 12V or 24V LED products.
Is the HBGC-300-H-A suitable for powering signage LED modules?
It can be suitable for signage modules that are built as constant current assemblies and operate within the 29-58V CC range. It is not intended for constant voltage signage modules that expect a fixed 12V or 24V output.
Can this driver run a small LED array for an outdoor fixture?
Yes, for a constant current LED array whose forward voltage falls within 29-58V. The IP67 waterproof rating and -40°C to +80°C operating temperature range make it appropriate for demanding indoor or outdoor conditions when the rest of the fixture is rated accordingly.
How do I know if my LED load is compatible with the HBGC-300-H-A?
The LED load must be designed for constant current operation, and its total forward voltage must fall within the 29-58V constant current output range. The number of LEDs depends on each LED's forward voltage, so compatibility is based on the full array voltage rather than a fixed LED count.
What is the difference between the HBGC-300-H-A and the other HBGC-300 versions?
All HBGC-300 variants are rated at 301.6W, but the electrical ranges differ by output class: H models are 5.6mA with a 29-58V CC range, M models are 2.8mA with a 58-116V CC range, and L models are 1.4mA with a 116-232V CC range. In the H group, the A version is adjustable, the AB version adds 0-10Vdc, 10V PWM, and resistance dimming, and the ADA version adds DALI dimming.
