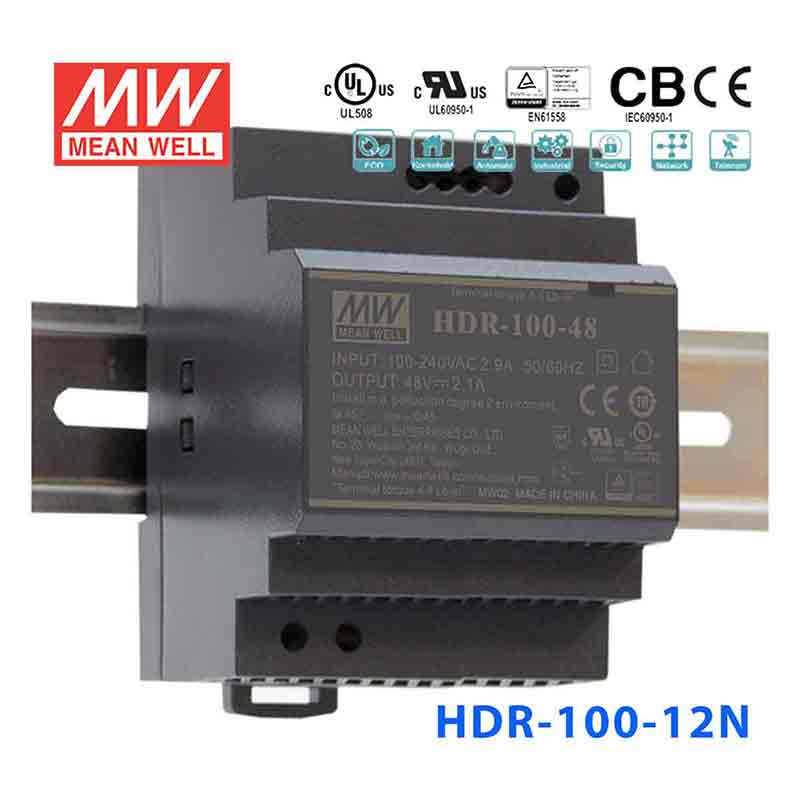

Mean Well HDR-100-12N Ultra Slim Step Shape Power Supply 100W 12V - DIN Rail
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HDR-100-12N Ultra Slim Step Shape Power Supply 100W 12V -...
The HDR-100 is a 100W Mean Well power converter (input range: 85~2 VAC).
Key Features
- ✓ Input voltage range: 85~2 VAC
- ✓ DC output voltage adjustable ±10%
- ✓ Cooling by free air convection
- ✓ Protections: Overload / Over voltage
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHDR Series
-
Power Rating90 Watt
-
Output Voltage12 Volt
-
Rated Current7.5 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CE,cUL,EAC,RCM,TUV,UL
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3.54 in
-
Width2.76 in
-
Height2.15 in
-
Weight0.6 lb
::specification::
Frequently Asked Questions
What types of 12V industrial loads can the HDR-100-12N support?
With 90W at 7.5A output, the HDR-100-12N suits 12V industrial automation loads such as relay banks, HMI panels, and small PLC controllers mounted in DIN rail enclosures. Its slim step-shape profile conserves horizontal rail space.
How does the HDR-100-12N compare to the HDR-100-12?
The HDR-100-12N outputs 90W at 7.5A versus the HDR-100-12's 82.5W at 7.1A. Both share the same 90.0 × 70.0 × 54.5 mm footprint, input range (85–264VAC), certifications, and 3-year warranty — so the N variant provides about 9% more current capacity in the same space.
Can the HDR-100-12N operate across international mains voltages?
Yes, the HDR-100-12N accepts 85–264VAC input, covering both 100–120V and 200–240V mains. This makes it usable in North American, European, and most global installations without a separate step-down transformer.
What is the operating temperature range for control cabinet use?
The HDR-100-12N is rated -30°C to +70°C, so it can operate inside cabinets that heat up significantly during industrial production. It must be installed inside a suitable enclosure since it carries no IP rating of its own.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HDR-100 Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HDR-100-12 Ultra Slim Step Shape Power Supply 100W 12V - DIN Rail | 82.5W | 12V | 7.1A | Indoor | $29.71 | View |
| Mean Well HDR-100-48 Ultra Slim Step Shape Power Supply 100W 48V - DIN Rail | 92.2W | 48V | 1.92A | Indoor | $35.91 | View |
| Mean Well HDR-100-24 Ultra Slim Step Shape Power Supply 100W 24V - DIN Rail | 92W | 24V | 3.83A | Indoor | $33.05 | View |
| Mean Well HDR-100-15 Ultra Slim Step Shape Power Supply 100W 15V - DIN Rail | 92W | 15V | 6.13A | Indoor | $27.85 | View |
| Mean Well HDR-100-48N Ultra Slim Step Shape Power Supply 100W 48V - DIN Rail | 100.8W | 48V | 2.1A | Indoor | $28.24 | View |
| Mean Well HDR-100-24N Ultra Slim Step Shape Power Supply 100W 24V - DIN Rail | 100.8W | 24V | 4.2A | Indoor | $34.53 | View |
| Mean Well HDR-100-15N Ultra Slim Step Shape Power Supply 100W 15V - DIN Rail | 97.5W | 15V | 6.5A | Indoor | $35.91 | View |
