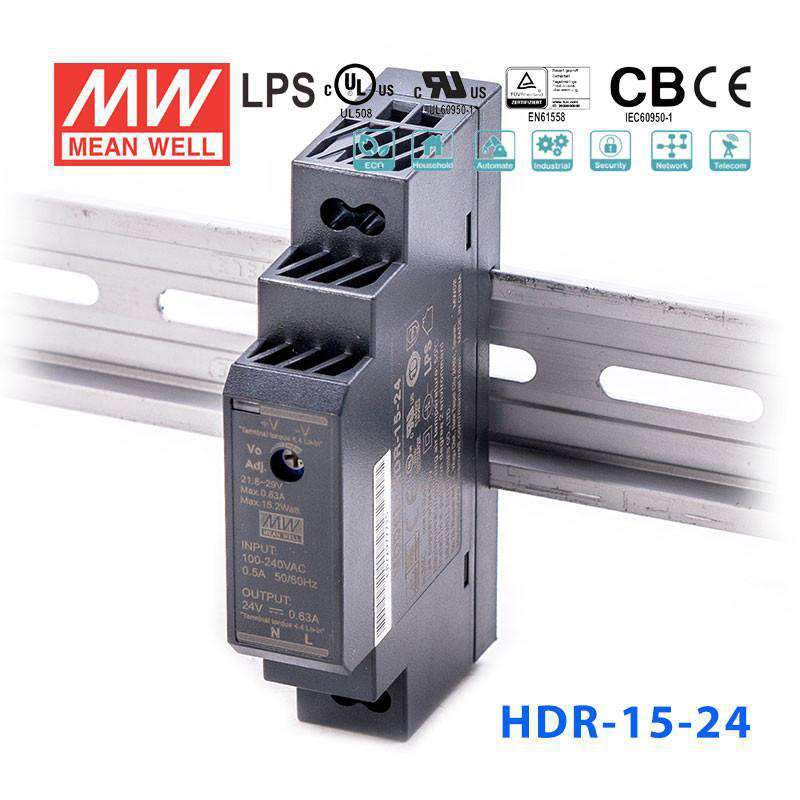

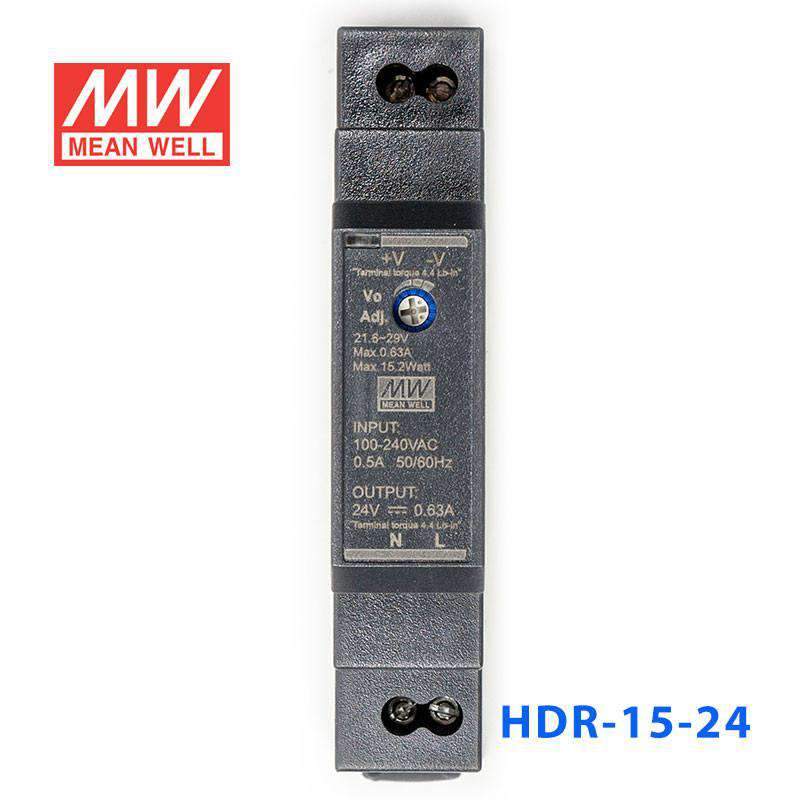

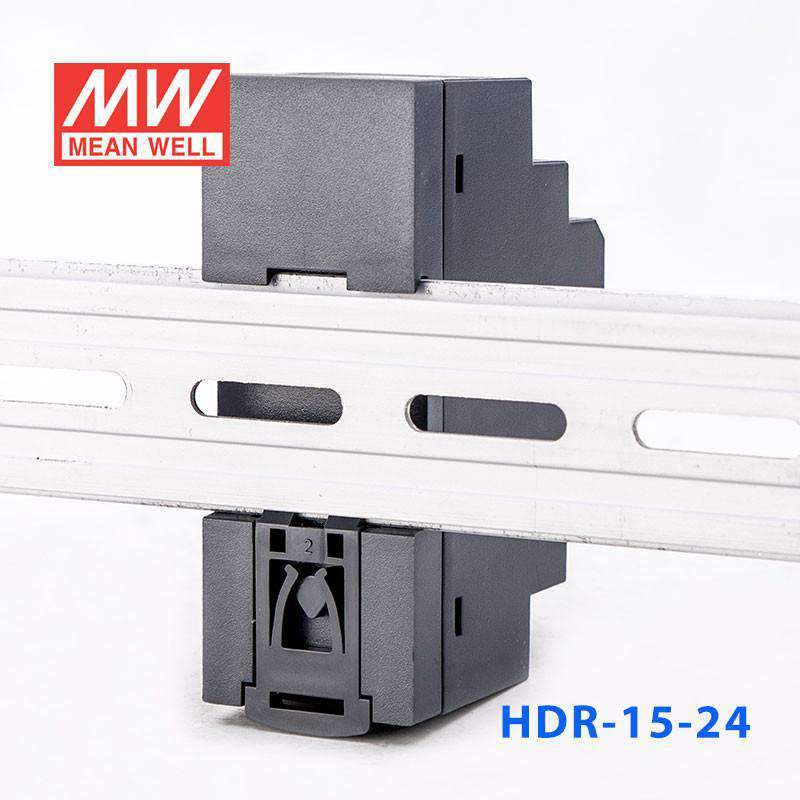

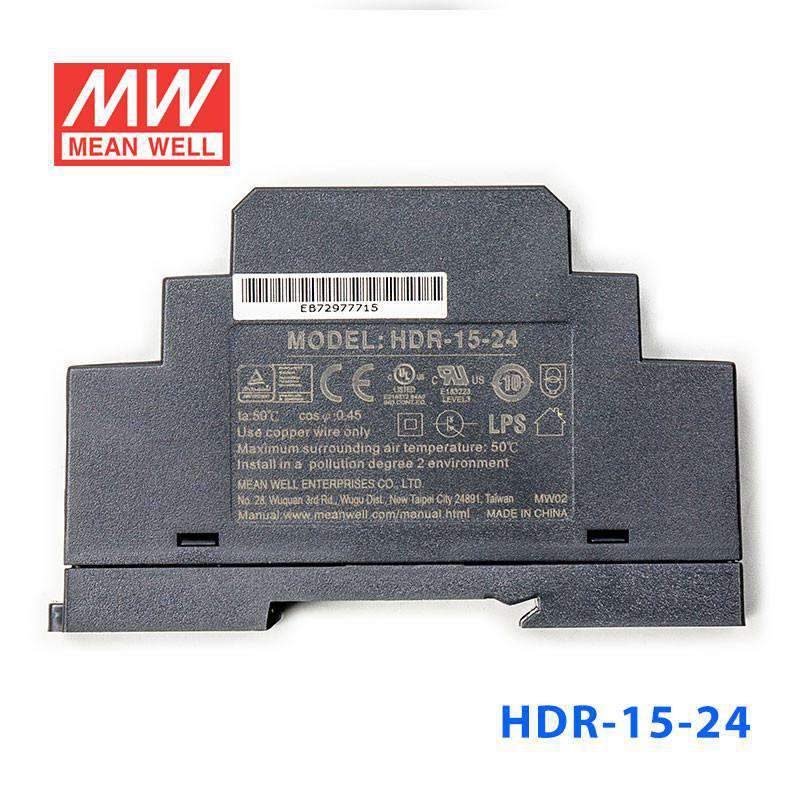

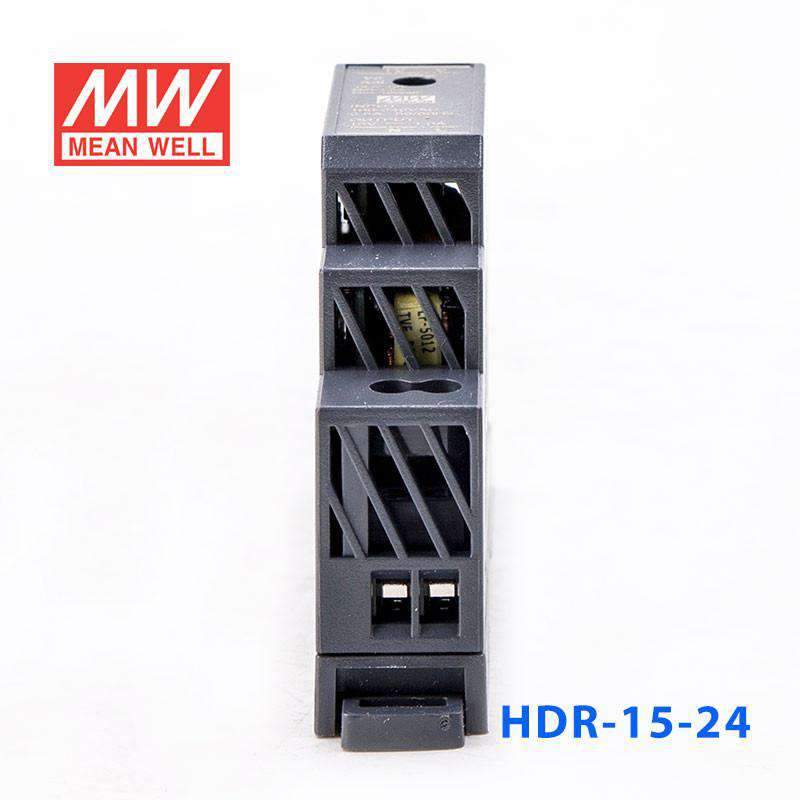

Mean Well HDR-15-24 Ultra Slim Step Shape Power Supply 15W 24V - DIN Rail
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HDR-15-24 Ultra Slim Step Shape Power Supply 15W 24V - DI...
The HDR-15 is a 15W Mean Well power converter (input range: 85~264VAC, operating temperature: -30~+70°).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -30~+70°
- ✓ Protections: Overload / Over voltage
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHDR Series
-
Power Rating15.2 Watt
-
Output Voltage24 Volt
-
Rated Current0.63 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CE,cUL,EAC,RCM,TUV,UL
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3.54 in
-
Width2.15 in
-
Height0.69 in
-
Weight0.16 lb
::specification::
Frequently Asked Questions
Can the HDR-15-24 power 24V sensors or building automation devices at low current?
The HDR-15-24 provides 15.2W at 0.63A on a 24VDC bus, which suits very low-power 24V loads such as proximity sensors, thermostats, or single-channel building automation modules. It mounts on standard DIN rail in its 90.0 × 54.5 × 17.5 mm body.
How does the HDR-15-24 compare to larger 24V HDR models?
The HDR-15-24 is 15.2W / 0.63A. For higher demand: HDR-30-24 is 36W / 1.5A, HDR-60-24 is 60W / 2.5A, HDR-100-24 is 92W / 3.83A, HDR-100-24N is 100.8W / 4.2A, and HDR-150-24 is 127.4W / 5.31A. All share DIN rail mounting but differ in size and depth.
What is the slim depth of the HDR-15-24 compared to larger HDR units?
The HDR-15-24 is 17.5 mm deep (90.0 × 54.5 × 17.5 mm), making it one of the thinnest DIN rail power supplies in the HDR series. This compares to 54.5 mm depth on the HDR-100 and HDR-150 models.
Is the HDR-15-24 suitable for use inside sealed or outdoor control cabinets?
The HDR-15-24 is rated -30°C to +70°C and must be installed inside an enclosure since it has no self-contained IP rating. A sealed cabinet provides the required protection from dust and moisture.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HDR-15 Models
4 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HDR-15-12 Ultra Slim Step Shape Power Supply 15W 12V - DIN Rail | 15W | 12V | 1.25A | Indoor | $13.17 | View |
| Mean Well HDR-15-48 Ultra Slim Step Shape Power Supply 15W 48V - DIN Rail | 15.4W | 48V | 0.32A | Indoor | $15.13 | View |
| Mean Well HDR-15-15 Ultra Slim Step Shape Power Supply 15W 15V - DIN Rail | 15W | 15V | 1A | Indoor | $15.22 | View |
| Mean Well HDR-15-5 Ultra Slim Step Shape Power Supply 15W 5V - DIN Rail | 12W | 5V | 2.4A | Indoor | $13.95 | View |
