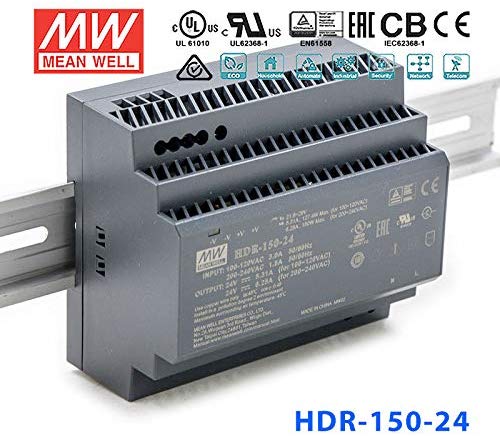

Mean Well HDR-150-24 Ultra Slim Step Shape Power Supply 150W 24V - DIN Rail
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HDR-150-24 Ultra Slim Step Shape Power Supply 150W 24V - ...
The HDR-150 is a 150W Mean Well power converter (input range: 85~2 VAC).
Key Features
- ✓ Input voltage range: 85~2 VAC
- ✓ DC output voltage adjustable ±10%
- ✓ Cooling by free air convection
- ✓ Protections: Overload / Over voltage
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHDR Series
-
Power Rating127.4 Watt
-
Output Voltage24 Volt
-
Rated Current5.31 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CE,cUL,EAC,TUV,UL
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length4.13 in
-
Width3.54 in
-
Height2.15 in
-
Weight0.68 lb
::specification::
Frequently Asked Questions
What 24V automation systems is the HDR-150-24 designed to power?
At 127.4W and 5.31A on a 24VDC bus, the HDR-150-24 suits larger PLC systems, multi-channel distributed I/O, building management controllers, and industrial Ethernet infrastructure requiring sustained 24V power in DIN rail enclosures. Its step-shape profile fits standard 35mm rails.
How does the HDR-150-24 compare to the HDR-100-24 and HDR-100-24N?
The HDR-150-24 outputs 127.4W / 5.31A in a 105.0 × 90.0 × 54.5 mm, 0.31 kg chassis. The HDR-100-24N delivers 100.8W / 4.2A and the HDR-100-24 delivers 92W / 3.83A, both in the smaller 90.0 × 70.0 × 54.5 mm body. The HDR-150-24 carries CB, CE, cUL, EAC, TÜV, UL certifications (BSMI and c-RCM not listed).
What is the isolation class and standby consumption for the HDR-150-24?
The HDR-150-24 uses isolation class II, requiring no protective earth on the output side. No-load power consumption is less than 0.3W, which reduces energy use in always-on 24V control systems.
Can the HDR-150-24 operate in high-ambient-temperature control cabinets?
Yes, the HDR-150-24 is rated up to +70°C operating temperature, accommodating heat-intensive industrial enclosures. The lower bound of -30°C also supports use in cold storage or outdoor cabinet deployments.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HDR-150 Models
3 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HDR-150-12 Ultra Slim Step Shape Power Supply 150W 12V - DIN Rail | 122.4W | 12V | 10.2A | Indoor | $41.83 | View |
| Mean Well HDR-150-48 Ultra Slim Step Shape Power Supply 150W 48V - DIN Rail | 130.6W | 48V | 2.72A | Indoor | $41.83 | View |
| Mean Well HDR-150-15 Ultra Slim Step Shape Power Supply 150W 15V - DIN Rail | 128.3W | 15V | 8.55A | Indoor | $41.83 | View |
