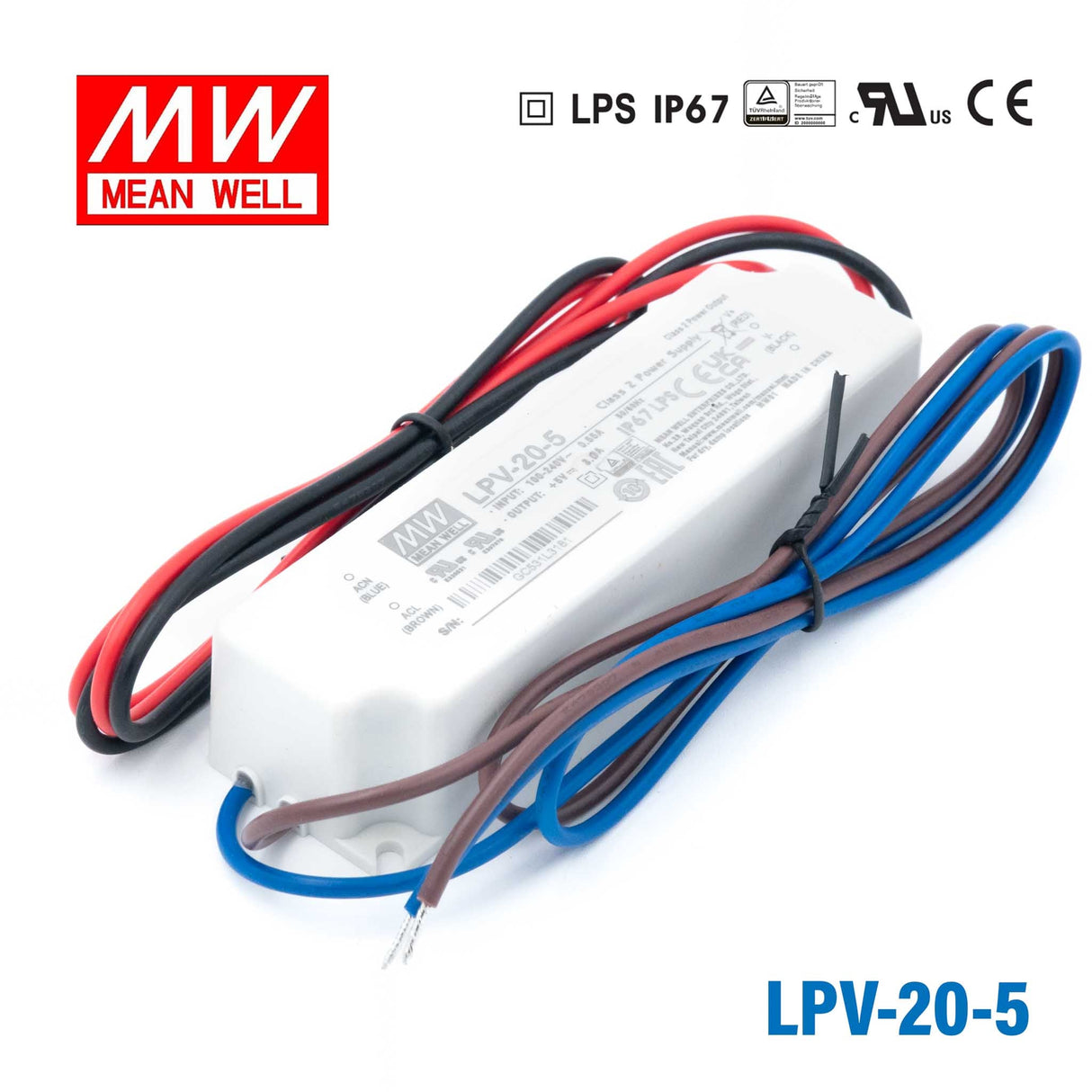

Mean Well LPV-20-5 LED Driver — 15W 5V 3A IP67 Waterproof
Notify me when it's back in stock
Your order will be processed within 24 hours

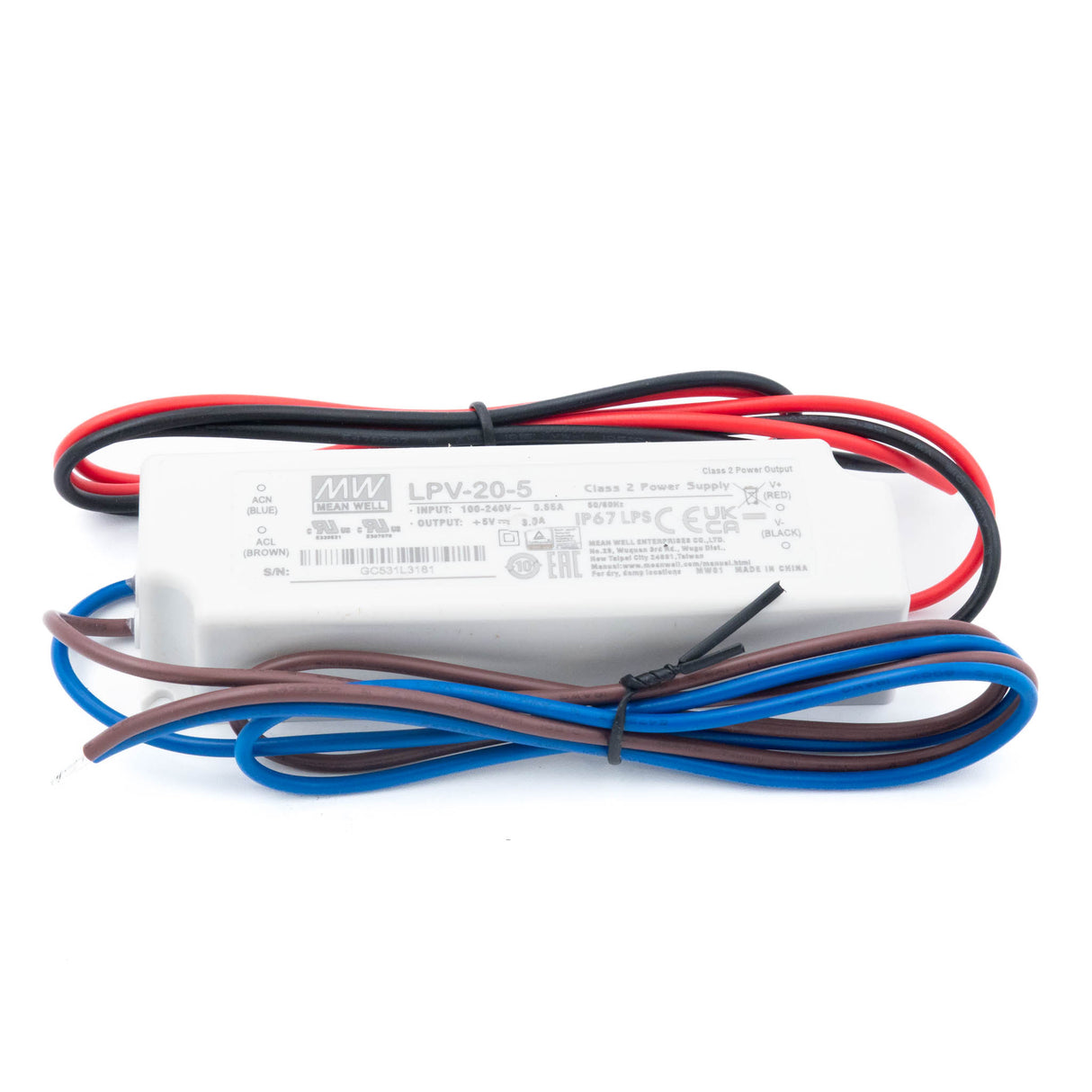

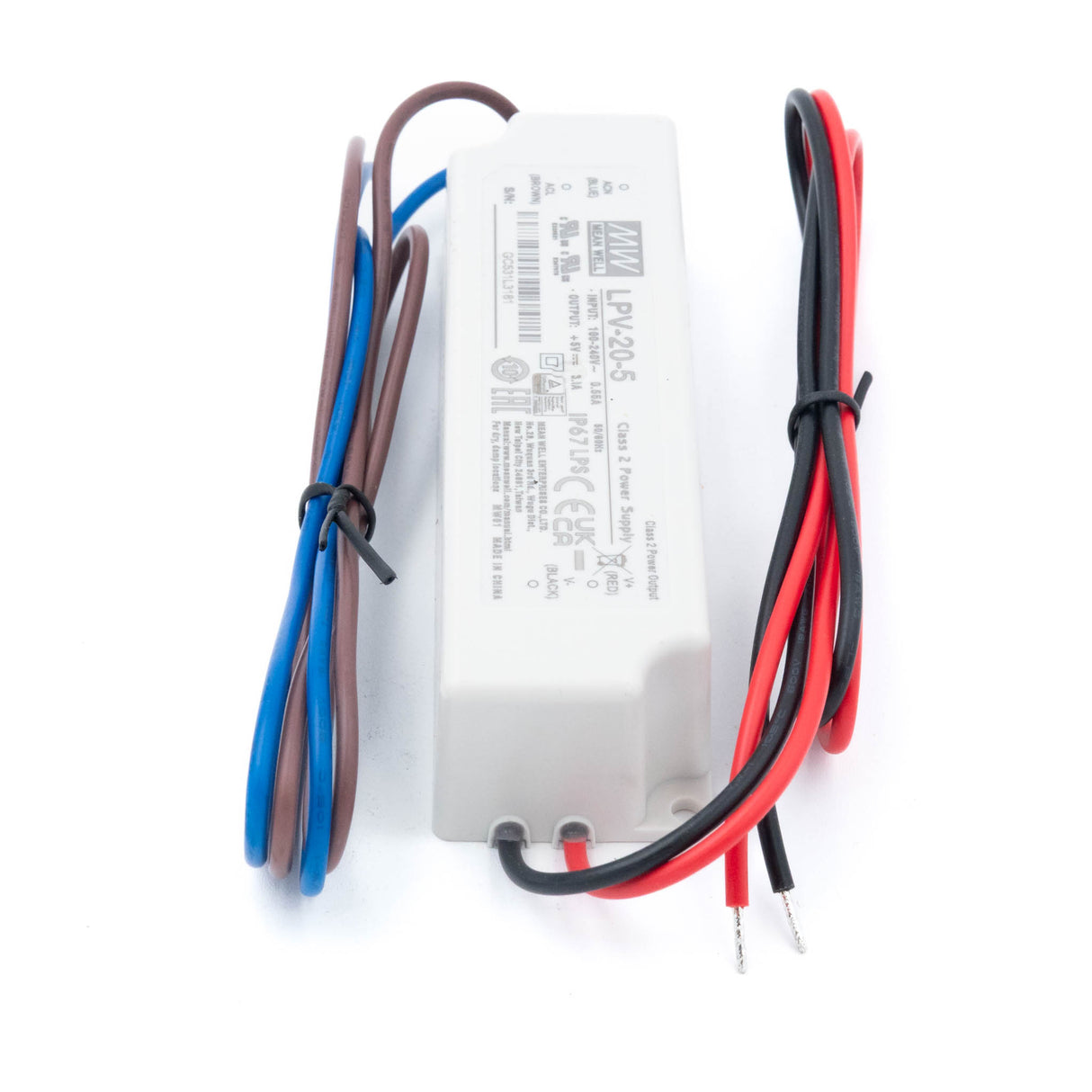

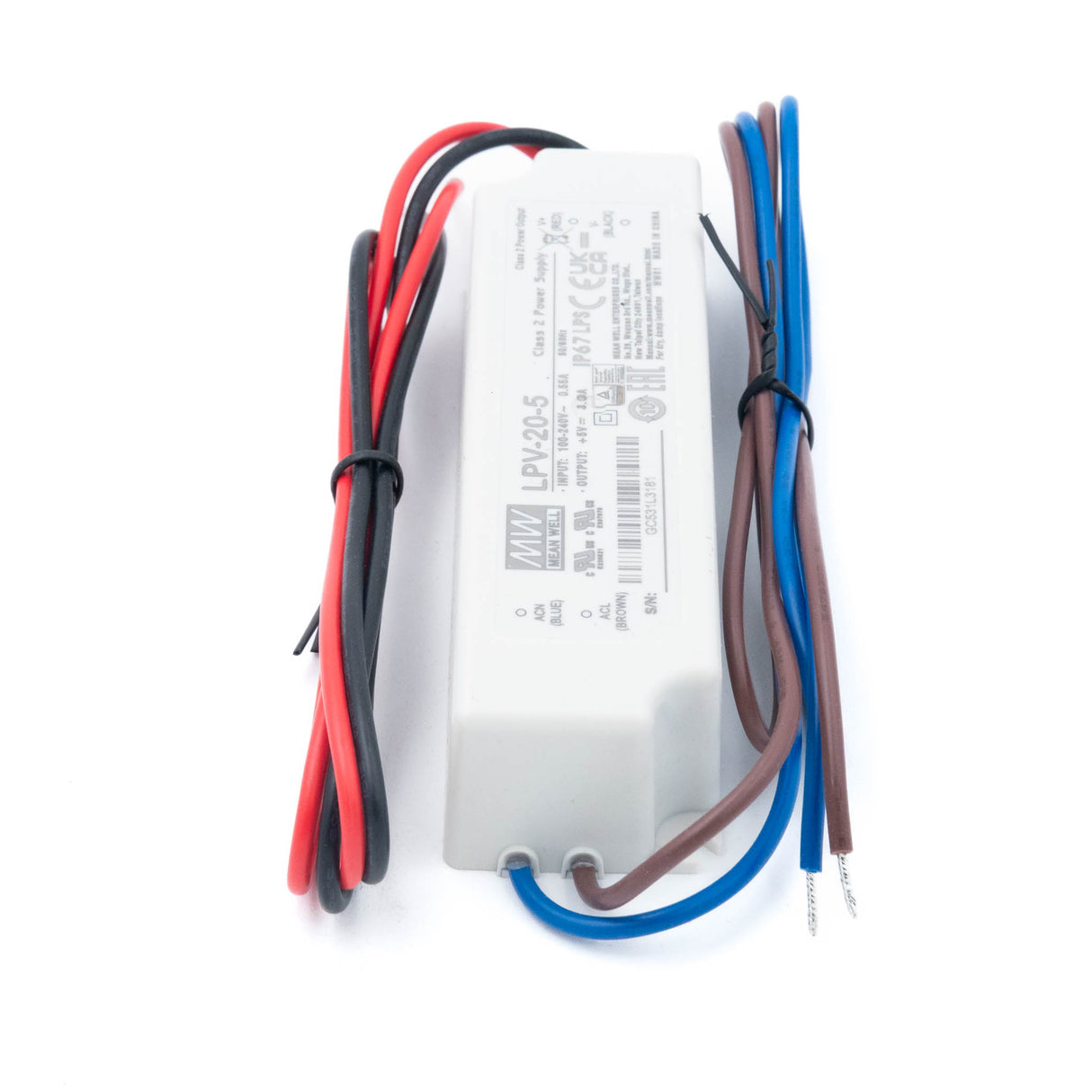

Mean Well LPV-20-5 LED Driver — 15W 5V 3A IP67 Waterproof
The Mean Well LPV-20-5 is a 15W, 5V constant voltage LED driver with IP67 waterproof protection, engineered for reliable performance in demanding indoor and outdoor LED lighting applications. Built to Mean Well's industry-leading quality standards, it delivers stable 5V DC output at up to 3A and carries CE, EAC, TÜV, UL certifications for global compliance.
Accepting 90-264VAC universal AC input, the LPV-20-5 operates reliably across a wide supply range. It features built-in short circuit, overload, and over-voltage protection to safeguard connected LED loads, and is rated for operation from -30°C to +70°C making it suitable for outdoor and harsh-environment installations.
Key Features
- ✓Constant voltage output: 5V DC at up to 3A (15W max)
- ✓IP67 waterproof and dustproof — suitable for outdoor installations
- ✓Universal AC input: 90-264VAC
- ✓Certifications: CE, EAC, TÜV, UL
- ✓Wide operating temperature: -30°C to +70°C
- ✓Built-in protections: short circuit, overload, over-voltage
- ✓Compact, lightweight enclosure: 118.0 × 35.0 × 26.0 mm, 0.2 kg
- ✓2-year Mean Well warranty
-
BrandMean Well
-
SeriesLP Series
-
Power Rating15 Watt
-
Output Voltage5 Volt
-
Rated Current3 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty2 Year
-
Length4.65 in
-
Width1.38 in
-
Height1.02 in
-
Weight0.44 lb
::specification::
Frequently Asked Questions
What LED applications can the LPV-20-5 power at 5V?
The LPV-20-5 outputs 5V DC at up to 3A (15W total), making it suited for 5V LED pixel strips (such as WS2812-based addressable strips), small 5V LED panels, and compact low-voltage LED accent lighting. The total connected load must remain at or below 15W.
How many meters of 5V LED strip can the LPV-20-5 support?
The driver provides a maximum of 15W at 5V. Divide 15W by your strip's rated power per meter — for example, at 3W/m the result is 5 m. Always verify the strip's rated power consumption per meter and keep total load within the 15W ceiling.
Can the LPV-20-5 be used in damp or outdoor locations?
Yes. The IP67 rating certifies it as dust-tight and protected against temporary submersion up to 1 meter, so it can be housed in outdoor enclosures and damp-location fixtures. The operating temperature range of -30°C to +70°C also supports cold-climate outdoor deployments.
Does the LPV-20-5 work on international mains voltages?
Yes. The 90–264VAC input range covers 110V/120V North American supplies, 220V/230V European supplies, and other voltages in that window. No manual voltage switching is required.
How does the LPV-20-5 compare to the LPV-100-5 and LPV-60-5 for 5V LED projects?
All three output 5V but at different power levels: LPV-20-5 delivers 3A and 15W, LPV-60-5 delivers 8A and 40W, and LPV-100-5 delivers 12A and 60W. For small 5V LED loads up to 15W the LPV-20-5 is sufficient; larger installations requiring more than 15W at 5V need the LPV-60-5 or LPV-100-5.
