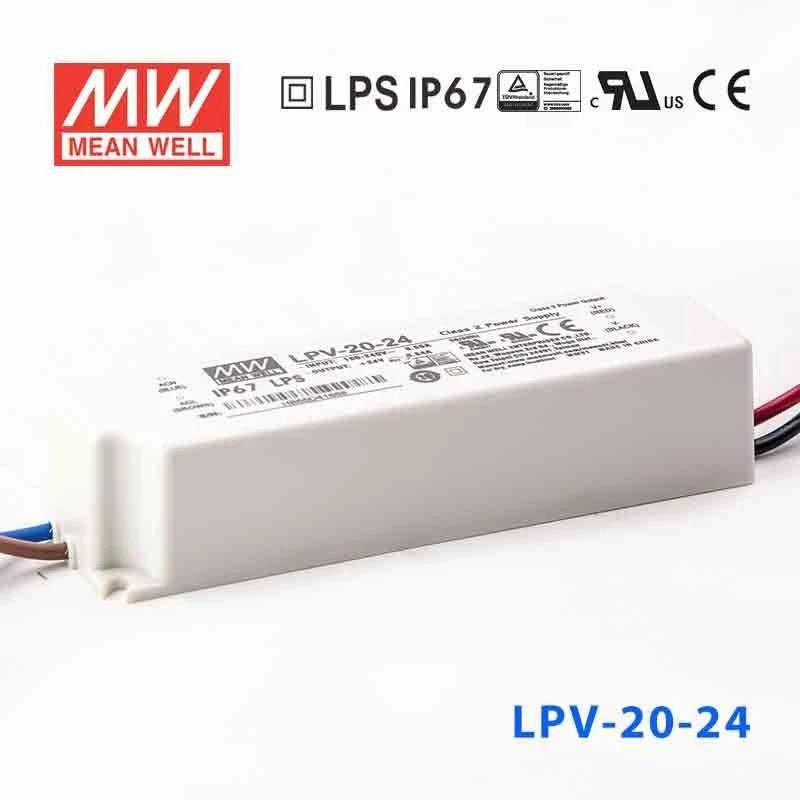

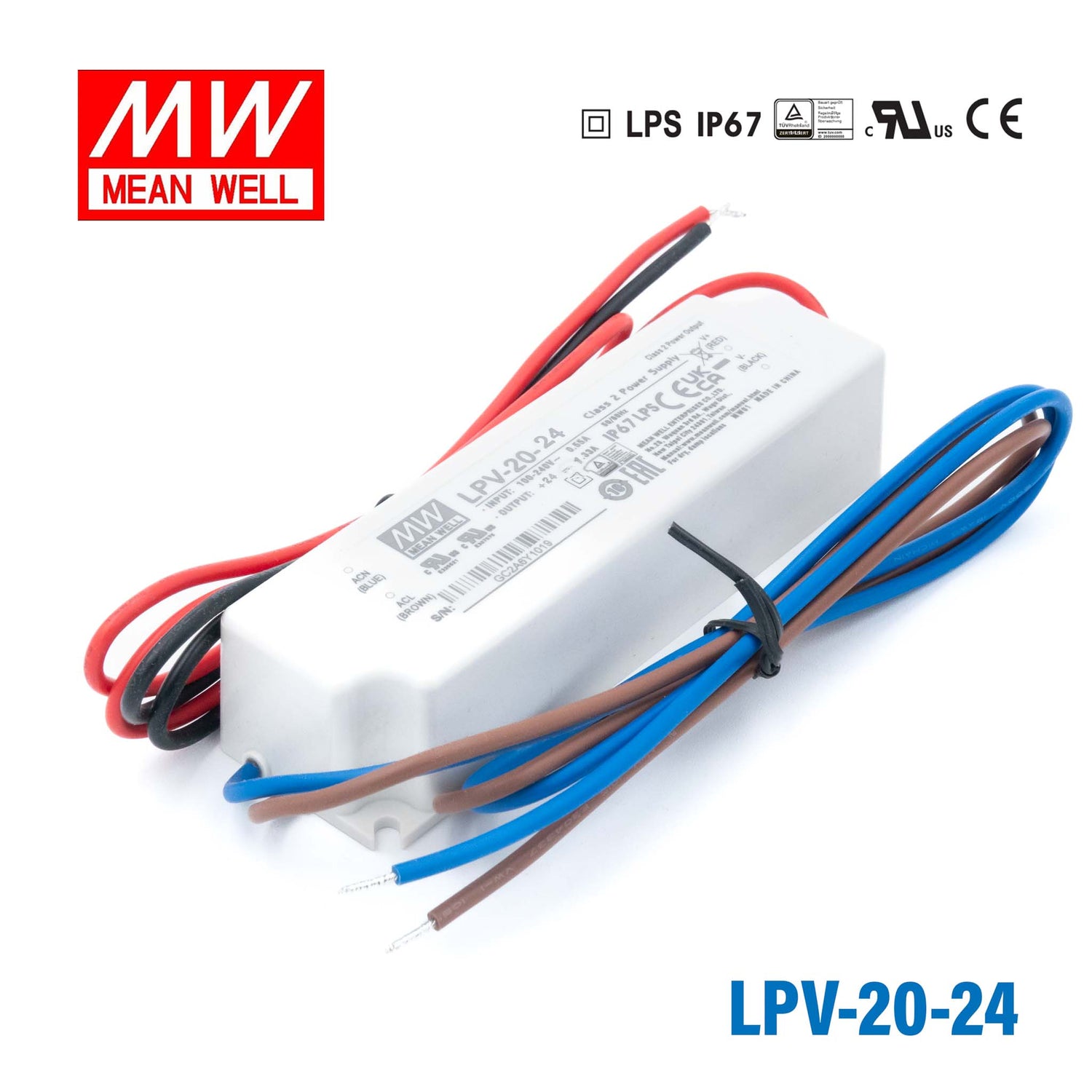

Mean Well LPV-20-24 LED Driver — 20.2W 24V 0.84A IP67 Waterproof
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LPV-20-24 LED Driver — 20.2W 24V 0.84A IP67 Waterproof
Description
Description
Mean Well LPV-20-24 LED Driver — 20.2W 24V 0.84A IP67 Waterproof
The Mean Well LPV-20-24 is a 20.2W, 24V constant voltage LED driver with IP67 waterproof protection, engineered for reliable performance in demanding indoor and outdoor LED lighting applications. Built to Mean Well's industry-leading quality standards, it delivers stable 24V DC output at up to 0.84A and carries CE, EAC, TÜV, UL certifications for global compliance.
Accepting 90-264VAC universal AC input, the LPV-20-24 operates reliably across a wide supply range. It features built-in short circuit, overload, and over-voltage protection to safeguard connected LED loads, and is rated for operation from -30°C to +70°C making it suitable for outdoor and harsh-environment installations.
Key Features
- Constant voltage output: 24V DC at up to 0.84A (20.2W max)
- IP67 waterproof and dustproof — suitable for outdoor installations
- Universal AC input: 90-264VAC
- Certifications: CE, EAC, TÜV, UL
- Wide operating temperature: -30°C to +70°C
- Built-in protections: short circuit, overload, over-voltage
- Compact, lightweight enclosure: 118.0 × 35.0 × 26.0 mm, 0.2 kg
- 2-year Mean Well warranty
Specifications
| Model | LPV-20-24 |
| Output Power | 20.2W |
| Output Voltage | 24V DC |
| Output Current | 0.84A |
| Operation Mode | Constant Voltage |
| Input Voltage Range | 90-264VAC |
| IP Rating | IP67 Waterproof |
| Certifications | CE, EAC, TÜV, UL |
| Operating Temperature | -30°C to +70°C |
| Dimensions (L × W × H) | 118.0 × 35.0 × 26.0 mm |
| Weight | 0.2 kg |
| Warranty | 2 Years |
Applications
- LED signage and electronic displays
- Architectural and decorative LED lighting
- Outdoor and landscape LED installations
- Stage and theater LED lighting
- Commercial LED lighting installations
Specifications
Specifications
-
BrandMean Well
-
SeriesLP Series
-
Power Rating20.2 Watt
-
Output Voltage24 Volt
-
Rated Current0.84 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty2 Year
-
Length4.65 in
-
Width1.38 in
-
Height1.02 in
-
Weight0.44 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What can I use the LPV-20-24 for at 24V?
The LPV-20-24 delivers 24V DC at up to 0.84A (20.2W total), making it appropriate for small 24V LED accent strips, compact illuminated channel letters, or single-zone LED modules where the total draw stays below 20.2W. It is not intended for large strip runs or multi-zone lighting that exceeds this power budget.
How much 24V LED strip can the LPV-20-24 drive?
The maximum output is 20.2W at 24V. For a strip rated at 9.6W/m, that equals roughly 2.1 m before reaching the driver's limit. Check your specific strip's rated watts per meter and stay within the 20.2W ceiling to avoid overloading the unit.
Is the LPV-20-24 rated for outdoor use?
Yes. The IP67 rating provides complete protection against dust and resistance to temporary immersion in water up to 1 meter. The operating temperature range is -30°C to +70°C, making the unit suitable for compact outdoor fixtures and exterior sign cabinets where a small 24V power supply is needed.
Does the LPV-20-24 accept both 120V and 230V input?
Yes. The input range is 90–264VAC, so it operates on 120V North American mains and 230V European mains without any voltage selector switch. Confirm your supply voltage falls within this window before use.
When would I choose the LPV-20-24 over the LPV-60-24 for a 24V project?
The LPV-20-24 delivers 20.2W at 24V while the LPV-60-24 delivers 60W at 24V. The LPV-20-24 is the right choice when the total 24V LED load is 20W or less and a compact form factor (118×35×26mm, 0.2 kg) is a priority. For loads above 20.2W at 24V, the LPV-60-24 or a larger LPV variant is required.
Other LPV-20 Models
3 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|

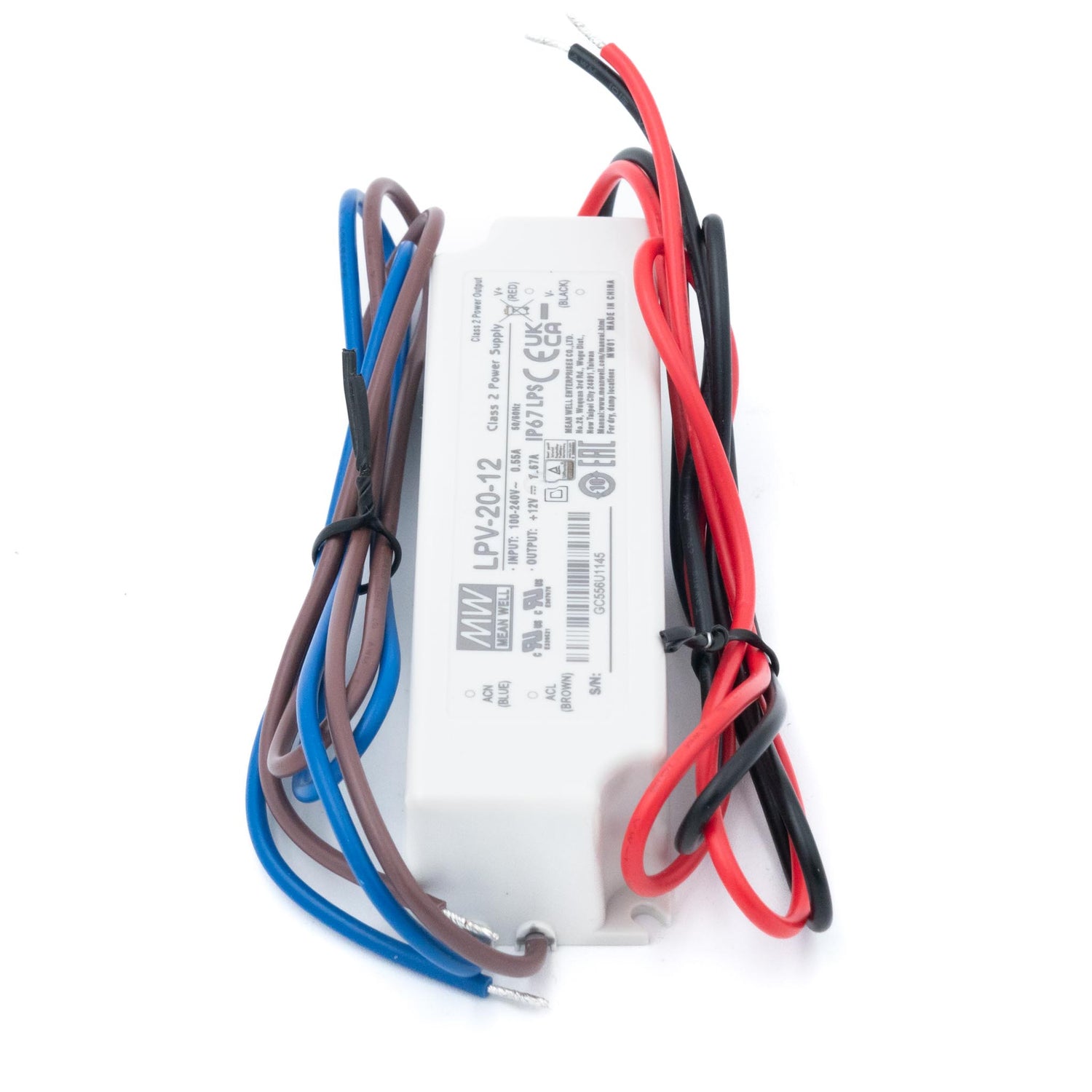

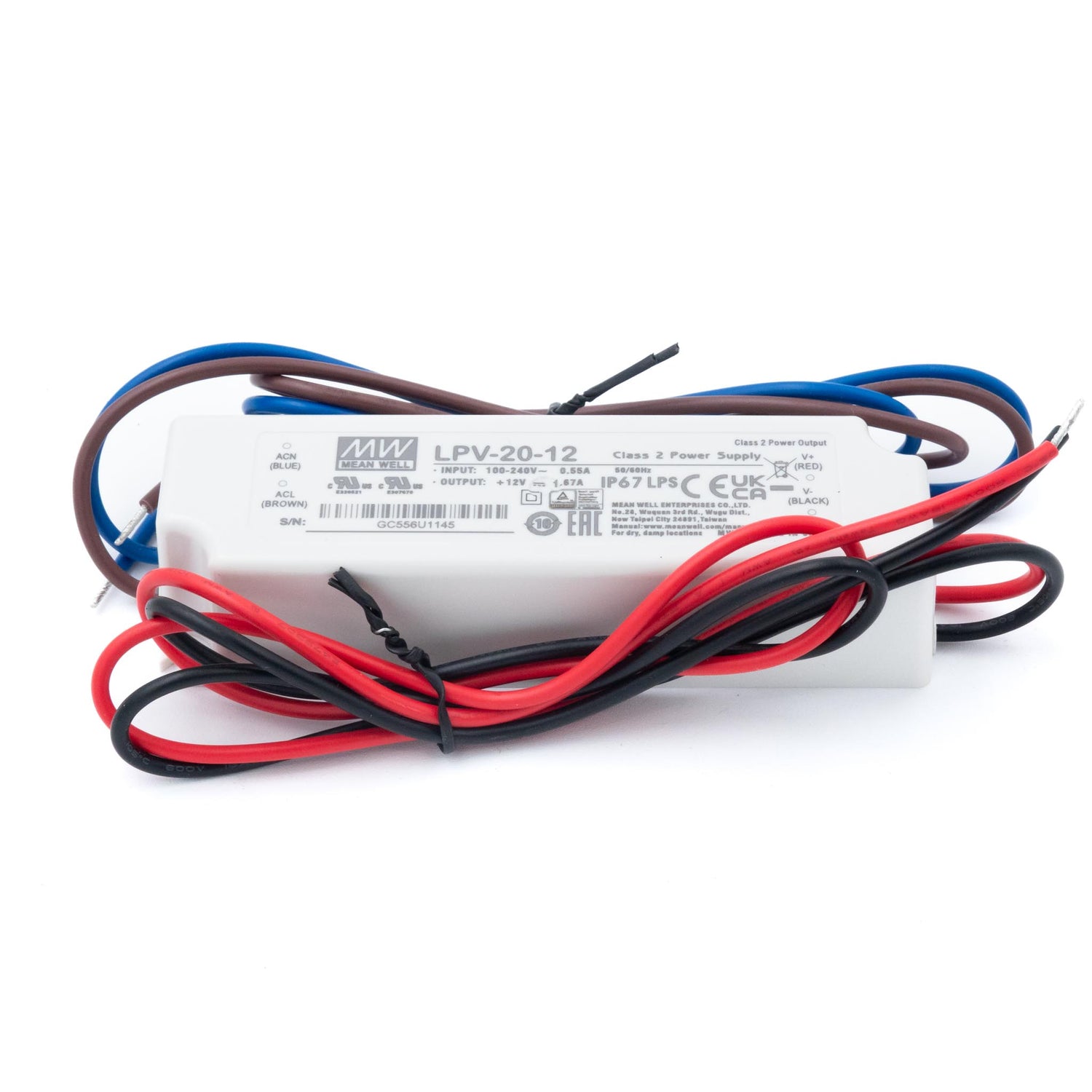

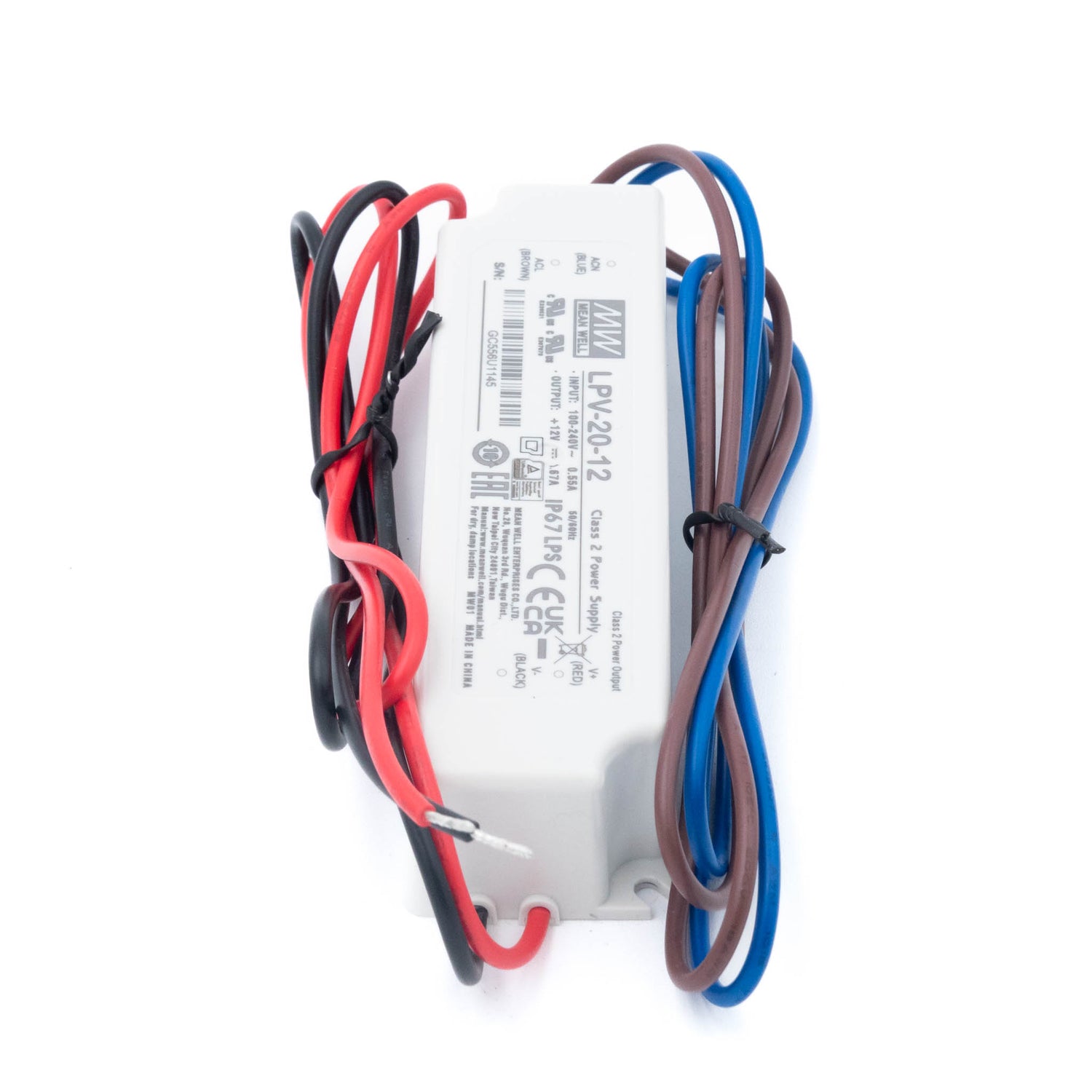

| Mean Well LPV-20-12 LED Driver — 20W 12V 1.67A IP67 Waterproof | 20W | 12V | 1.67A | IP67 | $10.94 | View |
| Mean Well LPV-20-5 LED Driver — 15W 5V 3A IP67 Waterproof | 15W | 5V | 3A | IP67 | $11.22 | View |
| Mean Well LPV-20-15 LED Driver — 20W 15V 1.33A IP67 Waterproof | 20W | 15V | 1.33A | IP67 | $10.85 | View |
