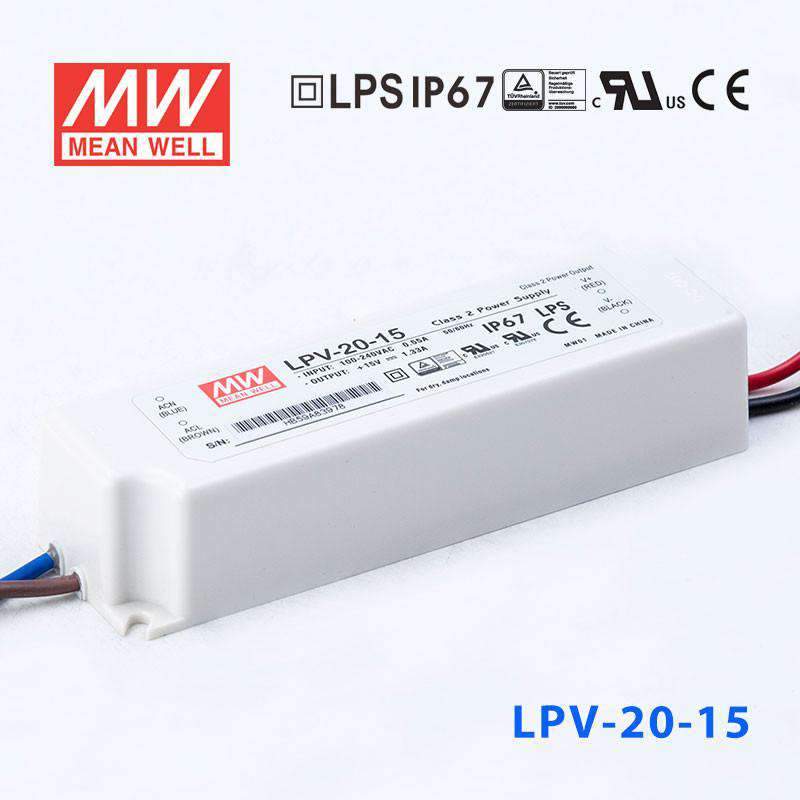

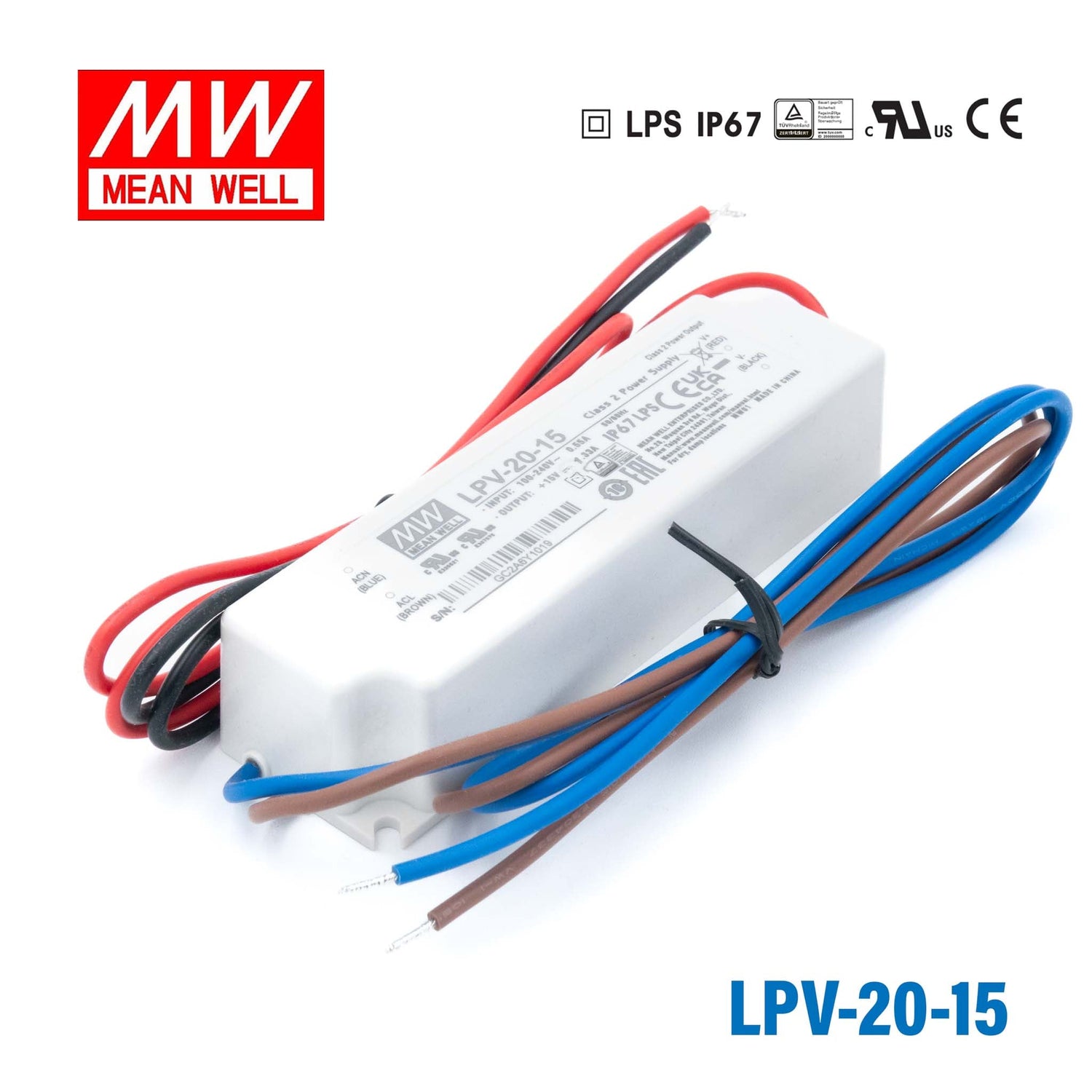

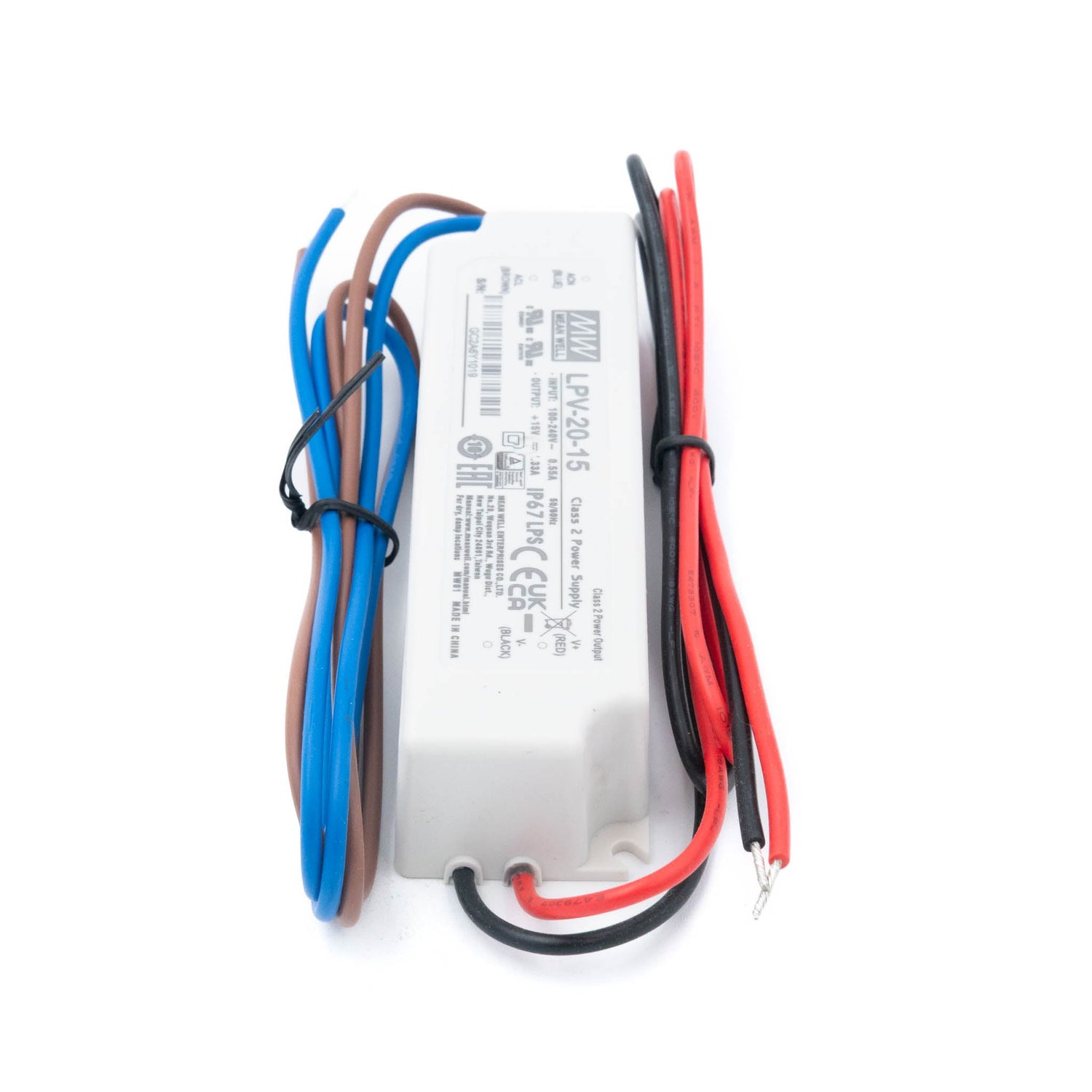

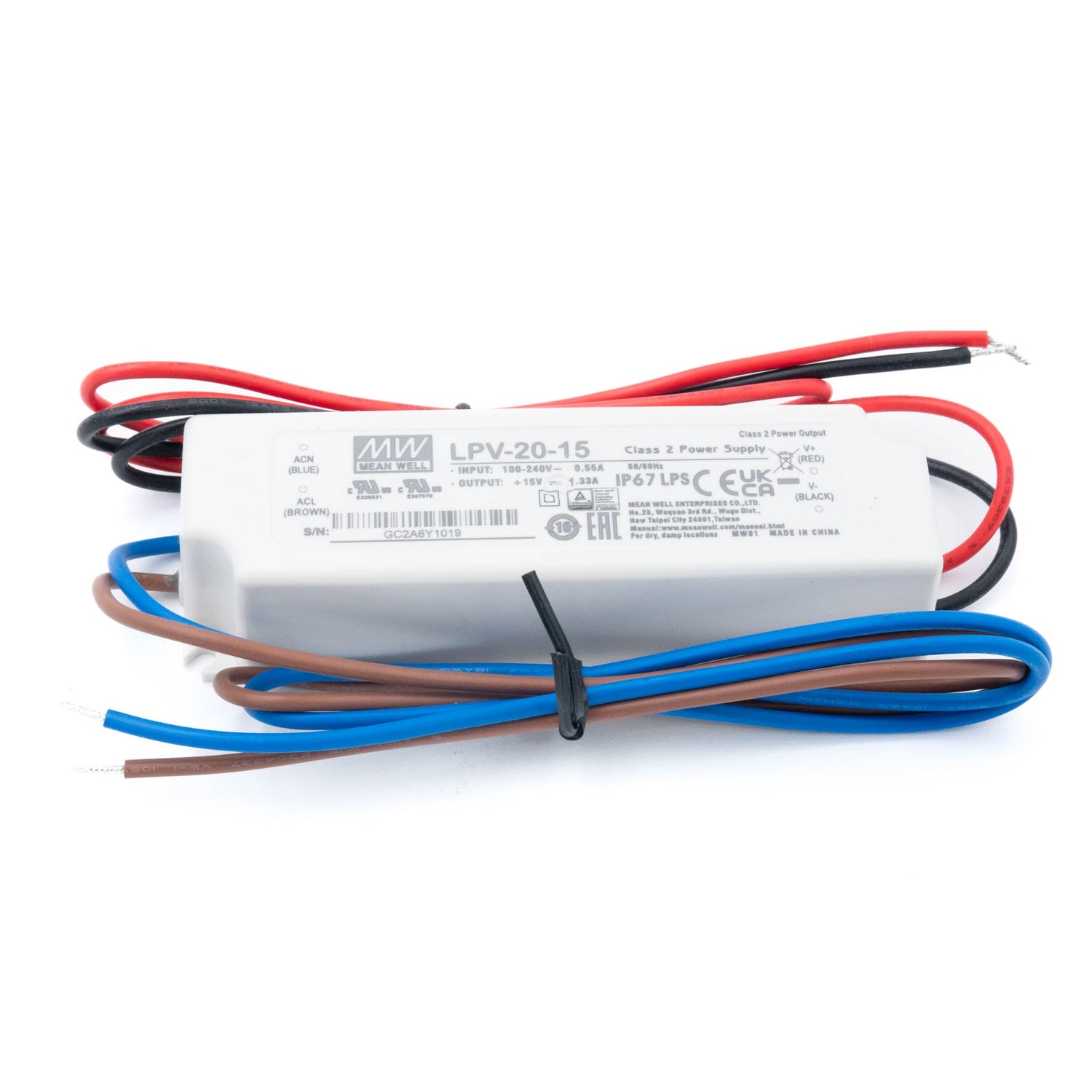

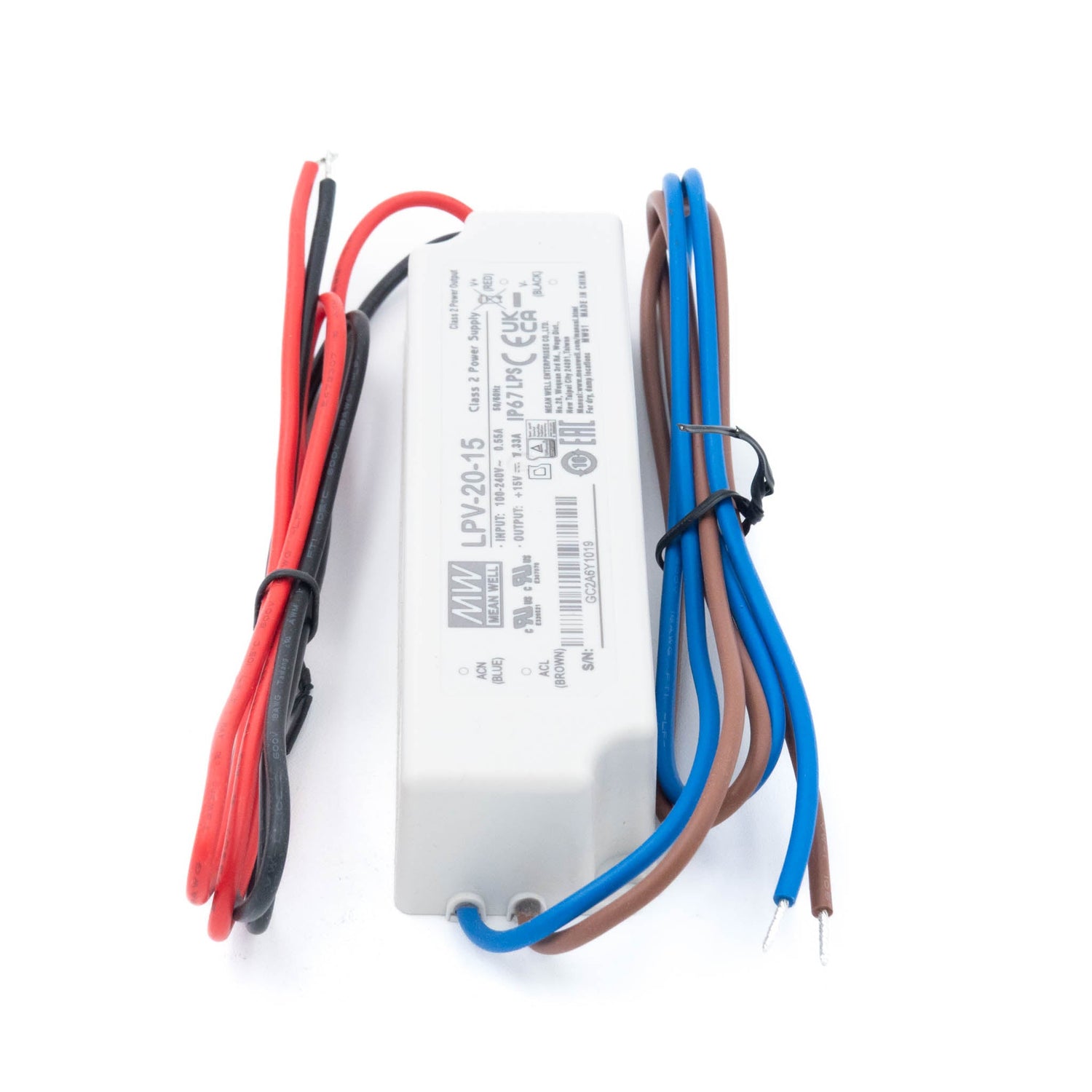

Mean Well LPV-20-15 LED Driver — 20W 15V 1.33A IP67 Waterproof
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LPV-20-15 LED Driver — 20W 15V 1.33A IP67 Waterproof
The Mean Well LPV-20-15 is a 20W, 15V constant voltage LED driver with IP67 waterproof protection, engineered for reliable performance in demanding indoor and outdoor LED lighting applications. Built to Mean Well's industry-leading quality standards, it delivers stable 15V DC output at up to 1.33A and carries CE, EAC, TÜV, UL certifications for global compliance.
Accepting 90-264VAC universal AC input, the LPV-20-15 operates reliably across a wide supply range. It features built-in short circuit, overload, and over-voltage protection to safeguard connected LED loads, and is rated for operation from -30°C to +70°C making it suitable for outdoor and harsh-environment installations.
Key Features
- ✓Constant voltage output: 15V DC at up to 1.33A (20W max)
- ✓IP67 waterproof and dustproof — suitable for outdoor installations
- ✓Universal AC input: 90-264VAC
- ✓Certifications: CE, EAC, TÜV, UL
- ✓Wide operating temperature: -30°C to +70°C
- ✓Built-in protections: short circuit, overload, over-voltage
- ✓Compact, lightweight enclosure: 118.0 × 35.0 × 26.0 mm, 0.2 kg
- ✓2-year Mean Well warranty
-
BrandMean Well
-
SeriesLP Series
-
Power Rating20 Watt
-
Output Voltage15 Volt
-
Rated Current1.33 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty2 Year
-
Length4.65 in
-
Width1.38 in
-
Height1.02 in
-
Weight0.44 lb
::specification::
Frequently Asked Questions
What LED lighting is the LPV-20-15 designed to power at 15V?
The LPV-20-15 outputs 15V DC at up to 1.33A (20W total), suitable for 15V LED strip systems, small specialty lighting panels, and compact LED modules rated for 15V. Any 15V constant-voltage LED load within 20W can be powered by this driver.
How much 15V LED strip can the LPV-20-15 support?
With a maximum output of 20W at 15V, the supportable strip length depends on the strip's watt-per-meter rating. As an example, at 5W/m the driver supports up to 4 m. Always confirm your strip's rated power per meter before sizing the driver.
Can the LPV-20-15 be used in wet or outdoor environments?
Yes. IP67 protection means the case is fully sealed against dust and can withstand temporary water immersion up to 1 meter. Combined with an operating temperature range of -30°C to +70°C, the unit is suitable for protected outdoor installations such as garden fixtures and exterior sign cabinets.
What input voltage range does the LPV-20-15 accept?
The LPV-20-15 accepts 90–264VAC, covering standard 110V/120V North American mains, 230V European mains, and everything in between. No input adjustment is needed when the supply voltage is within this range.
How does the LPV-20-15 differ from the LPV-20-12 and LPV-20-24 in the same wattage class?
All three LPV-20 variants share the same physical footprint (118×35×26mm) and 20W power class, but differ in output voltage and current: LPV-20-12 gives 12V at 1.67A, LPV-20-15 gives 15V at 1.33A, and LPV-20-24 gives 24V at 0.84A. Select the variant that matches the rated voltage of your LED load.
