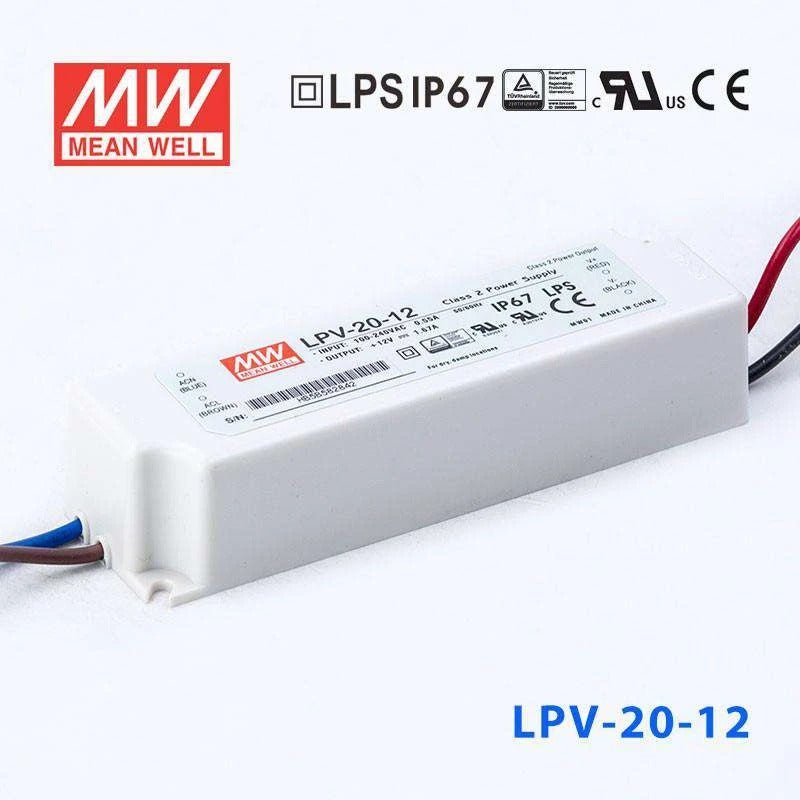

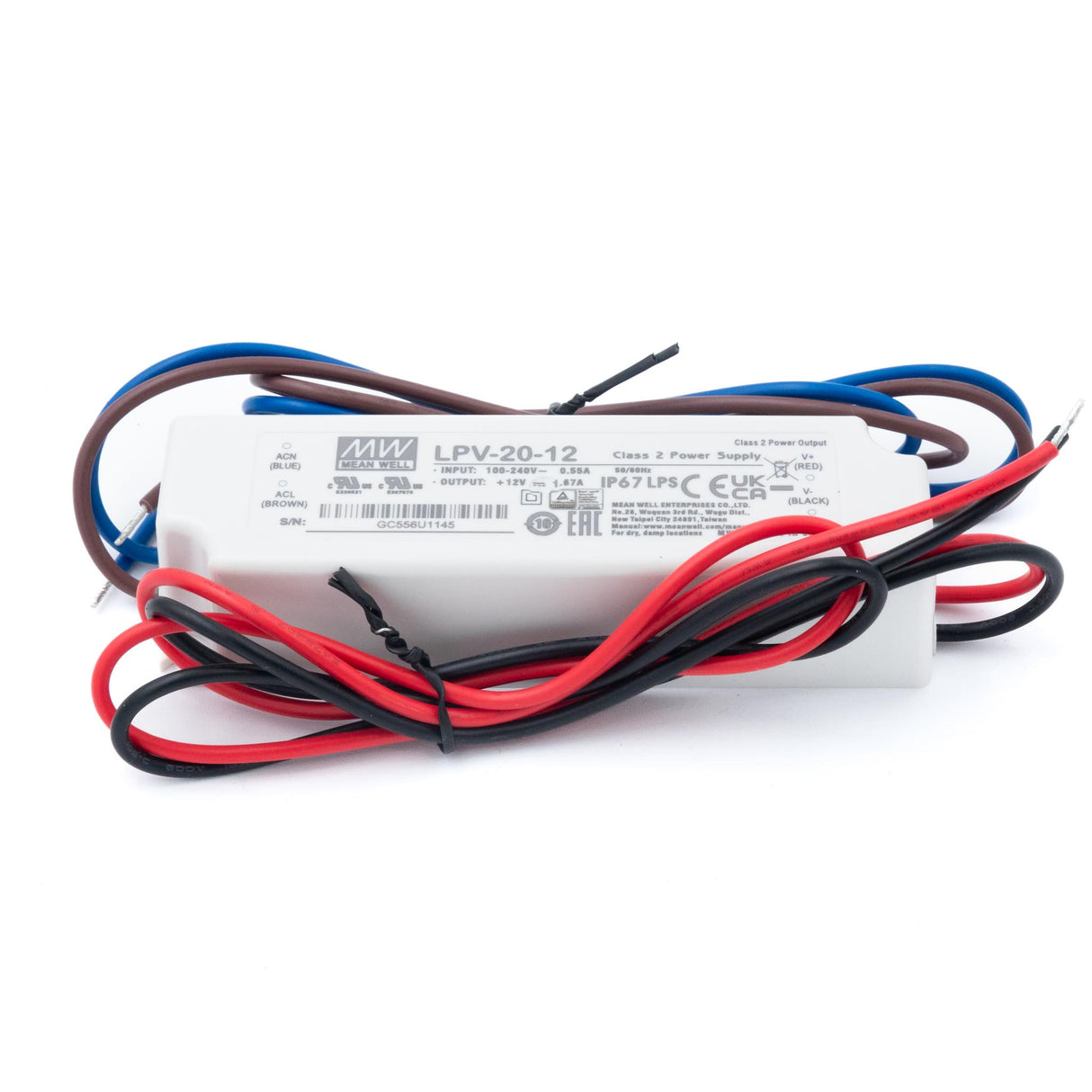

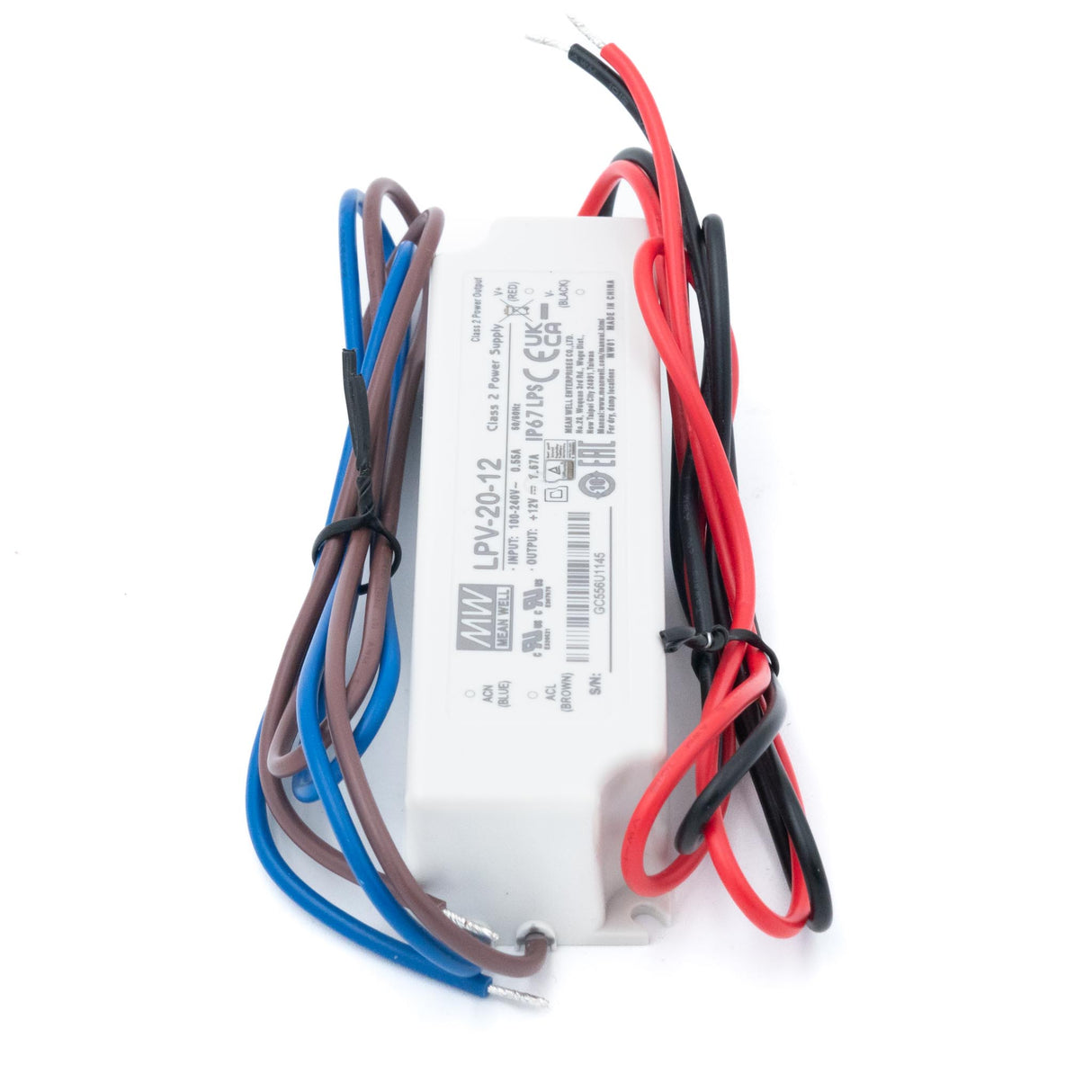

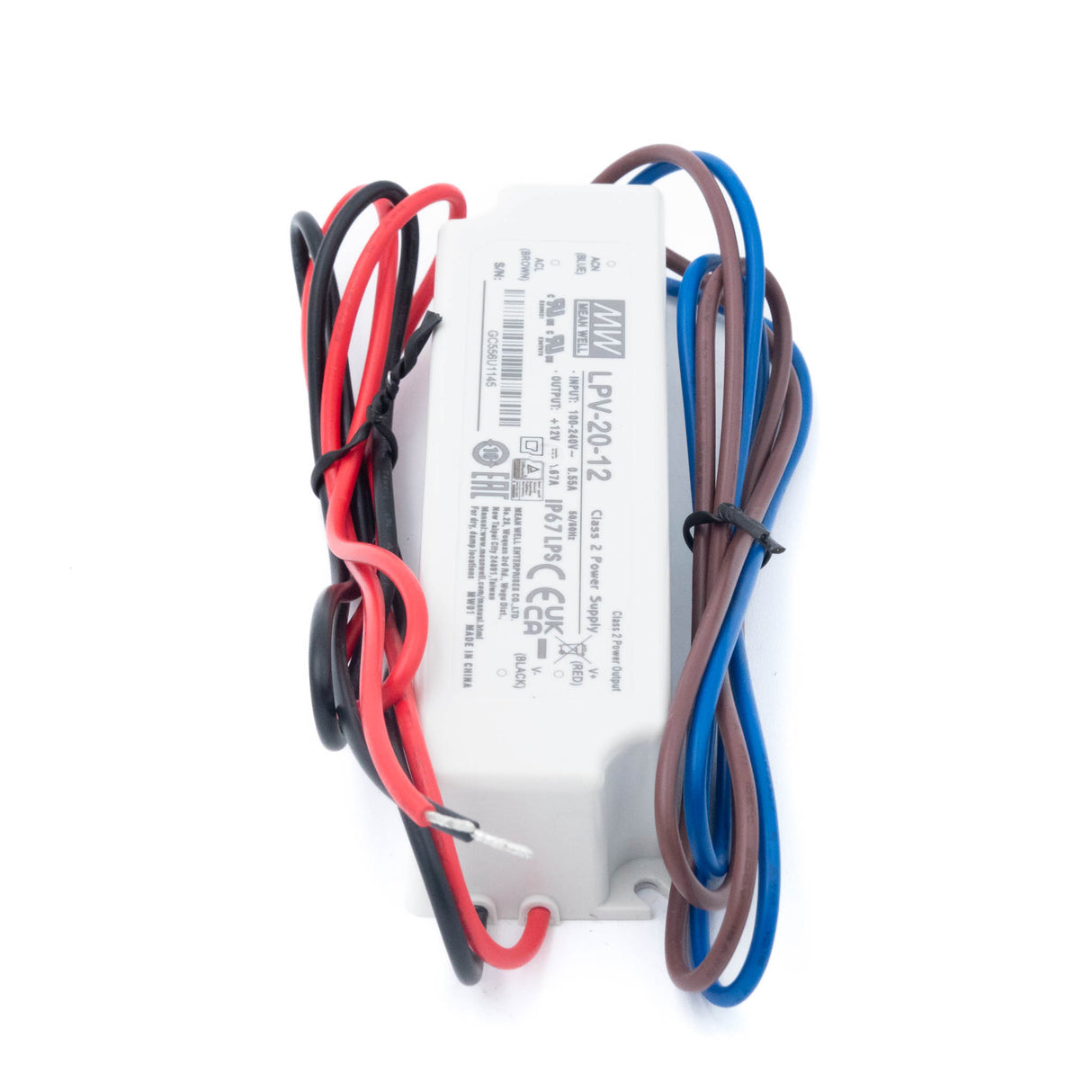

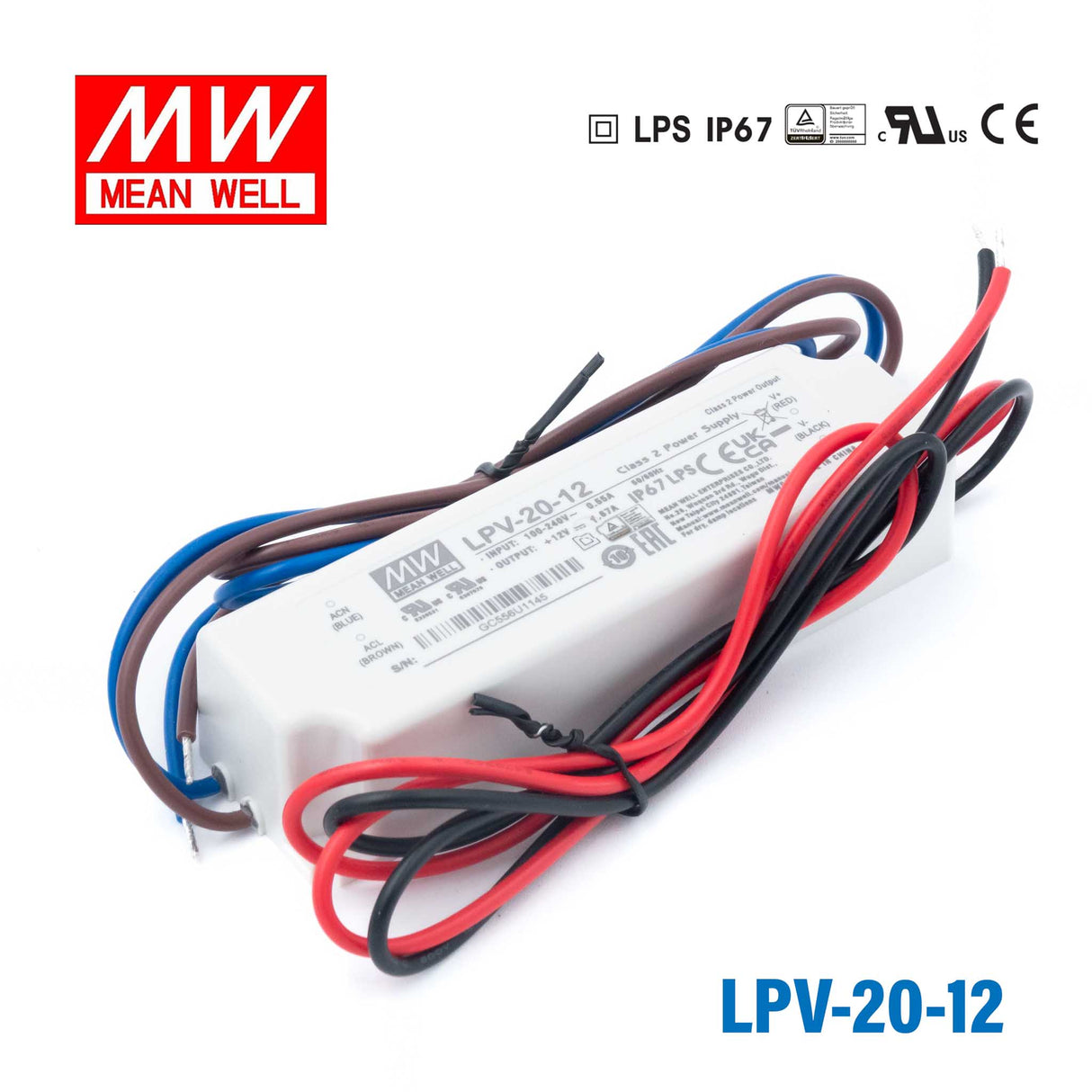

Mean Well LPV-20-12 LED Driver — 20W 12V 1.67A IP67 Waterproof
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LPV-20-12 LED Driver — 20W 12V 1.67A IP67 Waterproof
The Mean Well LPV-20-12 is a 20W, 12V constant voltage LED driver with IP67 waterproof protection, engineered for reliable performance in demanding indoor and outdoor LED lighting applications. Built to Mean Well's industry-leading quality standards, it delivers stable 12V DC output at up to 1.67A and carries CE, EAC, TÜV, UL certifications for global compliance.
Accepting 90-264VAC universal AC input, the LPV-20-12 operates reliably across a wide supply range. It features built-in short circuit, overload, and over-voltage protection to safeguard connected LED loads, and is rated for operation from -30°C to +70°C making it suitable for outdoor and harsh-environment installations.
Key Features
- ✓Constant voltage output: 12V DC at up to 1.67A (20W max)
- ✓IP67 waterproof and dustproof — suitable for outdoor installations
- ✓Universal AC input: 90-264VAC
- ✓Certifications: CE, EAC, TÜV, UL
- ✓Wide operating temperature: -30°C to +70°C
- ✓Built-in protections: short circuit, overload, over-voltage
- ✓Compact, lightweight enclosure: 118.0 × 35.0 × 26.0 mm, 0.2 kg
- ✓2-year Mean Well warranty
-
BrandMean Well
-
SeriesLP Series
-
Power Rating20 Watt
-
Output Voltage12 Volt
-
Rated Current1.67 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty2 Year
-
Length4.65 in
-
Width1.38 in
-
Height1.02 in
-
Weight0.44 lb
::specification::
Frequently Asked Questions
What LED lighting applications is the LPV-20-12 suitable for?
The LPV-20-12 outputs 12V DC at up to 1.67A (20W total), making it practical for powering short runs of 12V LED strip, small under-cabinet lighting, and compact illuminated signage where total load stays at or below 20W. It is not suited to large-area installations that require more than 20W.
How many meters of 12V LED strip can the LPV-20-12 power?
The driver supplies a maximum of 20W at 12V. Divide 20W by your strip's rated power per meter to find the limit — for example, at 4.8W/m the result is approximately 4.2 m. Always verify your strip's rated power per meter and keep a safety margin to avoid overloading the driver.
Is the LPV-20-12 suitable for outdoor or damp locations?
Yes. The IP67 rating means the unit is dust-tight and protected against temporary immersion in water, so it can be used in outdoor sign boxes, under eaves, or in garden lighting fixtures. Its operating temperature range of -30°C to +70°C supports cold-weather outdoor installations.
Will the LPV-20-12 work on 110V or 120V mains?
Yes. The input range is 90–264VAC, which covers North American 120V, European 230V, and all voltages in between. No input switching or configuration is required when moving between supply voltages in that range.
How does the LPV-20-12 compare to the LPV-35-12 for a small 12V LED project?
Both output 12V, but the LPV-20-12 supplies 1.67A and 20W, while the LPV-35-12 supplies 3A and 36W. If your 12V LED load draws up to 20W, the LPV-20-12 is adequate; for loads between 20W and 36W you would need the LPV-35-12 instead.
