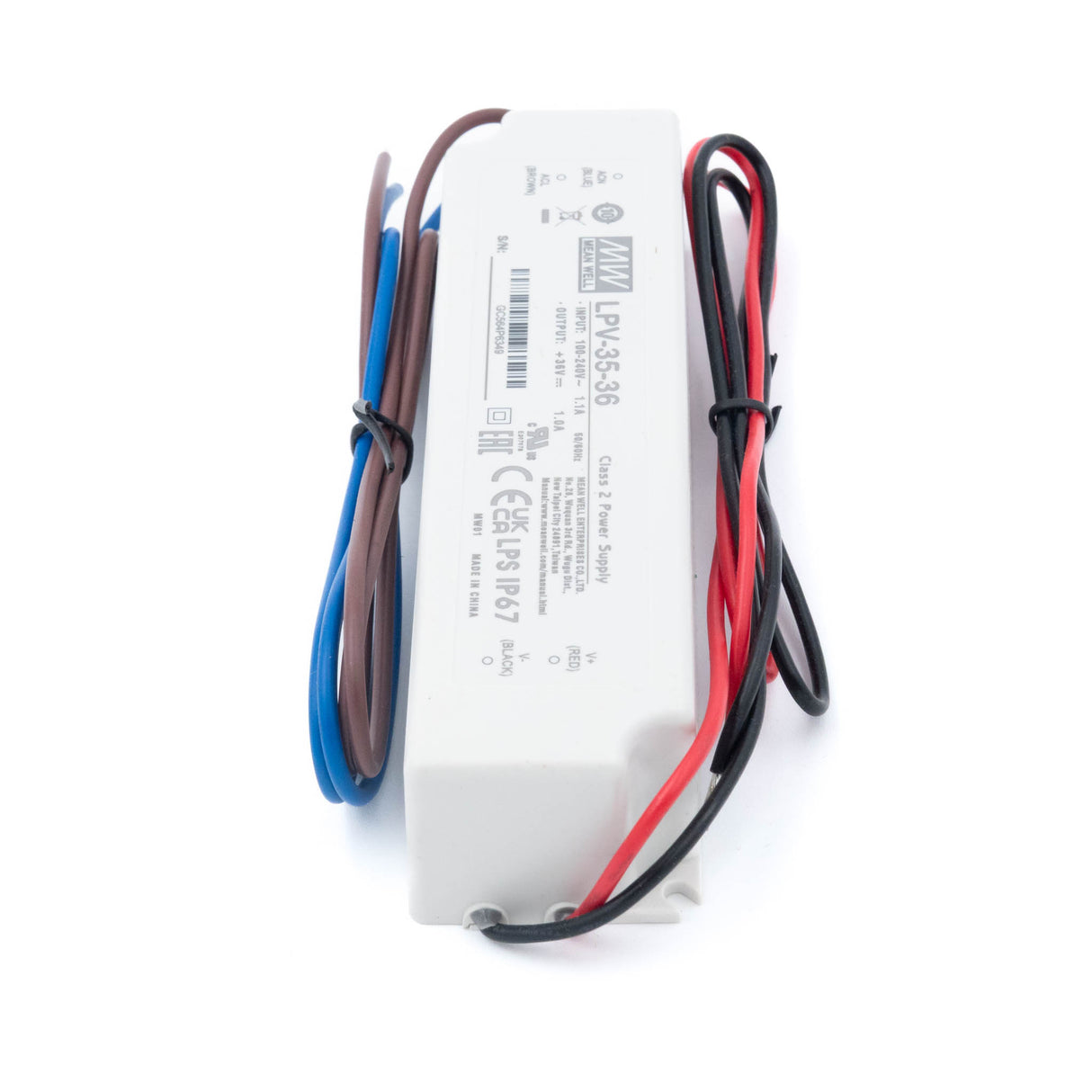

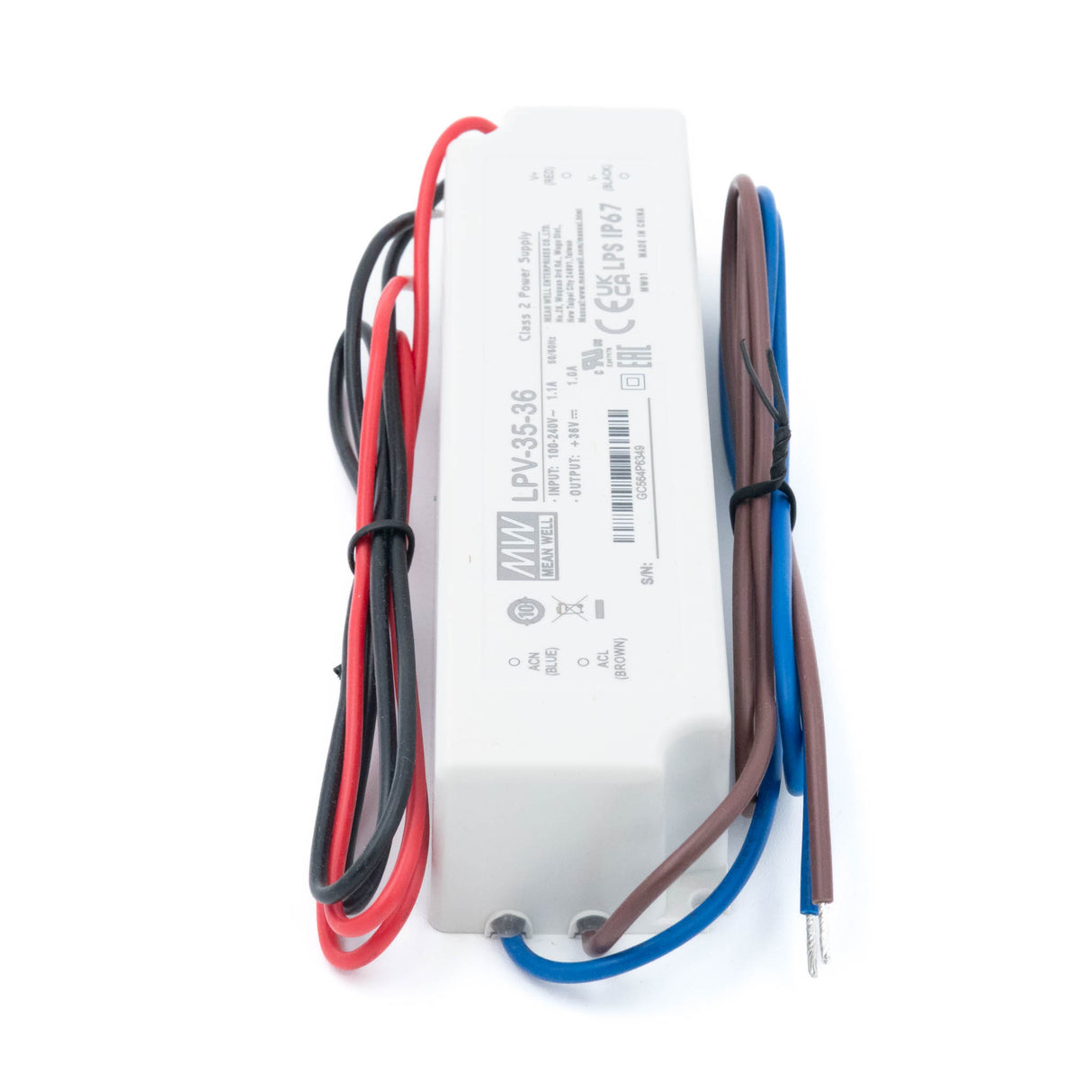

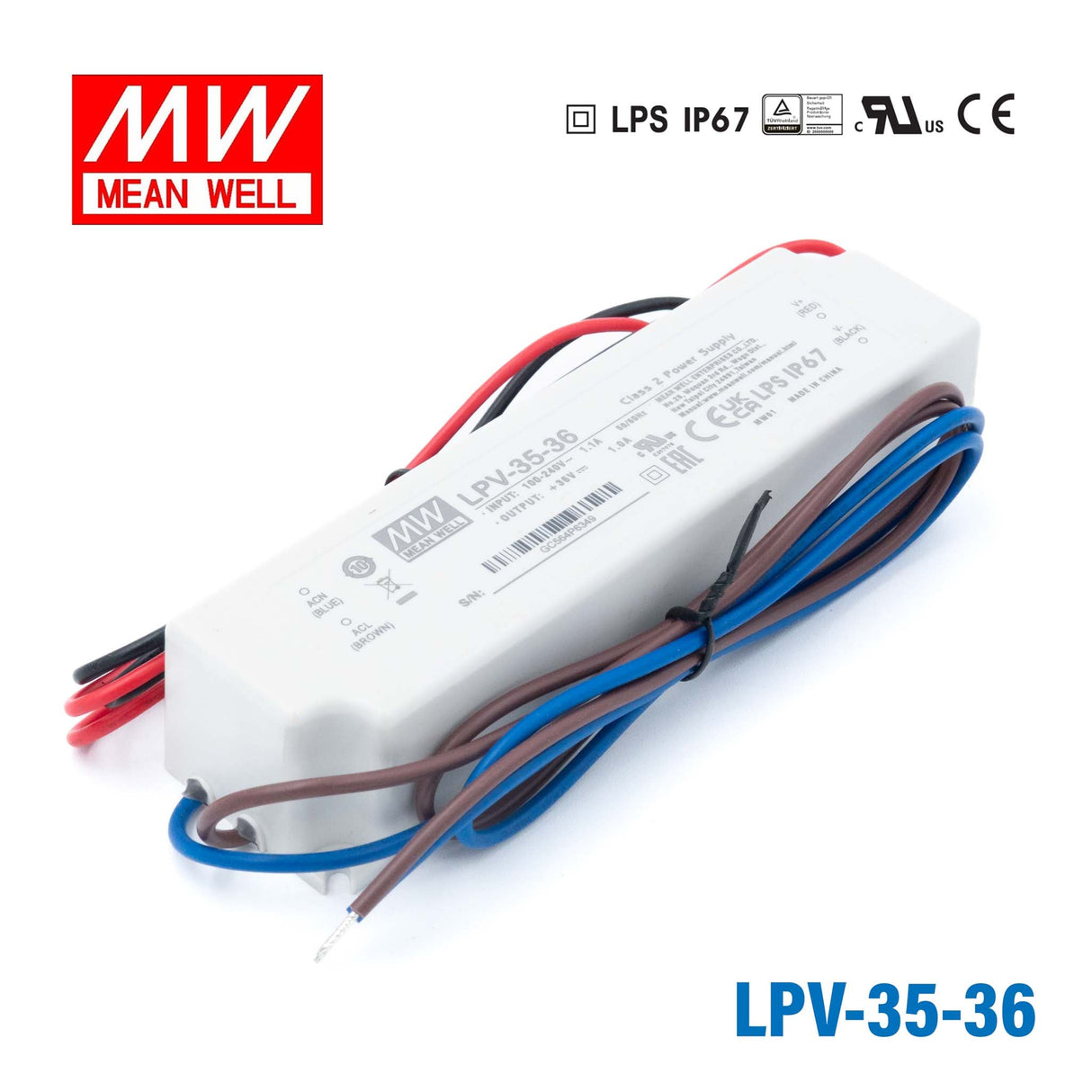

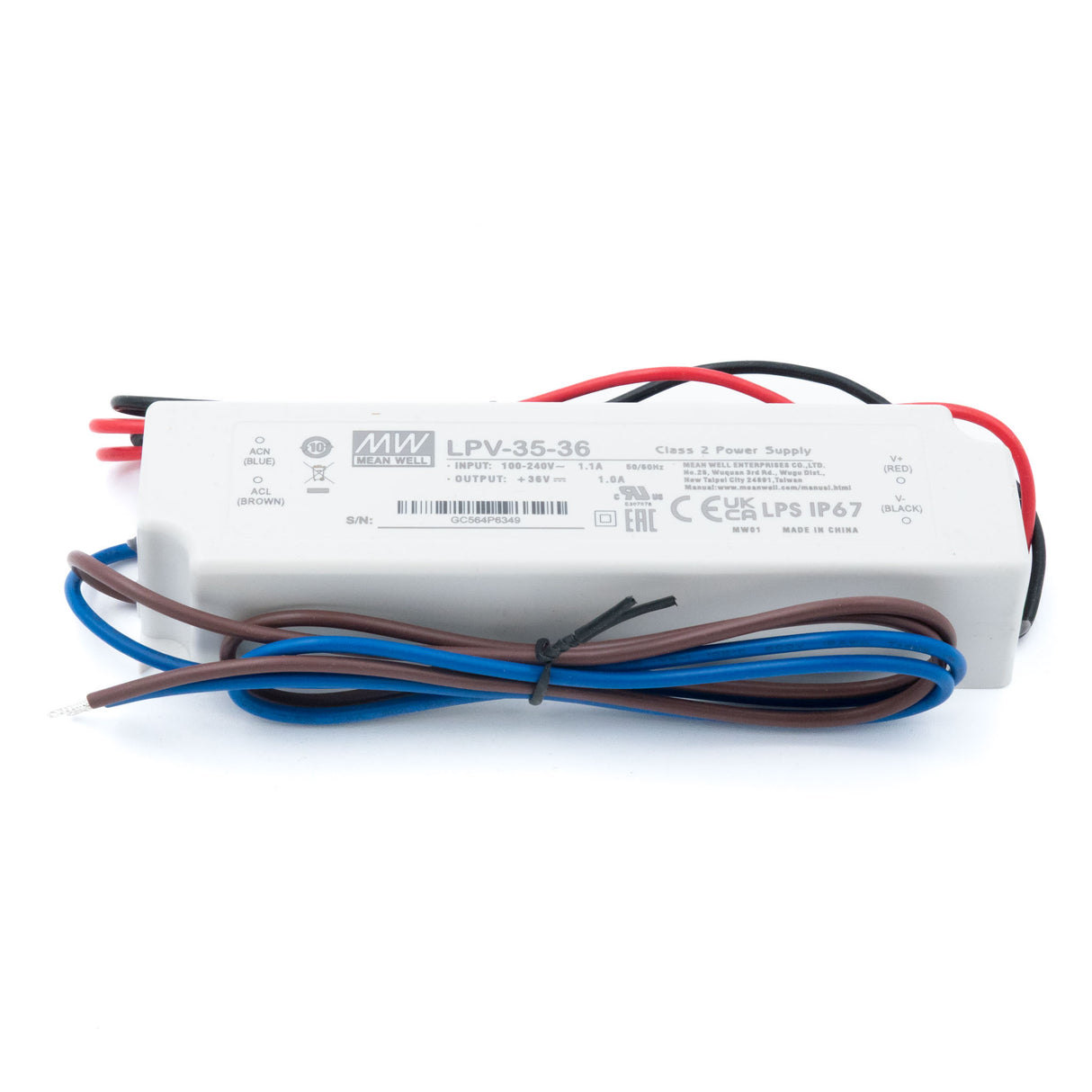

Mean Well LPV-35-36 LED Driver — 36W 36V 1A IP67 Waterproof

The Mean Well LPV-35-36 is a 36W, 36V constant voltage LED driver with IP67 waterproof protection, engineered for reliable performance in demanding indoor and outdoor LED lighting applications. Built to Mean Well's industry-leading quality standards, it delivers stable 36V DC output at up to 1A and carries CE, EAC, TÜV, UL certifications for global compliance.

Accepting 90-264VAC universal AC input, the LPV-35-36 operates reliably across a wide supply range. It features built-in short circuit, overload, and over-voltage protection to safeguard connected LED loads, and is rated for operation from -30°C to +65°C making it suitable for outdoor and harsh-environment installations.

Key Features

• ✓Constant voltage output: 36V DC at up to 1A (36W max)
• ✓IP67 waterproof and dustproof — suitable for outdoor installations
• ✓Universal AC input: 90-264VAC
• ✓Certifications: CE, EAC, TÜV, UL
• ✓Wide operating temperature: -30°C to +65°C
• ✓Built-in protections: short circuit, overload, over-voltage
• ✓Compact, lightweight enclosure: 148.0 × 40.0 × 30.0 mm, 0.34 kg
• ✓2-year Mean Well warranty

• Brand
  Mean Well
• Series
  LP Series
• Power Rating
  36 Watt
• Output Voltage
  36 Volt
• Rated Current
  1 Ampere
• Input Voltage
  90V~264V
• No of Output
  1
• Dimming Control
  None
• Standards Met
  CE,EAC,TUV,UL
• Operation Mode
  Constant Voltage
• Operating Temperature
  -30°C~65°C
• Warranty
  2 Year
• Length
  5.83 in
• Width
  1.57 in
• Height
  1.18 in
• Weight
  0.75 lb
