Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

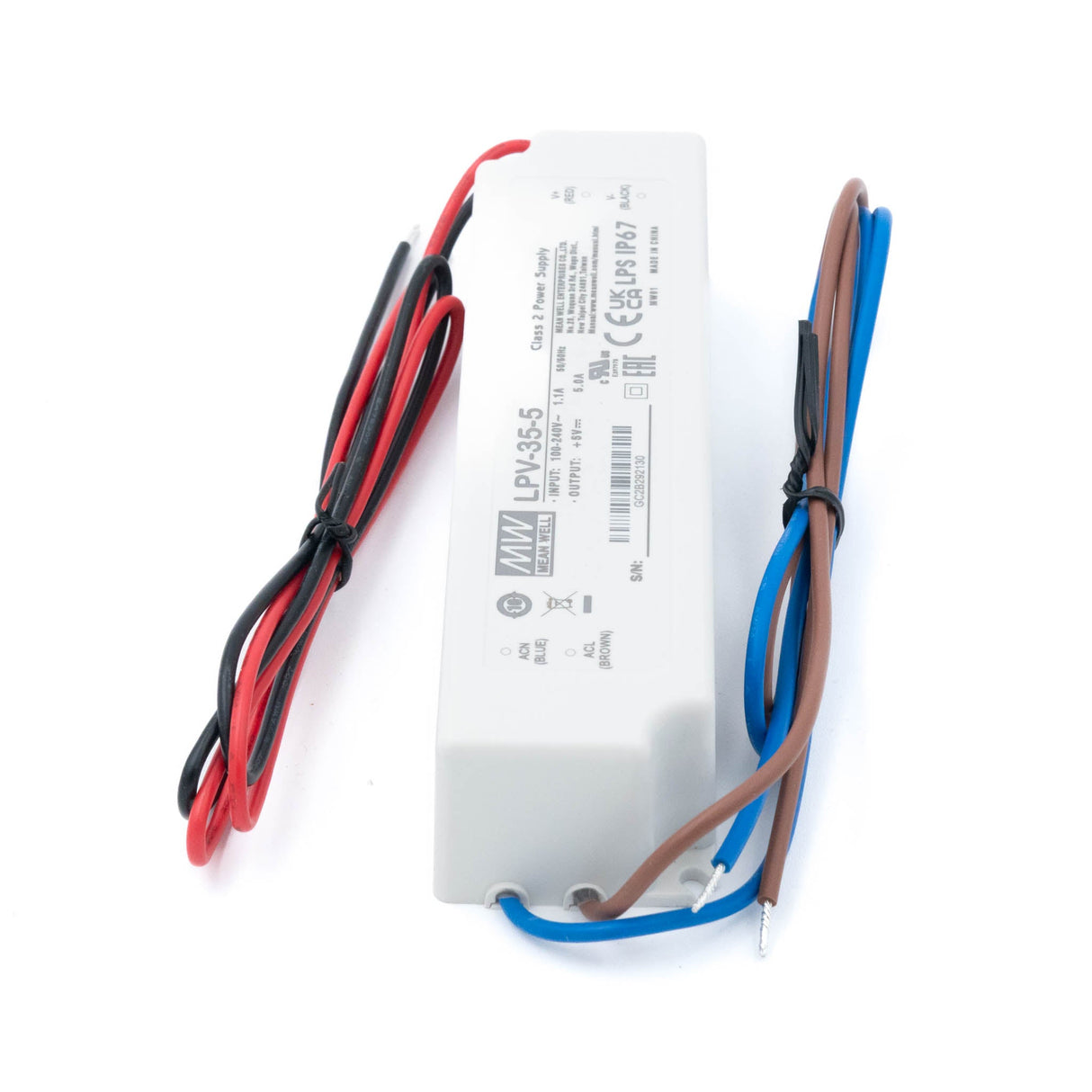

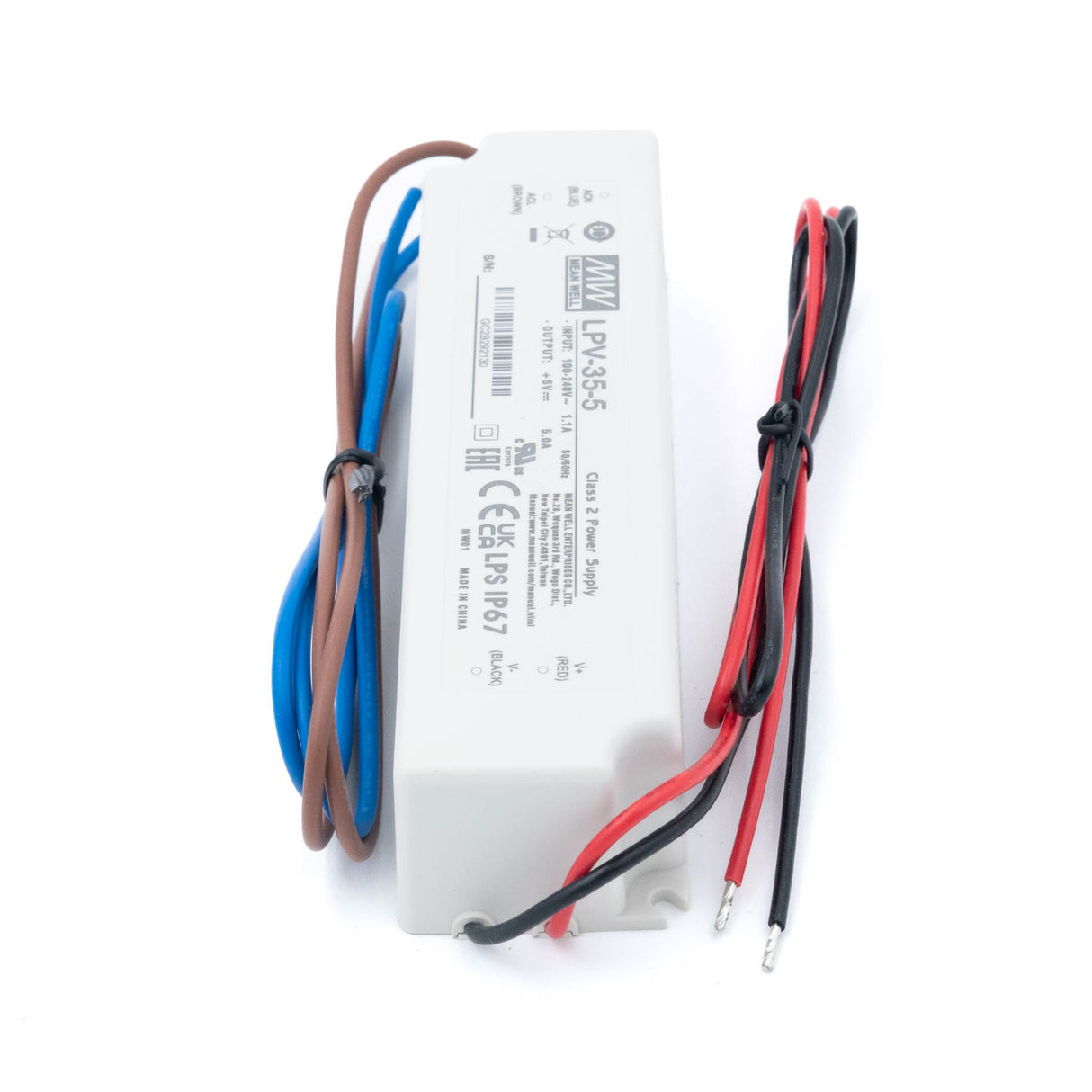

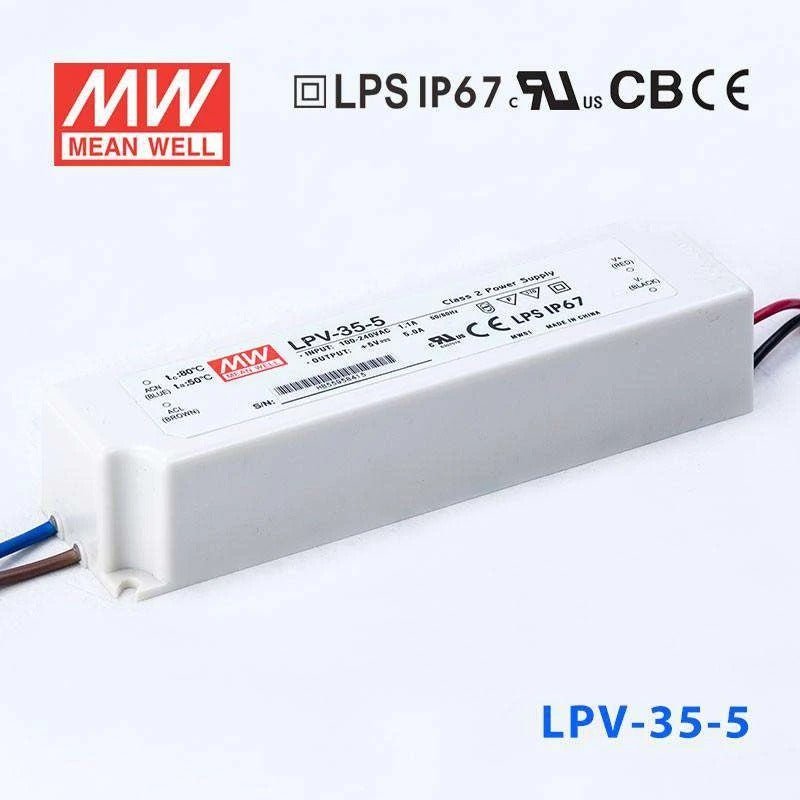

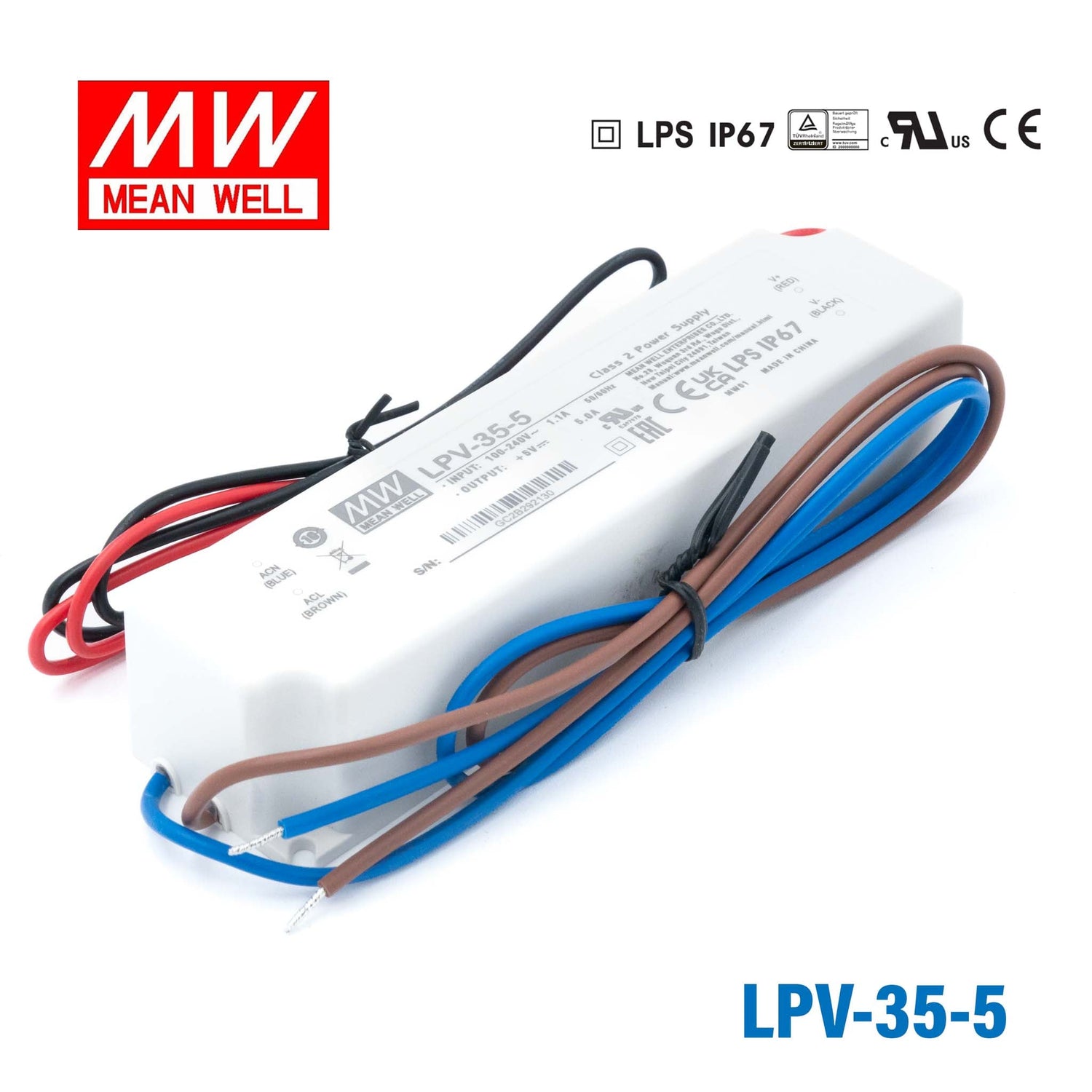

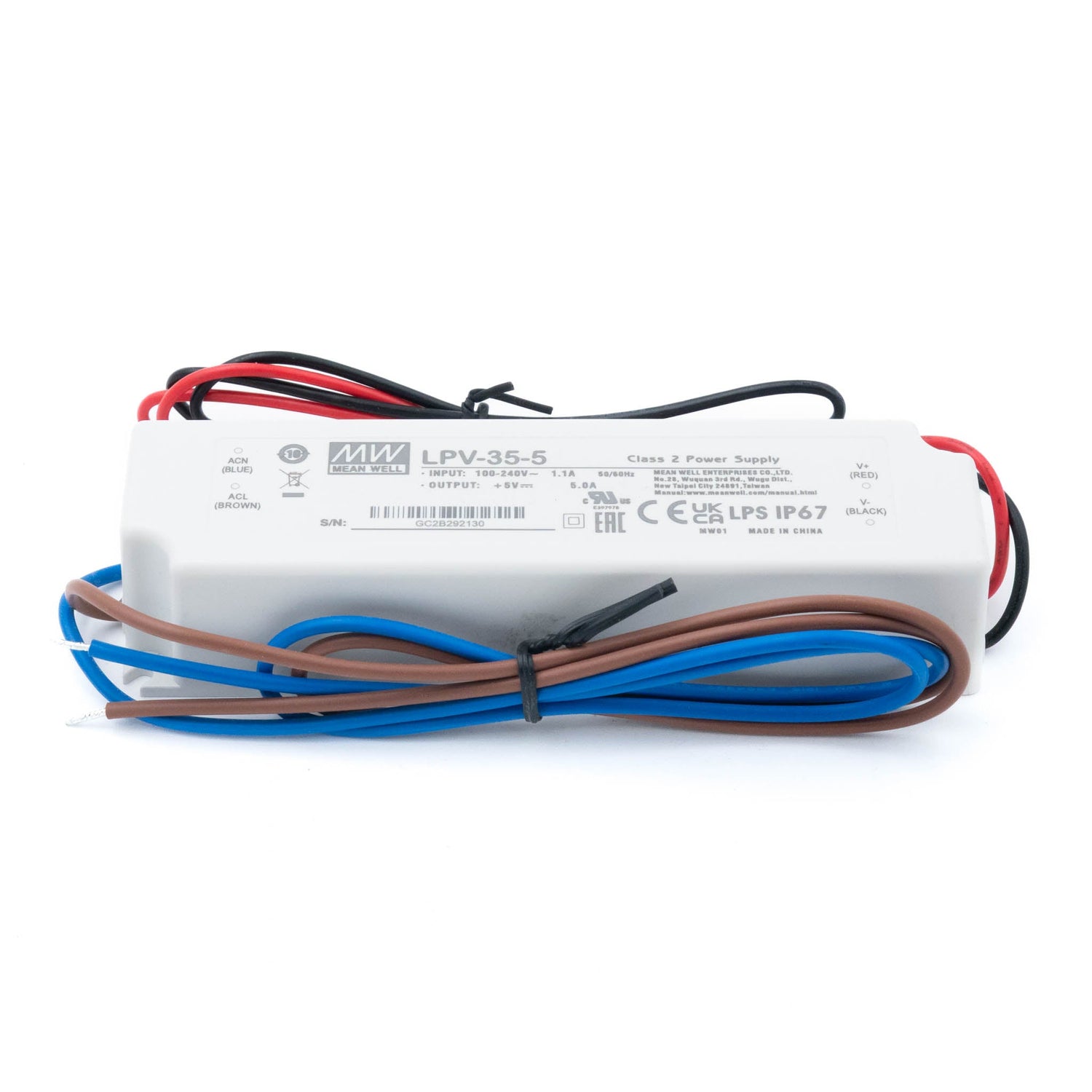

Mean Well LPV-35-5 Power Supply 35W 5V
$14.47 USD
Unit price /
Unavailable
Description
Description
Features
| 90~264VAC input |
| Fully encapsulated with IP67 level |
| Short circuit / Overload / Over voltage |
| Constant voltage design (C.V. mode) |
| Class 2 power unit / Pass LPS |
| Isolation class II, no F.G. |
| Withstand 300VAC surge input for 5 seconds |
| Cooling by free air convection |
| 100% full load burn-in test |
| Low cost, high reliability |
| Suitable for LED-based decorative/architectural lighting, LED stage and theater lighting, and LED electronic displays |
| 2 years warranty |
General Specification
| AC input voltage range | 90~264VAC |
| AC inrush current | Cold start,55A at 230VAC |
| Overload Range | 110%~150% |
| Protection Type | Hiccup mode, auto-recovery |
| Over voltage protection | 115%~135% rated output voltage |
| Withstand voltage | I/P-O/P: 3kVAC |
| Working temperature | -30~+70°C |
| Vibration | 10~500Hz, 2G 10 minutes /1 cycle, period for 60 minutes each along X, Y, Z axes |
| Safety standards | LPV-20: TUV EN60950-1, UL879, UL1310 approved, LPV-35: IEC 61347-1, IEC 61347-2-13, UL1310 approved |
| EMC standards | EN55022 class B, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11 |
| Connection Input | UL rated, 18AWGx2C (60cm) |
| Connection Output | UL rated, 16AWGx2C (60cm) |
| Dimension (LxWxH)(mm) | 148x 40x 30 |
Specifications
Specifications
-
BrandMean Well
-
SeriesLP Series
-
Power Rating30 Watt
-
Output Voltage5 Volt
-
Rated Current5 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~65°C
-
Warranty2 Year
-
Length5.83 in
-
Width1.57 in
-
Height1.18 in
-
Weight0.75 lb
