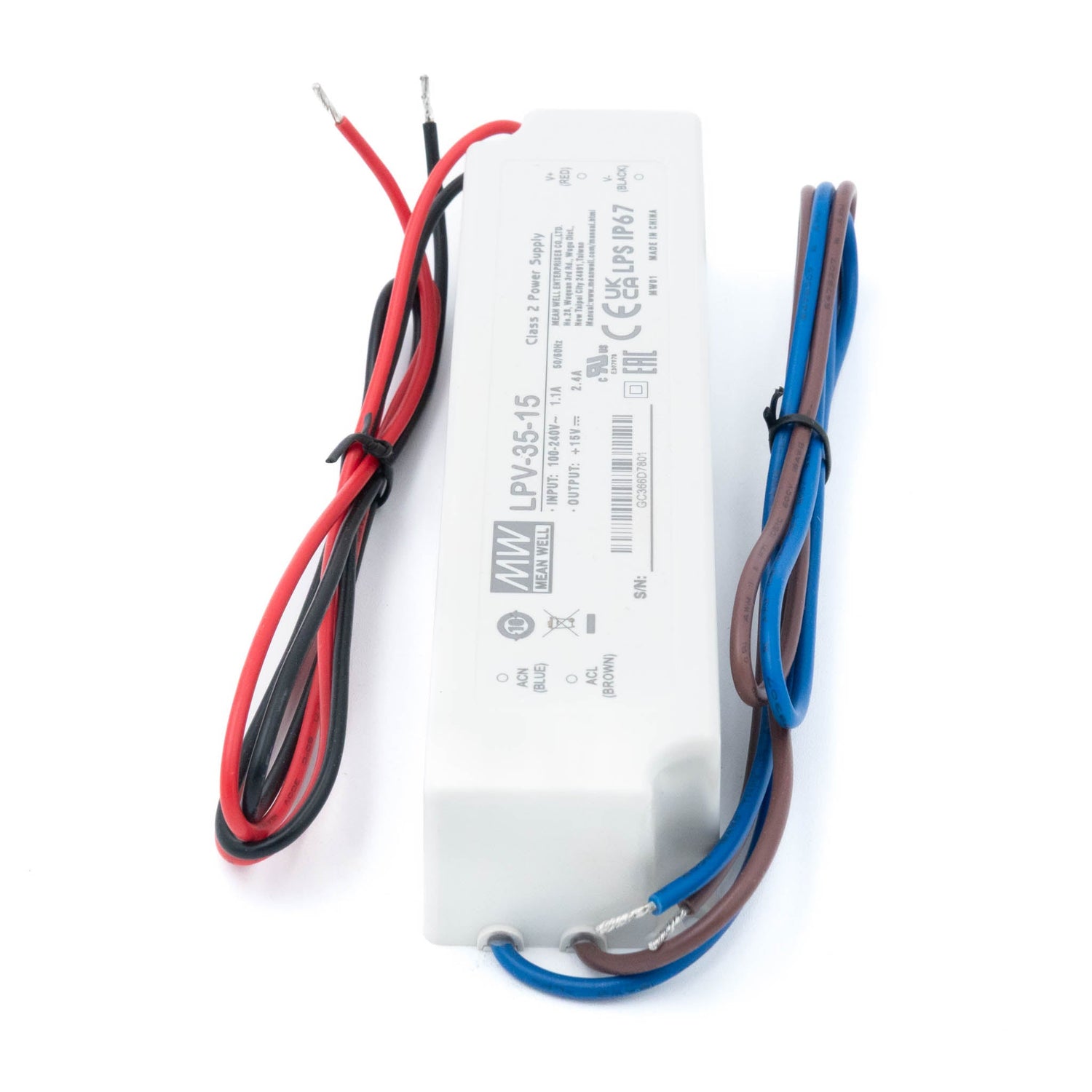

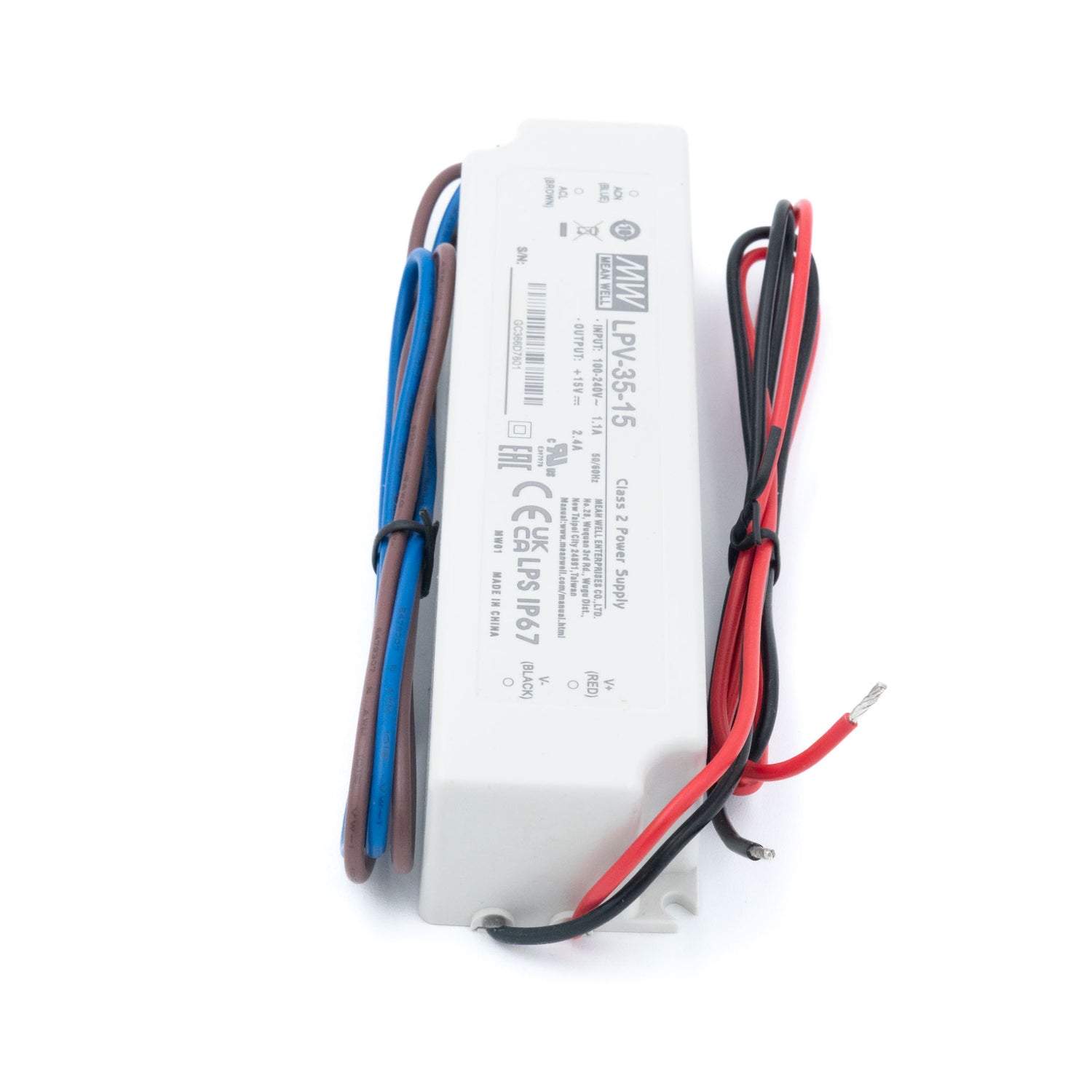

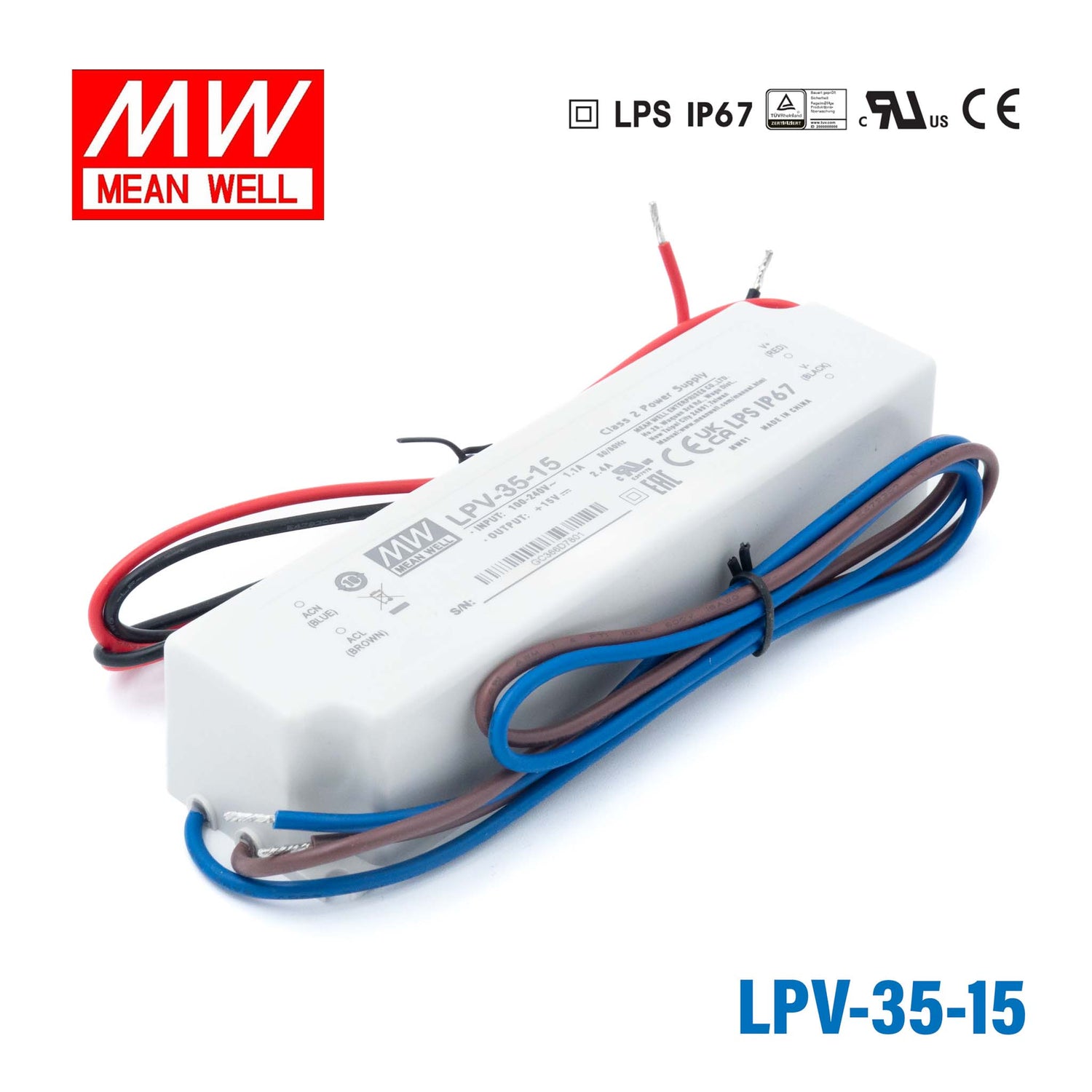

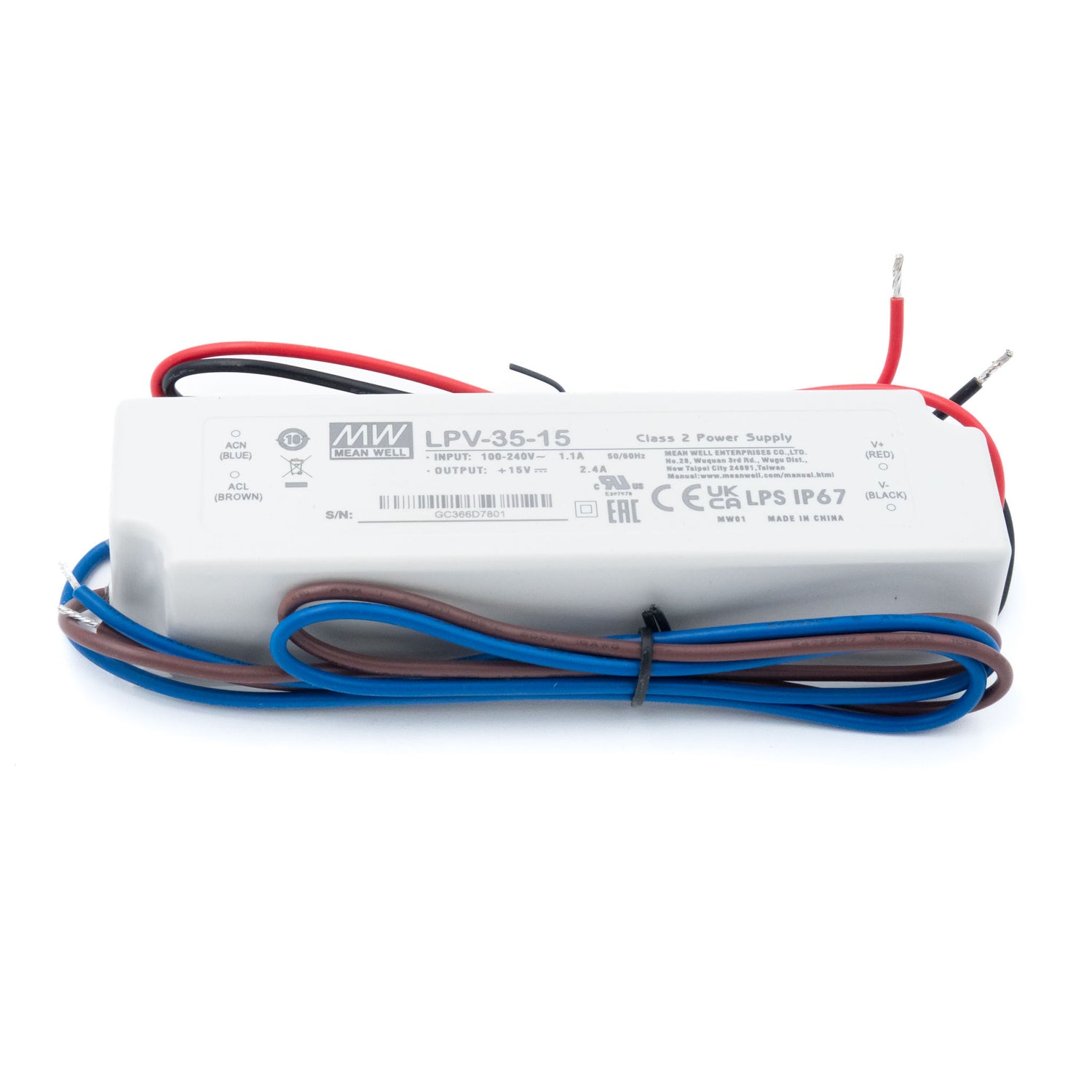

Mean Well LPV-35-15 Power Supply 35W 15V

slim plastic case, economical, IP67
SKU:
LPV-35-15

Model
$12.77 USD
Shipping calculated at checkout.
|

Your order will be processed within 24 hours

Description

Features

90~264VAC input
Fully encapsulated with IP67 level
Short circuit / Overload / Over voltage
Constant voltage design (C.V. mode)
Class 2 power unit / Pass LPS
Isolation class II, no F.G.
Withstand 300VAC surge input for 5 seconds
Cooling by free air convection
100% full load burn-in test
Low cost, high reliability
Suitable for LED-based decorative/architectural lighting, LED stage and theater lighting, and LED electronic displays
2 years warranty


General Specification

AC input voltage range 90~264VAC
AC inrush current Cold start,55A at 230VAC
Overload Range 110%~150%
Protection Type Hiccup mode, auto-recovery
Over voltage protection 115%~135% rated output voltage
Withstand voltage I/P-O/P: 3kVAC
Working temperature -30~+70°C
Vibration 10~500Hz, 2G 10 minutes /1 cycle, period for 60 minutes each along X, Y, Z axes
Safety standards LPV-20: TUV EN60950-1, UL879, UL1310 approved, LPV-35: IEC 61347-1, IEC 61347-2-13, UL1310 approved
EMC standards EN55022 class B, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11
Connection Input UL rated, 18AWGx2C (60cm)
Connection Output UL rated, 16AWGx2C (60cm)
Dimension (LxWxH)(mm) 148x 40x 30

Specifications

  • Brand
    Mean Well
  • Series
    LP Series
  • Power Rating
    36 Watt
  • Output Voltage
    15 Volt
  • Rated Current
    2.4 Ampere
  • Input Voltage
    90V~264V
  • No of Output
    1
  • Dimming Control
    None
  • Standards Met
    CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~65°C
  • Warranty
    2 Year
  • Length
    5.83 in
  • Width
    1.57 in
  • Height
    1.18 in
  • Weight
    0.75 lb

File Downloads

::specification::
