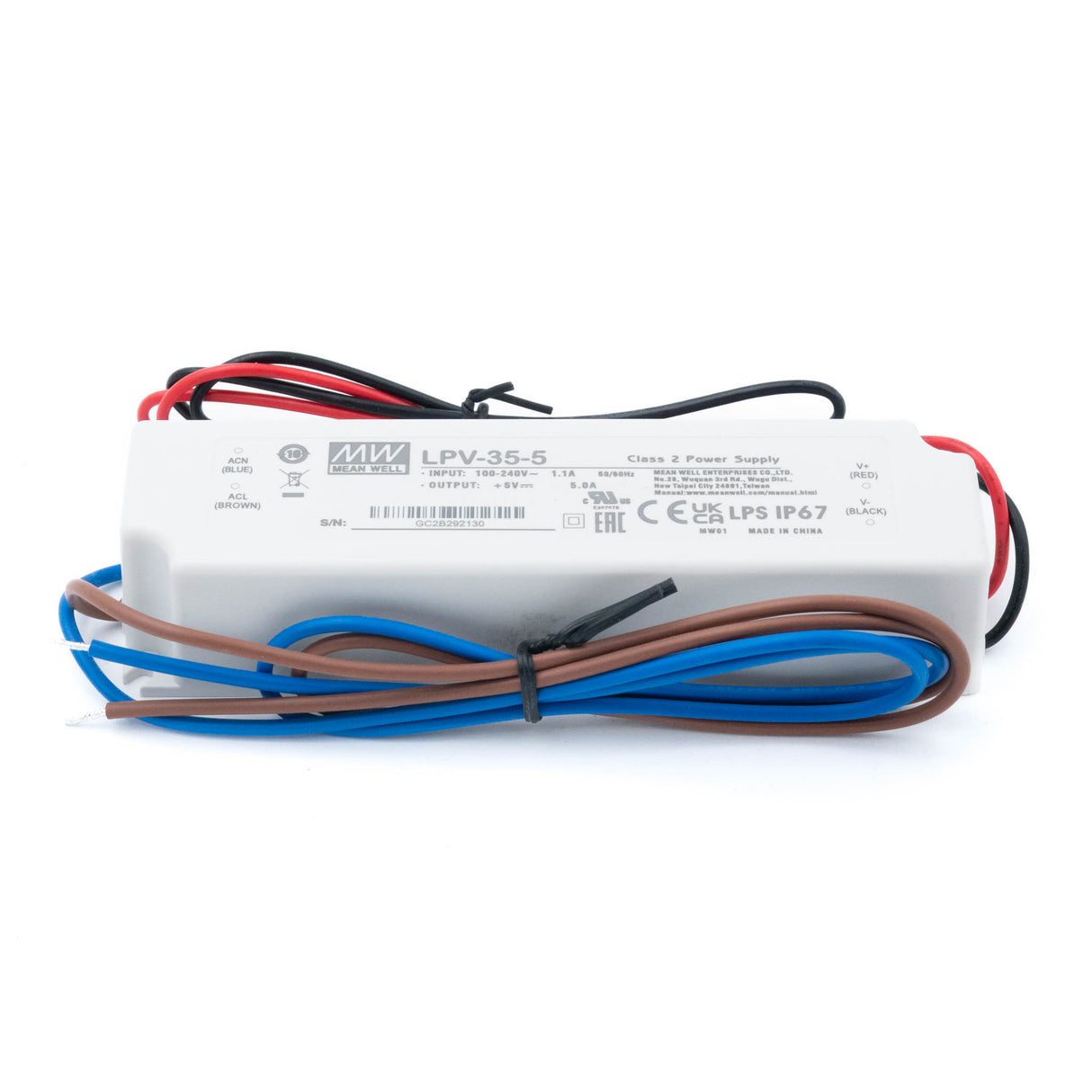

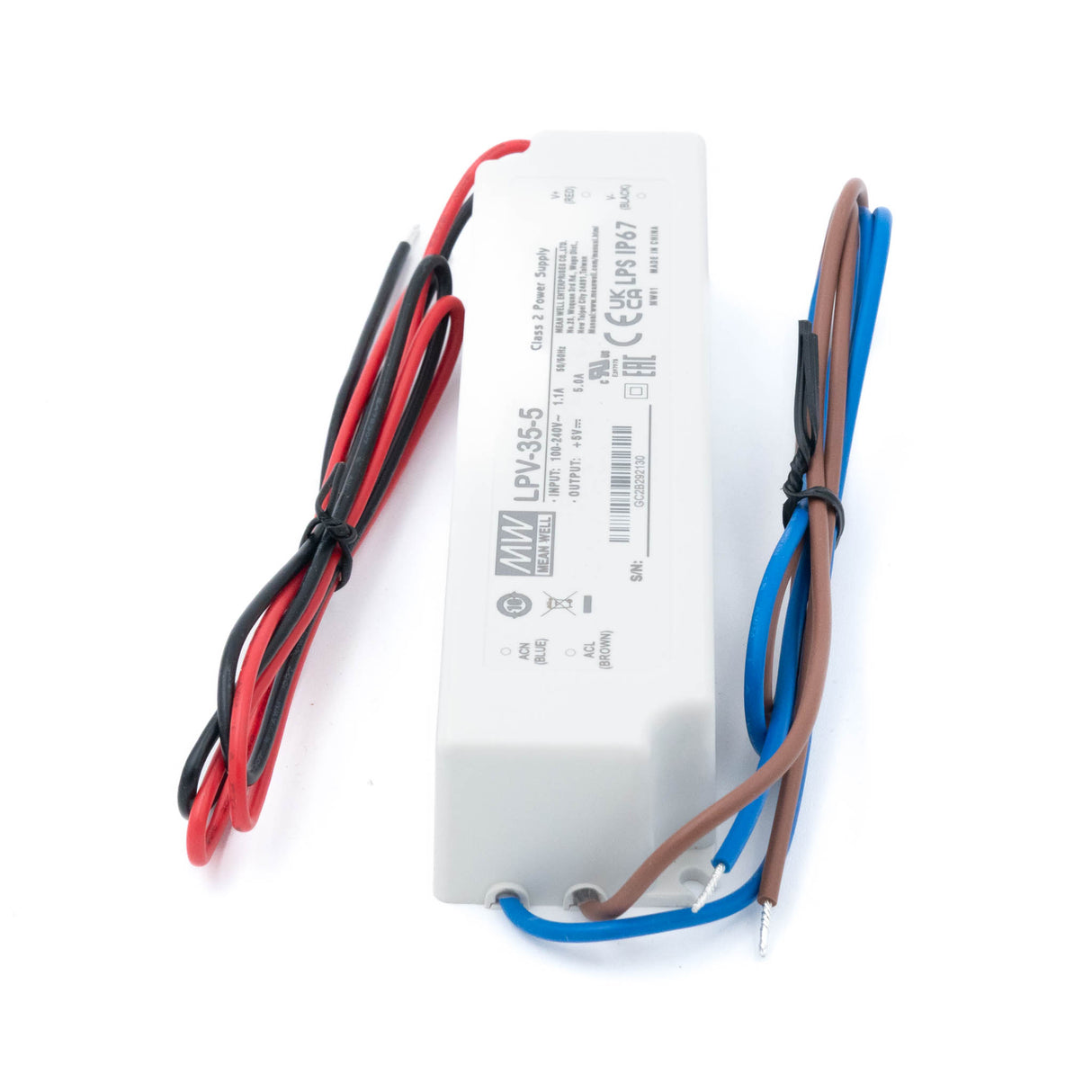

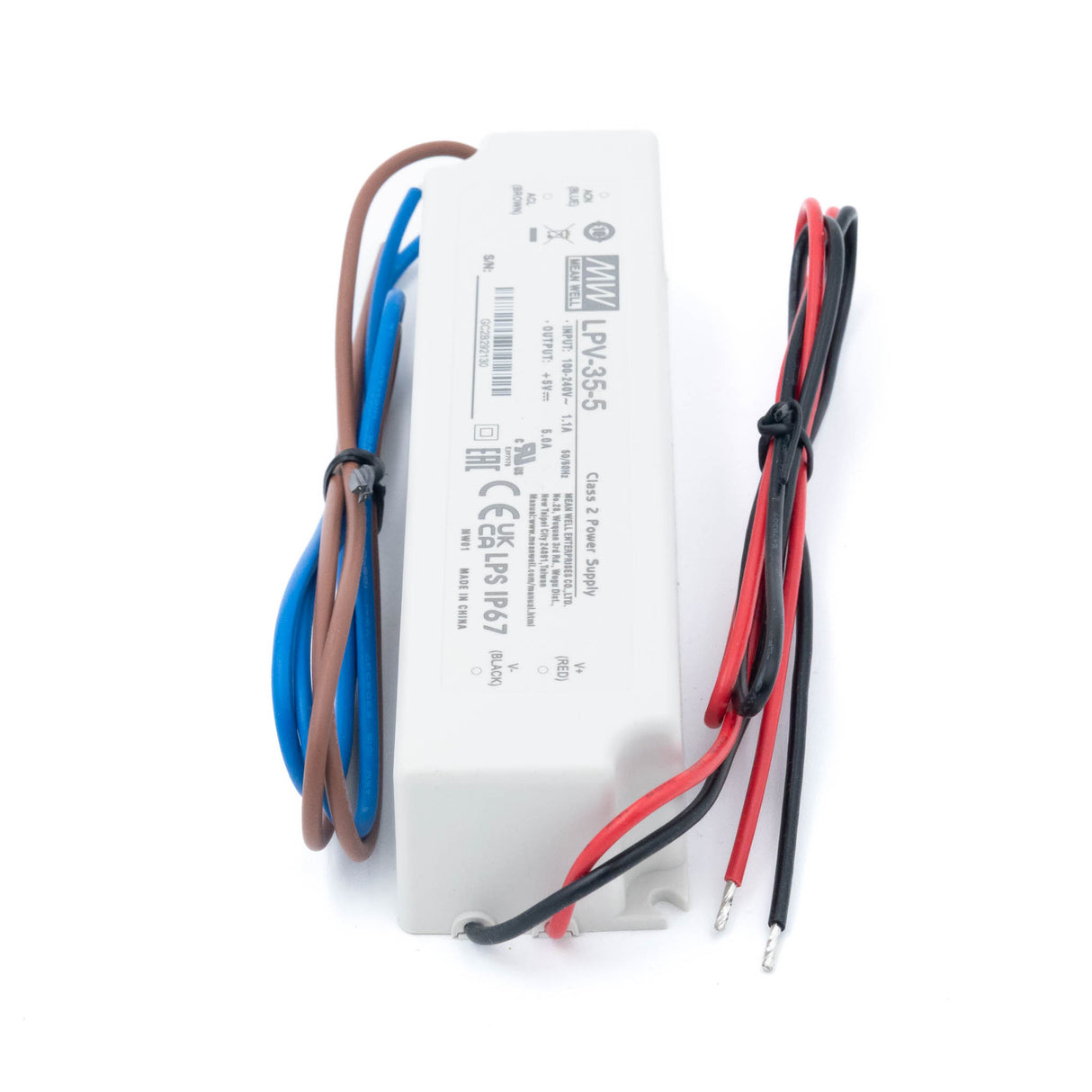

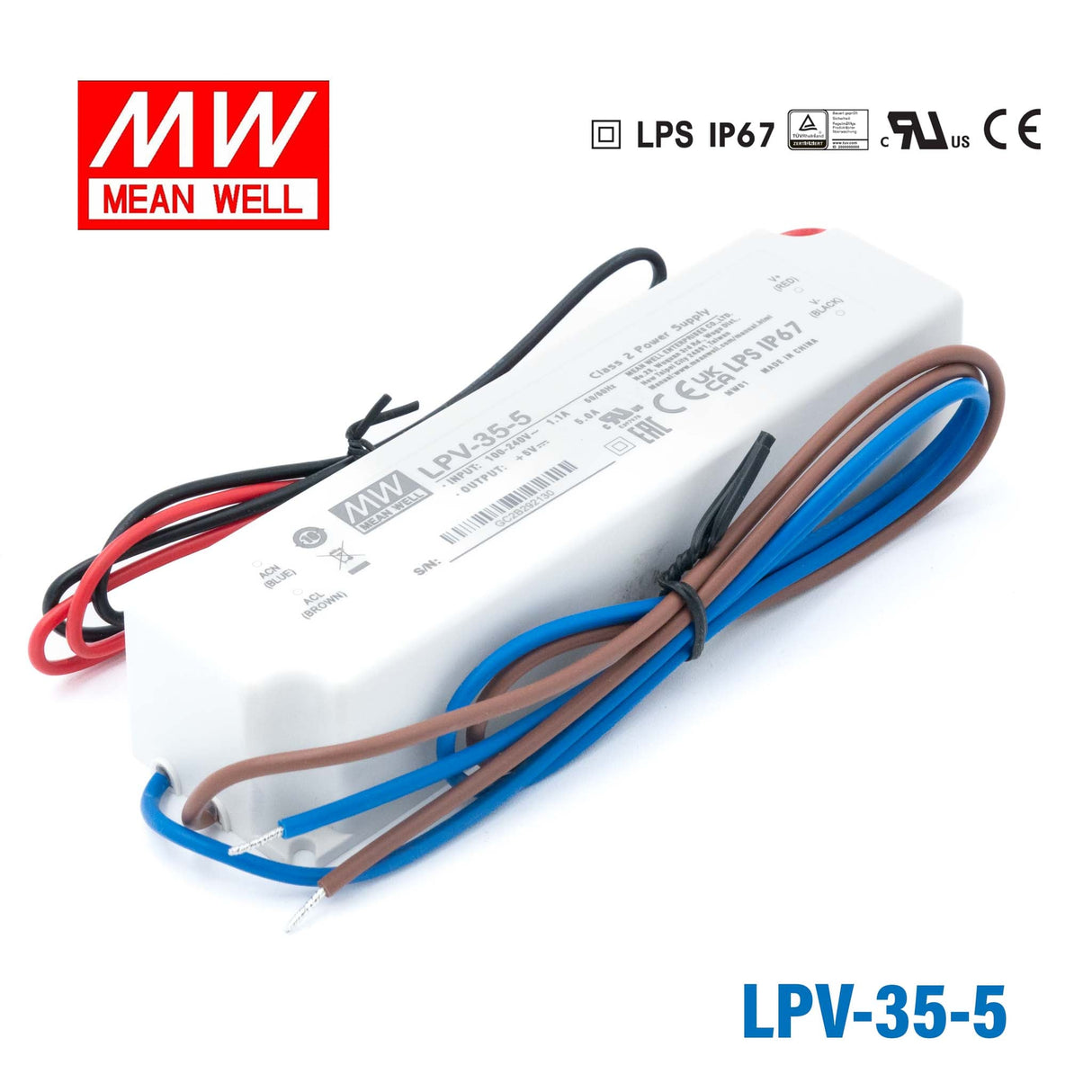

Mean Well LPV-35-5 LED Driver — 30W 5V 5A IP67 Waterproof
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LPV-35-5 LED Driver — 30W 5V 5A IP67 Waterproof
The Mean Well LPV-35-5 is a 30W, 5V constant voltage LED driver with IP67 waterproof protection, engineered for reliable performance in demanding indoor and outdoor LED lighting applications. Built to Mean Well's industry-leading quality standards, it delivers stable 5V DC output at up to 5A and carries CE, EAC, TÜV, UL certifications for global compliance.
Accepting 90-264VAC universal AC input, the LPV-35-5 operates reliably across a wide supply range. It features built-in short circuit, overload, and over-voltage protection to safeguard connected LED loads, and is rated for operation from -30°C to +65°C making it suitable for outdoor and harsh-environment installations.
Key Features
- ✓Constant voltage output: 5V DC at up to 5A (30W max)
- ✓IP67 waterproof and dustproof — suitable for outdoor installations
- ✓Universal AC input: 90-264VAC
- ✓Certifications: CE, EAC, TÜV, UL
- ✓Wide operating temperature: -30°C to +65°C
- ✓Built-in protections: short circuit, overload, over-voltage
- ✓Compact, lightweight enclosure: 148.0 × 40.0 × 30.0 mm, 0.31 kg
- ✓2-year Mean Well warranty
-
BrandMean Well
-
SeriesLP Series
-
Power Rating30 Watt
-
Output Voltage5 Volt
-
Rated Current5 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~65°C
-
Warranty2 Year
-
Length5.83 in
-
Width1.57 in
-
Height1.18 in
-
Weight0.68 lb
::specification::
Frequently Asked Questions
What is the LPV-35-5 rated output, and what LED loads does it suit?
The LPV-35-5 delivers 30W at 5V (5A output) using constant-voltage mode. It is suited to 5V LED strips, low-voltage signage modules, or decorative lighting specifically designed to run on a 5V supply.
How many metres of 5V LED strip can the LPV-35-5 drive?
The driver's maximum output is 30W at 5V. Divide 30W by the rated watts per metre of your strip to find the maximum run — for example, a 5 W/m strip allows up to 6 metres (30 ÷ 5 = 6 m). Always check your strip's rated power per metre before sizing the installation.
Can the LPV-35-5 be used outdoors or in damp locations?
Yes. The IP67 rating provides complete dust protection and resistance to temporary water immersion, and the unit operates from -30°C to +65°C. These ratings make it suitable for sheltered outdoor locations, damp signage enclosures, or installations exposed to condensation.
How does the LPV-35-5 compare to the LPV-35-12 and LPV-35-15 in terms of power?
The LPV-35-5 outputs 30W, which is slightly lower than the LPV-35-12 (36W at 12V, 3A) and LPV-35-15 (36W at 15V, 2.4A). All three share the 148 × 40 × 30 mm IP67 enclosure; the difference is output voltage and the resulting wattage ceiling at 5V.
Does the LPV-35-5 include a warranty, and what certifications apply?
The LPV-35-5 carries a 2-year warranty from Mean Well and holds CE, EAC, TÜV, and UL certifications. These cover major markets including Europe, Eurasia, and North America.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other LPV-35 Models
4 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well LPV-35-24 LED Driver — 36W 24V 1.5A IP67 Waterproof | 36W | 24V | 1.5A | IP67 | $15.26 | View |
| Mean Well LPV-35-12 LED Driver — 36W 12V 3A IP67 Waterproof | 36W | 12V | 3A | IP67 | $14.75 | View |
| Mean Well LPV-35-36 LED Driver — 36W 36V 1A IP67 Waterproof | 36W | 36V | 1A | IP67 | $14.47 | View |
| Mean Well LPV-35-15 LED Driver — 36W 15V 2.4A IP67 Waterproof | 36W | 15V | 2.4A | IP67 | $15.19 | View |
