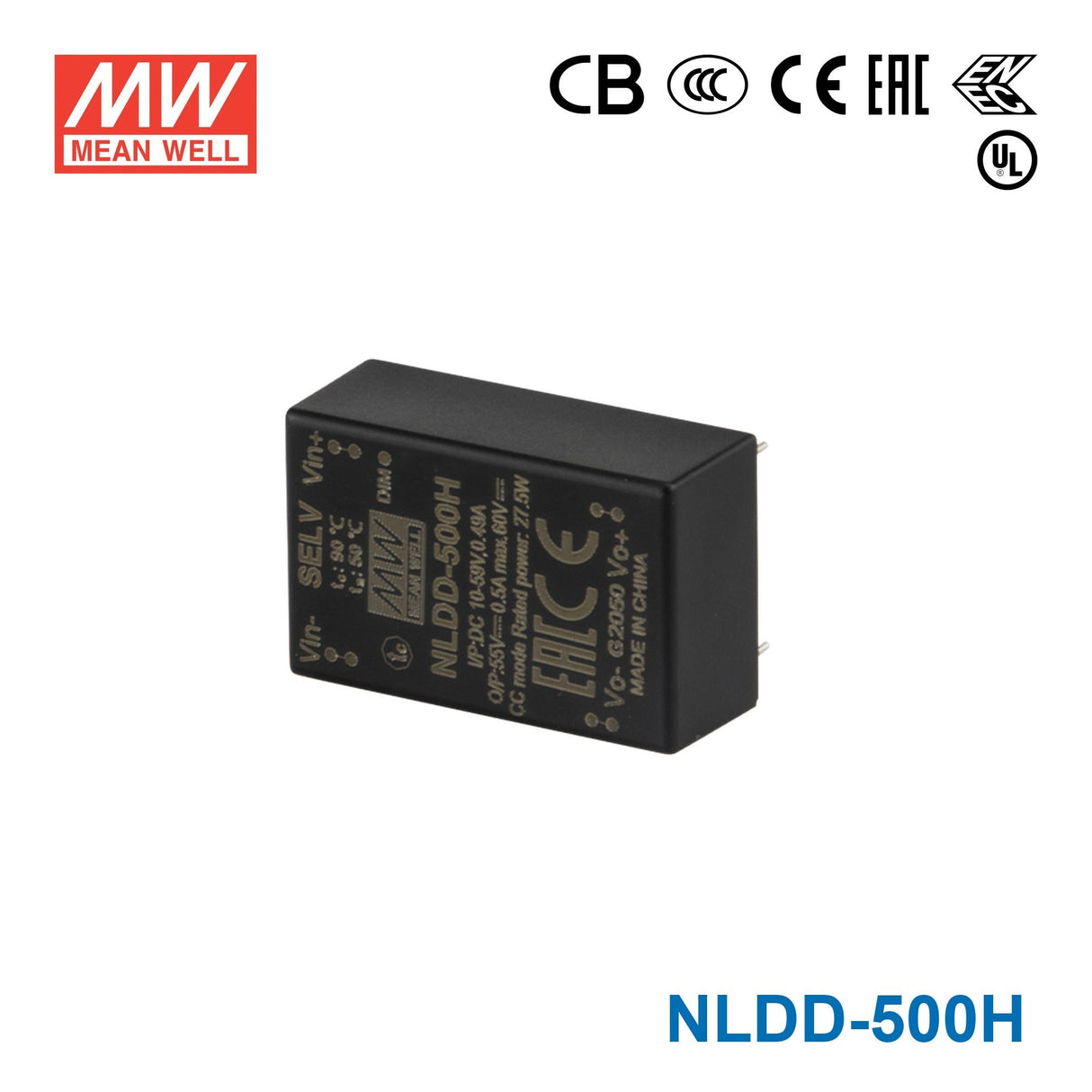

Mean Well NLDD-500H DC/DC LED Driver CC 500mA - Step-down
The NLDD is a Mean Well power converter (input range: 6~52VDC, operating temperature: -40~+85℃).
Key Features
- ✓ Input voltage range: 6~52VDC
- ✓ Wide operating temperature: -40~+85℃
- ✓ Protections: Short circuit / Over temperature
- ✓ Remote ON/OFF control
- ✓ Safety approvals: IEC61347 and EAC TP TC004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesNLDD Series
-
Power Rating60 Watt
-
Output Voltage52 Volt
-
Rated Current0.5 Ampere
-
Input Voltage6V~52V
-
No of Output1
-
Dimming ControlPWM
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~50°C
-
Warranty3 Year
-
Length1.26 in
-
Width0.81 in
-
Height0.49 in
-
Weight0.03 lb
::specification::
Frequently Asked Questions
Can the NLDD-500H power a 500mA LED downlight engine?
Yes, if the LED engine is specified for constant current operation at 500mA. This 60W step-down driver regulates current, so it is intended for LED loads that should not be run from a constant voltage source.
Is the NLDD-500H suitable for channel letter signage or compact LED arrays?
It can work for signage modules or compact LED arrays that are designed for 500mA constant current drive. The LED load must also remain within the 52-6V constant current range of the driver.
Can I use this driver in a small custom luminaire with limited space?
The module is compact at 32.1 × 20.5 × 12.5 mm and weighs 0.0156 kg, which helps in smaller luminaires or integrated LED products. Electrically, it is still a 500mA constant current driver with up to 60W capacity.
Will the NLDD-500H work with my LED module or board?
It will only work correctly with a constant current LED load rather than a constant voltage product. Its constant current output range is 52-6V, and the number of LEDs it can support depends on the forward voltage of each LED in the string.
Is the NLDD-500H appropriate for harsh or outdoor conditions?
The driver is rated IP67 and has an operating temperature range of -40°C to +50°C. That makes it suitable for demanding environments when the overall product design stays within those protection and temperature limits.
