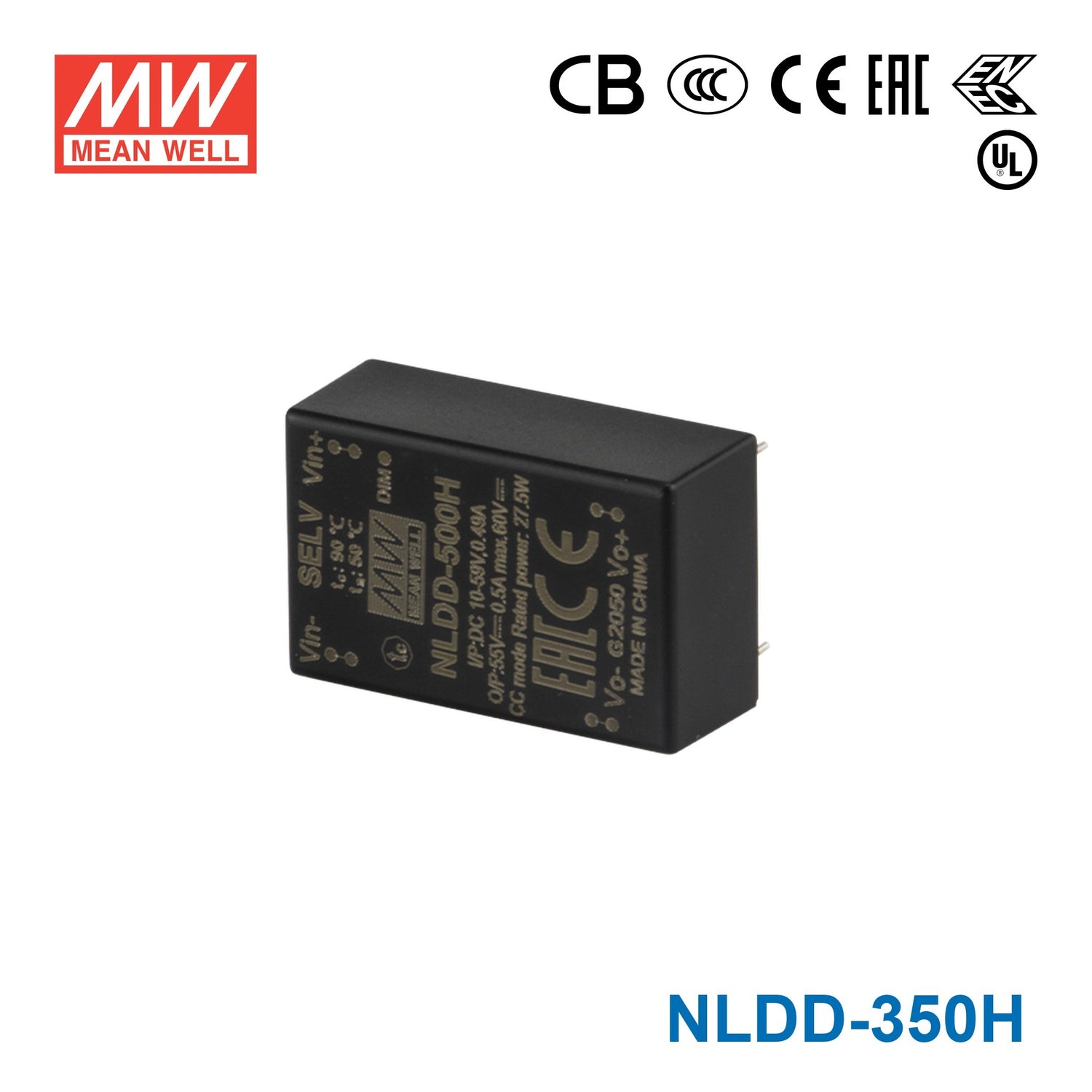

Mean Well NLDD-350H DC/DC LED Driver CC 350mA - Step-down
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NLDD-350H DC/DC LED Driver CC 350mA - Step-down
Description
Description
Features
| DC/DC step-down converter |
| Constant current output: 350mA to 1400mA |
| Wide input voltage: 10~56VDC(59VDC Max.) |
| Wide output LED forward voltage: 6~52VDC |
| High efficiency up to 96% |
| Comply with BS EN/EN61347 and BS EN/EN55015 regulation |
| Build-in PWM and remote ON/OFF control |
| Protections: Short circuit/Over temperature |
| Cooling by free air convection |
| Fully encapsulated and compact size |
| Suitable for driving illumination LED |
| 3 years warranty |
General Specification
| Current accuracy | ±5% at 48V |
| Over temperature protection | Protection type : Shut down, recovers automatically after temperature goes down |
| Efficiency | 96% at full load and 36VDC/48VDC input |
| Short circuit protection | Regulated at rated output current |
| Working temperature | -40°C to +50°C |
| EMC | Compliance to EN55015 class B, EN61000-4-2,3,4,6,8, EAC TP TC 020 |
| Temp. Coefficient | ±0.03% / °C |
| Dimension (LxWxH) (mm) | 32.1*20.5*12.5mm or 1.26"*0.8"*0.49" inch |
| Potting material | Epoxy |
Specifications
Specifications
-
BrandMean Well
-
SeriesNLDD Series
-
Power Rating60 Watt
-
Output Voltage52 Volt
-
Rated Current0.35 Ampere
-
Input Voltage6V~52V
-
No of Output1
-
Dimming ControlPWM
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~50°C
-
Warranty3 Year
-
Length1.26 in
-
Width0.81 in
-
Height0.49 in
-
Weight0.03 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the NLDD-350H to drive a low-current LED downlight module?
Yes, if the LED downlight is designed for constant current operation at 350mA. This is a 60W step-down constant current driver, so it fits LED loads that need regulated current rather than a constant voltage supply.
Is the NLDD-350H suitable for signage modules or small LED arrays?
It can be a fit for signage modules or small LED arrays when the LEDs are intended to run from a 350mA constant current source. Because it is a step-down driver with a 6-52VAC input and 52-6V constant current range, the LED load has to stay within that operating window.
Can this driver be used in compact lighting assemblies where space is limited?
The NLDD-350H is very compact at 32.1 × 20.5 × 12.5 mm and weighs 0.0156 kg, which helps in small integrated lighting products. It is still a 60W constant current driver, so the electrical match matters as much as the physical size.
How do I know if my LED load is compatible with the NLDD-350H?
This model is for constant current LED loads, not constant voltage LED products. Its constant current output range is 52-6V, and the number of LEDs it can run depends on the forward voltage of each LED in the load rather than on a fixed LED count.
How does the NLDD-350H compare with other NLDD H-series drivers?
Within this 60W series, the listed siblings are NLDD-350HW at 0.35mA with 52-6V, NLDD-500H and NLDD-500HW at 0.5mA with 52-6V, NLDD-700H and NLDD-700HW at 0.7mA with 52-6V, NLDD-1050H and NLDD-1050HW at 1.05mA with 52-6V, and NLDD-1200H, NLDD-1200HW, NLDD-1400H, and NLDD-1400HW with 46-6V at 1.2mA or 1.4mA. The NLDD-350H is the pin-style 350mA option in that family.
