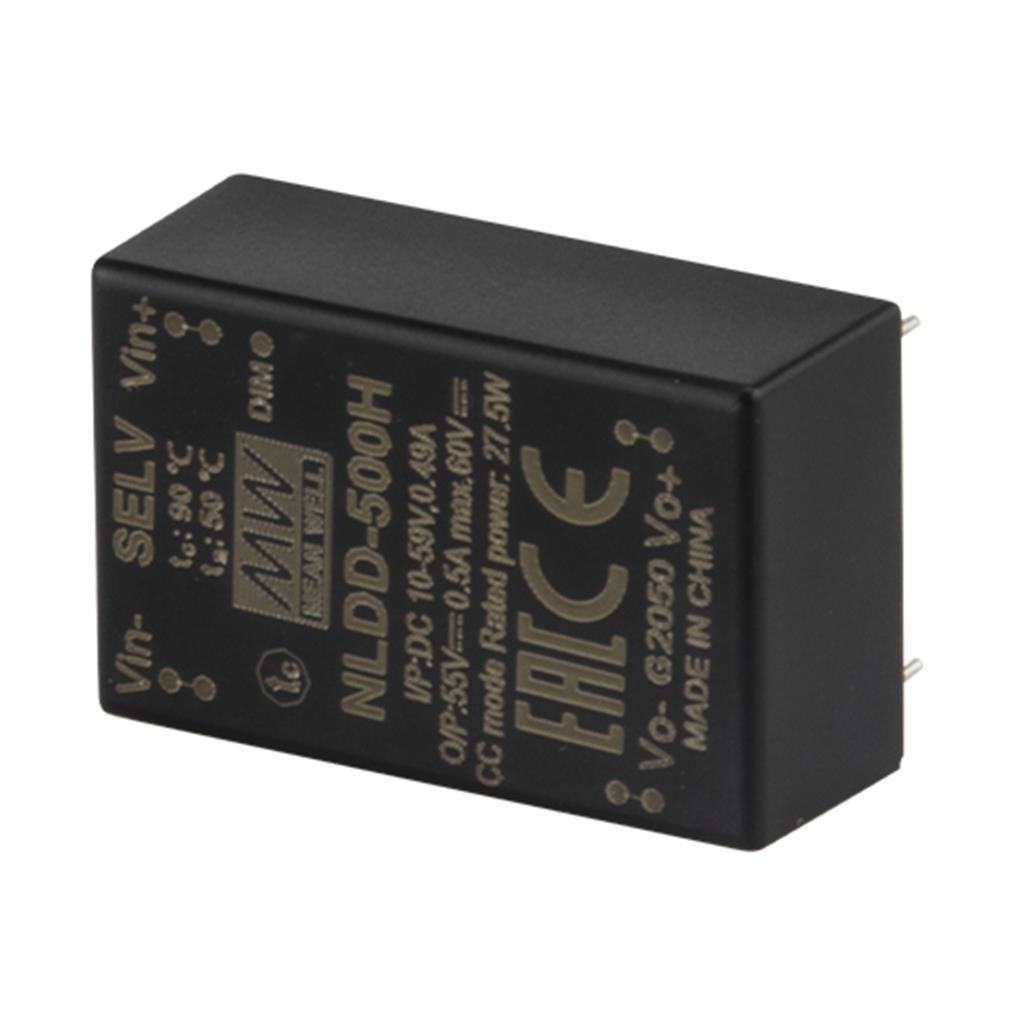

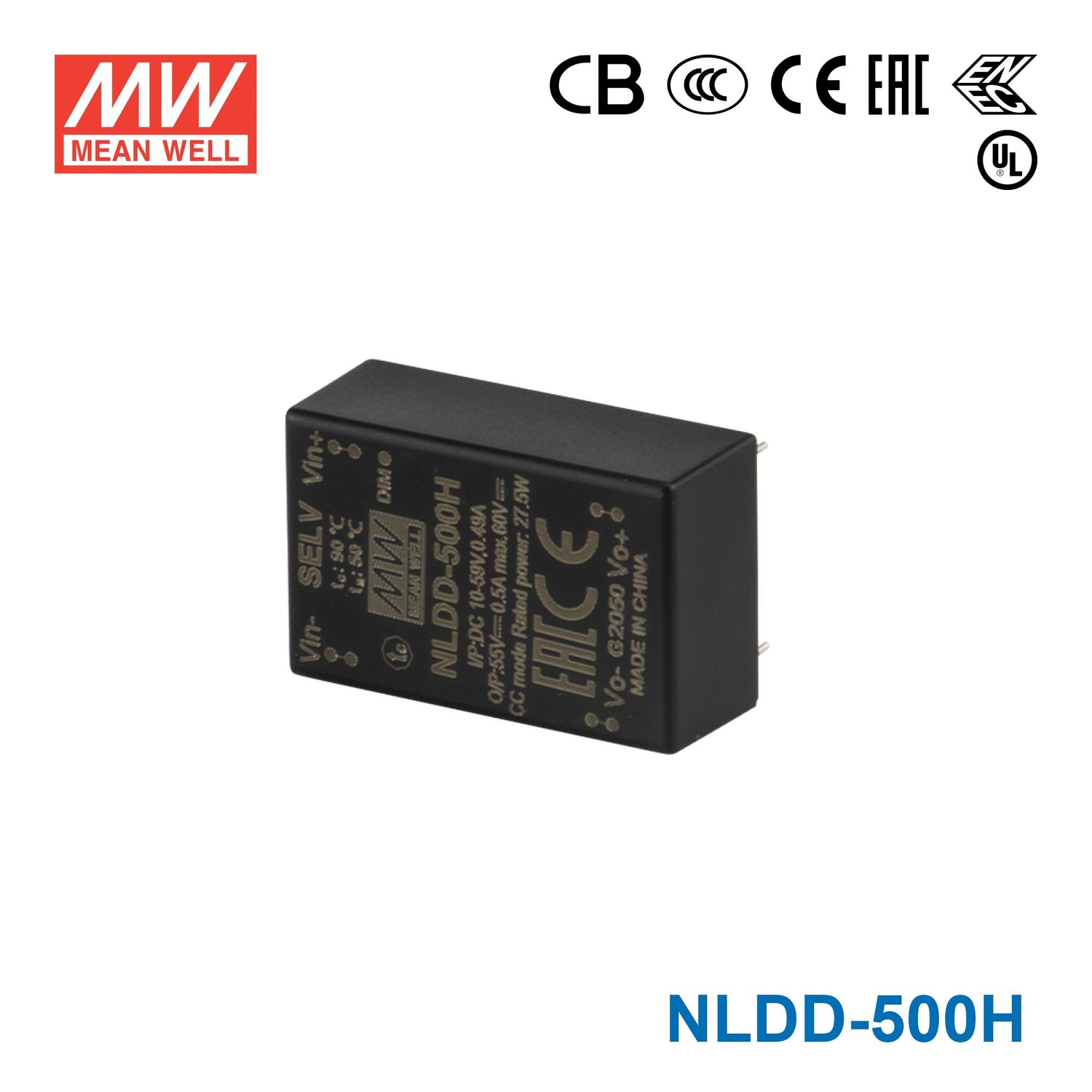

Mean Well NLDD-500H DC/DC LED Driver CC 500mA - Step-down
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NLDD-500H DC/DC LED Driver CC 500mA - Step-down
Description
Description
Features
| DC/DC step-down converter |
| Constant current output: 350mA to 1400mA |
| Wide input voltage: 10~56VDC(59VDC Max.) |
| Wide output LED forward voltage: 6~52VDC |
| High efficiency up to 96% |
| Comply with BS EN/EN61347 and BS EN/EN55015 regulation |
| Build-in PWM and remote ON/OFF control |
| Protections: Short circuit/Over temperature |
| Cooling by free air convection |
| Fully encapsulated and compact size |
| Suitable for driving illumination LED |
| 3 years warranty |
General Specification
| Current accuracy | ±5% at 48V |
| Over temperature protection | Protection type : Shut down, recovers automatically after temperature goes down |
| Efficiency | 96% at full load and 36VDC/48VDC input |
| Short circuit protection | Regulated at rated output current |
| Working temperature | -40°C to +50°C |
| EMC | Compliance to EN55015 class B, EN61000-4-2,3,4,6,8, EAC TP TC 020 |
| Temp. Coefficient | ±0.03% / °C |
| Dimension (LxWxH) (mm) | 32.1*20.5*12.5mm or 1.26"*0.8"*0.49" inch |
| Potting material | Epoxy |
Specifications
Specifications
-
BrandMean Well
-
SeriesNLDD Series
-
Power Rating60 Watt
-
Output Voltage52 Volt
-
Rated Current0.5 Ampere
-
Input Voltage6V~52V
-
No of Output1
-
Dimming ControlPWM
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~50°C
-
Warranty3 Year
-
Length1.26 in
-
Width0.81 in
-
Height0.49 in
-
Weight0.03 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the NLDD-500H power a 500mA LED downlight engine?
Yes, if the LED engine is specified for constant current operation at 500mA. This 60W step-down driver regulates current, so it is intended for LED loads that should not be run from a constant voltage source.
Is the NLDD-500H suitable for channel letter signage or compact LED arrays?
It can work for signage modules or compact LED arrays that are designed for 500mA constant current drive. The LED load must also remain within the 52-6V constant current range of the driver.
Can I use this driver in a small custom luminaire with limited space?
The module is compact at 32.1 × 20.5 × 12.5 mm and weighs 0.0156 kg, which helps in smaller luminaires or integrated LED products. Electrically, it is still a 500mA constant current driver with up to 60W capacity.
Will the NLDD-500H work with my LED module or board?
It will only work correctly with a constant current LED load rather than a constant voltage product. Its constant current output range is 52-6V, and the number of LEDs it can support depends on the forward voltage of each LED in the string.
Is the NLDD-500H appropriate for harsh or outdoor conditions?
The driver is rated IP67 and has an operating temperature range of -40°C to +50°C. That makes it suitable for demanding environments when the overall product design stays within those protection and temperature limits.
