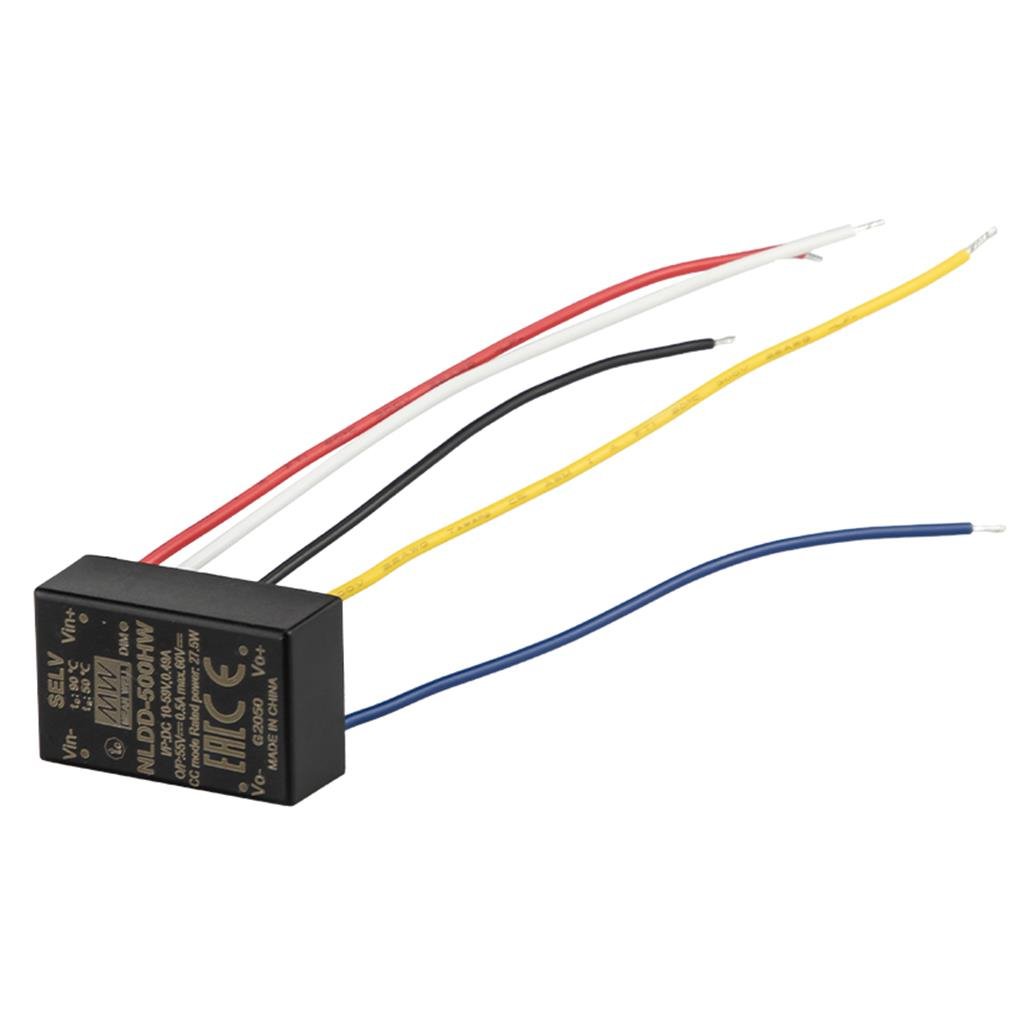

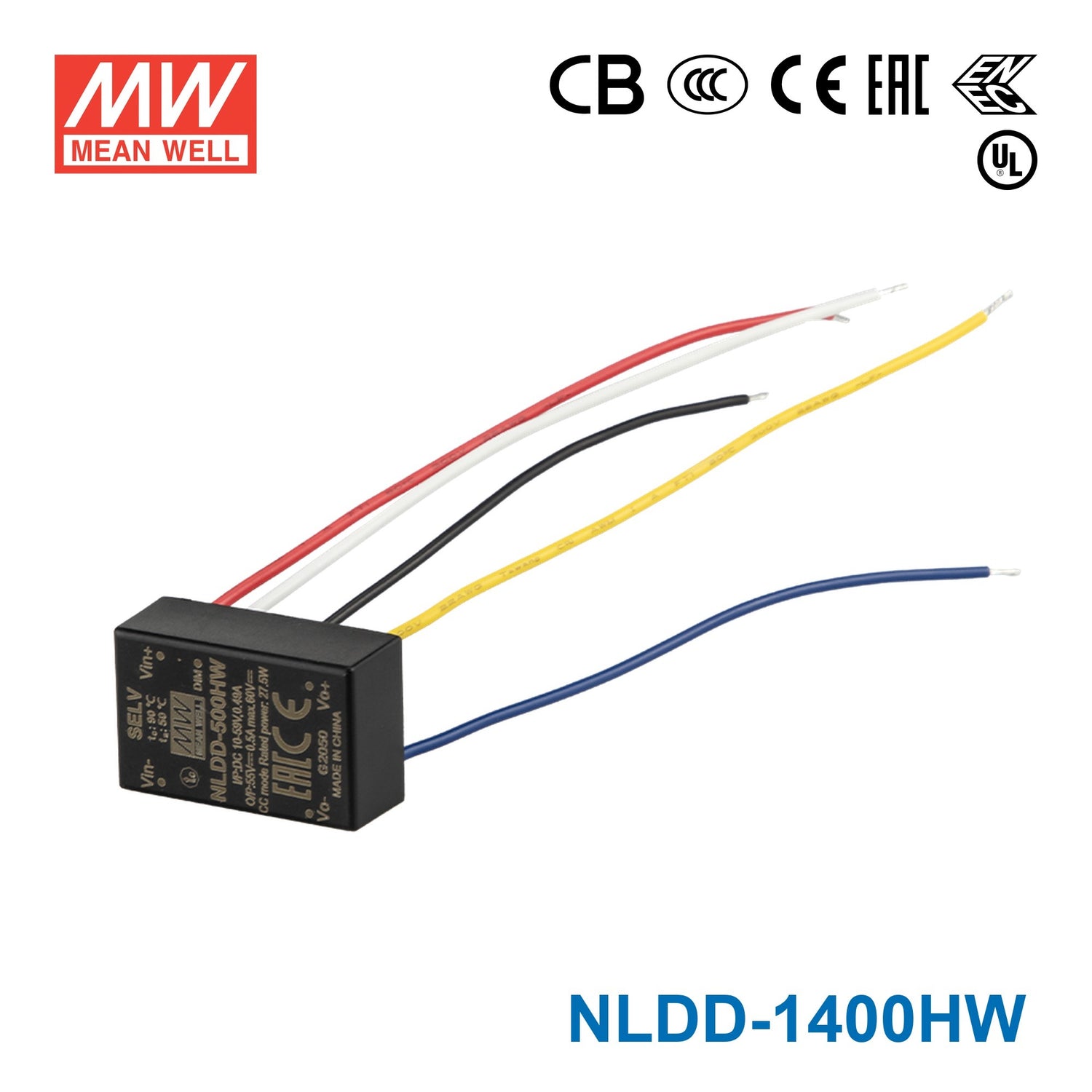

Mean Well NLDD-1400HW DC/DC LED Driver CC 1400mA - Step-down Wire Type
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NLDD-1400HW DC/DC LED Driver CC 1400mA - Step-down Wire Type
Description
Description
Features
| DC/DC step-down converter |
| Constant current output: 350mA to 1400mA |
| Wide input voltage: 10~56VDC(59VDC Max.) |
| Wide output LED forward voltage: 6~52VDC |
| High efficiency up to 96% |
| Comply with BS EN/EN61347 and BS EN/EN55015 regulation |
| Build-in PWM and remote ON/OFF control |
| Protections: Short circuit/Over temperature |
| Cooling by free air convection |
| Fully encapsulated and compact size |
| Suitable for driving illumination LED |
| 3 years warranty |
General Specification
| Current accuracy | ±5% at 48V |
| Over temperature protection | Protection type : Shut down, recovers automatically after temperature goes down |
| Efficiency | 96% at full load and 36VDC/48VDC input |
| Short circuit protection | Regulated at rated output current |
| Working temperature | -40°C to +50°C |
| EMC | Compliance to EN55015 class B, EN61000-4-2,3,4,6,8, EAC TP TC 020 |
| Temp. Coefficient | ±0.03% / °C |
| Dimension (LxWxH) (mm) | 32.1*20.5*12.5mm or 1.26"*0.8"*0.49" inch |
| Potting material | Epoxy |
Specifications
Specifications
-
BrandMean Well
-
SeriesNLDD Series
-
Power Rating60 Watt
-
Output Voltage46 Volt
-
Rated Current1.4 Ampere
-
Input Voltage6V~46V
-
No of Output1
-
Dimming ControlPWM
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~50°C
-
Warranty3 Year
-
Length1.26 in
-
Width0.81 in
-
Height0.49 in
-
Weight0.03 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the NLDD-1400HW be used for constant-current LED downlights in compact fixtures?
Yes, if the LED downlight is specified for constant current operation and the total LED forward voltage stays within 6-46V. The driver is rated for 60W and uses a step-down constant current output, so it is not a replacement for a constant-voltage supply.
Is the NLDD-1400HW suitable for signage modules that need weather-resistant electronics?
It can be a fit where the LED load is constant current and environmental protection matters, because this model is rated IP67. It also operates across -40°C to +50°C, which supports use in installations exposed to outdoor or industrial temperature conditions.
Can I use this driver for a small high-power LED array?
Yes, if the array is a constant current LED load and its combined forward voltage remains within the 6-46V constant-current range. The total load also needs to stay within the 60W rating of the driver.
How do I size an LED load for the NLDD-1400HW?
Start with the LED load's total forward voltage and confirm it falls within the 6-46V constant-current output range. The number of LEDs depends on each LED's forward voltage, so there is no fixed LED count that applies to every design.
What are the main differences between the NLDD-1400HW and its series siblings?
This model shares the 60W rating with the full sibling group but uses 1.4mA output and a 46-6V constant-current range, the same as the 1400H. The 1200H and 1200HW are 1.2mA at 46-6V, while the 1050H/1050HW, 700H/700HW, 500H/500HW, and 350H/350HW use a 52-6V constant-current range with output currents of 1.05mA, 0.7mA, 0.5mA, and 0.35mA.
