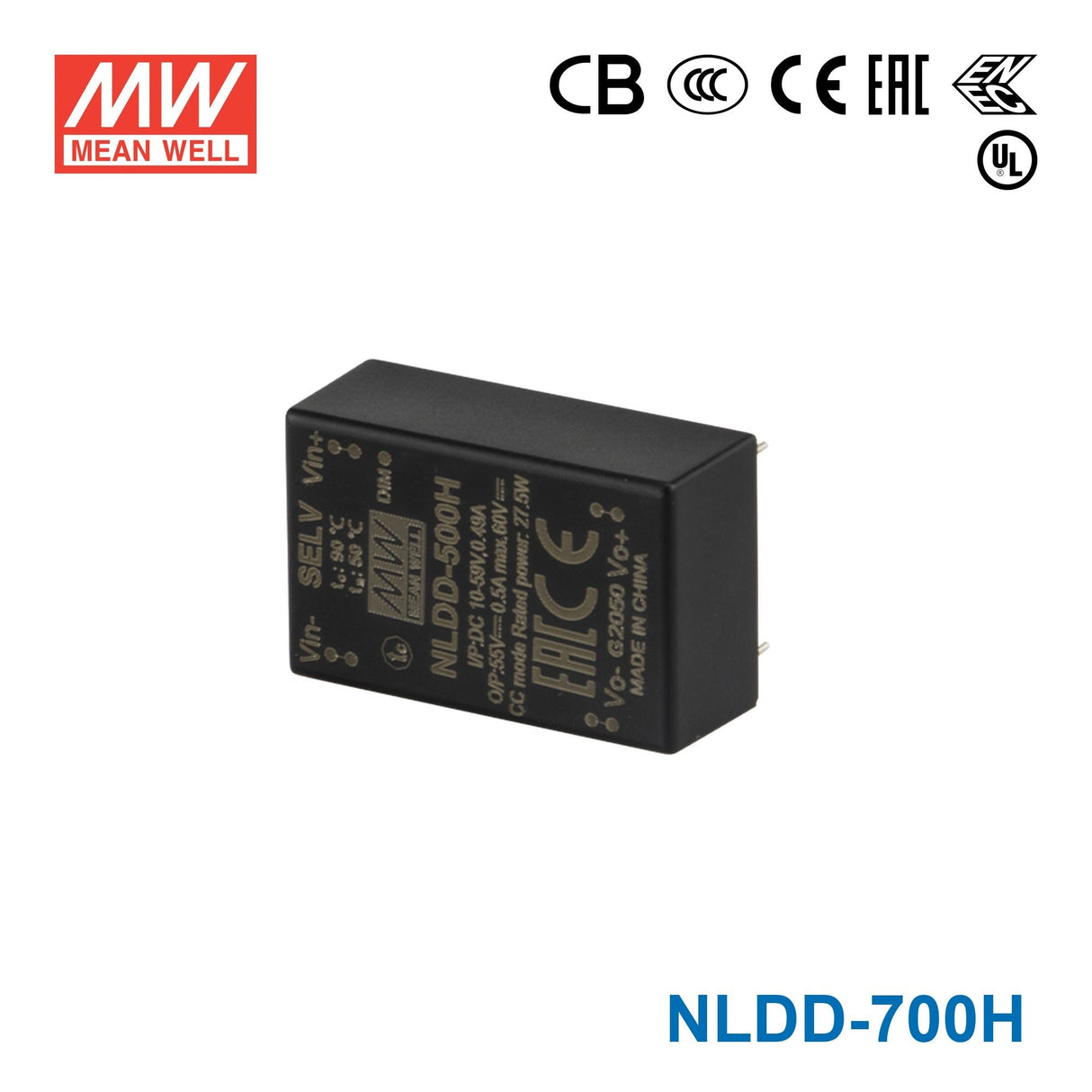

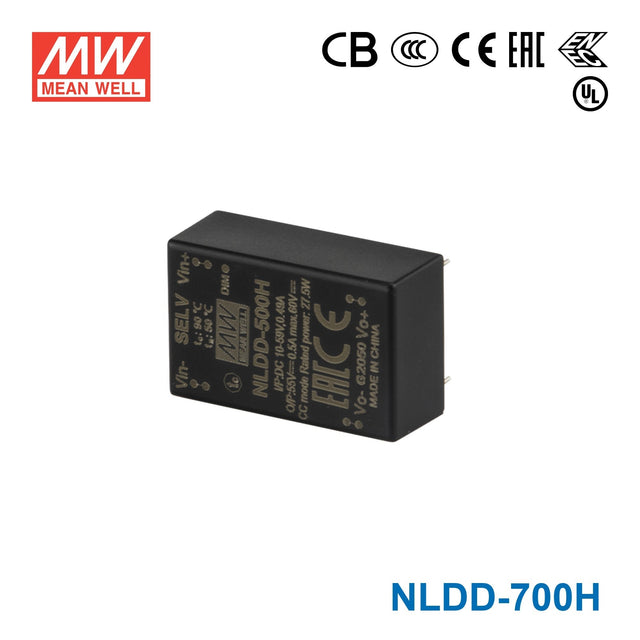

Mean Well NLDD-700H DC/DC LED Driver CC 700mA - Step-down
The NLDD is a Mean Well power converter (input range: 6~52VDC, operating temperature: -40~+85℃).
Key Features
- ✓ Input voltage range: 6~52VDC
- ✓ Wide operating temperature: -40~+85℃
- ✓ Protections: Short circuit / Over temperature
- ✓ Remote ON/OFF control
- ✓ Safety approvals: IEC61347 and EAC TP TC004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesNLDD Series
-
Power Rating60 Watt
-
Output Voltage52 Volt
-
Rated Current0.7 Ampere
-
Input Voltage6V~52V
-
No of Output1
-
Dimming ControlPWM
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~50°C
-
Warranty3 Year
-
Length1.26 in
-
Width0.81 in
-
Height0.49 in
-
Weight0.03 lb
::specification::
Frequently Asked Questions
Can the NLDD-700H drive a higher-current LED downlight module?
Yes, when the LED downlight is built for constant current operation at 700mA. This is a 60W step-down constant current driver, so it is intended for LED loads that require regulated current rather than constant voltage.
Is the NLDD-700H a fit for signage modules or dense small LED arrays?
It can be, provided the signage module or LED array is specified for 700mA constant current drive. The load also needs to stay inside the 52-6V constant current range of the driver.
Can this model be used where a small driver footprint matters?
Yes, the NLDD-700H measures 32.1 × 20.5 × 12.5 mm and weighs 0.0156 kg, so it can suit compact LED assemblies. It still delivers up to 60W, so both thermal design and electrical compatibility need to be considered in the final product.
How do I size an LED load for the NLDD-700H?
This driver should be matched to constant current LED loads, not constant voltage LED products. Its constant current output range is 52-6V, and the number of LEDs depends on the forward voltage of each LED in the array rather than on a fixed LED quantity.
Can the NLDD-700H operate in demanding environmental conditions?
The unit is rated IP67 and operates from -40°C to +50°C. That makes it suitable for rugged LED product designs as long as the application stays within those environmental limits.
