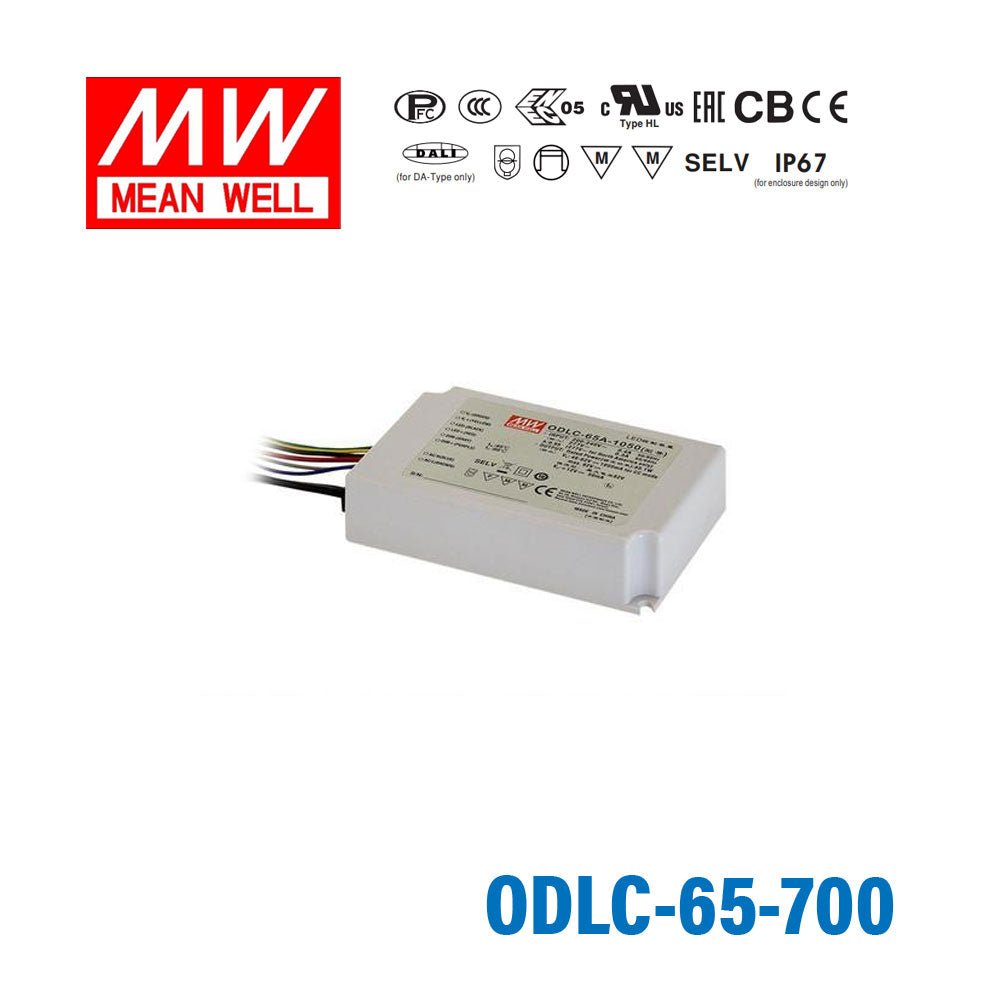

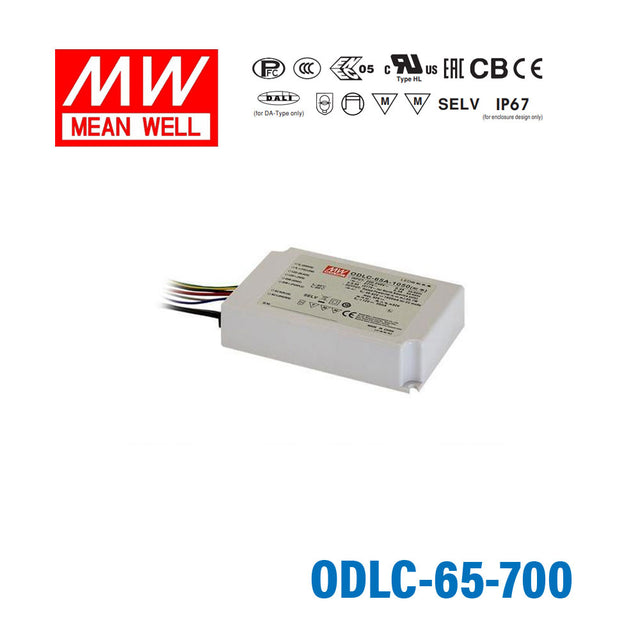

Mean Well ODLC-65-700 Power Supply 65W 700mA, Dimmable
The ODLC-65 is a 65W Mean Well power converter (input range: 180~295VAC, operating temperature: -20~+85℃).
Key Features
- ✓ Input voltage range: 180~295VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -20~+85℃
- ✓ Protections: Short circuit
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750(type”HL”);CSA C22.2 NO.250.13-12; ENEC EN61347-1 & EN61347-2-13 independent, EN62384, GB19510.1,GB19510.14; EAC TP TC 004, IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesODLC Series
-
Power Rating65.1 Watt
-
Output Voltage93 Volt
-
Rated Current0.7 Ampere
-
Input Voltage180V~295V
-
No of Output1
-
Dimming Control0-10V,10V PWM
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-20°C~85°C
-
Warranty3 Year
-
Length4.76 in
-
Width3.03 in
-
Height1.12 in
-
Weight0.95 lb
::specification::
Frequently Asked Questions
Can I use the ODLC-65-700 for LED downlights with a long series string?
Yes, this model is often a better fit when the LED downlight uses a higher-voltage constant current string, because it delivers 700mA across a 69-93V CC range. The LED load still needs to be designed for constant current operation rather than constant voltage input.
Is the ODLC-65-700 suitable for signage modules or small LED arrays with higher forward voltage?
It can be used for signage modules or small LED arrays that require 700mA constant current and have a combined forward voltage within 69-93V. Its output power is 65.1W, so the connected LED load must stay within that limit.
Can this driver be used in outdoor or harsh environment fixtures?
Yes, the ODLC-65-700 is rated IP67 waterproof for sealed applications exposed to water and dust. It also supports an operating temperature range of -20°C to +85°C for demanding environmental conditions.
How do I verify LED compatibility with the ODLC-65-700?
The LED assembly must require 700mA constant current, and its total forward voltage must fall within the 69-93V CC output range. The number of LEDs depends on the forward voltage of each LED, so there is no fixed LED count that applies to every load.
How is the ODLC-65-700 different from the other 65W ODLC drivers?
Among the 65W options, the ODLC-65-700 is 700mA with a 69-93V CC range and 65.1W, the ODLC-65-1050 is 1050mA with a 46-62V range and 65.1W, the ODLC-65-1400 is 1400mA with a 34-46V range and 64.4W, and the ODLC-65-1750 is 1750mA with a 27-36V range and 63W. This makes the ODLC-65-700 the highest-voltage, lowest-current version in the 65W group.
