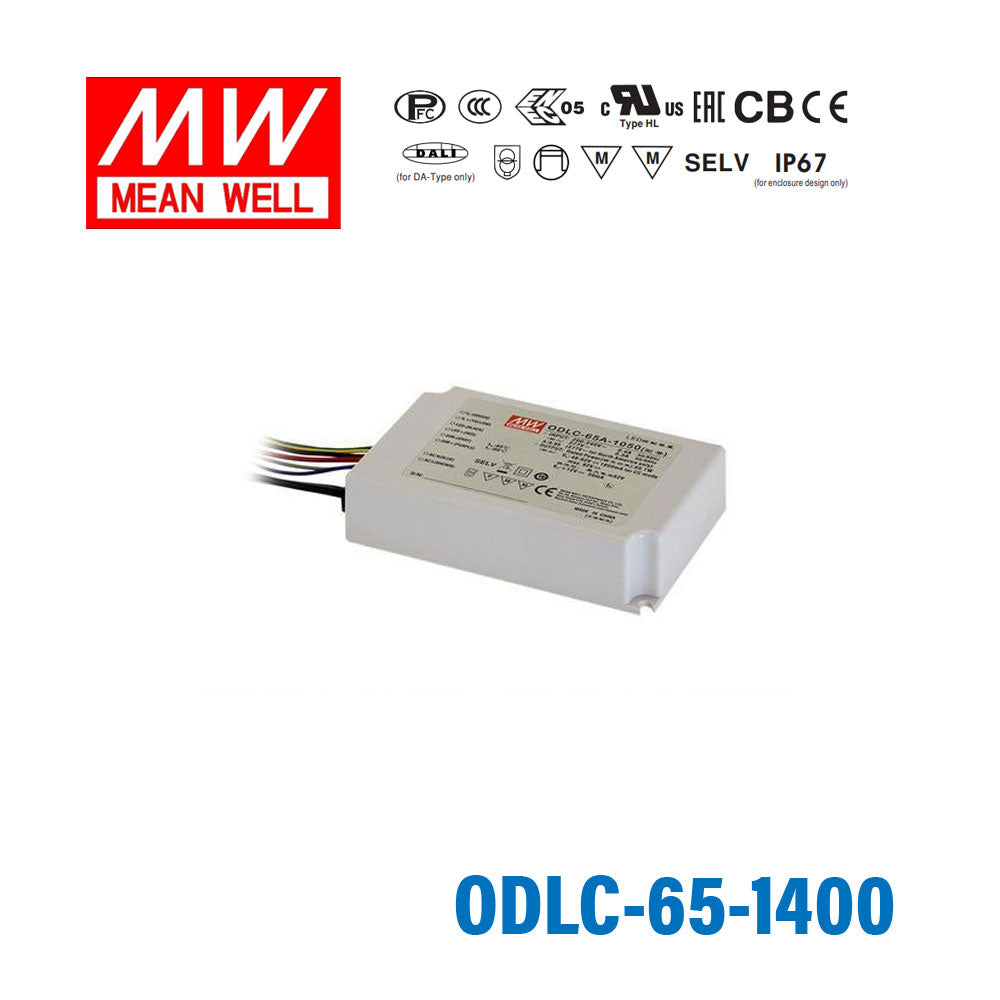

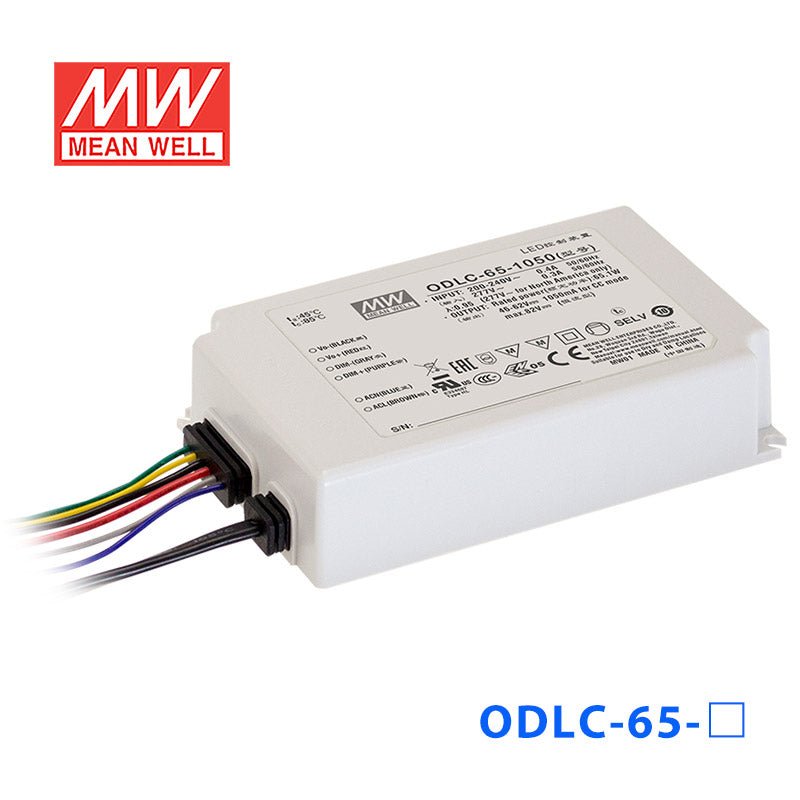

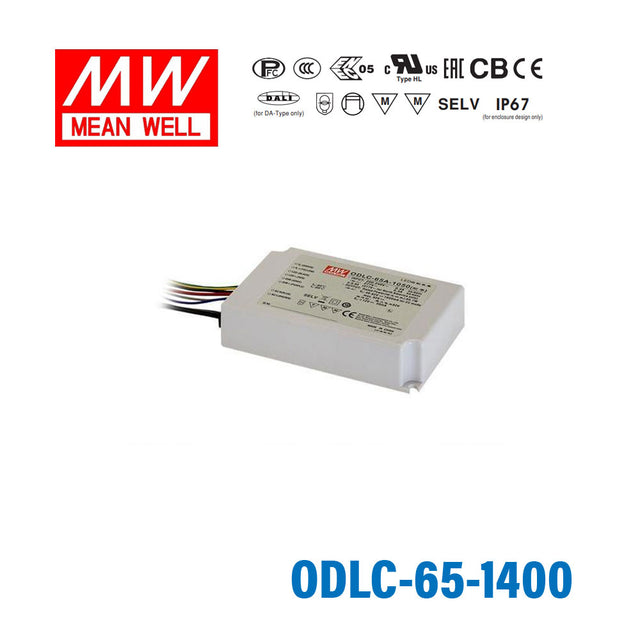

Mean Well ODLC-65-1400 Power Supply 65W 1400mA, Dimmable
Description
Description
Features
| Constant current mode output |
| Flicker-free design |
| Plastic housing with class II design |
| Built-in active PFC function |
| No load power consumption<0.5W(Blank-Type) |
| IP67 rating for indoor or outdoor installations |
| Function options: 2 in 1 dimming(dim-to-off); Auxiliary DC output; DALI |
| 3 years warranty |
General Specification
| AC input voltage range | 90~295VAC |
| AC inrush current (Typ.) | COLD START 30A(twidth=100μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 |
| Short circuit protection | Hiccup mode, auto-recovery/re-power |
| No load power consumption | consumption<0.5W for Blank-Type,<1.2W for ODLC-45A |
| Setup time | 500ms/230VAC |
| Withstand voltage | I/P-O/P: 3.75kVAC |
| Working temperature | -20~+85ºC |
| Safety standards | UL8750, ENEC EN61347-1, EN61347-2-13 |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EAC TP TC 020 |
| Dimension (LxWxH)(mm) | 121*77*28.5mm |
| Packing | 24pcs/11.3Kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesODLC Series
-
Power Rating64.4 Watt
-
Output Voltage46 Volt
-
Rated Current1.4 Ampere
-
Input Voltage180V~295V
-
No of Output1
-
Dimming Control0-10V,10V PWM
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-20°C~85°C
-
Warranty3 Year
-
Length4.76 in
-
Width3.03 in
-
Height1.12 in
-
Weight0.95 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the ODLC-65-1400 for LED downlights that require 1400mA drive current?
Yes, if the downlight is designed for constant current operation at 1400mA and the total forward voltage is within 34-46V. This model is a constant current driver, so it should be matched to LED modules that specify current control rather than constant voltage input.
Is the ODLC-65-1400 a good fit for compact signage modules or small LED arrays?
It can be a fit for compact signage modules or small LED arrays when the LED assembly requires 1400mA constant current and stays within the 34-46V CC range. Its maximum output power is 64.4W, so the total load must remain within that limit.
Can this driver be used where the fixture may see water or dust exposure?
Yes, the housing is rated IP67 waterproof, which supports use in sealed lighting systems exposed to dust or water. The operating temperature range is -20°C to +85°C, so it is also suited to demanding ambient conditions within that range.
How do I check compatibility with my LED board or COB module?
The LED board or COB module must be specified for 1400mA constant current, and the total forward voltage must stay between 34V and 46V. The number of LEDs depends on the forward voltage of each LED, so the correct check is total forward voltage, not a specific LED quantity.
What is the difference between the ODLC-65-1400 and the other 65W current options?
In the same family, the ODLC-65-700 is rated 700mA with a 69-93V CC range and 65.1W, the ODLC-65-1050 is 1050mA with a 46-62V CC range and 65.1W, and the ODLC-65-1750 is 1750mA with a 27-36V CC range and 63W. The ODLC-65-1400 is the 1400mA option with a 34-46V CC range and 64.4W.
