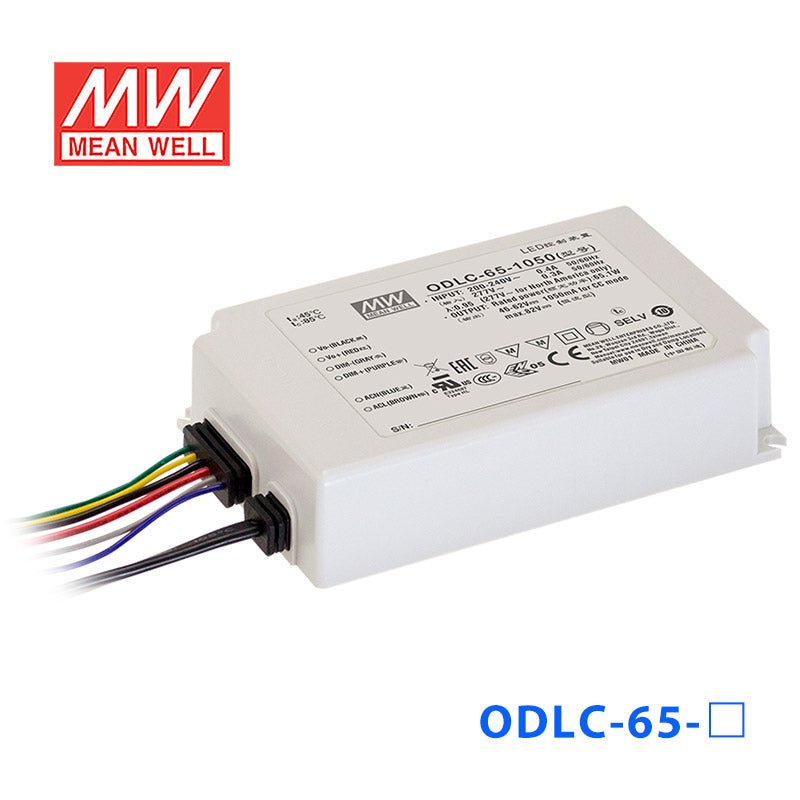

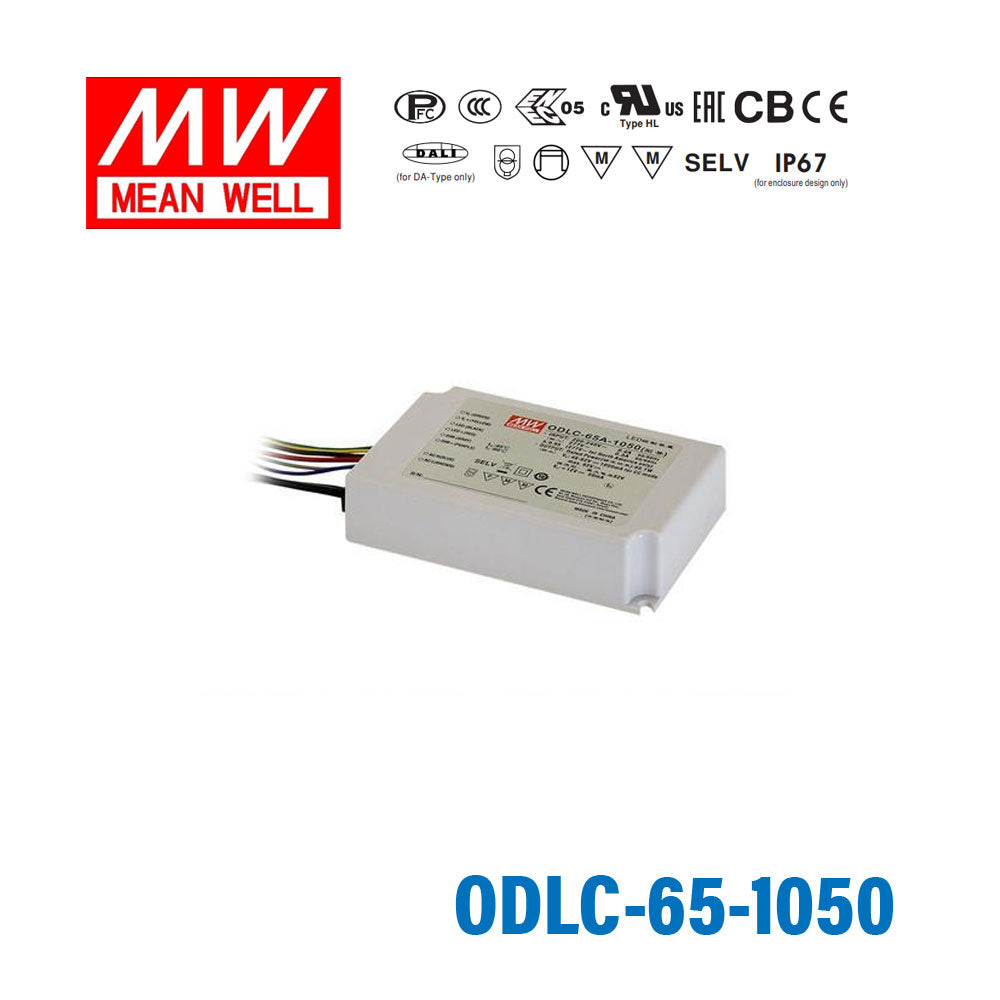

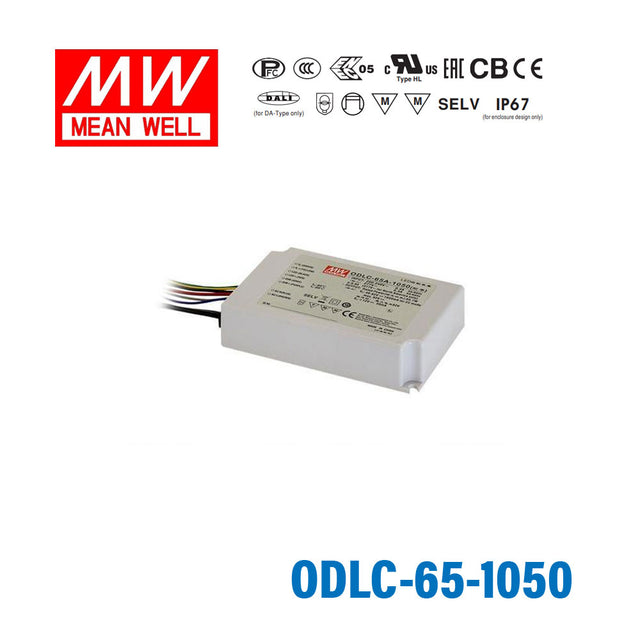

Mean Well ODLC-65-1050 Power Supply 65W 1050mA, Dimmable
Description
Description
Features
| Constant current mode output |
| Flicker-free design |
| Plastic housing with class II design |
| Built-in active PFC function |
| No load power consumption<0.5W(Blank-Type) |
| IP67 rating for indoor or outdoor installations |
| Function options: 2 in 1 dimming(dim-to-off); Auxiliary DC output; DALI |
| 3 years warranty |
General Specification
| AC input voltage range | 90~295VAC |
| AC inrush current (Typ.) | COLD START 30A(twidth=100μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 |
| Short circuit protection | Hiccup mode, auto-recovery/re-power |
| No load power consumption | consumption<0.5W for Blank-Type,<1.2W for ODLC-45A |
| Setup time | 500ms/230VAC |
| Withstand voltage | I/P-O/P: 3.75kVAC |
| Working temperature | -20~+85ºC |
| Safety standards | UL8750, ENEC EN61347-1, EN61347-2-13 |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EAC TP TC 020 |
| Dimension (LxWxH)(mm) | 121*77*28.5mm |
| Packing | 24pcs/11.3Kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesODLC Series
-
Power Rating65.1 Watt
-
Output Voltage62 Volt
-
Rated Current1.05 Ampere
-
Input Voltage180V~295V
-
No of Output1
-
Dimming Control0-10V,10V PWM
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-20°C~85°C
-
Warranty3 Year
-
Length4.76 in
-
Width3.03 in
-
Height1.12 in
-
Weight0.95 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the ODLC-65-1050 for LED downlights that need 1050mA constant current?
Yes, this driver is designed for constant current LED loads at 1050mA with a CC output range of 46-62V. It is a fit for LED downlights when the full LED load stays within that 46-62V range, because this is a constant current driver rather than a constant voltage power supply.
Is the ODLC-65-1050 suitable for signage modules or small LED arrays?
It can be used for signage modules or small LED arrays if the assembly is built for 1050mA constant current operation and the total forward voltage falls within 46-62V. The available output power is 65.1W, so the LED load also needs to stay within that rating.
Can this driver be used in damp or outdoor lighting locations?
The ODLC-65-1050 has an IP67 waterproof rating, so it is intended for environments where a sealed driver is required. It also has an operating temperature range of -20°C to +85°C, which supports use across a wide range of conditions.
How do I know if my LED load is compatible with the ODLC-65-1050?
Your LED load needs a constant current driver rated at 1050mA, and the combined LED forward voltage must fall within the 46-62V CC range. The number of LEDs depends on the forward voltage of each LED, so compatibility is based on total forward voltage rather than a fixed LED count.
How does the ODLC-65-1050 compare with other 65W ODLC series drivers?
Within the 65W family, the ODLC-65-700 is 700mA with a 69-93V CC range and 65.1W, the ODLC-65-1400 is 1400mA with a 34-46V CC range and 64.4W, and the ODLC-65-1750 is 1750mA with a 27-36V CC range and 63W. The ODLC-65-1050 sits between those options at 1050mA with a 46-62V CC range and 65.1W.
Other ODLC-65 Models
3 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well ODLC-65-700 Power Supply 65W 700mA, Dimmable | 65.1W | 93V | 0.7A | IP67 | $26.09 | View |
| Mean Well ODLC-65-1750 Power Supply 65W 1750mA, Dimmable | 63W | 36V | 1.75A | IP67 | $22.94 | View |
| Mean Well ODLC-65-1400 Power Supply 65W 1400mA, Dimmable | 64.4W | 46V | 1.4A | IP67 | $26.09 | View |
