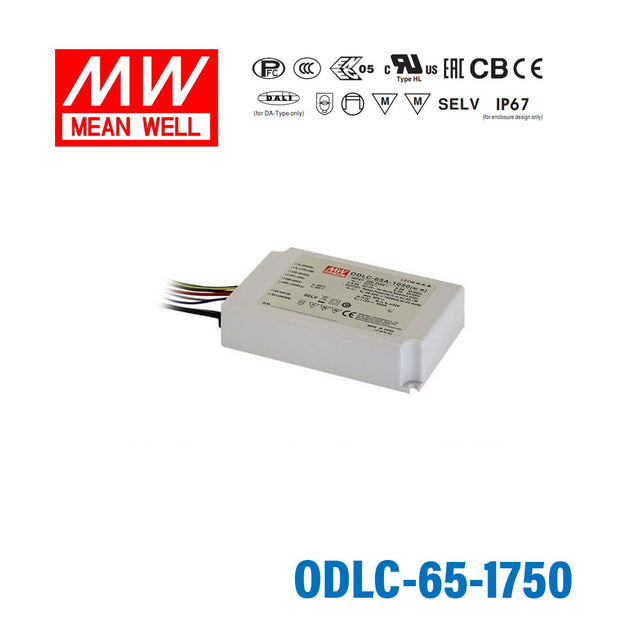

Mean Well ODLC-65-1750 Power Supply 65W 1750mA, Dimmable
Description
Description
Features
| Constant current mode output |
| Flicker-free design |
| Plastic housing with class II design |
| Built-in active PFC function |
| No load power consumption<0.5W(Blank-Type) |
| IP67 rating for indoor or outdoor installations |
| Function options: 2 in 1 dimming(dim-to-off); Auxiliary DC output; DALI |
| 3 years warranty |
General Specification
| AC input voltage range | 90~295VAC |
| AC inrush current (Typ.) | COLD START 30A(twidth=100μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 |
| Short circuit protection | Hiccup mode, auto-recovery/re-power |
| No load power consumption | consumption<0.5W for Blank-Type,<1.2W for ODLC-45A |
| Setup time | 500ms/230VAC |
| Withstand voltage | I/P-O/P: 3.75kVAC |
| Working temperature | -20~+85ºC |
| Safety standards | UL8750, ENEC EN61347-1, EN61347-2-13 |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EAC TP TC 020 |
| Dimension (LxWxH)(mm) | 121*77*28.5mm |
| Packing | 24pcs/11.3Kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesODLC Series
-
Power Rating63 Watt
-
Output Voltage36 Volt
-
Rated Current1.75 Ampere
-
Input Voltage180V~295V
-
No of Output1
-
Dimming Control0-10V,10V PWM
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-20°C~85°C
-
Warranty3 Year
-
Length4.76 in
-
Width3.03 in
-
Height1.12 in
-
Weight0.95 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the ODLC-65-1750 for LED downlights that need higher constant current?
Yes, this driver is intended for constant current LED loads at 1750mA with a CC output range of 27-36V. It is suitable for LED downlights when the LED module is rated for 1750mA and the total forward voltage stays inside that range.
Will the ODLC-65-1750 work for small LED arrays with lower forward voltage requirements?
It can work for small LED arrays that are designed for 1750mA constant current and have a combined forward voltage between 27V and 36V. The driver provides up to 63W, so the LED load needs to remain within that output power.
Is this model appropriate for signage modules that run on constant current?
Yes, if the signage module is a constant current design rated at 1750mA and its total forward voltage is within 27-36V. It is not the right choice for constant voltage signage products that expect a fixed DC voltage source.
How should I check whether my LEDs match the ODLC-65-1750?
You need a constant current LED load rated at 1750mA, and the full string or module must fall within the 27-36V CC output range. The number of LEDs depends on the forward voltage of each LED, so compatibility should be calculated from total forward voltage rather than a stated LED count.
How does the ODLC-65-1750 compare with the other ODLC 65W outputs?
The 65W ODLC group includes 700mA at 69-93V and 65.1W, 1050mA at 46-62V and 65.1W, 1400mA at 34-46V and 64.4W, and 1750mA at 27-36V and 63W. The ODLC-65-1750 is the highest current version in that set and has the lowest CC voltage range of the four.
