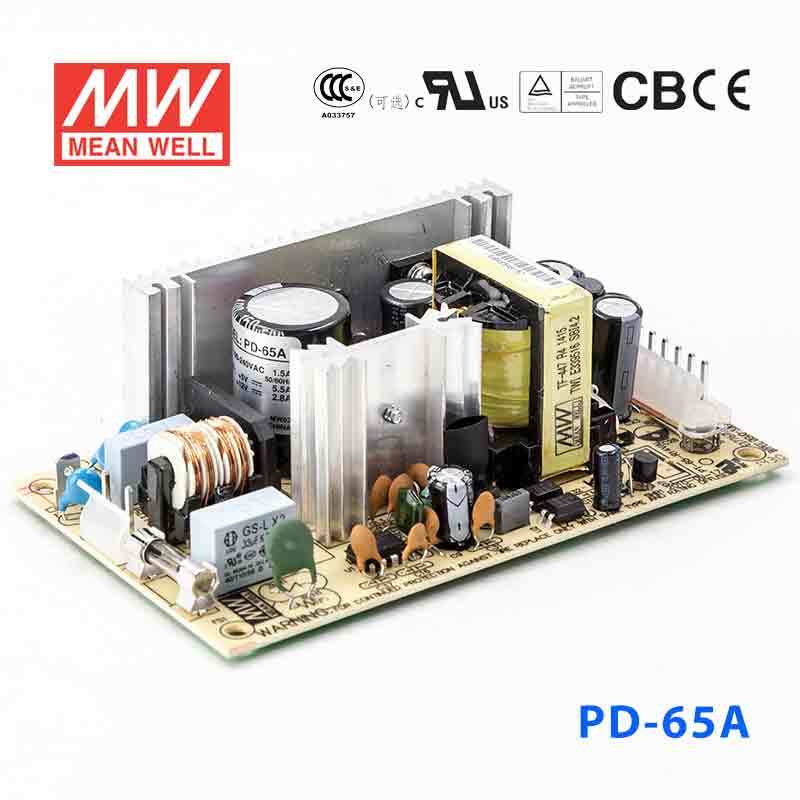

Mean Well PD-65A Power Supply 65W 5V 12V
<0.75mA/240VAC
Key Features
- ✓Universal AC input / Full range
- ✓Low leakage current < 0.5mA
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓Cooling by free air convection
- ✓100% full load burn-in test
- ✓Fixed switching frequency at 65KHz
- ✓Low cost
- ✓High reliability
- ✓2 years warranty
-
BrandMean Well
-
SeriesPD Series
-
Power Rating61.1 Watt
-
Output Voltage5 Volt
-
Rated Current5.5 Ampere
-
Input Voltage90V~264V
-
No of Output2
-
Dimming ControlNone
-
Standards MetCB,CE,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty2 Year
-
Length5 in
-
Width2.99 in
-
Height1.65 in
-
Weight0.53 lb
::specification::
Frequently Asked Questions
Can I use the PD-65A for a 5V controller board with 12V auxiliary loads in an industrial cabinet?
Yes, this model is suited to constant-voltage systems that use the 5V and 12V outputs indicated by the model name. It provides 61.1W total power, a 5V output rated at 5.5A, and accepts 90-264VAC input, which fits small industrial control or embedded assemblies that need those rails.
Is the PD-65A a good fit for embedded test fixtures or automation jigs that need stable 5V power?
It can be a fit where the main requirement is regulated 5V power for embedded electronics, with 61.1W total available and 5.5A on the 5V output. Because it is a constant-voltage supply with 90-264VAC input, it suits bench or factory test equipment designed around those limits.
Can I use the PD-65A in a small PLC or relay control panel that mixes low-voltage logic and support circuits?
Yes, for compact control panels that need a constant-voltage supply and stay within 61.1W total load. The 5V output is rated at 5.5A, and the model name identifies a 12V rail as well, so it is better aligned to mixed-voltage control hardware than a single-output-only unit.
Is the PD-65A suitable for outdoor or harsh-environment use?
The supplied specs do not list an IP rating, so outdoor exposure is not established from this data. Its operating temperature range is -10°C to +60°C, so it is better suited to protected indoor equipment or an enclosure that keeps the unit within that range.
How does the PD-65A compare with other PD series models?
Within the listed PD family, lower-power options are PD-2503 at 24.9W, PD-2505 at 25W 5V 2.5A, PD-2512 at 24W 12V 1A, PD-2515 at 24W 15V 0.8A, PD-25A at 24.9W 5V 2.1A, PD-25B at 25.2W 5V 1.2A, PD-45A at 40W 5V 3.2A, and PD-45B at 44.8W 5V 3.2A. Nearby higher-output options are PD-65B at 65.5W 5V 3.5A, plus PD-110A and PD-110B at 103W.
