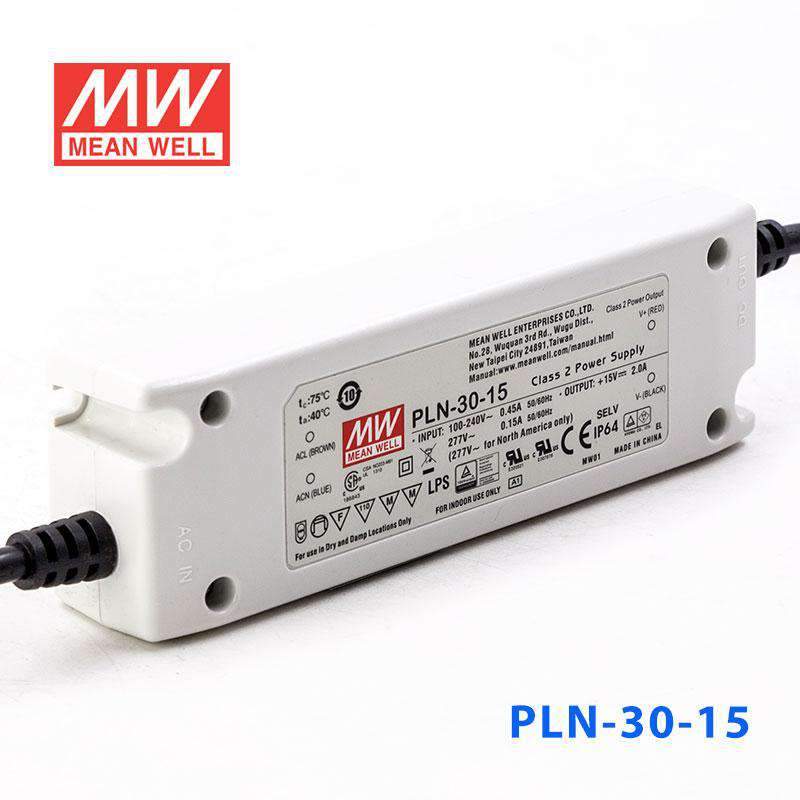

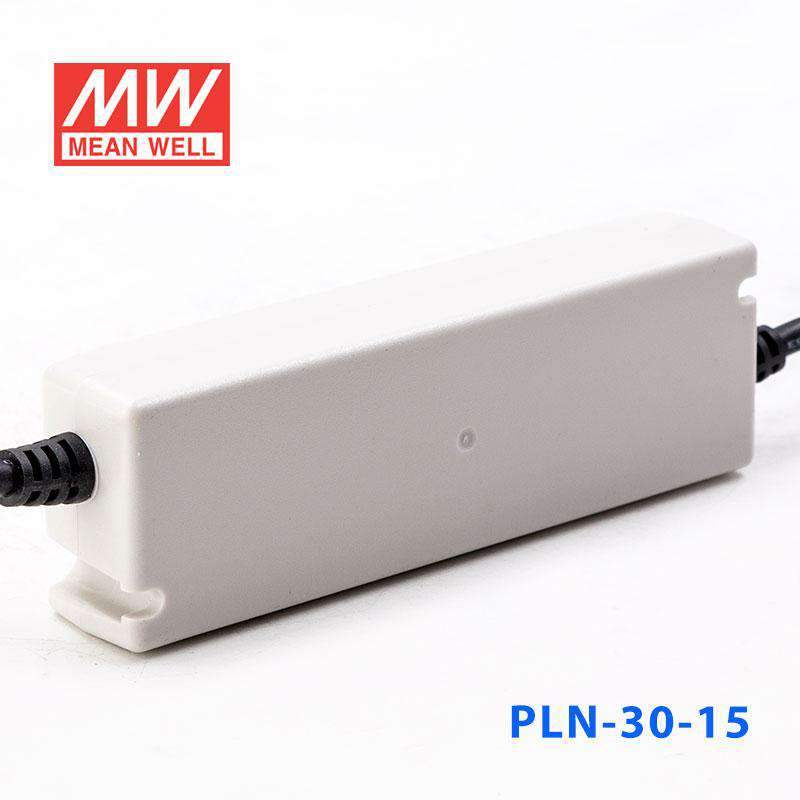

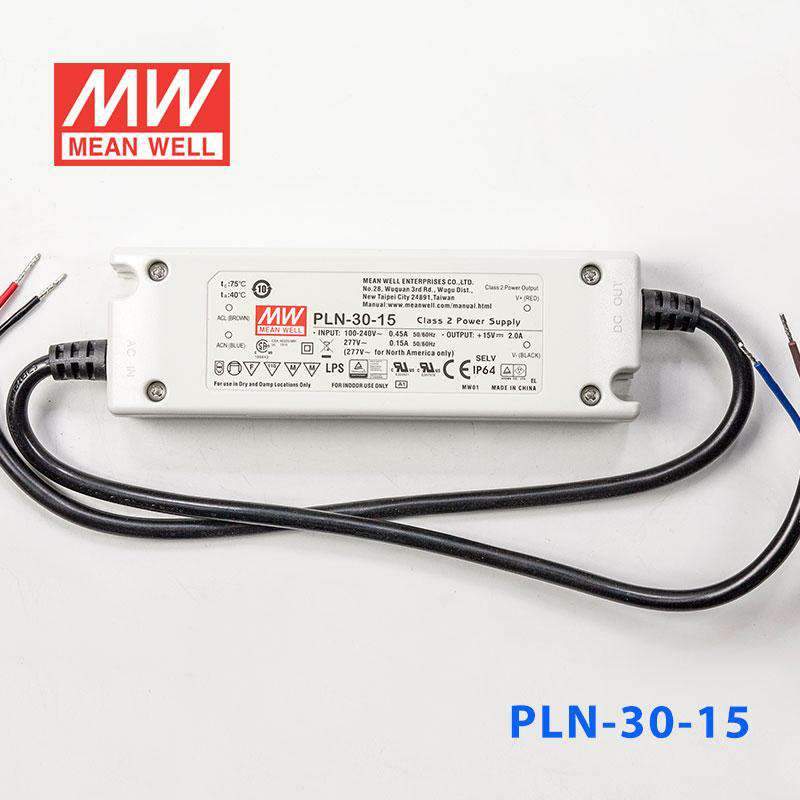

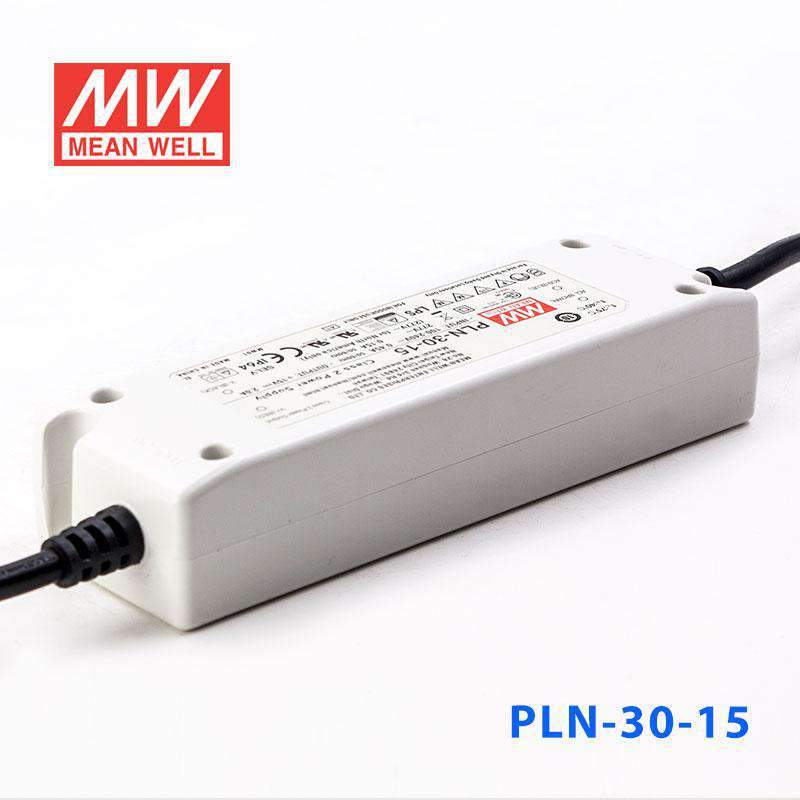

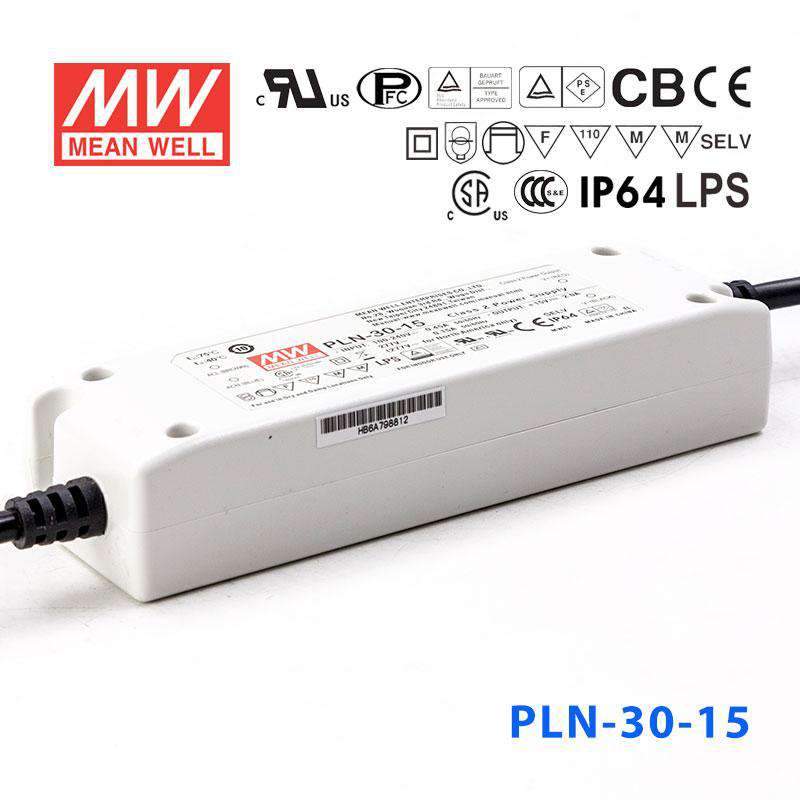

Mean Well PLN-30-15 Power Supply 30W 15V - IP64
The PLN-30 is a 30W Mean Well power converter (input range: 90~295VAC, operating temperature: -30~+50℃).
Key Features
- ✓ Input voltage range: 90~295VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+50℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL879, UL1310, CSA C22.2 No. 207-M89(except for 48V), TUV EN61347-1, EN61347-2-13, CAN/CSA C22.2 No.223-M91 (except for 48V),IP64, J61347-1,J61347-2-13
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPLN Series
-
Power Rating30 Watt
-
Output Voltage15 Volt
-
Rated Current2 Ampere
-
Input Voltage90V~295V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-30°C~50°C
-
Warranty2 Year
-
Length5.71 in
-
Width1.85 in
-
Height1.18 in
-
Weight0.49 lb
::specification::
Frequently Asked Questions
Can I use the PLN-30-15 for a 15V LED lighting load in signage?
Yes, if the lighting load is designed for 15V operation and stays within the driver's 30W output. The connected product also needs to operate within the 10-15V constant current range and not exceed 2A.
Is this driver suitable for a compact 15V illuminated display?
It is suitable for compact 15V display or sign lighting where total demand is up to 30W. Mean Well lists this series as suitable for signage applications, and this version provides up to 2A output.
Can the PLN-30-15 power short-run 15V strip or linear lighting?
It can power a short 15V lighting load up to 30W if the product matches the driver's electrical characteristics. Confirm the fixture or strip works within the 10-15V constant current range and does not require more than 2A.
How do I estimate LED strip length for the PLN-30-15?
Use the driver's 30W maximum output and divide it by the strip's rated watts per meter. The formula is 30W / strip W per meter = maximum meters, but check your strip rated power per meter and verify that it is compatible with 15V and the 2A constant current output.
Is the PLN-30-15 weather-resistant enough for outdoor signage?
Its IP64 rating means the housing is protected against dust and splashing water, which fits many outdoor sign and display locations. It is not a submersible unit, and the stated operating temperature range is -30°C to +50°C.
