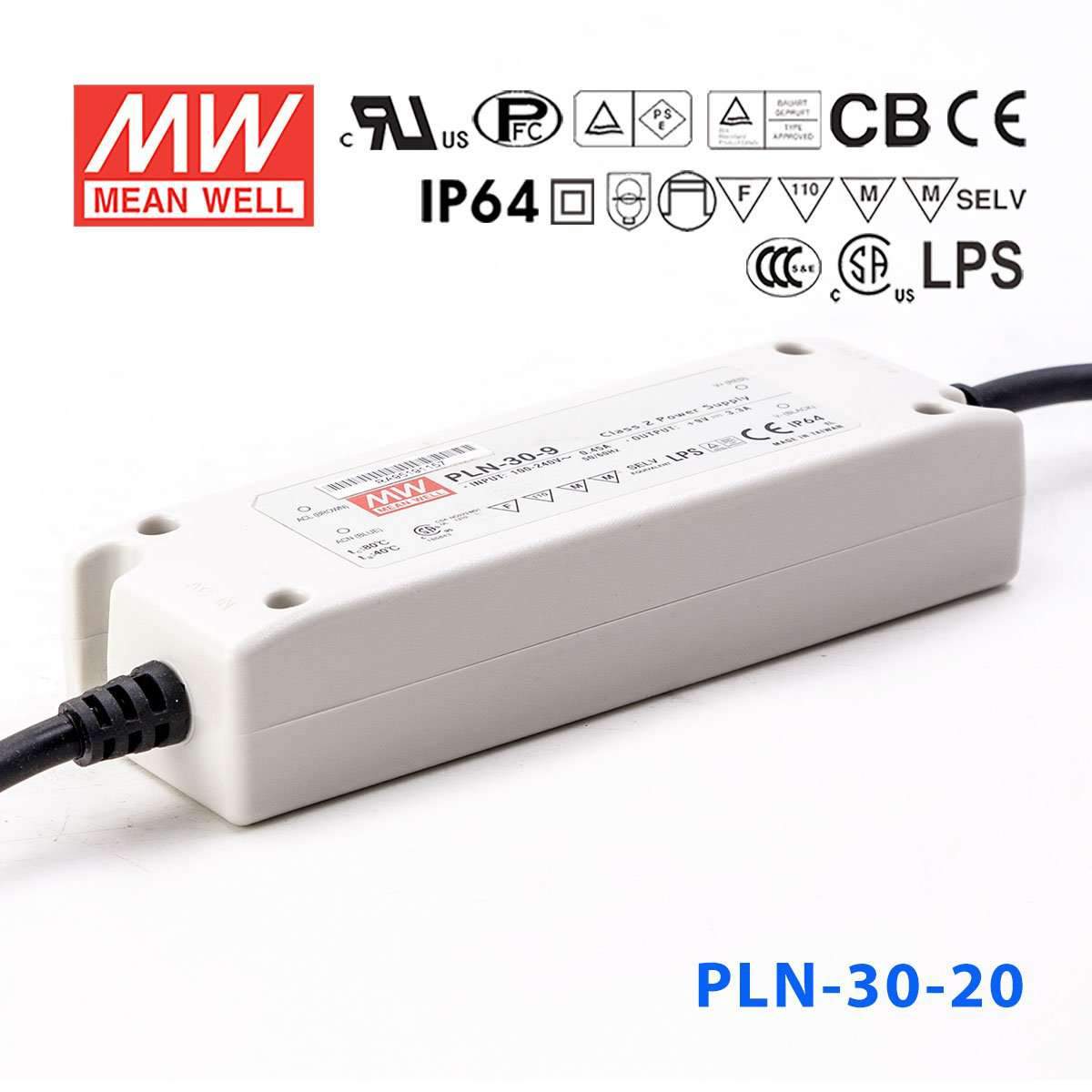

Mean Well PLN-30-20 Power Supply 30W 20V - IP64
The PLN-30 is a 30W Mean Well power converter (input range: 90~295VAC, operating temperature: -30~+50℃).
Key Features
- ✓ Input voltage range: 90~295VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+50℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL879, UL1310, CSA C22.2 No. 207-M89(except for 48V), TUV EN61347-1, EN61347-2-13, CAN/CSA C22.2 No.223-M91 (except for 48V),IP64, J61347-1,J61347-2-13
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPLN Series
-
Power Rating30 Watt
-
Output Voltage20 Volt
-
Rated Current1.5 Ampere
-
Input Voltage90V~295V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-30°C~50°C
-
Warranty2 Year
-
Length5.71 in
-
Width1.85 in
-
Height1.18 in
-
Weight0.49 lb
::specification::
Frequently Asked Questions
Can I use the PLN-30-20 for a 20V LED sign lighting load?
Yes, for a 20V lighting load that stays within the driver's 30W maximum output. The connected load should also fit the 14-20V constant current range and remain at or below 1.5A.
Is the PLN-30-20 a good match for a small 20V lighted display?
It can suit a small 20V illuminated display where the total load is no more than 30W. This series is identified as suitable for signage applications, and this model delivers up to 1.5A.
Can this driver run compact 20V linear lighting?
It can run a compact 20V linear lighting load if the fixture matches the driver's operating characteristics. Verify that the load falls within the 14-20V constant current range and does not exceed 30W or 1.5A.
How much 20V LED strip can the PLN-30-20 support?
Base the estimate on the driver's 30W maximum output: maximum length = 30W divided by your strip's rated watts per meter. That means 30W / strip W per meter = maximum meters, but check your strip rated power per meter and confirm compatibility with 20V and the 1.5A constant current output.
Can the PLN-30-20 be used in outdoor lighting enclosures?
With an IP64 rating, it is protected against dust and splashing water, so it is suitable for many outdoor or damp-location enclosures that do not involve water immersion. The specified operating temperature range is -30°C to +50°C.
