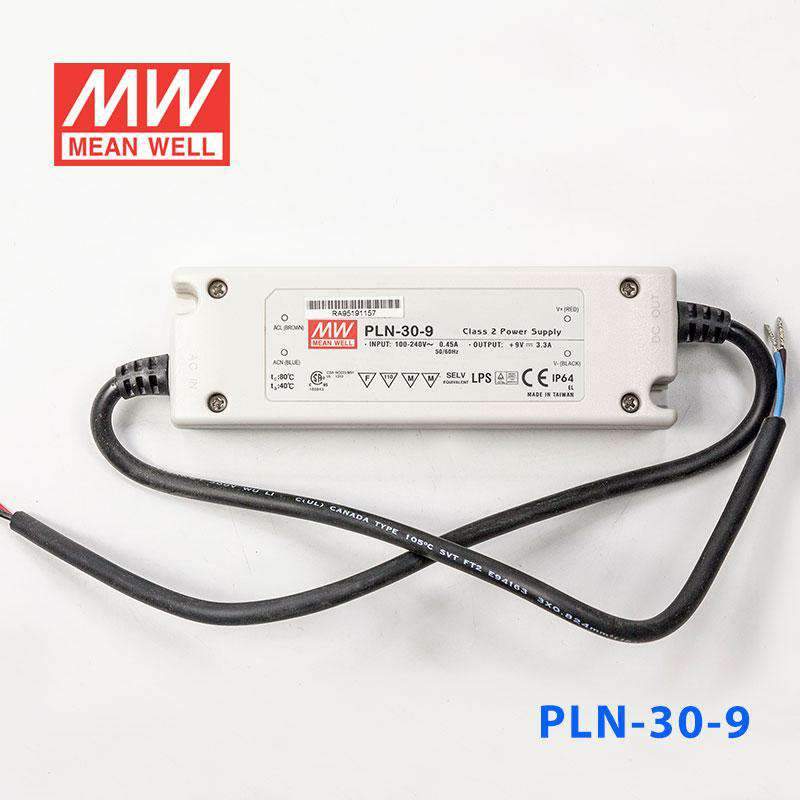

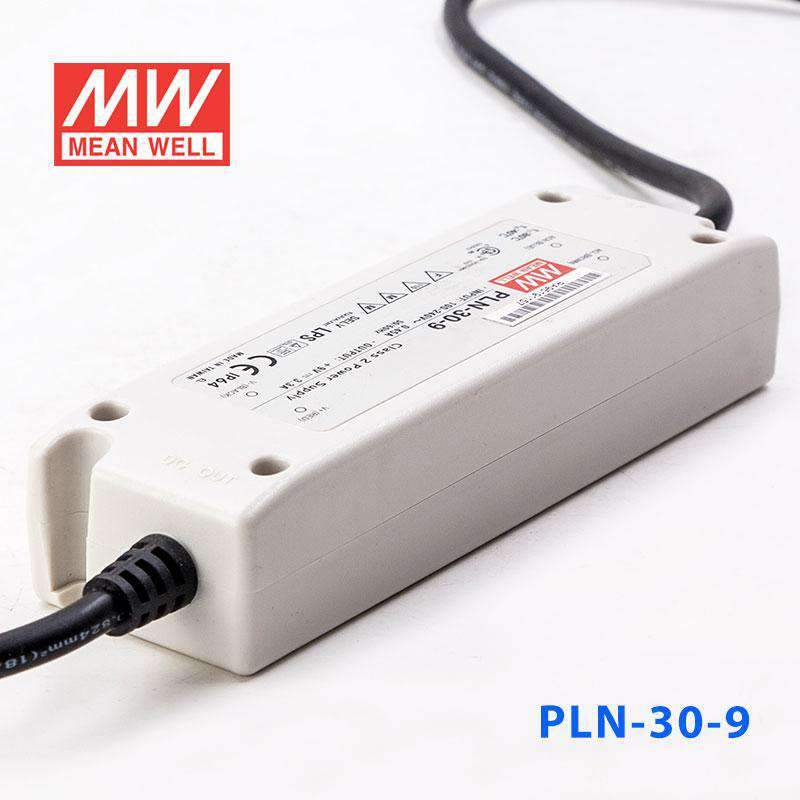

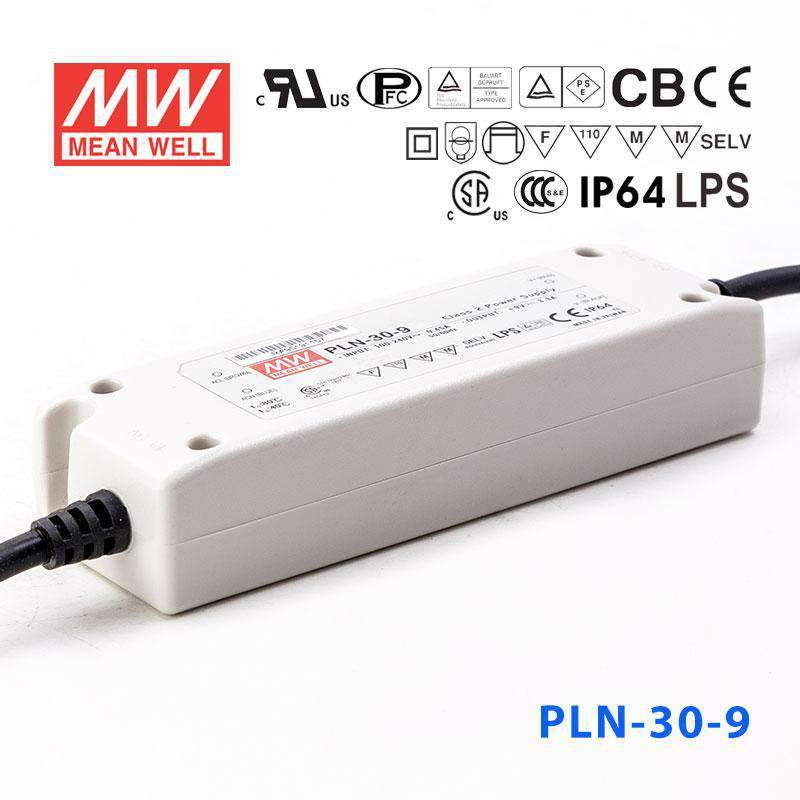

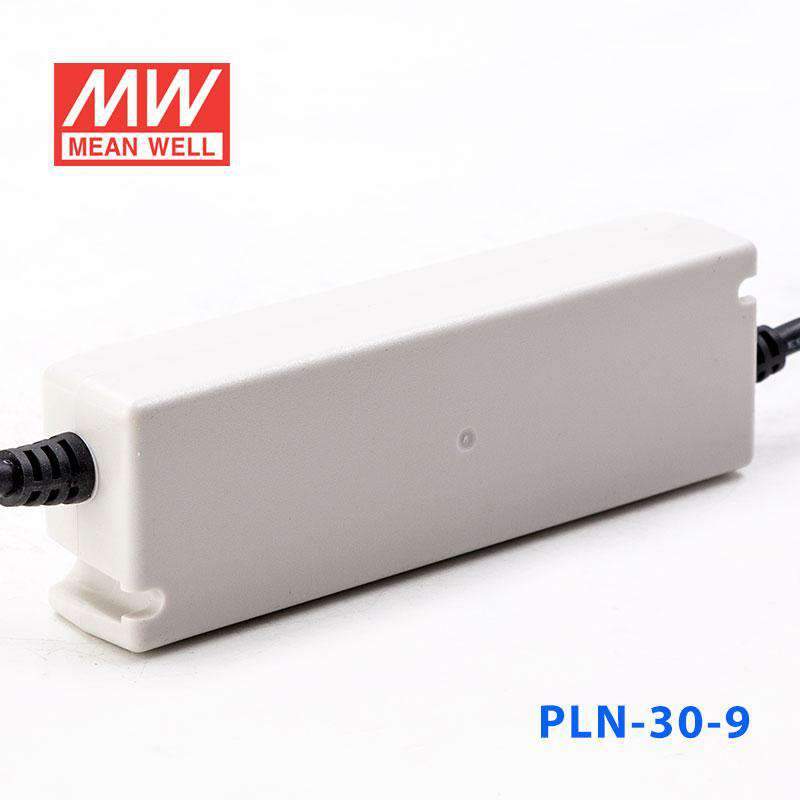

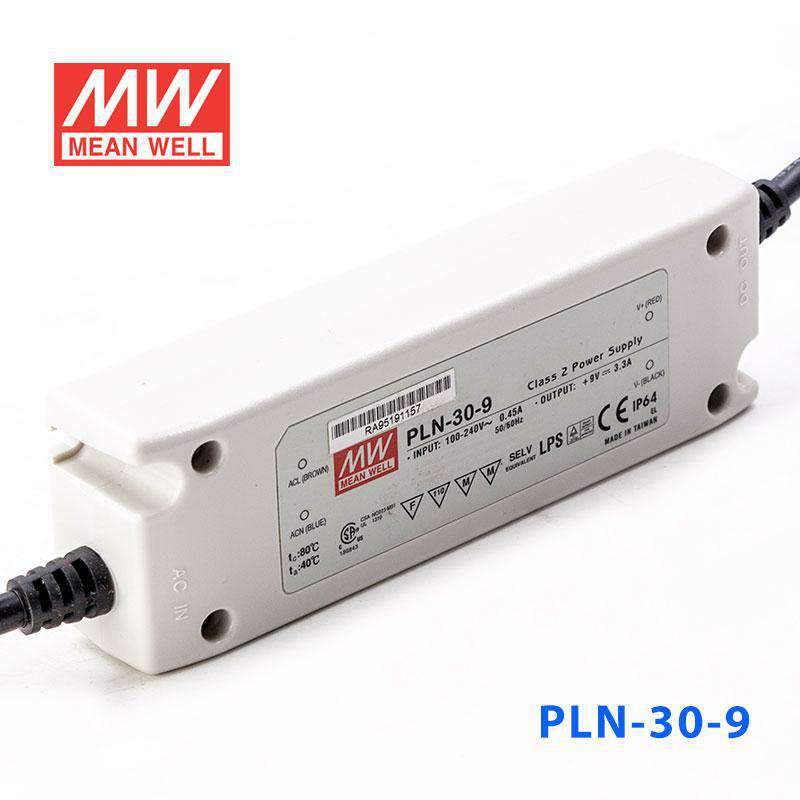

Mean Well PLN-30-9 Power Supply 30W 9V - IP64
The PLN-30 is a 30W Mean Well power converter (input range: 90~295VAC, operating temperature: -30~+50℃).
Key Features
- ✓ Input voltage range: 90~295VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+50℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL879, UL1310, CSA C22.2 No. 207-M89(except for 48V), TUV EN61347-1, EN61347-2-13, CAN/CSA C22.2 No.223-M91 (except for 48V),IP64, J61347-1,J61347-2-13
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPLN Series
-
Power Rating29.7 Watt
-
Output Voltage9 Volt
-
Rated Current3.3 Ampere
-
Input Voltage90V~295V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-30°C~50°C
-
Warranty2 Year
-
Length5.71 in
-
Width1.85 in
-
Height1.18 in
-
Weight0.49 lb
::specification::
Frequently Asked Questions
Can I use the PLN-30-9 for low-voltage LED signage?
Yes, it can fit low-voltage signage applications that need a 9V constant current output. This model supplies up to 29.7W at 3.3A, with a 6-9V constant current range.
Is the PLN-30-9 suitable for 9V decorative lighting?
It can be used for 9V decorative or accent lighting loads if the fixture is designed for constant current operation. The load needs to stay within 29.7W and 3.3A.
Can this driver power compact 9V illuminated displays?
It can work for compact illuminated displays where a 9V constant current driver is required and the total load stays inside the 29.7W limit. The fully isolated plastic case also helps for enclosed lighting products.
How much 9V LED strip can the PLN-30-9 run?
Use 29.7W as the available power and divide that by the strip's rated watts per meter to estimate the maximum length. Check your strip rated power per meter and confirm the strip system is compatible with 9V output and constant current operation.
How does the PLN-30-9 compare with other 30W PLN models?
Within the 30W group, PLN-30-9 is 29.7W at 9V and 3.3A, PLN-30-12 is 30W at 12V and 2.5A, PLN-30-15 is 30W at 15V and 2A, PLN-30-20 is 30W at 20V and 1.5A, PLN-30-24 is 30W at 24V and 1.25A, PLN-30-27 is 30.24W at 27V and 1.12A, PLN-30-36 is 30.24W at 36V and 0.84A, and PLN-30-48 is 30.24W at 48V and 0.63A. The main differences are output voltage and corresponding output current across the same general power class.
