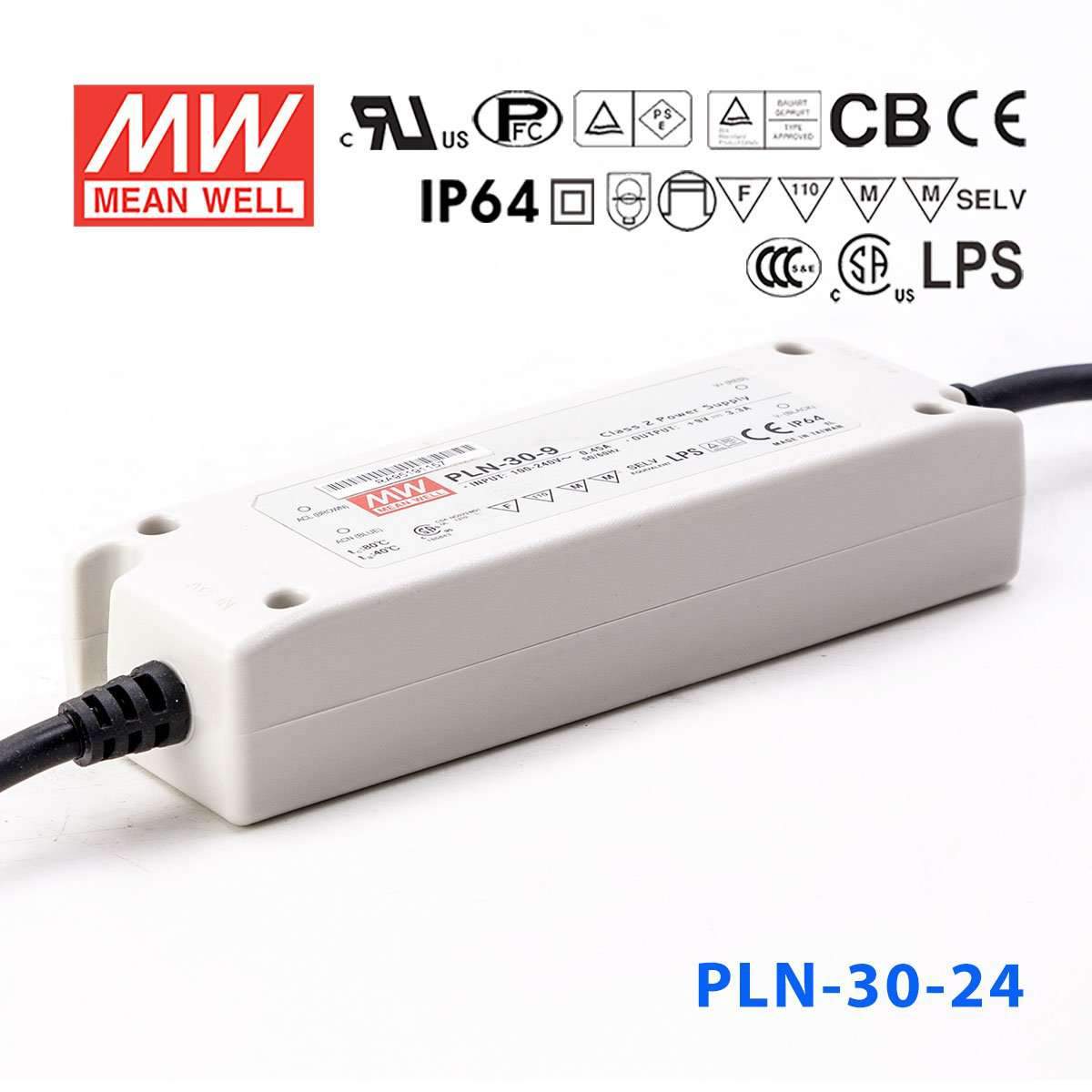

Mean Well PLN-30-24 Power Supply 30W 24V - IP64

fully isolated plastic case, IP64, suitable for signage applications

SKU:

PLN-30-24

$27.25 USD ~~$57.00~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Universal AC input (up to 295VAC) / Full range

Fully isolated plastic case with IP64 level

Built-in active PFC function, PF>0.9 for 75% of load or higher

Protections: Short circuit / Over current / Over voltage / Over temperature

Built-in constant current limiting circuit (C.V.+C.C. mode)

Class 2 power unit / Pass LPS

Isolation class II, no F.G.

User adjustable output voltage and current protection level

Cooling by free air convection

Suitable for LED lighting and moving sign applications

2 years warranty

General Specification

AC input voltage range	90~295VAC ; 127~417VDC
AC inrush current (max.)	Cold start, 35A at 230VAC
DC adjustment range	95%~108% rated output voltage
Current adjustment range	75%~103%
Over current protection	100%~110% constant current limiting, auto-recovery
Over voltage protection	110%~155% rated output voltage
Setup, rise, hold up time	2000ms(setup time) at full load and 230VAC, no hold up time
Withstand voltage	I/P-O/P: 3.75kVAC
Working temperature	-30~+50ºC (refer to output derating curve)
Safety standards	UL879, UL1310, TUV EN61347-1, EN61347-2-13,PSE J61347-1, J61347-2-13
EMC standards	EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547
Connection Input	UL rated, SVT 18AWGx2C (32cm)
Connection Output	UL rated, SVT 18AWGx2C (32cm)
Dimension (LxWxH) (mm)	145x 47x 30

Specifications

Brand

Mean Well
Series

PLN Series
Power Rating

30 Watt
Output Voltage

24 Volt
Rated Current

1.25 Ampere
Input Voltage

90V~295V
No of Output

1
Dimming Control

None
Standards Met

CB,CCC,CE,EAC,PSE,TUV,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-30°C~50°C
Warranty

2 Year
Length

5.71 in
Width

1.85 in
Height

1.18 in
Weight

0.49 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the PLN-30-24 for 24V LED strip lighting in signage?

It can be used for a 24V lighting load up to 30W, which fits smaller sign or display lighting applications that match the driver's output. The load also needs to operate within the 16-24V constant current range and stay at or below 1.25A.

Is the PLN-30-24 suitable for 24V light boxes or display lighting?

Yes, it can suit 24V light box or display lighting loads within its 30W capacity. This series is described as suitable for signage applications, and this version provides up to 1.25A output.

Can this model power a compact 24V architectural lighting run?

It can power a compact 24V lighting run when the connected fixture matches the driver's electrical range and stays within 30W. Confirm the load works across 16-24V in constant current mode and does not exceed 1.25A.

How do I calculate the maximum 24V LED strip length for the PLN-30-24?

Use the maximum output power of 30W and divide by the strip's rated watts per meter. The math is 30W / strip W per meter = maximum meters, but check your strip rated power per meter and make sure the strip is compatible with 24V and the 1.25A constant current output.

Is the PLN-30-24 suitable for outdoor or wet-area use?

Its IP64 enclosure is designed to resist dust and splashing water, so it is suitable for many outdoor and damp-area lighting applications. It is not intended for submersion, and its operating temperature range is -30°C to +50°C.
