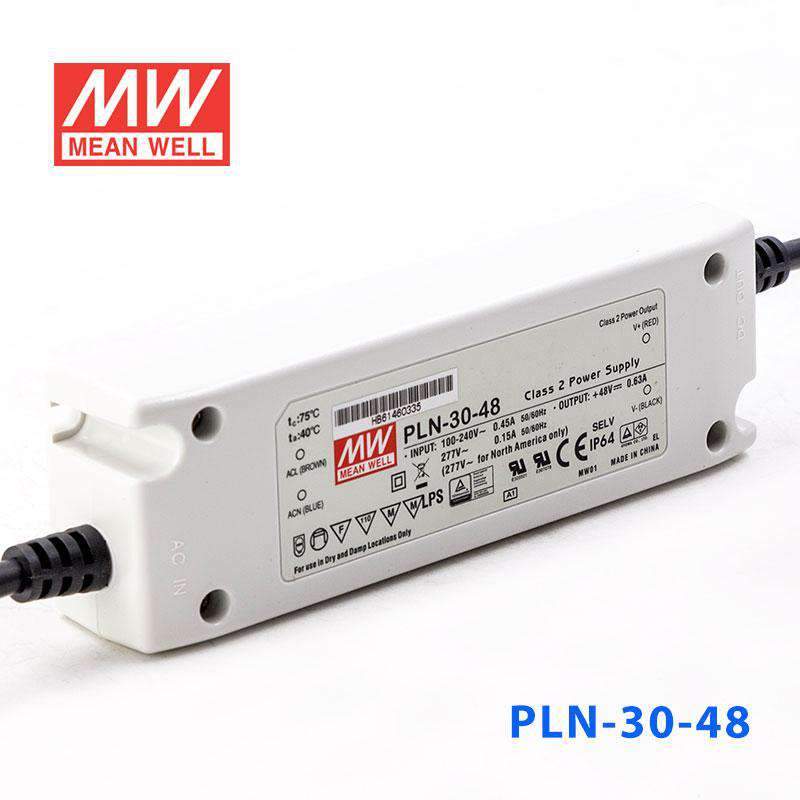

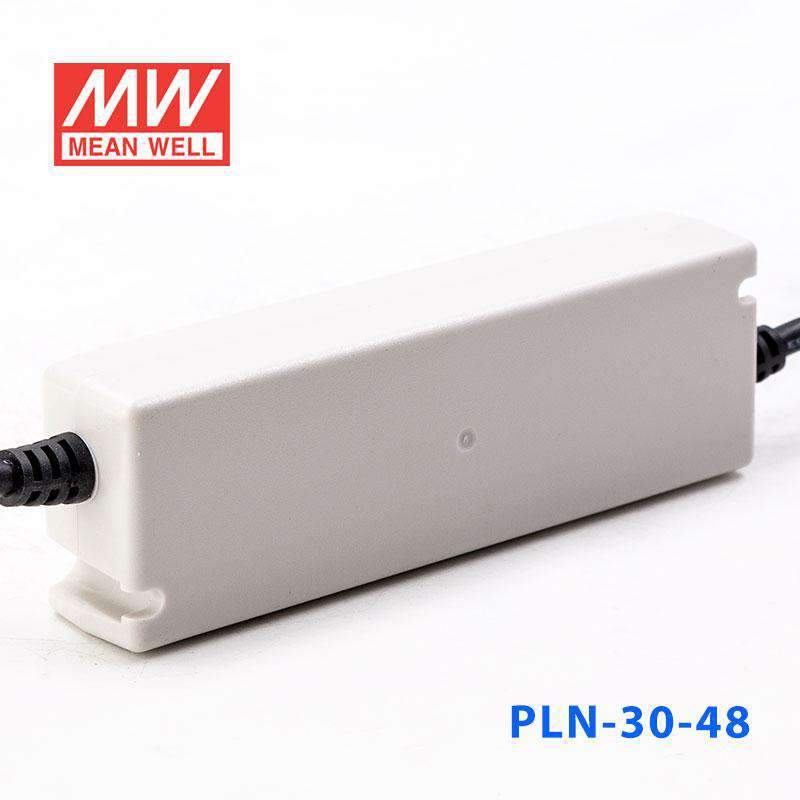

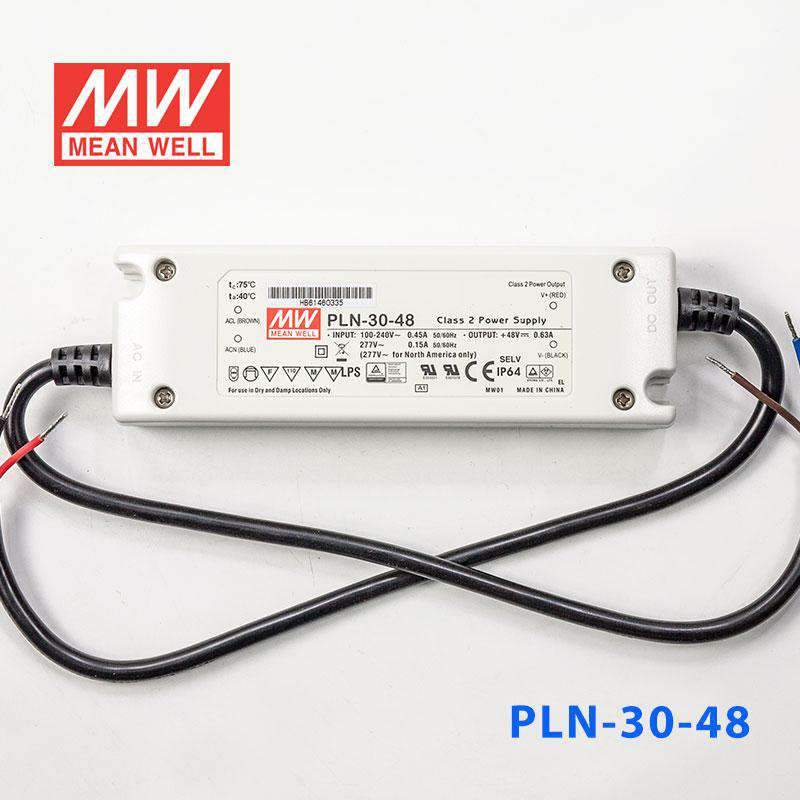

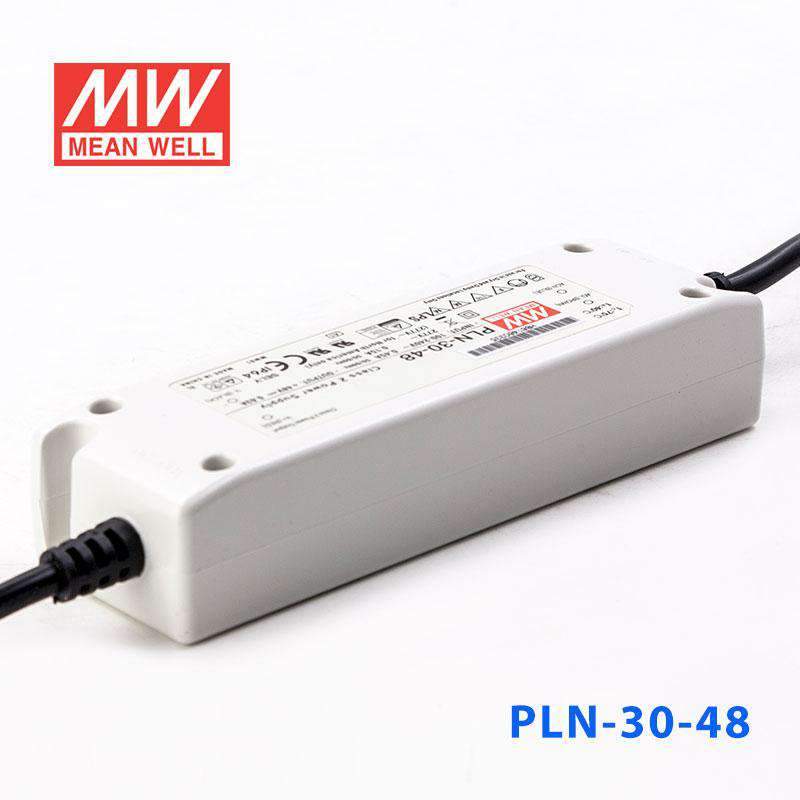

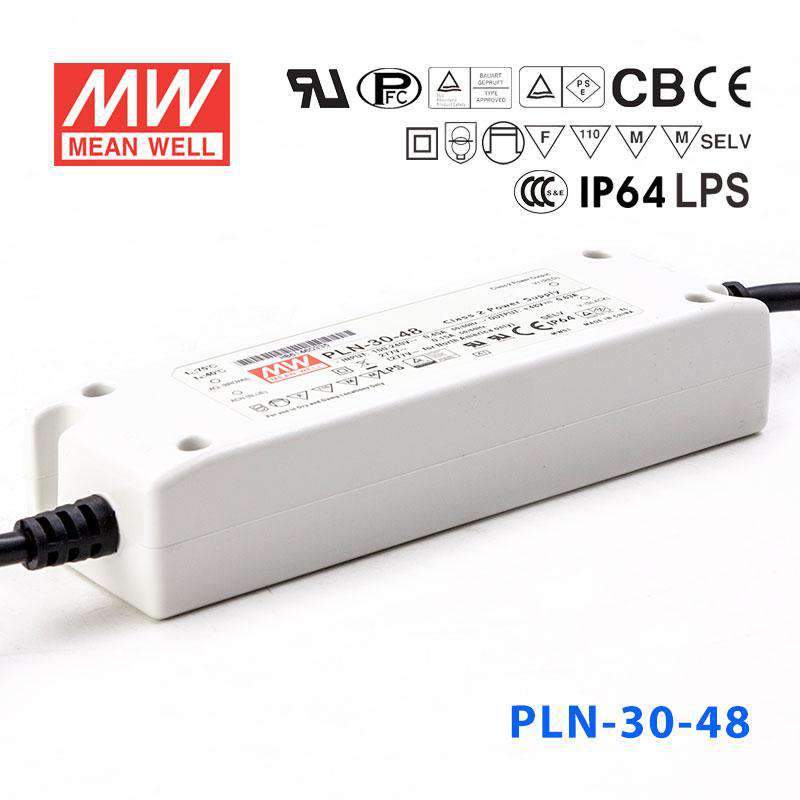

Mean Well PLN-30-48 Power Supply 30W 48V - IP64
The PLN-30 is a 30W Mean Well power converter (input range: 90~295VAC, operating temperature: -30~+50℃).
Key Features
- ✓ Input voltage range: 90~295VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+50℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL879, UL1310, CSA C22.2 No. 207-M89(except for 48V), TUV EN61347-1, EN61347-2-13, CAN/CSA C22.2 No.223-M91 (except for 48V),IP64, J61347-1,J61347-2-13
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPLN Series
-
Power Rating30.24 Watt
-
Output Voltage48 Volt
-
Rated Current0.63 Ampere
-
Input Voltage90V~295V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-30°C~50°C
-
Warranty2 Year
-
Length5.71 in
-
Width1.85 in
-
Height1.18 in
-
Weight0.49 lb
::specification::
Frequently Asked Questions
Can I use the PLN-30-48 for 48V LED signage?
Yes, this driver can be used for 48V signage or lighting loads that require constant current operation. It provides up to 30.24W at 48V with 0.63A output current, within a 33-48V constant current range.
Is the PLN-30-48 suitable for 48V edge-lit or channel lighting?
It can be suitable if the 48V fixture is designed for constant current use and stays within 30.24W. The main electrical limits are 48V output and 0.63A current.
Can this model be used for compact 48V lighting assemblies?
Yes, for smaller 48V lighting assemblies that fall within 30.24W and match the driver's constant current mode. Its fully isolated plastic case and 145.0 x 47.0 x 30.0 mm body make it usable where enclosure space matters.
How do I calculate LED strip length for the PLN-30-48?
Start with the driver's 30.24W maximum output and divide by the strip's rated watts per meter. Check your strip rated power per meter and make sure the strip system matches 48V output and the constant current operating mode.
Can the PLN-30-48 handle outdoor or washdown exposure?
It has an IP64 rating, so it is built for dust protection and splashing water resistance rather than submersion. The operating temperature range is -30C to +50C for indoor or sheltered outdoor conditions within that range.
