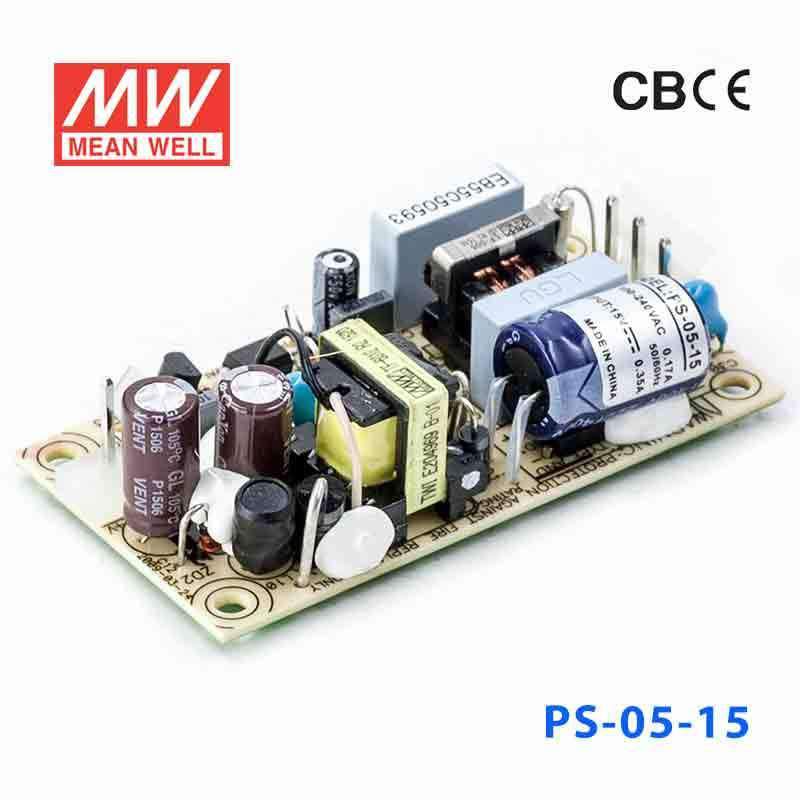

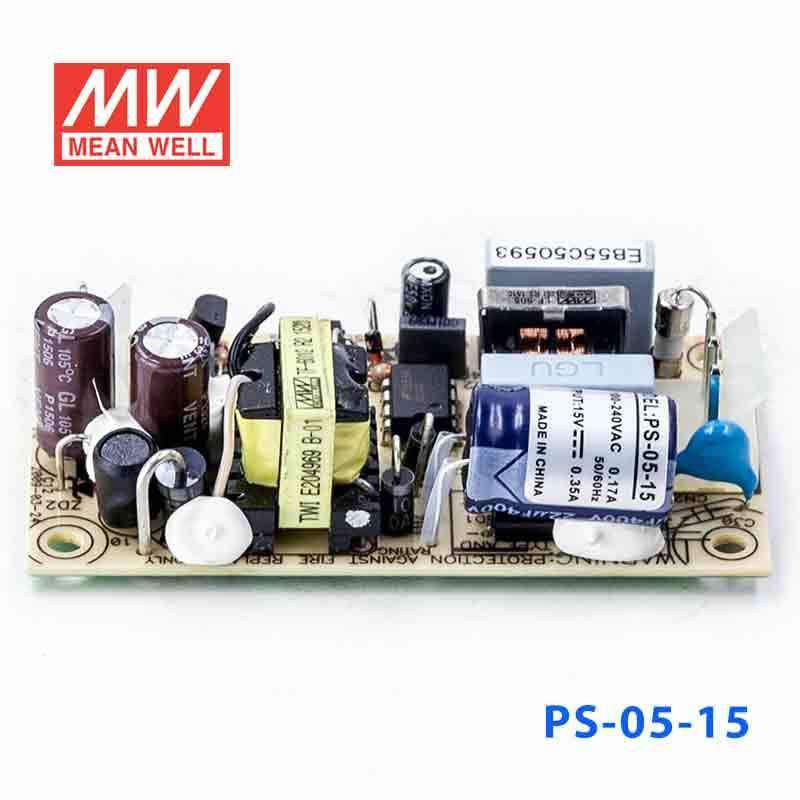

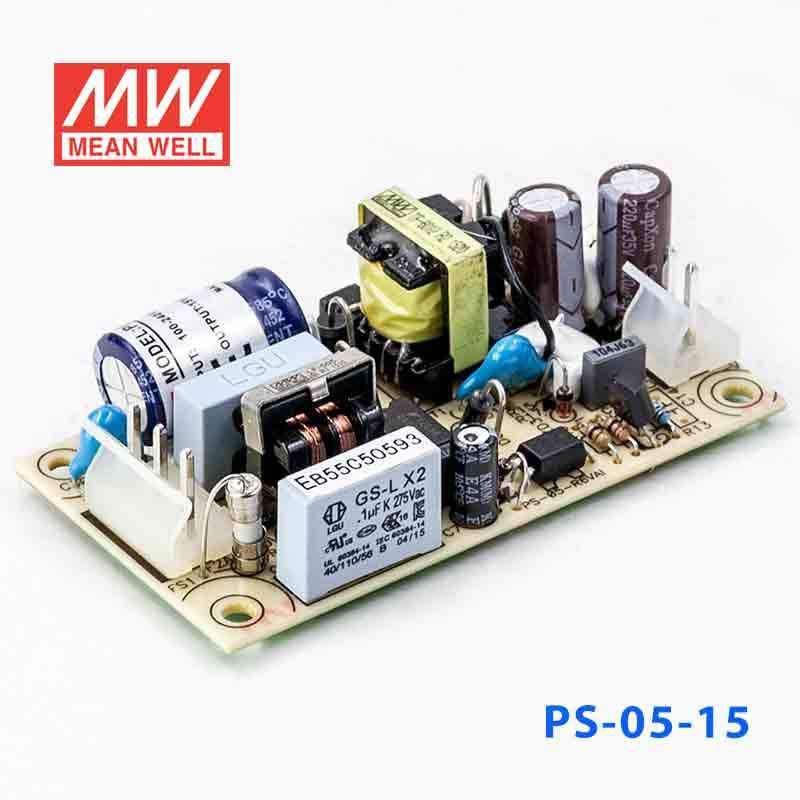

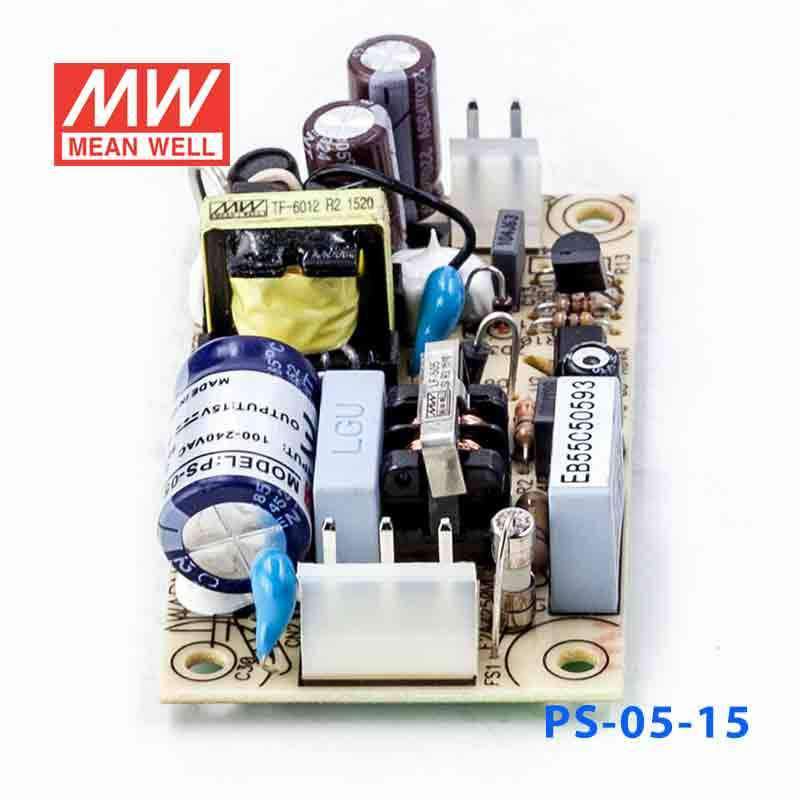

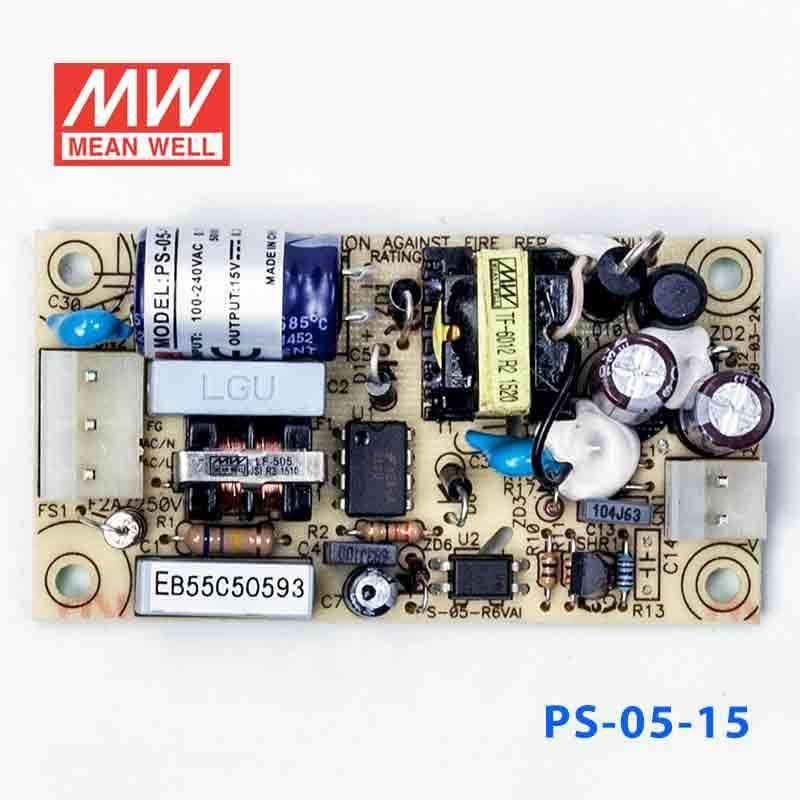

Mean Well PS-05-15 Power Supply 5W 15V
The PS-05 is a 5W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Safety approvals: IEC60950-1 CB
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPS Series
-
Power Rating5.25 Watt
-
Output Voltage15 Volt
-
Rated Current0.35 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty2 Year
-
Length2.95 in
-
Width1.57 in
-
Height0.79 in
-
Weight0.11 lb
::specification::
Frequently Asked Questions
Can I use the PS-05-15 for a 15V industrial sensor or control module?
Yes, this model provides a constant voltage 15V output rated for 0.35A and 5.25W. It is suitable for low-power 15V industrial sensors, control modules, and similar embedded or automation electronics within that load range.
Is the PS-05-15 appropriate for low-power 15V analog or instrumentation circuits?
Yes, the regulated 15V output can support low-power analog or instrumentation circuits that stay within 0.35A and 5.25W. It is a better fit for small 15V electronics than for higher-current 15V loads.
Can this power supply be used in OEM equipment sold into different AC power regions?
Yes, the specified input range is 85-264VAC. That wide input range supports low-power 15V equipment used across different AC supply conditions without changing the power supply model.
How does the PS-05-15 compare with the other PS-05 voltage options?
Within the listed PS-05 models, PS-05-5 is 5W at 5V and 1A, PS-05-12 is 5.4W at 12V and 0.45A, PS-05-15 is 5.25W at 15V and 0.35A, PS-05-24 is 5.28W at 24V and 0.22A, and PS-05-48 is 5.28W at 48V and 0.11A. The series offers similar low-power capacity with different fixed output voltages and matching current ratings.
Can the PS-05-15 be used in colder or warmer indoor equipment spaces?
The rated operating temperature range is -10°C to +60°C. No IP rating is shown in the provided specs, so the temperature range is defined but outdoor or water-exposed use is not specified.
