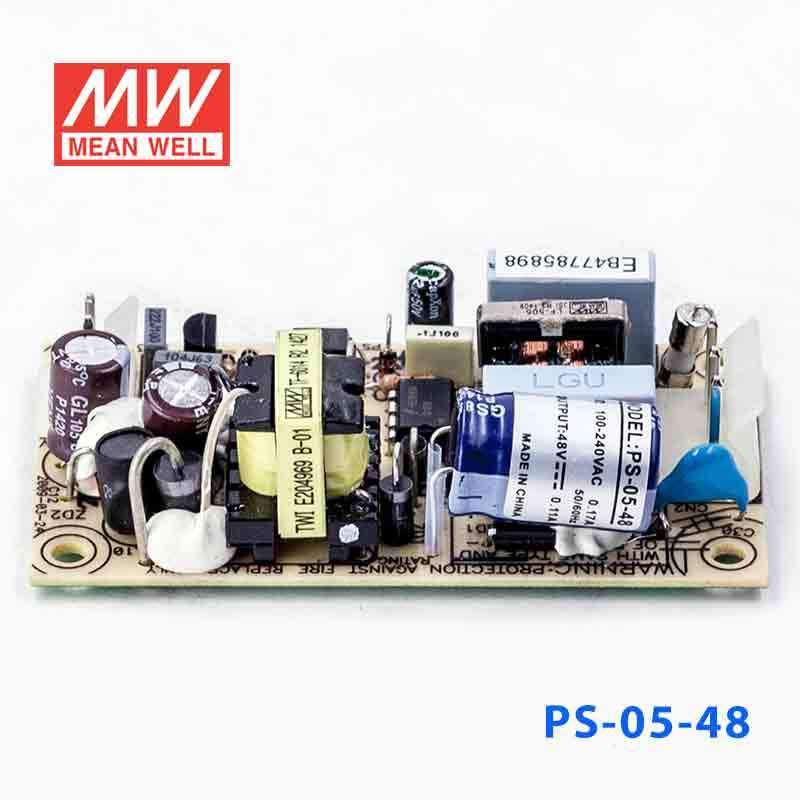

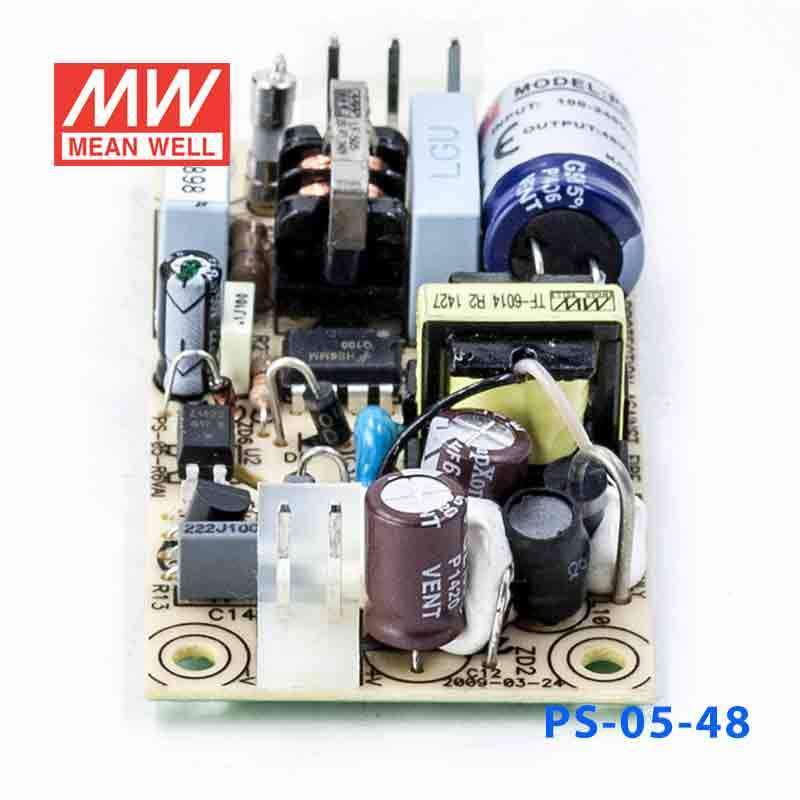

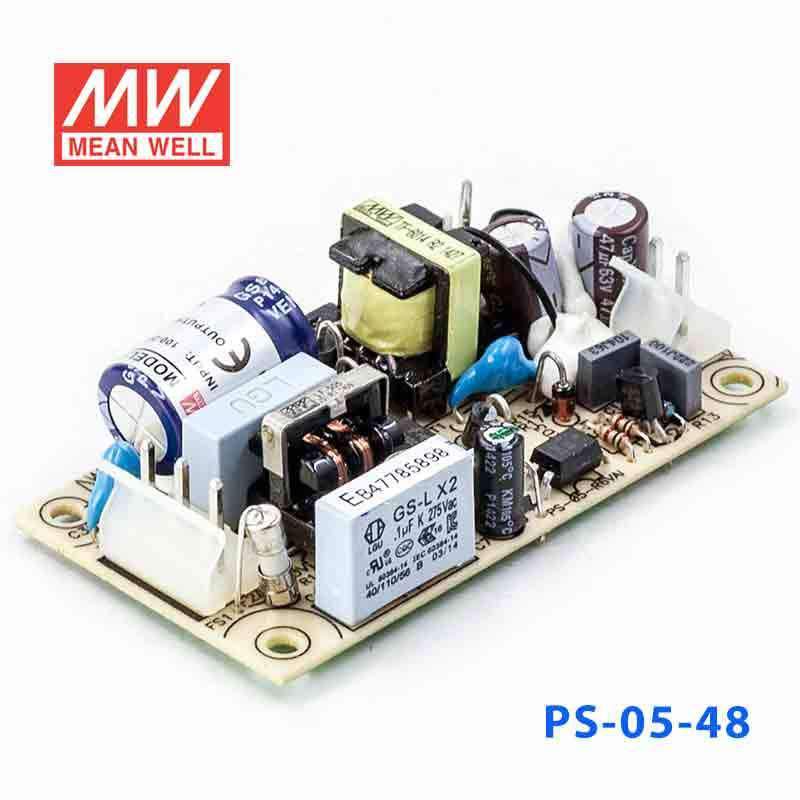

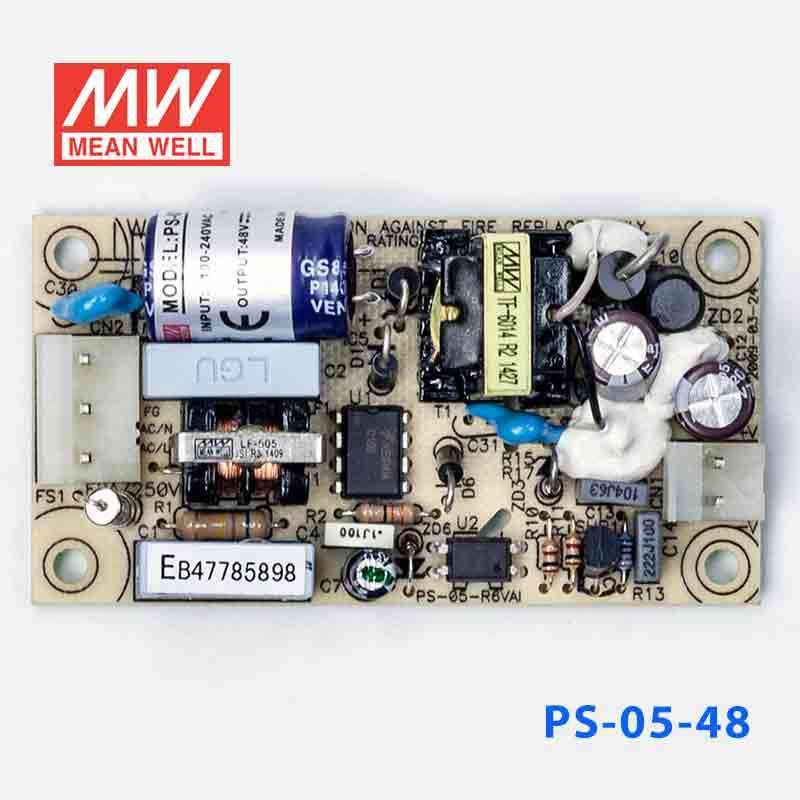

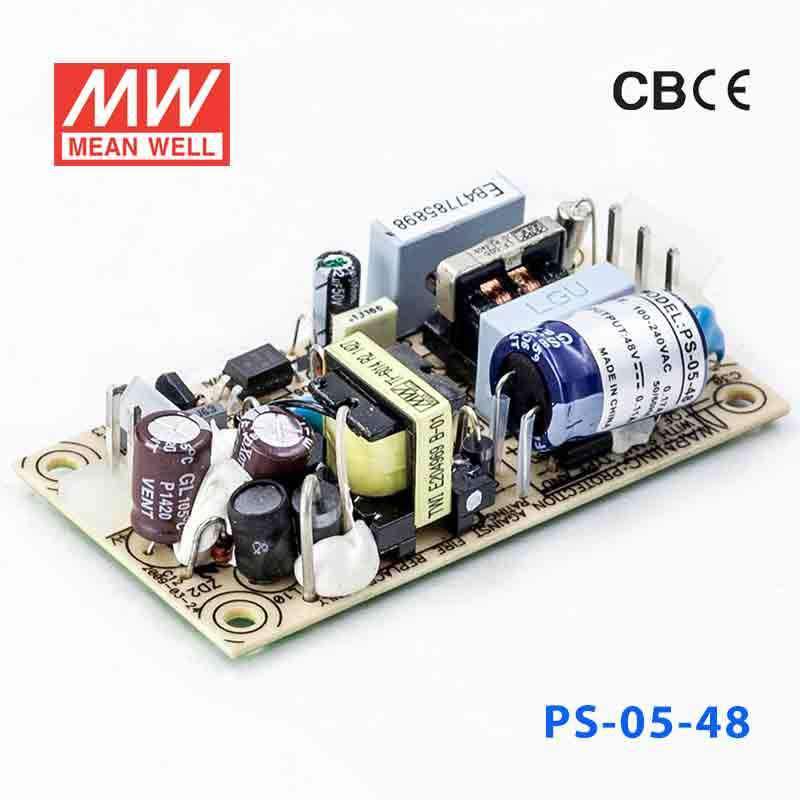

Mean Well PS-05-48 Power Supply 5W 48V
The PS-05 is a 5W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Safety approvals: IEC60950-1 CB
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPS Series
-
Power Rating5.28 Watt
-
Output Voltage48 Volt
-
Rated Current0.11 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty2 Year
-
Length2.95 in
-
Width1.57 in
-
Height0.79 in
-
Weight0.11 lb
::specification::
Frequently Asked Questions
Can I use the PS-05-48 for a low-power 48V industrial control circuit?
Yes, this unit provides constant-voltage 48V output for low-power control loads that stay within 5.28W and 0.11A. It is intended for light 48V electronics rather than equipment with higher startup or continuous current demand.
Is the PS-05-48 suitable for a small 48V telecom or IT module?
It can be suitable for a small 48V telecom or IT device if that load requires constant 48V and does not exceed 0.11A. With 5.28W available, it fits low-current electronics better than multi-module or higher-draw systems.
Would this work for a compact 48V embedded controller or monitoring device?
Yes, provided the controller or monitoring device is designed for 48V constant-voltage input and remains within 5.28W total draw. The 0.11A output limit makes it appropriate for very low-current embedded applications.
Can the PS-05-48 power a single 48V field device in an automation panel?
It can power a single low-power 48V field device when the device stays under 0.11A and 5.28W. That makes it better for small instrumentation or interface loads than for larger panel devices.
Can I use the PS-05-48 in outdoor or washdown conditions?
The specified operating range is -10°C to +60°C, but no IP rating is listed in the product data. Because of that, the published specs do not establish suitability for outdoor exposure, washdown, or other ingress-sensitive environments.
What are the differences between the PS-05-48 and the other PS-05 models?
In the PS-05 series, PS-05-5 is 5W at 5V and 1A, PS-05-12 is 5.4W at 12V and 0.45A, PS-05-15 is 5.25W at 15V and 0.35A, PS-05-24 is 5.28W at 24V and 0.22A, and PS-05-48 is 5.28W at 48V and 0.11A. The family keeps similar low-power form factors while changing output voltage and the corresponding available current.
