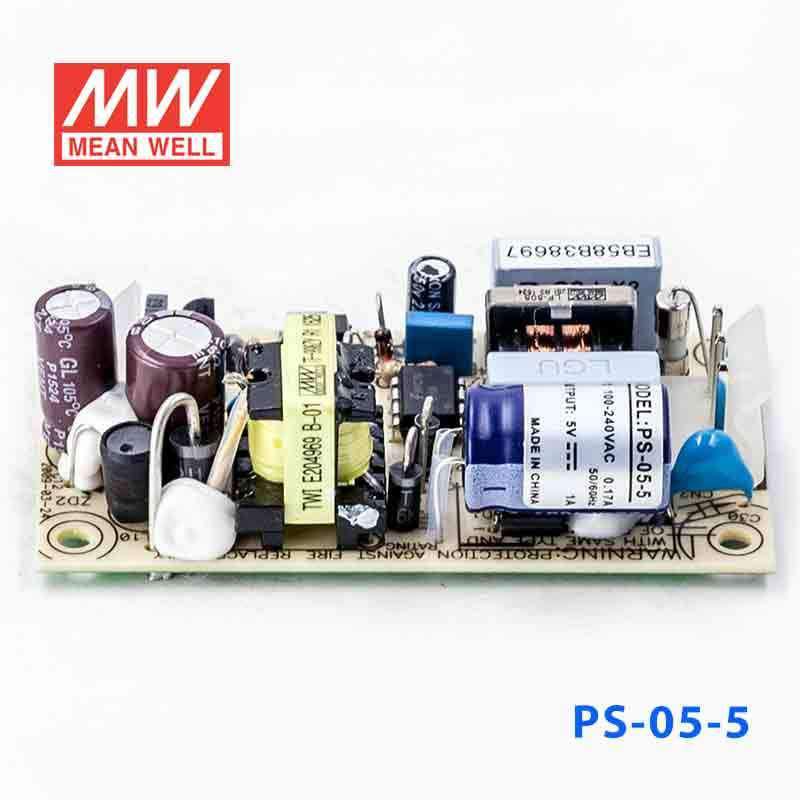

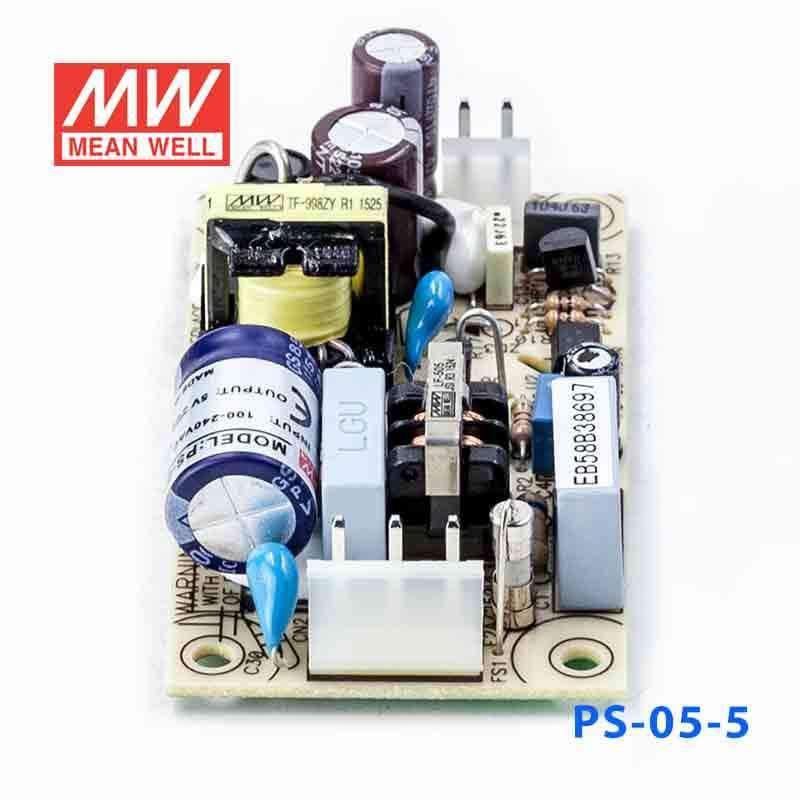

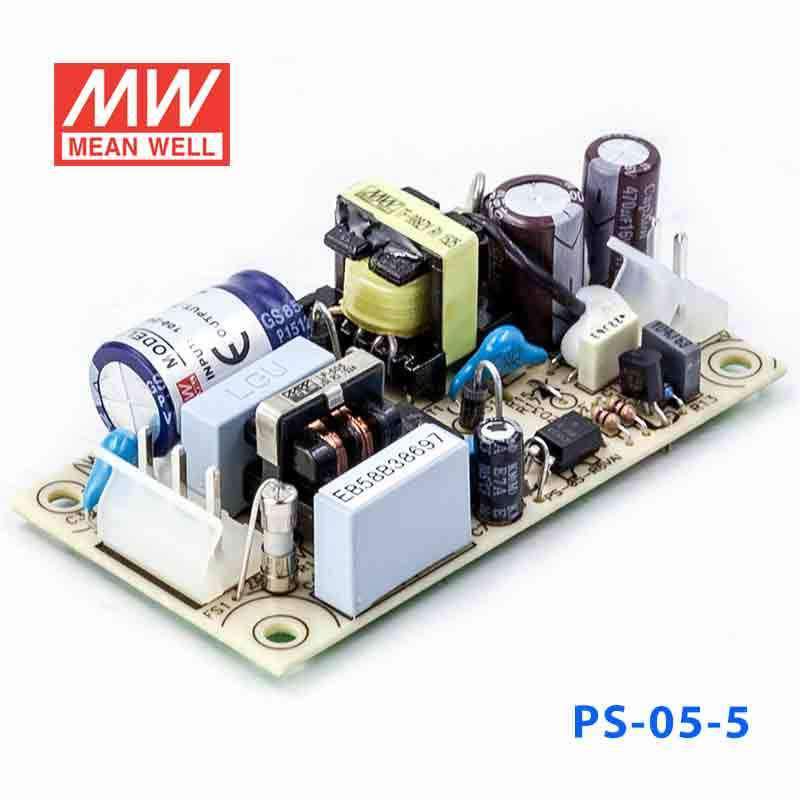

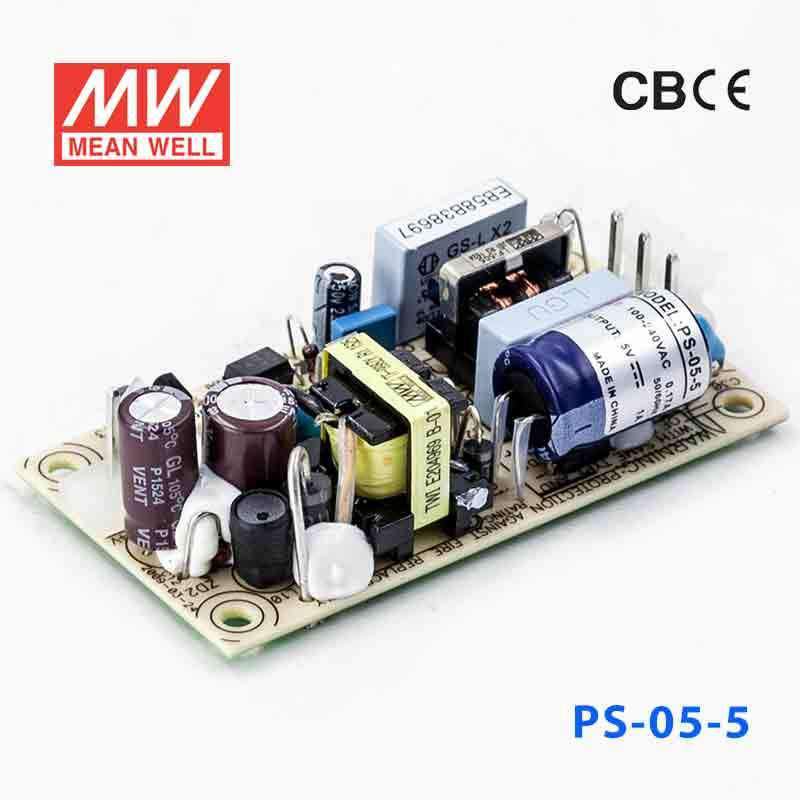

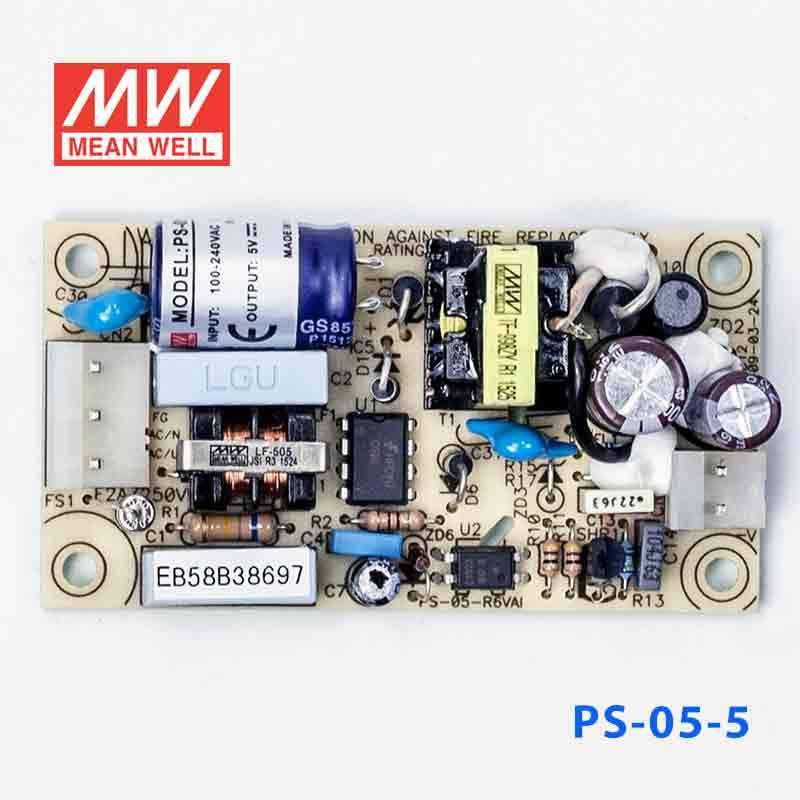

Mean Well PS-05-5 Power Supply 5W 5V
The PS-05 is a 5W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Safety approvals: IEC60950-1 CB
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPS Series
-
Power Rating5 Watt
-
Output Voltage5 Volt
-
Rated Current1 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty2 Year
-
Length2.95 in
-
Width1.57 in
-
Height0.79 in
-
Weight0.11 lb
::specification::
Frequently Asked Questions
Can I use the PS-05-5 for a small 5V embedded controller or microcontroller board?
Yes, this model provides constant-voltage 5V output and can support low-power embedded electronics that stay within 5W and 1A. It is a better fit for compact control boards and simple logic devices than for heavier 5V computing loads.
Is the PS-05-5 suitable for a 5V industrial sensor interface or logic module?
It can be suitable for a 5V sensor interface or logic module if the total load remains at or below 1A and 5W. That makes it appropriate for lightweight industrial or automation electronics using regulated 5V power.
Would this 5V power supply work for a compact IT or communications accessory?
Yes, if the accessory requires a stable 5V constant-voltage supply and draws no more than 1A. With 5W available, it is intended for low-power accessories rather than higher-draw 5V equipment.
Can the PS-05-5 power a small control-board assembly inside equipment?
It can, as long as the assembly is a 5V load and its total current stays within the 1A rating. The unit's 5W output is sized for modest embedded or automation assemblies, not for larger multi-board systems.
Is the PS-05-5 intended for outdoor use or temperature extremes?
The published operating temperature range is -10°C to +60°C, which defines the temperature window in the provided specs. No IP rating is listed, so the available data does not confirm suitability for outdoor or exposed environments.
How does the PS-05-5 compare to the other PS-05 family members?
The PS-05 family includes PS-05-5 at 5W, 5V, 1A; PS-05-12 at 5.4W, 12V, 0.45A; PS-05-15 at 5.25W, 15V, 0.35A; PS-05-24 at 5.28W, 24V, 0.22A; and PS-05-48 at 5.28W, 48V, 0.11A. Across these siblings, the core change is output voltage and matching current capacity within the same small power class.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other PS-05 Models
4 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well PS-05-48 Power Supply 5W 48V | 5.28W | 48V | 0.11A | Indoor | $7.21 | View |
| Mean Well PS-05-24 Power Supply 5W 24V | 5.28W | 24V | 0.22A | Indoor | $7.21 | View |
| Mean Well PS-05-15 Power Supply 5W 15V | 5.25W | 15V | 0.35A | Indoor | $7.21 | View |
| Mean Well PS-05-12 Power Supply 5W 12V | 5.4W | 12V | 0.45A | Indoor | $7.18 | View |
