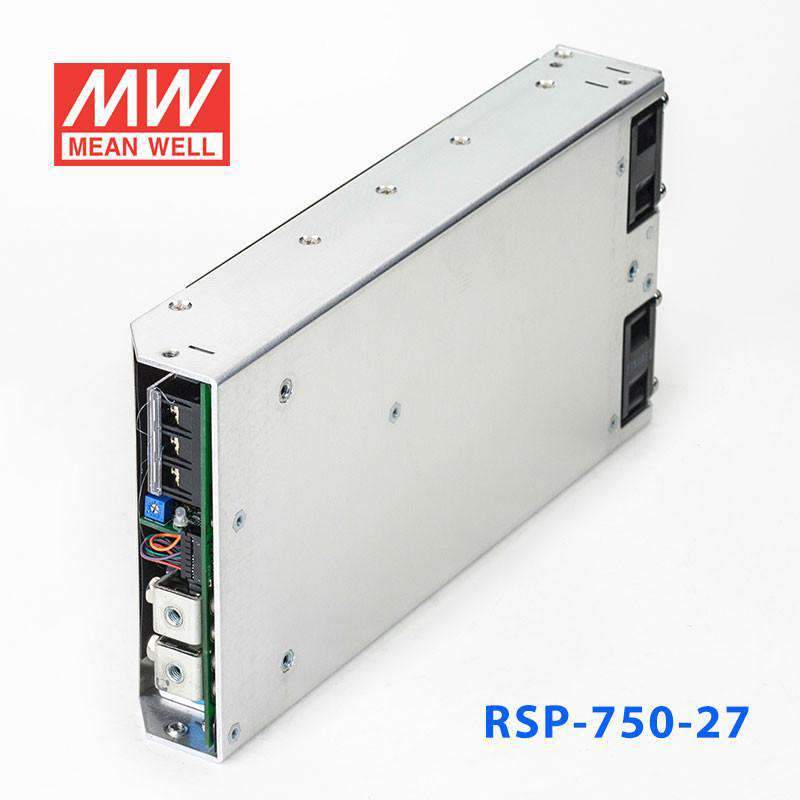

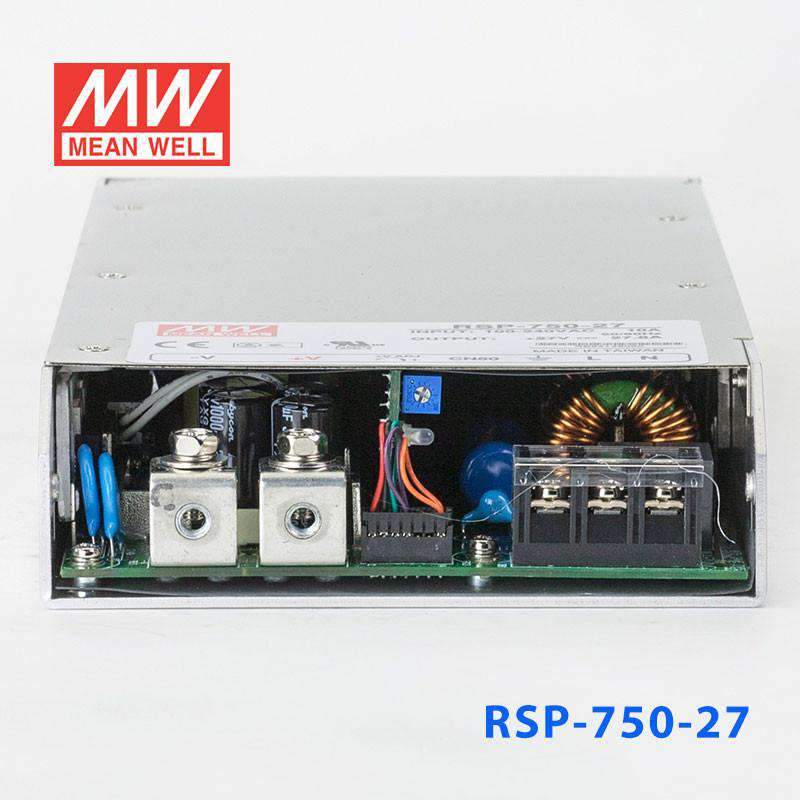

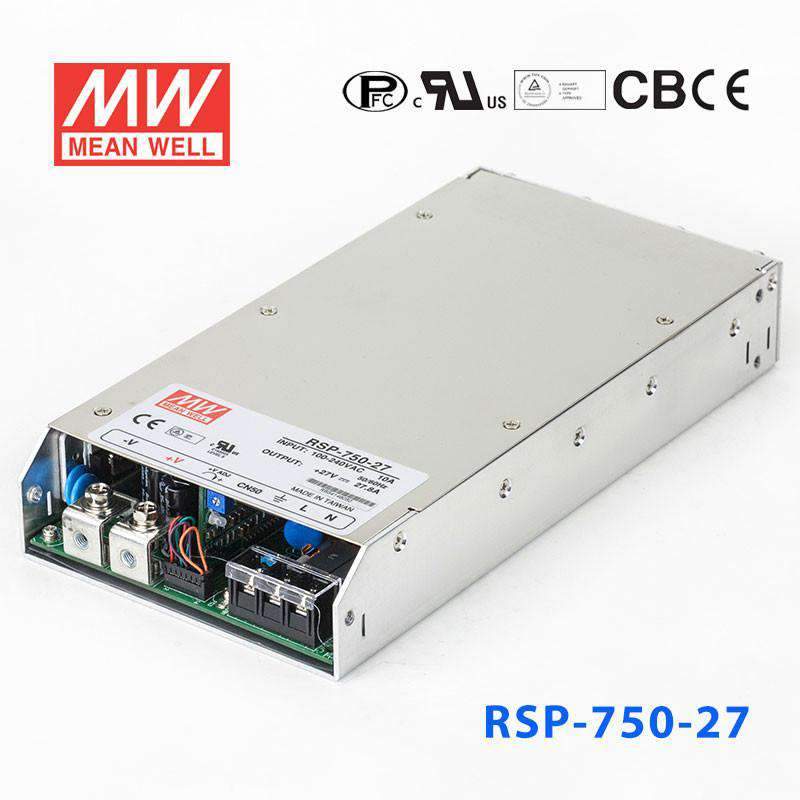

Mean Well RSP-750-27 Power Supply 750W 27V
EN55022(CISPR22) Class B,EN61000-3-2,-3, GB9254 class B,EN61000-4-2,3,4,5,6,8,11,EN55024
Key Features
- ✓Universal AC input / Full range
- ✓Built-in active PFC function
- ✓Built-in constant current limiting circuit
- ✓Protections:Short circuit/ Overload / Over voltage
- ✓Cooling by free air convection
- ✓1U low profile 30mm
- ✓Remote ON-OFF control
- ✓LED indicator for power on
- ✓100% full load burn-in test
- ✓3 years warranty
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating750.6 Watt
-
Output Voltage27 Volt
-
Rated Current27.8 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty5 Year
-
Length9.84 in
-
Width5 in
-
Height1.61 in
-
Weight3.62 lb
::specification::
Frequently Asked Questions
What equipment uses 27V DC that the RSP-750-27 can power at high wattage?
The RSP-750-27 provides 750.6W at 27V and 27.8A, suitable for driving medium-power brushless DC motor controllers, 24-28V nominal industrial bus equipment, and specialized motion control systems at higher wattage than 320W or 500W class units. Its 1U form factor (250.0 × 127.0 × 41.0 mm) fits standard rack mounts.
What is the cold-temperature limit of the RSP-750-27?
The RSP-750-27 operates down to -30°C, with an upper limit of +70°C. It is certified to BSMI, CB, CCC, CE, EAC, TÜV, and UL and is rated for indoor enclosed use.
How does the RSP-750-27 compare to the RSP-750-24 and RSP-750-48?
All three share the 250.0 × 127.0 × 41.0 mm chassis and 90-264VAC input. The RSP-750-24 provides 751.2W at 31.3A, the RSP-750-27 provides 750.6W at 27.8A, and the RSP-750-48 provides 753.6W at 15.7A. Power is consistent; current decreases as output voltage increases.
Is optional conformal coating available for the RSP-750-27?
Yes. The RSP-750-27 is available with optional conformal coating for additional humidity protection. It achieves up to 92% efficiency with built-in active PFC and includes a 5-year warranty.
