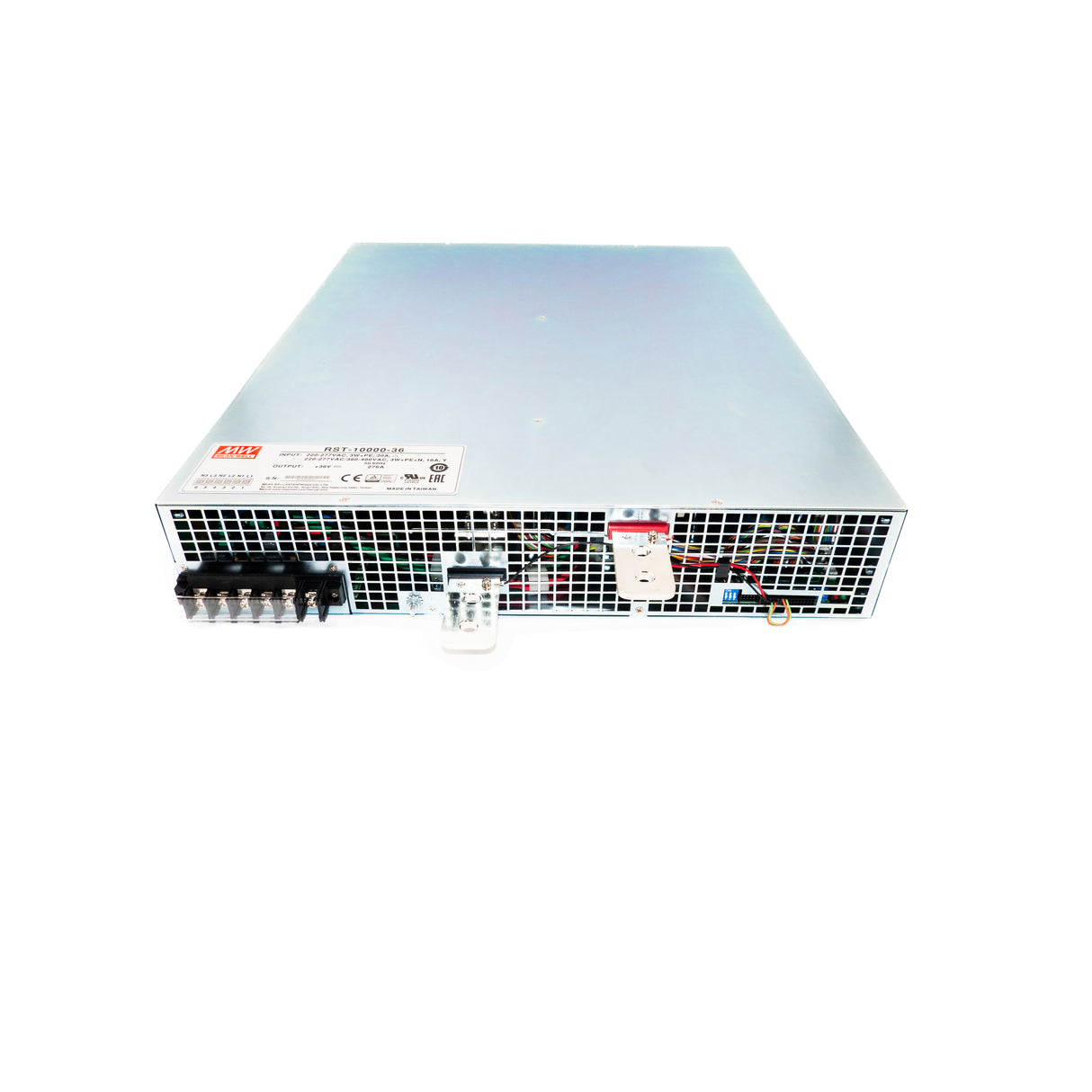

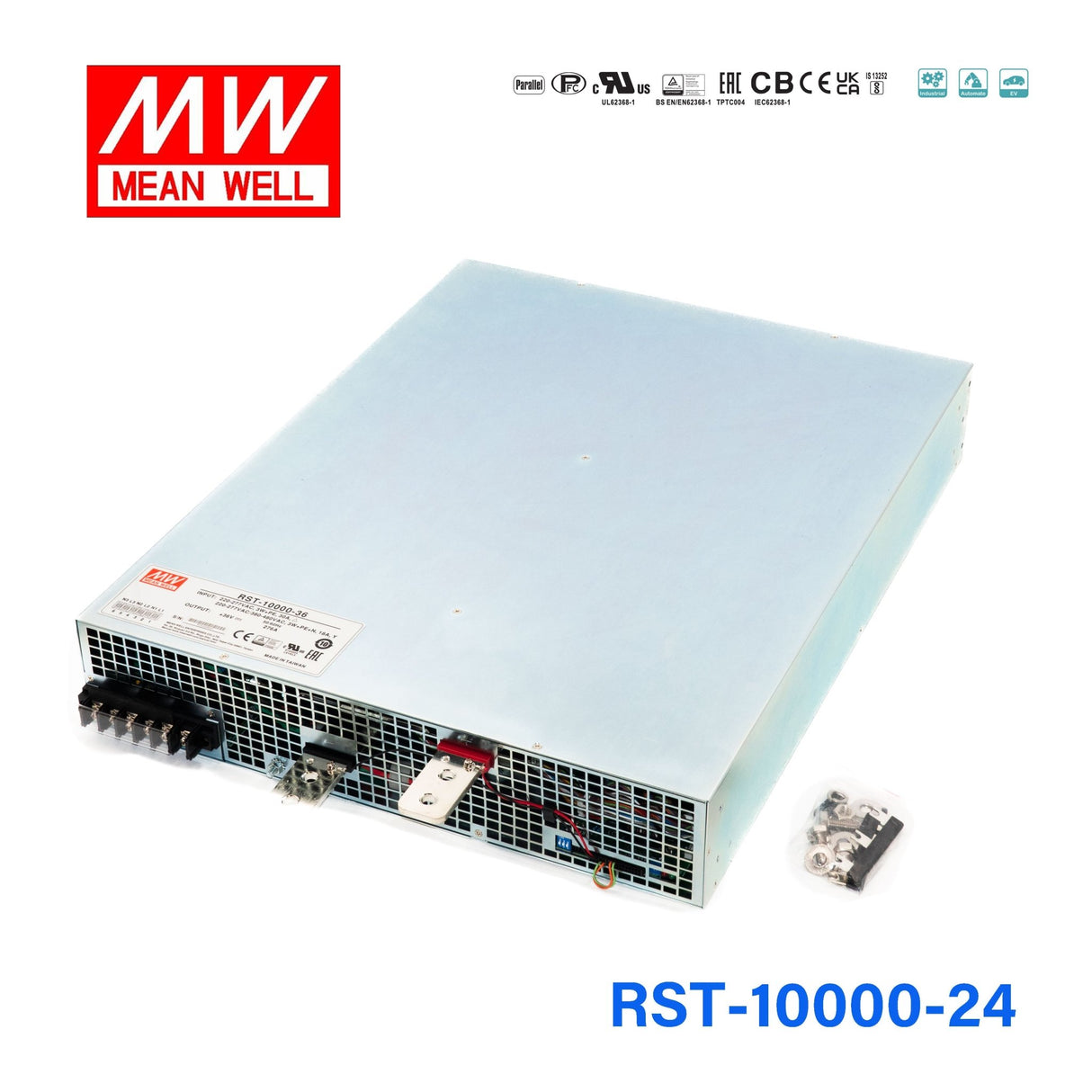

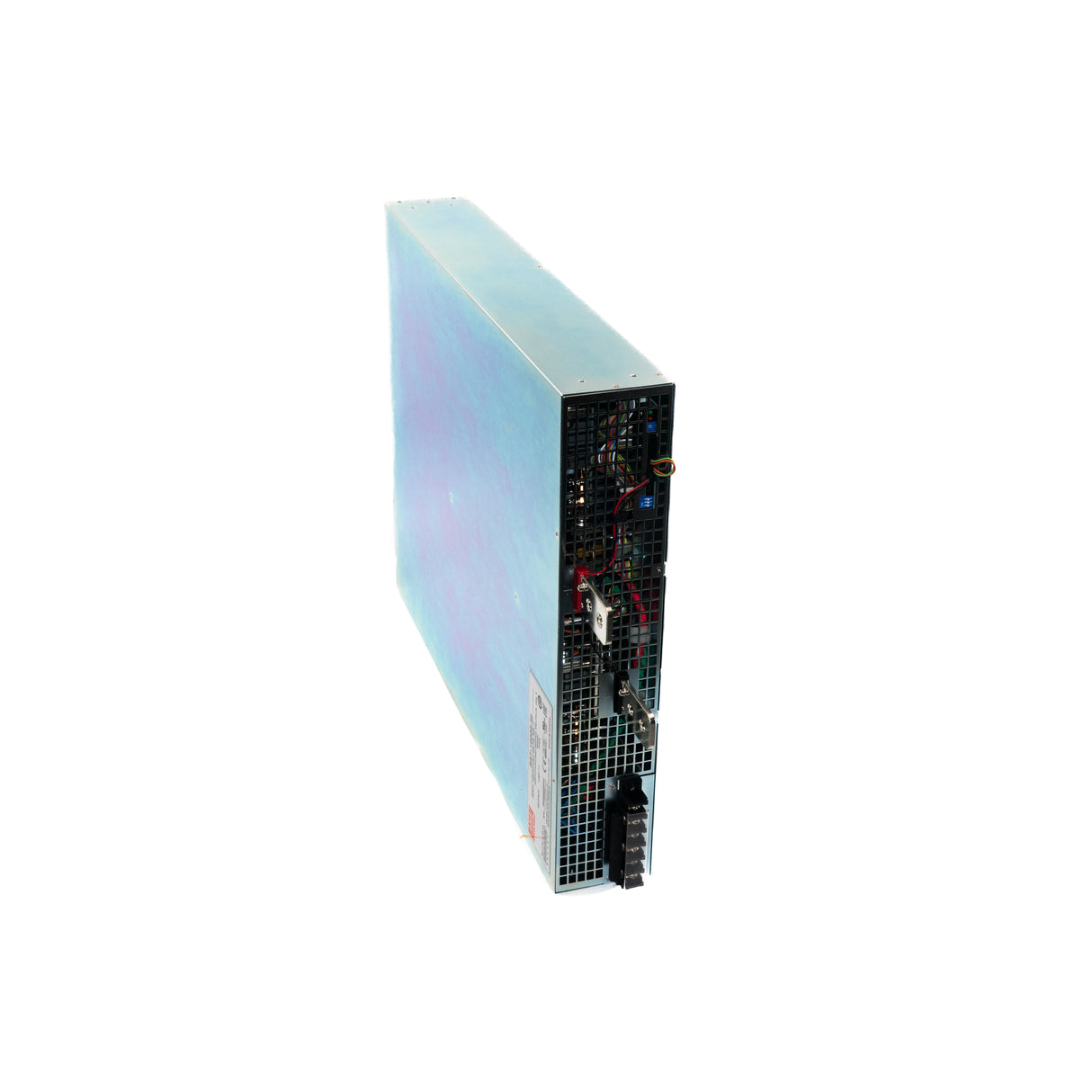

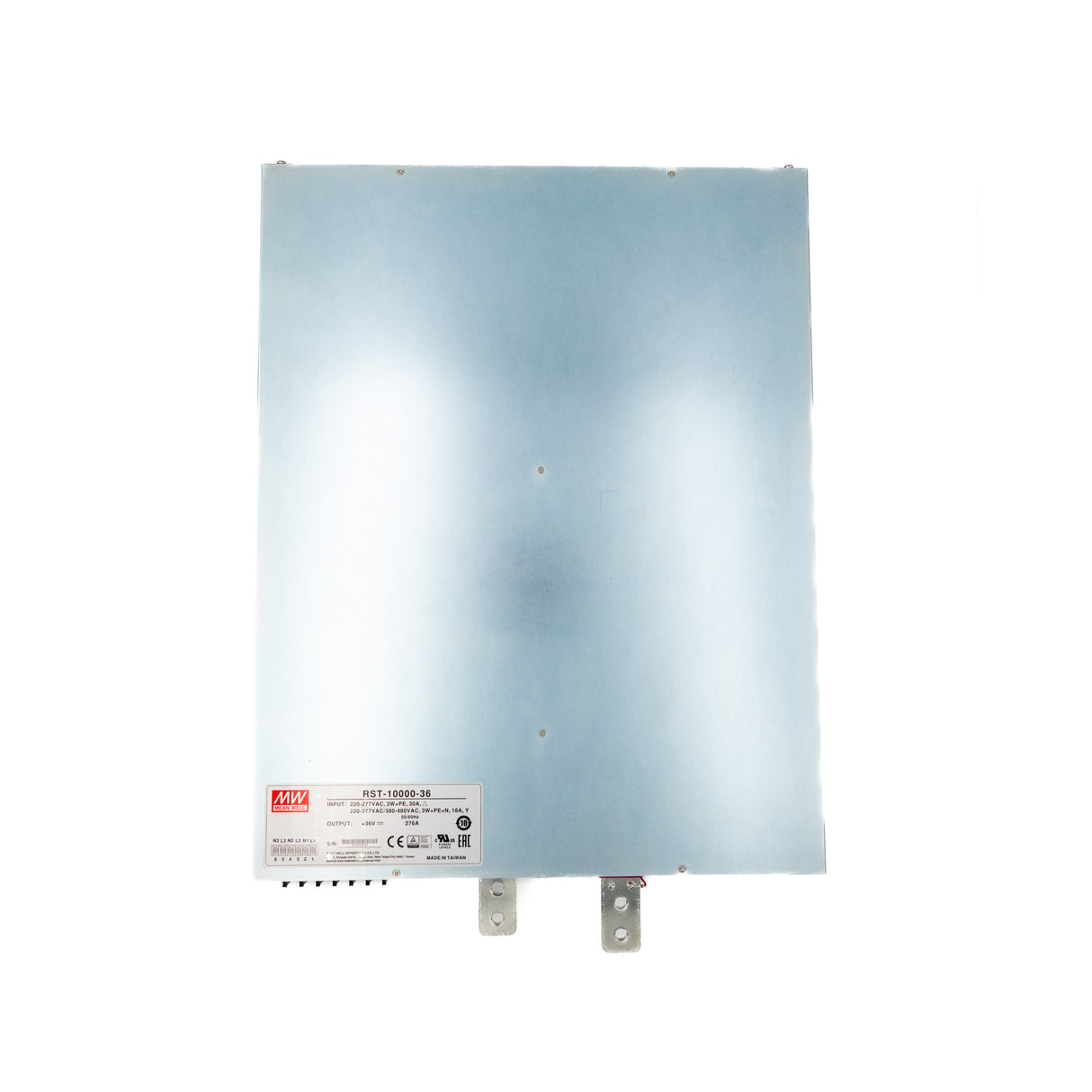

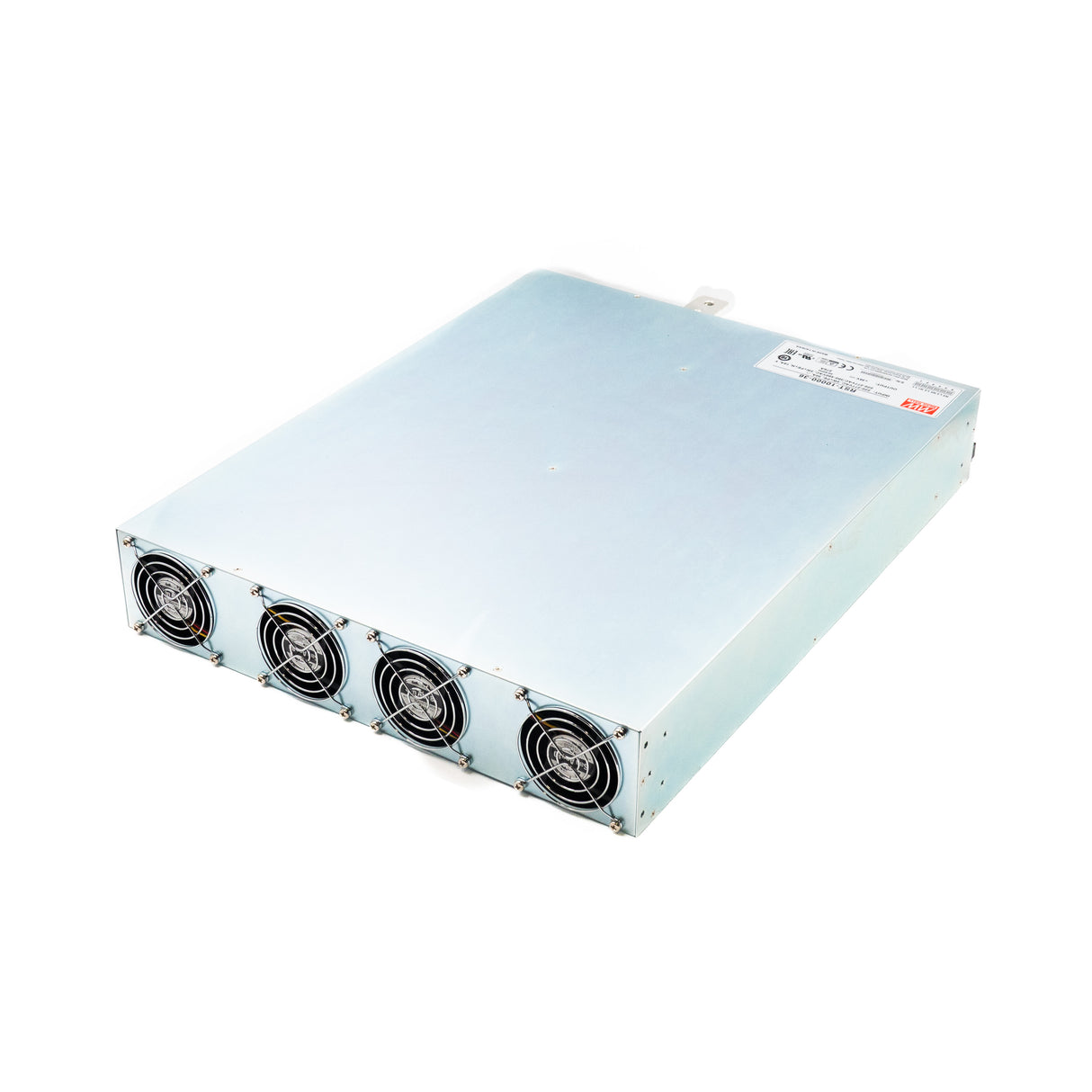

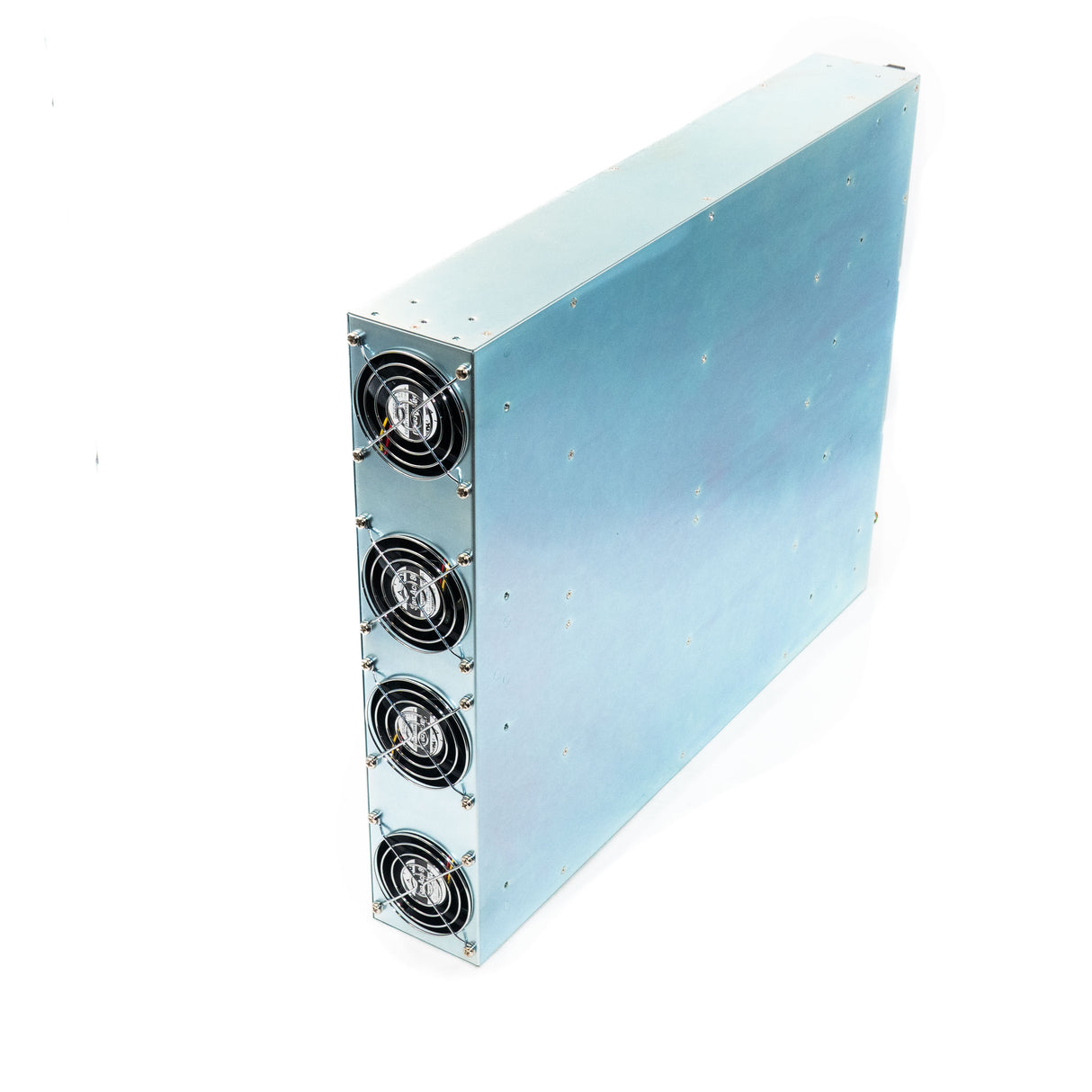

Mean Well RST-10000-24 Power Supply 9600W 24V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RST-10000-24 Power Supply 9600W 24V
3 3-wire/ 196~305VAC or 3 4-wire/ Y 340~530VAC
Key Features
- ✓wide input range
- ✓Built-in active PFC function
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature / Fan alarm
- ✓High efficiency up to 91%
- ✓Built-in fan speed control
- ✓High efficiency up to 91%
- ✓Built-in remote sense and ON/OFF control
- ✓Built-in 12V/0.1A auxiliary power
- ✓5 years warranty
-
BrandMean Well
-
SeriesRST Series
-
Power Rating9600 Watt
-
Output Voltage24 Volt
-
Rated Current400 Ampere
-
Input Voltage196V~530V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty5 Year
-
Length21.26 in
-
Width16.69 in
-
Height3.29 in
-
Weight51.81 lb
::specification::
Frequently Asked Questions
Can I use the RST-10000-24 as a centralized 24V power source for a large industrial automation cabinet?
Yes, this unit provides a 24V constant-voltage output with up to 400A and 9600W capacity. That makes it appropriate for centralized 24VDC systems where many loads share the same DC bus and the total demand stays within those ratings.
Is the RST-10000-24 suitable for high-current 24V test benches or burn-in systems?
It can be used in 24V test or burn-in environments that need substantial DC power, because it is rated for 9600W at 24V and 400A. The feature set also includes programmable output voltage and programmable constant current level, which can be useful in controlled production or lab environments.
Can this power supply support large 24V PLC, relay, and I/O loads in one enclosure?
Yes, the 24V constant-voltage output and 400A maximum output current make it suitable for consolidating large groups of 24V industrial loads. Its active current sharing capability up to 20000W (1+1) also supports higher-capacity redundant or parallel DC power architectures within the stated limits.
Is the RST-10000-24 intended for outdoor or harsh exposed locations?
The listed operating temperature range is -30C to +70C, which supports demanding indoor industrial conditions. The provided specifications do not include an IP rating, so it should be treated as a power supply for protected installations rather than exposed outdoor or washdown use.
What are the main output options across the related RST power supply models?
The listed siblings are RST-10000-36 at 9936W, 36V, 276A; RST-10000-48 at 10080W, 48V, 210A; RST-15K-115 at 14950W, 115V, 130A; RST-15K-230 at 14901W, 230V, 64.8A; RST-15K-380 at 15030W, 380V, 39.55A; RST-5000-24 at 4800W, 24V, 200A; RST-5000-36 at 4968W, 36V, 138A; RST-5000-48 at 5040W, 48V, 105A; RST-7K5-115 at 7475W, 115V, 65A; RST-7K5-115L at 7475W, 115V, 65A; RST-7K5-230 at 7452W, 230V, 32.4A; RST-7K5-230L at 7452W, 230V, 32.4A; RST-7K5-380 at 7515W, 380V, 19.77A; and RST-7K5-380L at 7515W, 380V, 19.77A. Compared with those, the RST-10000-24 is the 24V, 9600W, 400A option in the 10000 series.
