Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

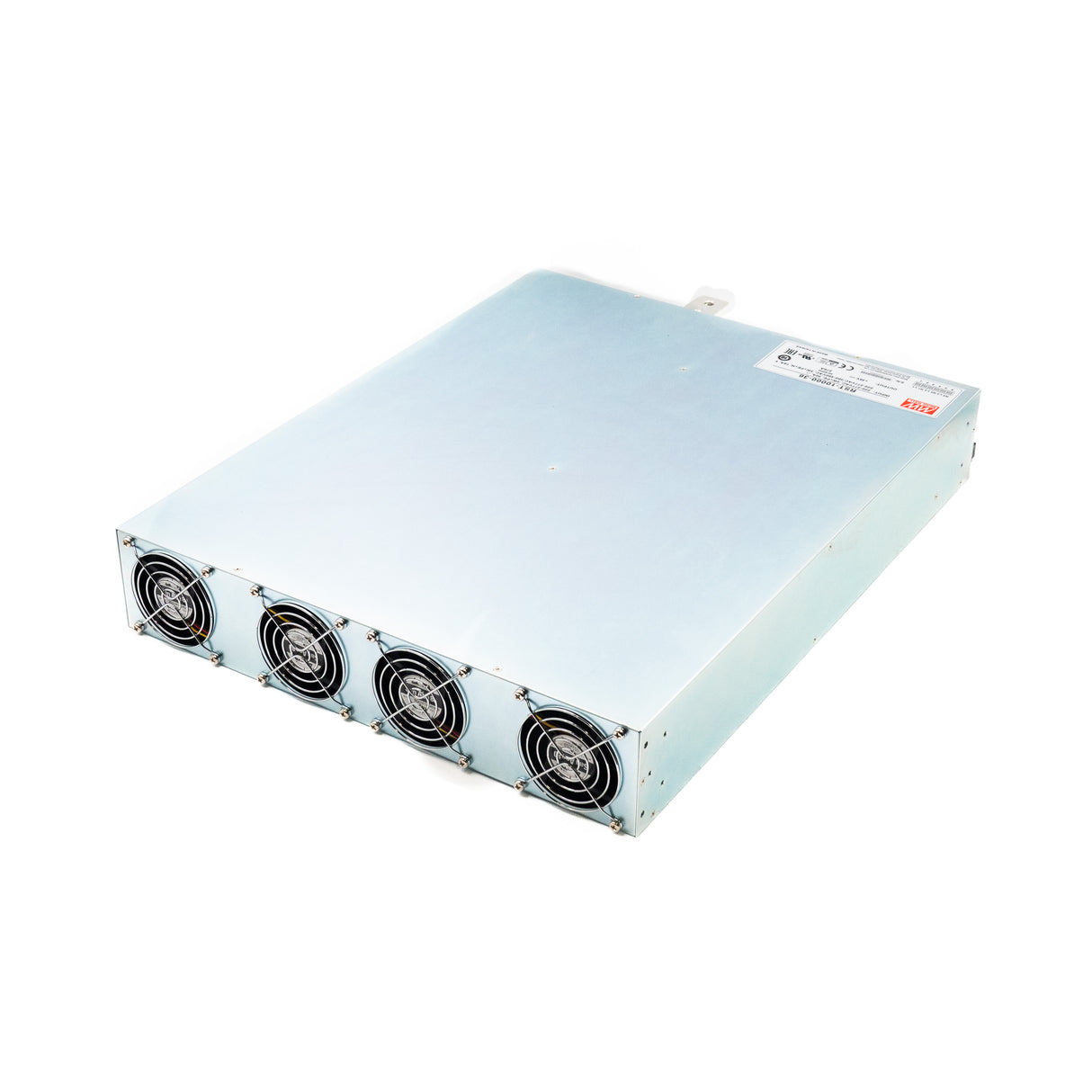

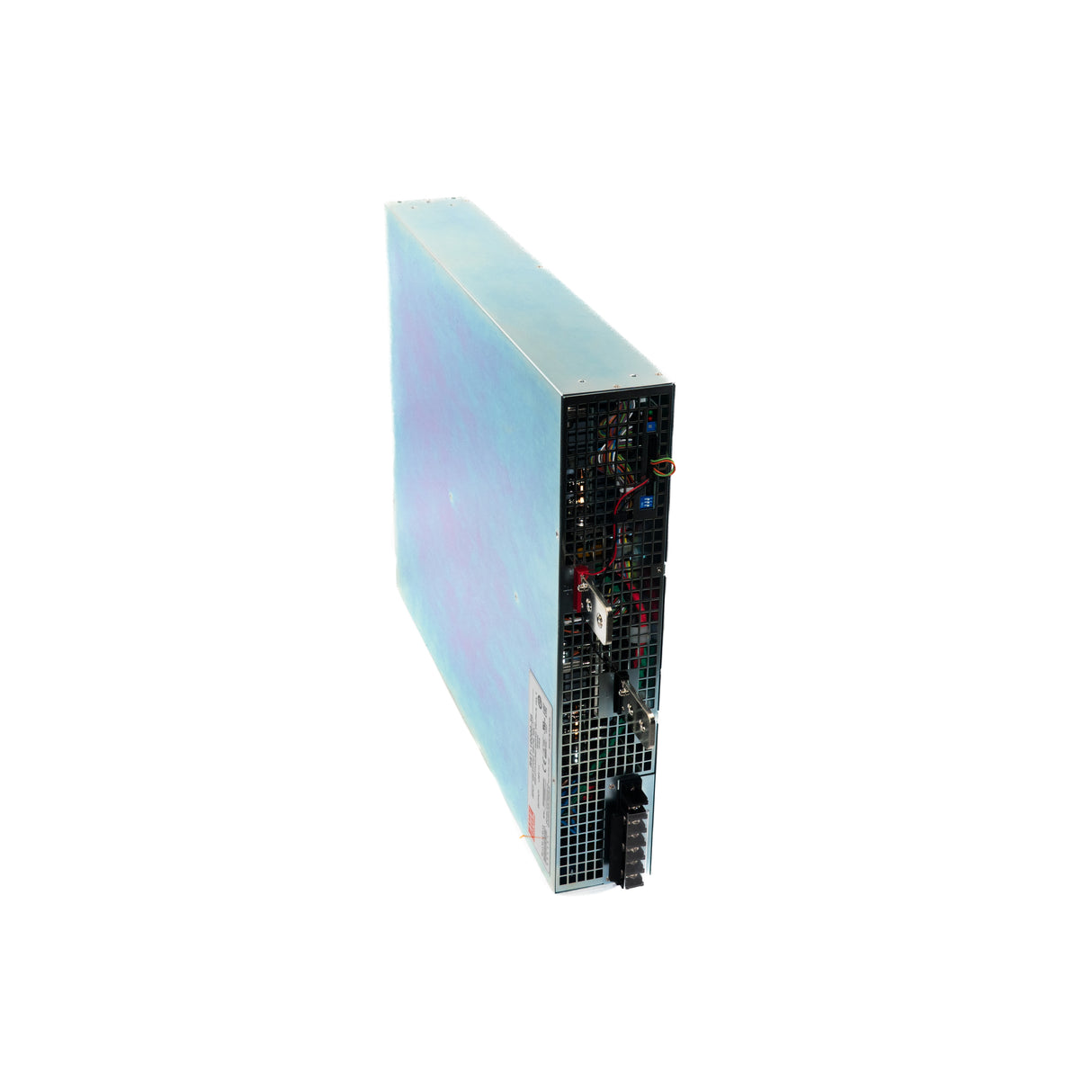

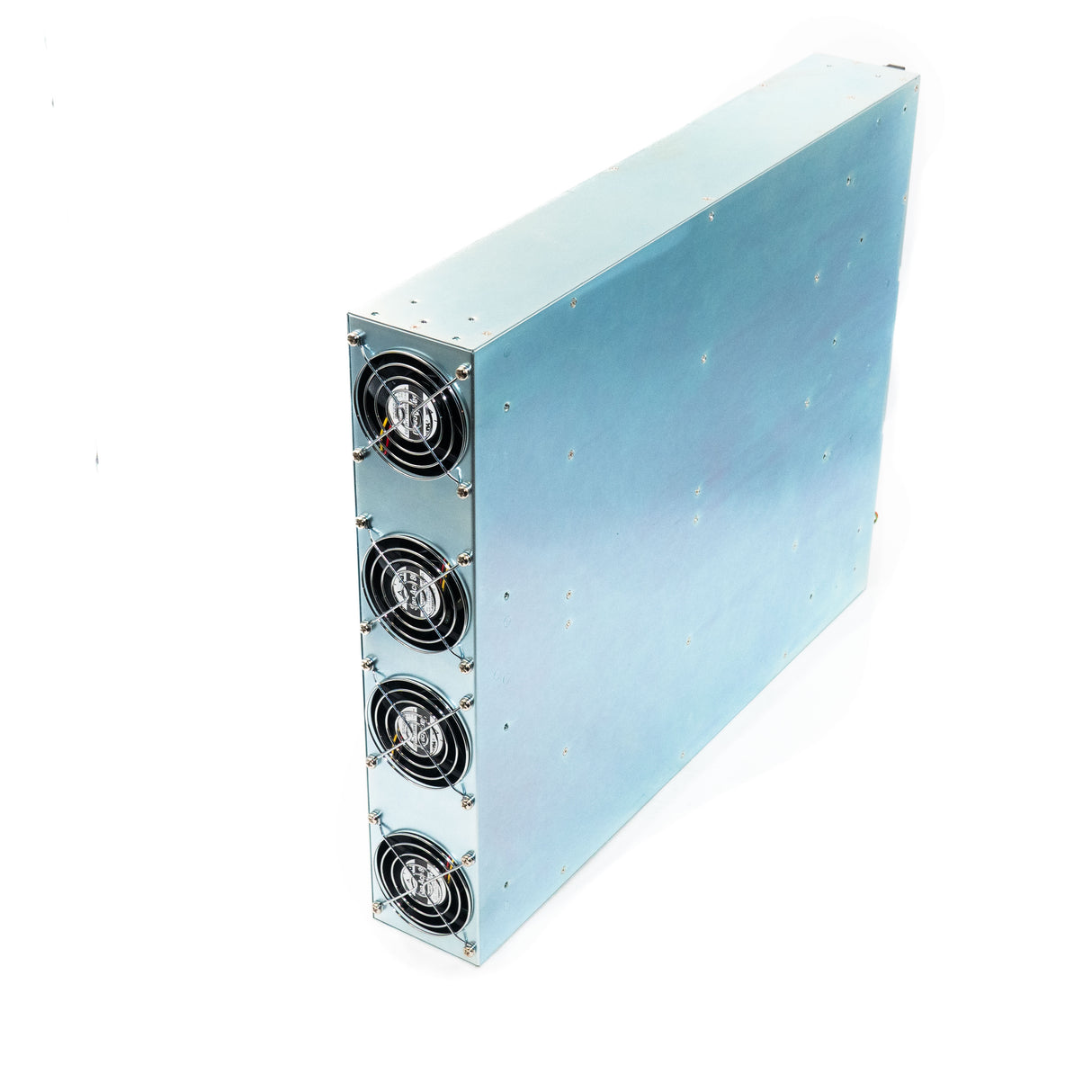

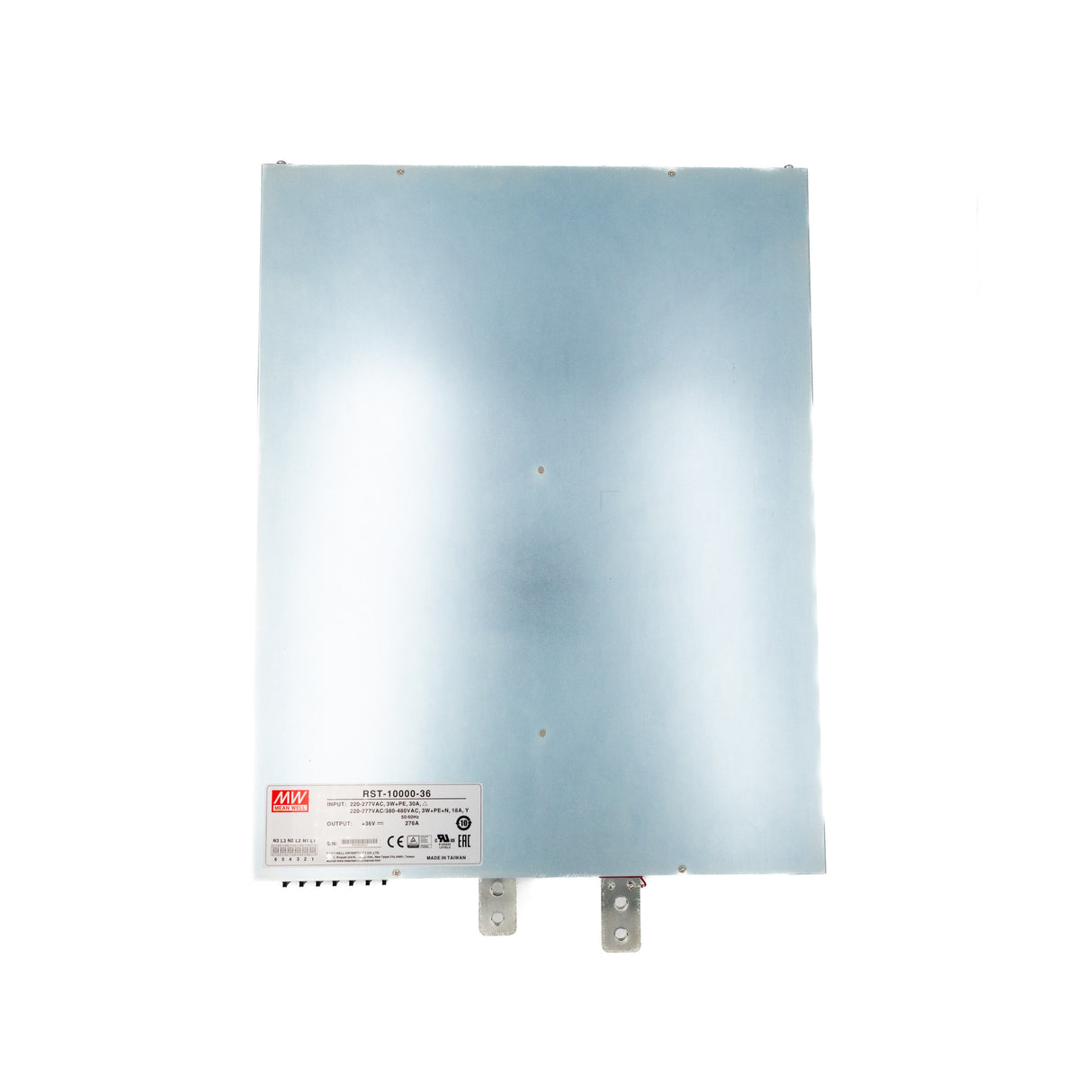

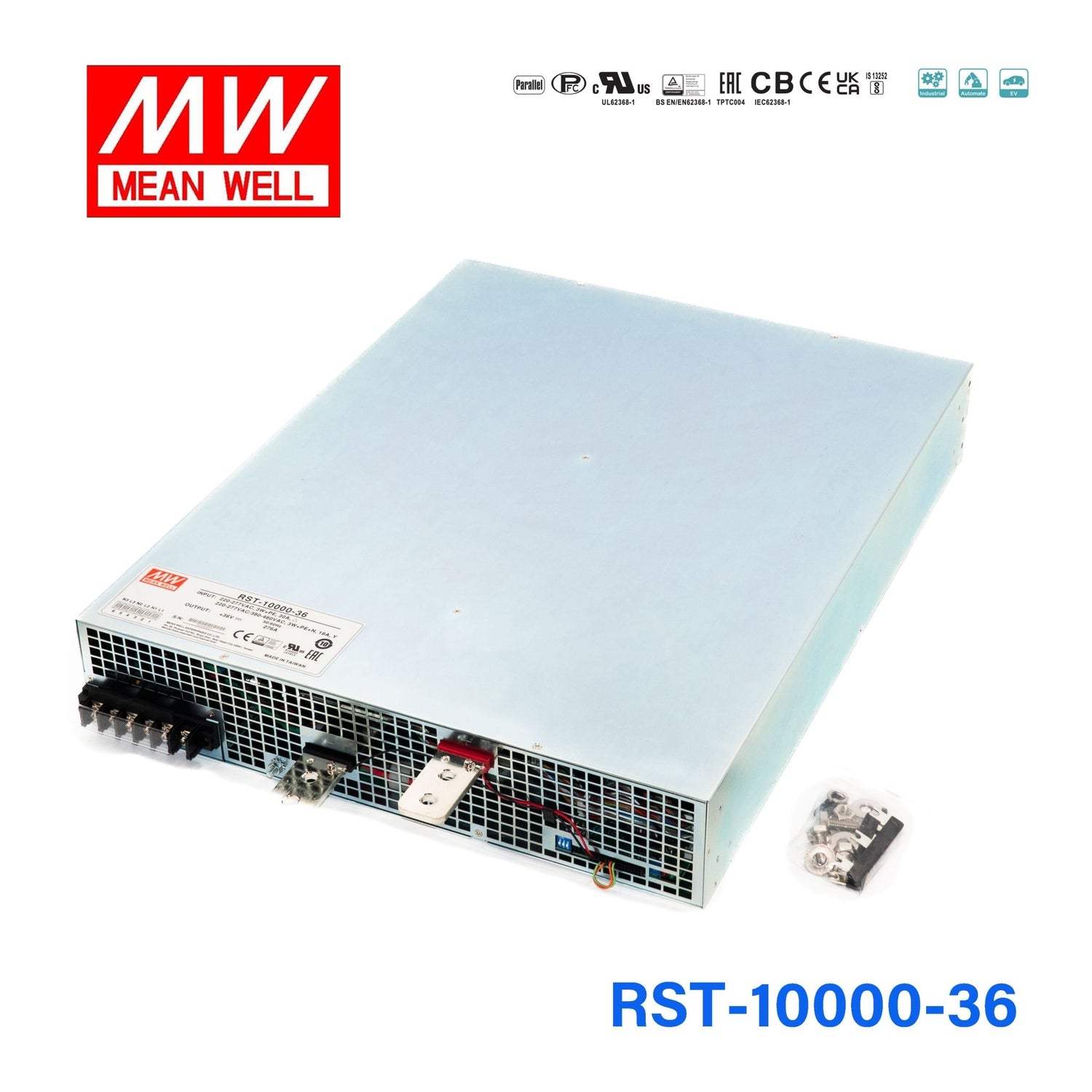

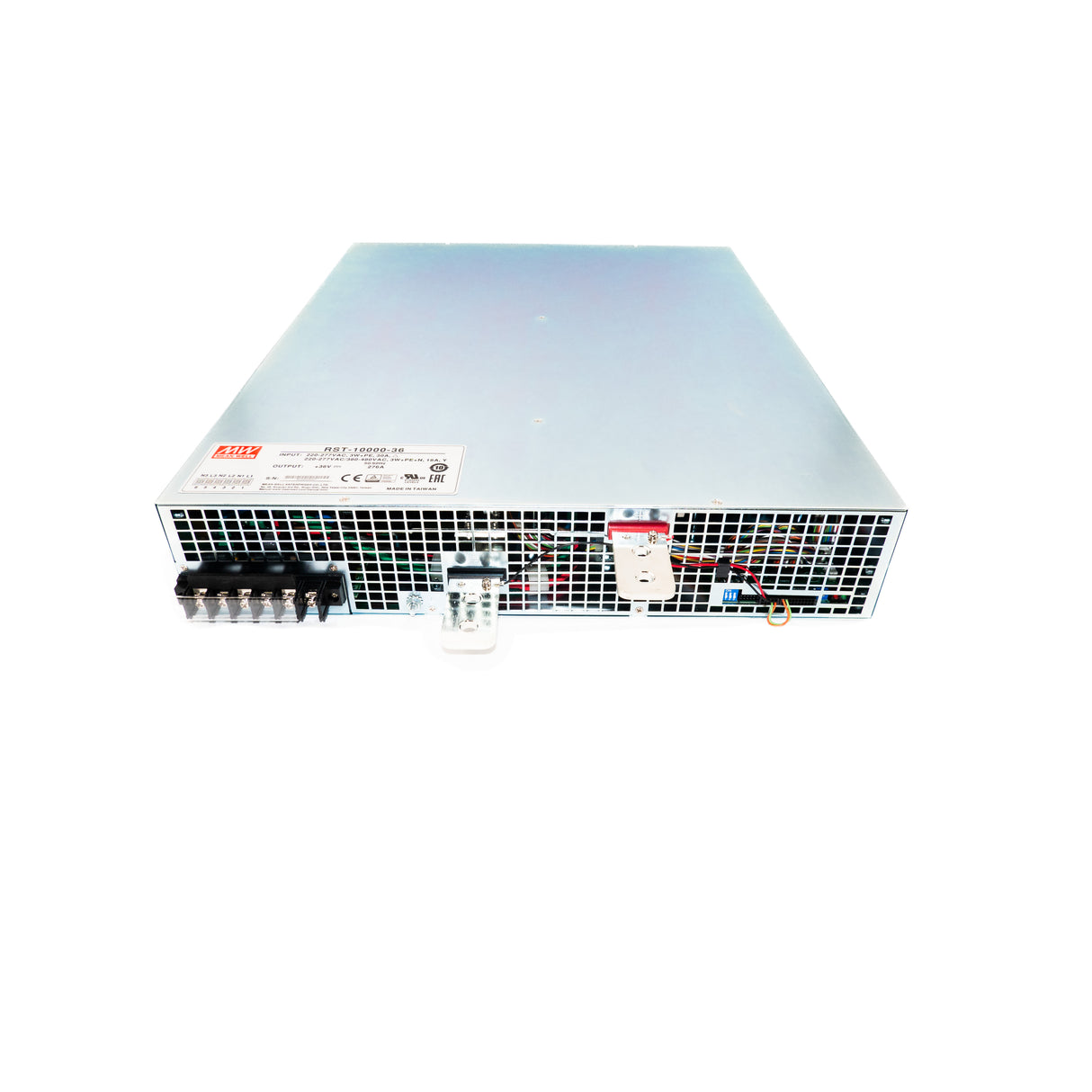

Mean Well RST-10000-36 Power Supply 9936W 36V

high efficiency up to 90.5%, output voltage and constant current level programmable, active current sharing up to 20000W(1+1)

SKU:

RST-10000-36

Model

5000W 36V

$1,550.07 USD

SKU: RST-5000-36

10000W 36V

$3,042.24 USD

SKU: RST-10000-36

Product variants

$3,042.24 USD ~~$3,078.50~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

wide input range

Built-in active PFC function

Protections: Short circuit / Overload / Over voltage / Over temperature / Fan alarm

High efficiency up to 91%

Built-in fan speed control

High efficiency up to 91%

Built-in remote sense and ON/OFF control

Built-in 12V/0.1A auxiliary power

5 years warranty

General Specification

AC input voltage range	3 3-wire/ 196~305VAC or 3 4-wire/ Y 340~530VAC
AC inrush current (max.)	Cold start, 50A (RST-5000); 100A(RST-10000) at 400VAC(3 4-wire/Y) 75A(RST-5000); 150A(RST-10000) at 230VAC (3 3-wire/ )
DC adjustment range	-2%~+20% rated output voltage
Overload protection Range	100%~112% constant current limiting,
Overload protection Type	auto-recovery (can adjust to delay shut off)
Over voltage protection Range	125%~140%
Over voltage protection Type	Shut down O/P voltage, re-power on to recover
Withstand voltage	I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature	-30~+70°C (refer to output derating curve)
Safety standards	UL60950-1, TUV EN60950-1, CCC GB4943 approved
EMC standards	EN55022 class A, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2

Specifications

Brand

Mean Well
Series

RST Series
Power Rating

9936 Watt
Output Voltage

36 Volt
Rated Current

276 Ampere
Input Voltage

196V~530V
No of Output

1
Standards Met

CB,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

5 Year
Length

21.26 in
Width

16.69 in
Height

3.29 in
Weight

51.81 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can the RST-10000-36 be used for a 36V DC bus in industrial machinery?

Yes, this model is a 36V constant-voltage power supply rated for 9936W and 276A. It fits large 36V DC bus applications in industrial equipment when the connected load is designed for 36VDC and stays within those output limits.

Is the RST-10000-36 appropriate for 36V automated test systems or production equipment?

It is suitable for 36V production or test systems that need high continuous DC capacity, because it delivers 9936W at up to 276A. The programmable output voltage and programmable constant current level can also support controlled process requirements within the unit's published range.

Can this model power large 36V material-handling or control subsystems from one supply?

It can support consolidated 36V subsystems when the total demand does not exceed 276A or 9936W. For higher-capacity system designs, the active current sharing feature supports up to 20000W (1+1).

Can the RST-10000-36 be used in hot or cold industrial environments?

The specified operating temperature range is -30C to +70C, so it is built for broad indoor industrial temperature conditions. The specifications do not list an IP rating, so it should be installed in a protected enclosure rather than in directly exposed outdoor conditions.

How does the RST-10000-36 differ from the other RST family output versions?

The related models listed are RST-10000-24 at 9600W, 24V, 400A; RST-10000-48 at 10080W, 48V, 210A; RST-15K-115 at 14950W, 115V, 130A; RST-15K-230 at 14901W, 230V, 64.8A; RST-15K-380 at 15030W, 380V, 39.55A; RST-5000-24 at 4800W, 24V, 200A; RST-5000-36 at 4968W, 36V, 138A; RST-5000-48 at 5040W, 48V, 105A; RST-7K5-115 at 7475W, 115V, 65A; RST-7K5-115L at 7475W, 115V, 65A; RST-7K5-230 at 7452W, 230V, 32.4A; RST-7K5-230L at 7452W, 230V, 32.4A; RST-7K5-380 at 7515W, 380V, 19.77A; and RST-7K5-380L at 7515W, 380V, 19.77A. The RST-10000-36 specifically provides 36V at 9936W and 276A.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well RST-10000-24 Power Supply 9600W 24V	9600W	24V	400A	Indoor	$3,078.50	View
Mean Well RST-10000-48 Power Supply 10080W 48V	10080W	48V	210A	Indoor	$2,492.59	View
