Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

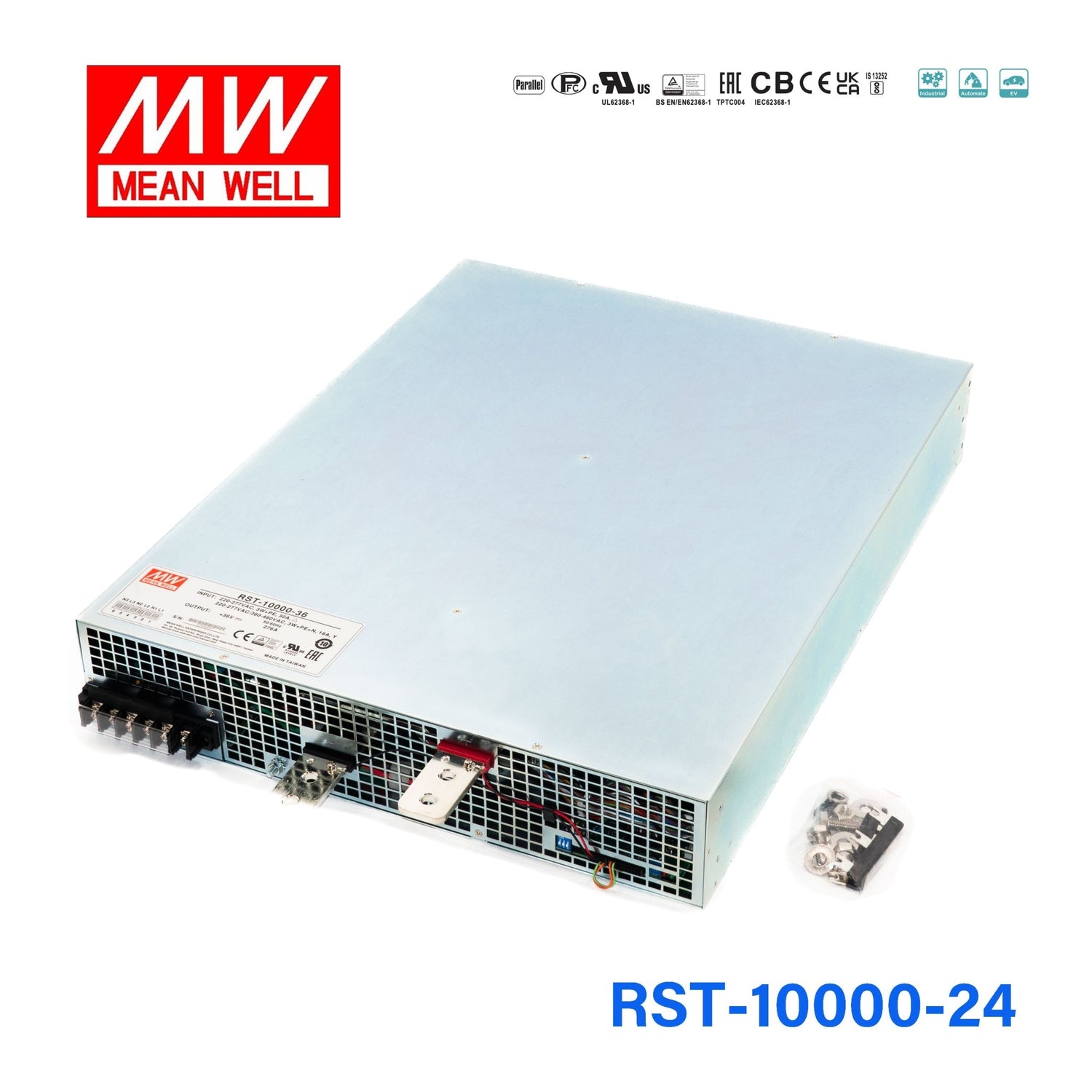

Mean Well RST-10000-24 Power Supply 9600W 24V

high efficiency up to 90.5%, output voltage and constant current level programmable, active current sharing up to 20000W(1+1)

SKU:

RST-10000-24

Model

5000w 24v

$1,544.30 USD

SKU: RST-5000-24

10000w 24v

$3,078.50 USD

SKU: RST-10000-24

Product variants

$3,078.50 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

wide input range

Built-in active PFC function

Protections: Short circuit / Overload / Over voltage / Over temperature / Fan alarm

High efficiency up to 91%

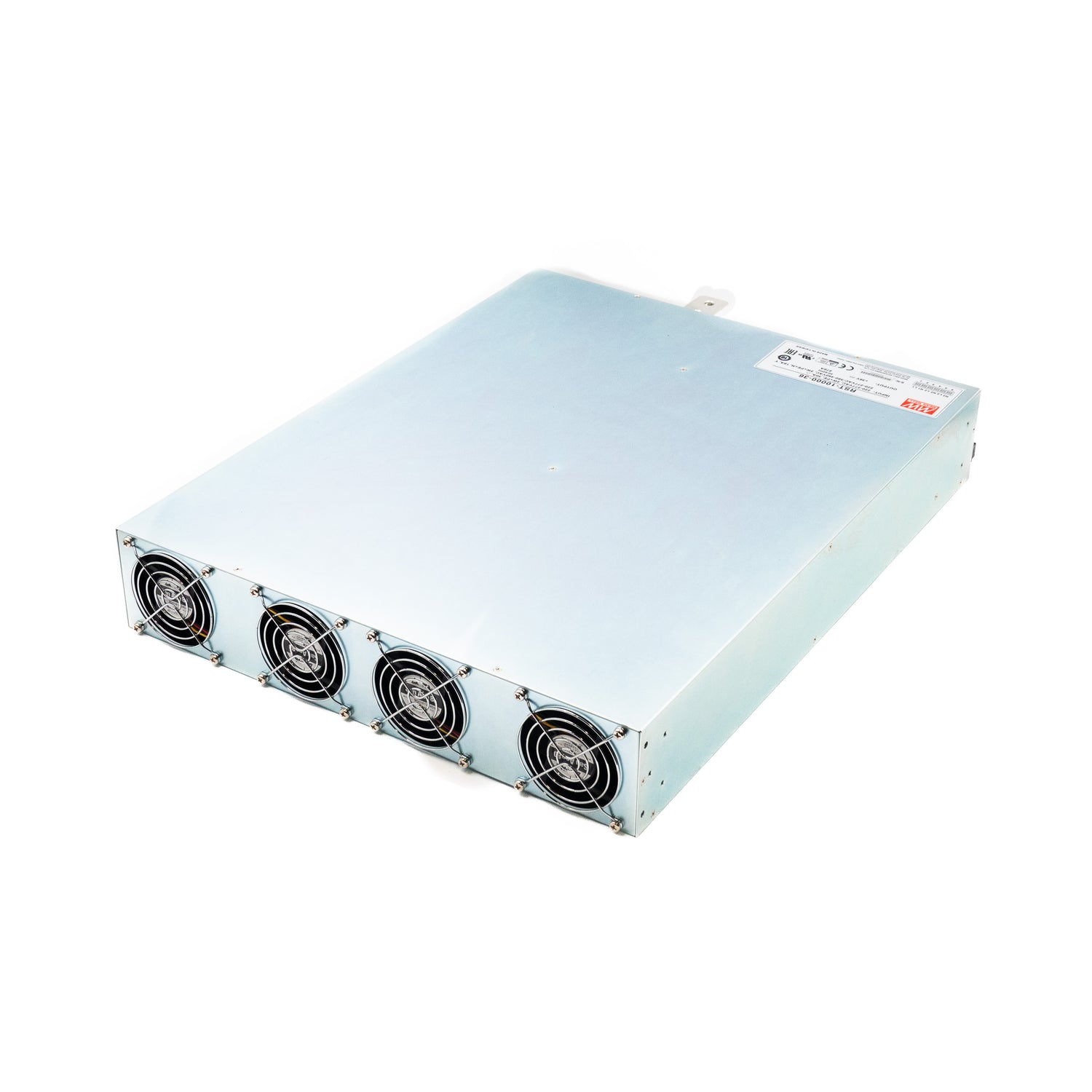

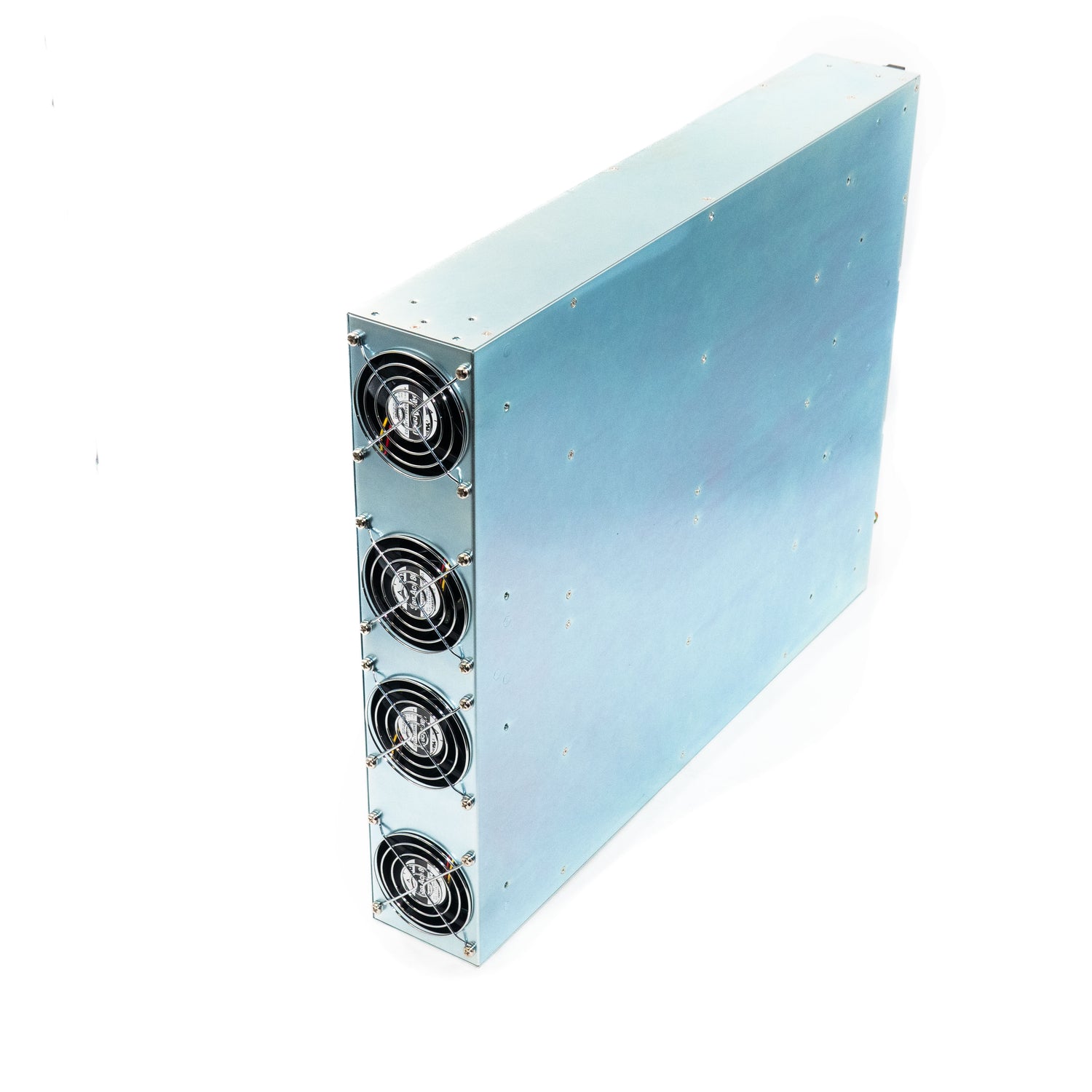

Built-in fan speed control

High efficiency up to 91%

Built-in remote sense and ON/OFF control

Built-in 12V/0.1A auxiliary power

5 years warranty

General Specification

AC input voltage range	3 3-wire/ 196~305VAC or 3 4-wire/ Y 340~530VAC
AC inrush current (max.)	Cold start, 50A (RST-5000); 100A(RST-10000) at 400VAC(3 4-wire/Y) 75A(RST-5000); 150A(RST-10000) at 230VAC (3 3-wire/ )
DC adjustment range	-2%~+20% rated output voltage
Overload protection Range	100%~112% constant current limiting,
Overload protection Type	auto-recovery (can adjust to delay shut off)
Over voltage protection Range	125%~140%
Over voltage protection Type	Shut down O/P voltage, re-power on to recover
Withstand voltage	I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature	-30~+70°C (refer to output derating curve)
Safety standards	UL60950-1, TUV EN60950-1, CCC GB4943 approved
EMC standards	EN55022 class A, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2

Specifications

Brand

Mean Well
Series

RST Series
Power Rating

9600 Watt
Output Voltage

24 Volt
Rated Current

400 Ampere
Input Voltage

196V~530V
No of Output

1
Standards Met

CB,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

5 Year
Length

21.26 in
Width

16.69 in
Height

3.29 in
Weight

51.81 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the RST-10000-24 as a centralized 24V power source for a large industrial automation cabinet?

Yes, this unit provides a 24V constant-voltage output with up to 400A and 9600W capacity. That makes it appropriate for centralized 24VDC systems where many loads share the same DC bus and the total demand stays within those ratings.

Is the RST-10000-24 suitable for high-current 24V test benches or burn-in systems?

It can be used in 24V test or burn-in environments that need substantial DC power, because it is rated for 9600W at 24V and 400A. The feature set also includes programmable output voltage and programmable constant current level, which can be useful in controlled production or lab environments.

Can this power supply support large 24V PLC, relay, and I/O loads in one enclosure?

Yes, the 24V constant-voltage output and 400A maximum output current make it suitable for consolidating large groups of 24V industrial loads. Its active current sharing capability up to 20000W (1+1) also supports higher-capacity redundant or parallel DC power architectures within the stated limits.

Is the RST-10000-24 intended for outdoor or harsh exposed locations?

The listed operating temperature range is -30C to +70C, which supports demanding indoor industrial conditions. The provided specifications do not include an IP rating, so it should be treated as a power supply for protected installations rather than exposed outdoor or washdown use.

What are the main output options across the related RST power supply models?

The listed siblings are RST-10000-36 at 9936W, 36V, 276A; RST-10000-48 at 10080W, 48V, 210A; RST-15K-115 at 14950W, 115V, 130A; RST-15K-230 at 14901W, 230V, 64.8A; RST-15K-380 at 15030W, 380V, 39.55A; RST-5000-24 at 4800W, 24V, 200A; RST-5000-36 at 4968W, 36V, 138A; RST-5000-48 at 5040W, 48V, 105A; RST-7K5-115 at 7475W, 115V, 65A; RST-7K5-115L at 7475W, 115V, 65A; RST-7K5-230 at 7452W, 230V, 32.4A; RST-7K5-230L at 7452W, 230V, 32.4A; RST-7K5-380 at 7515W, 380V, 19.77A; and RST-7K5-380L at 7515W, 380V, 19.77A. Compared with those, the RST-10000-24 is the 24V, 9600W, 400A option in the 10000 series.
