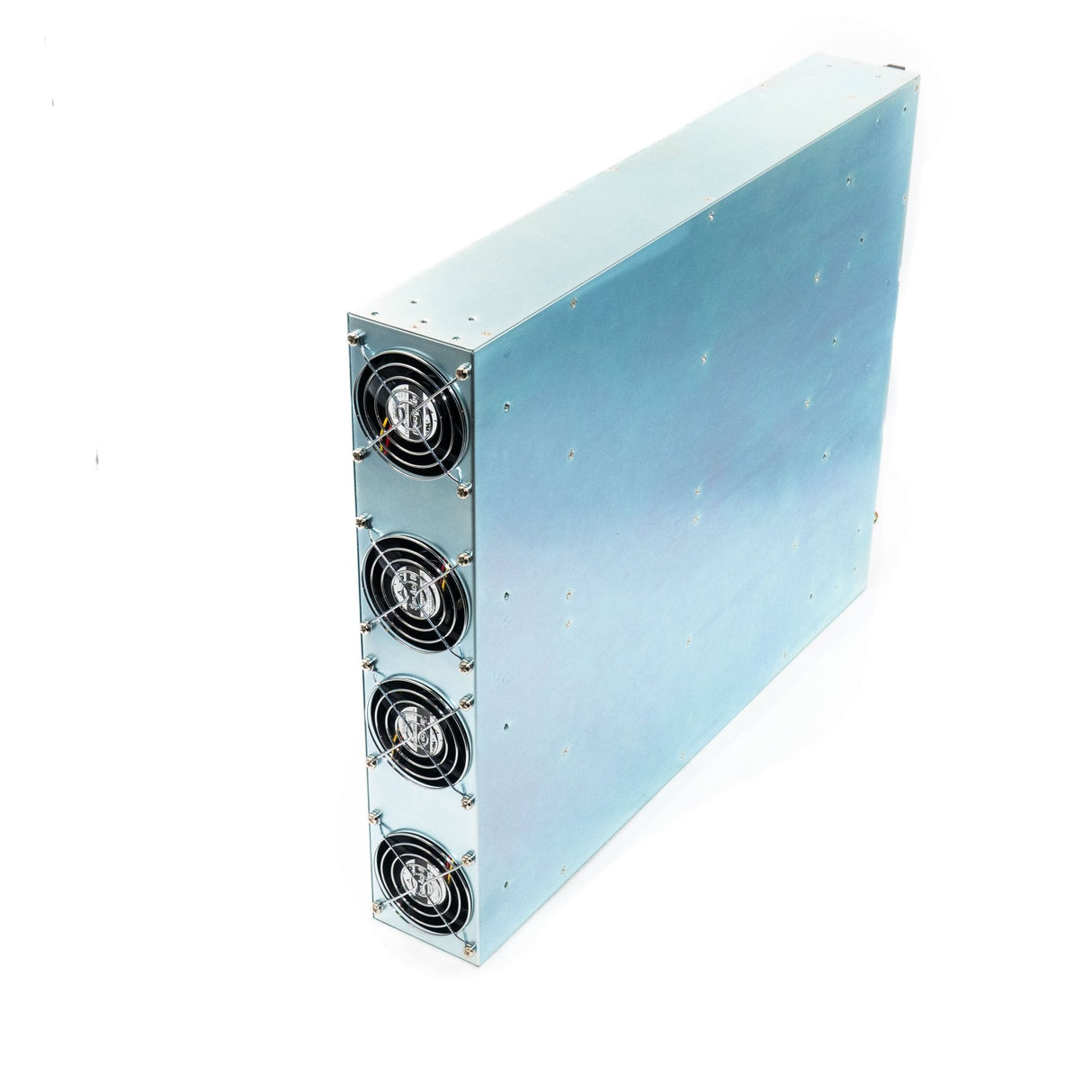

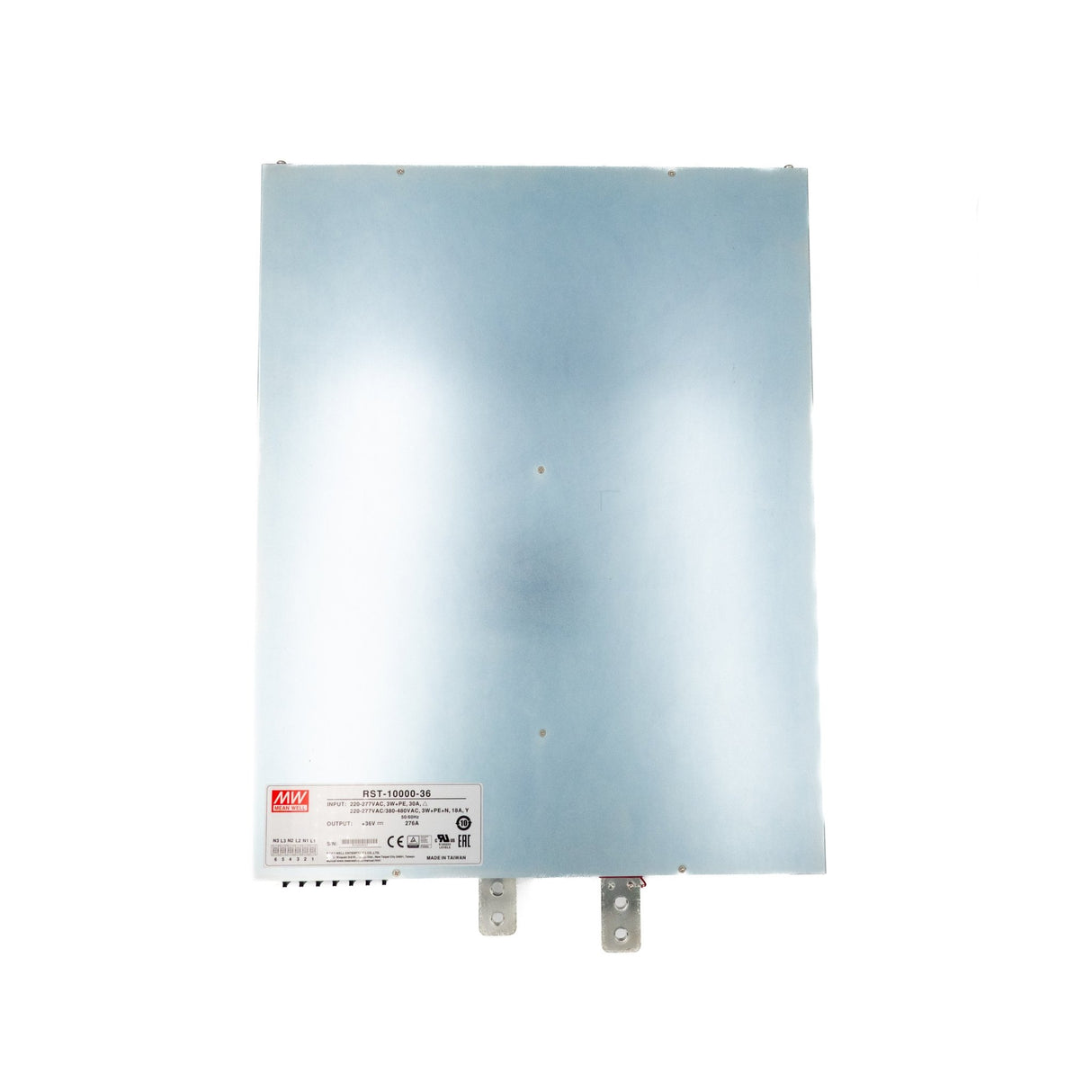

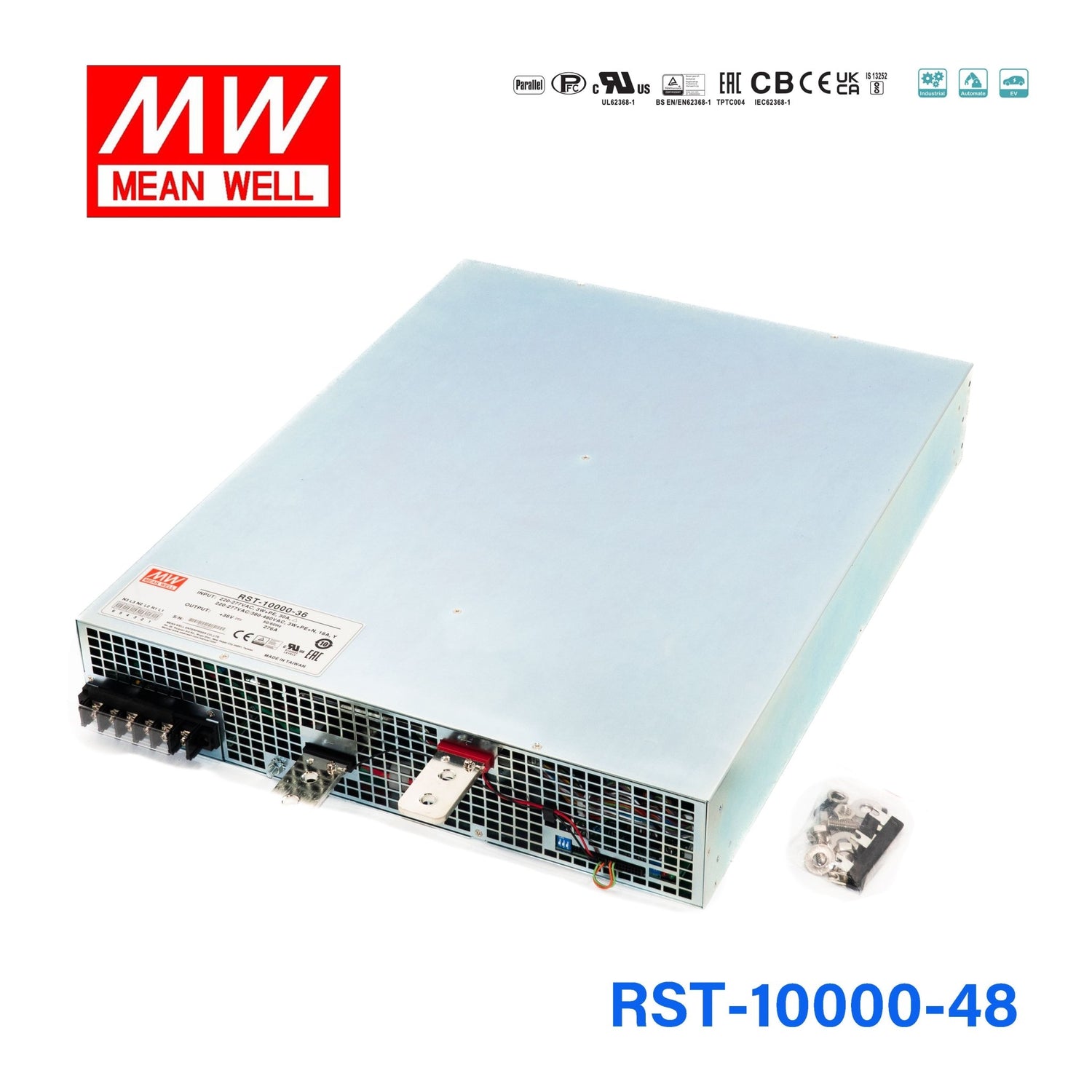

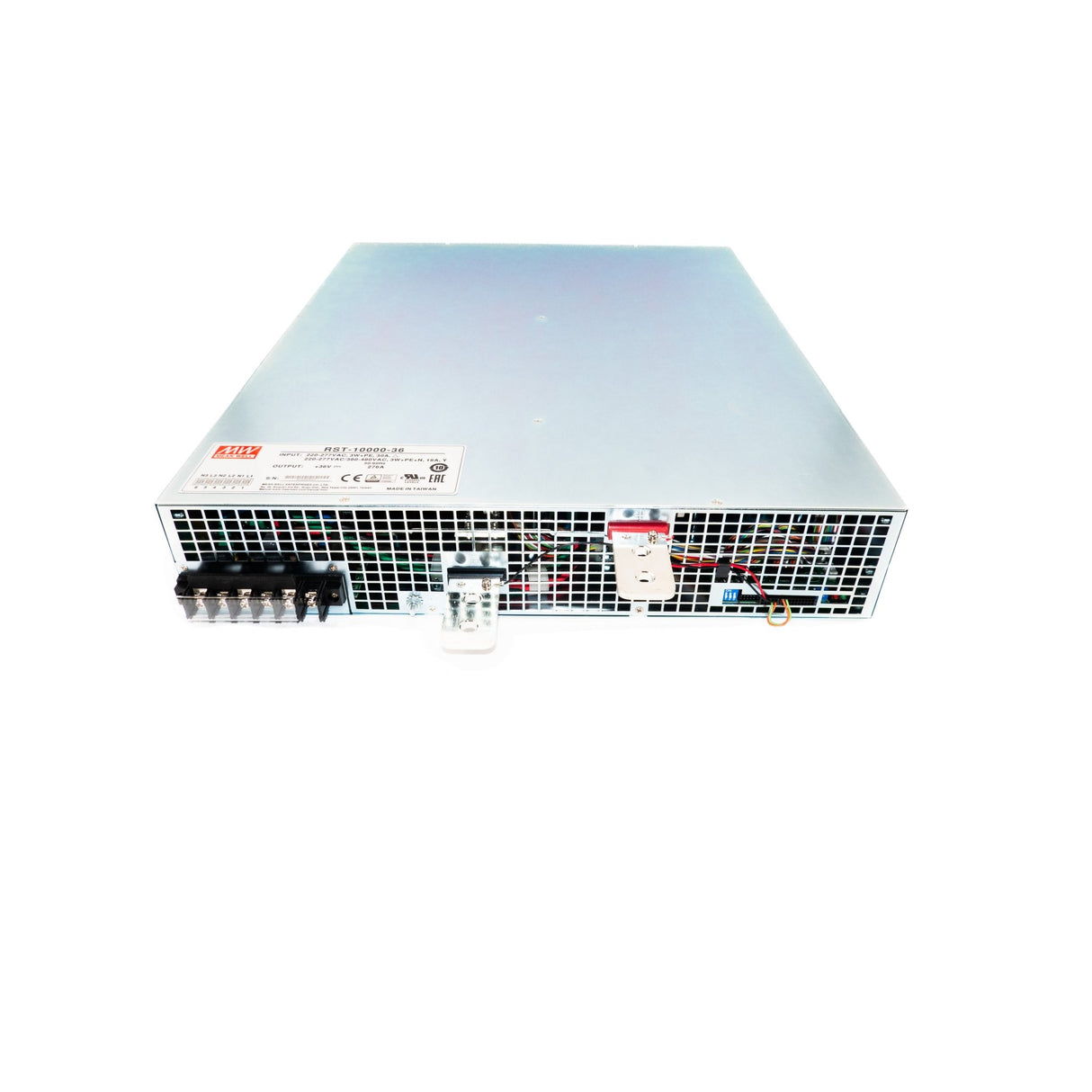

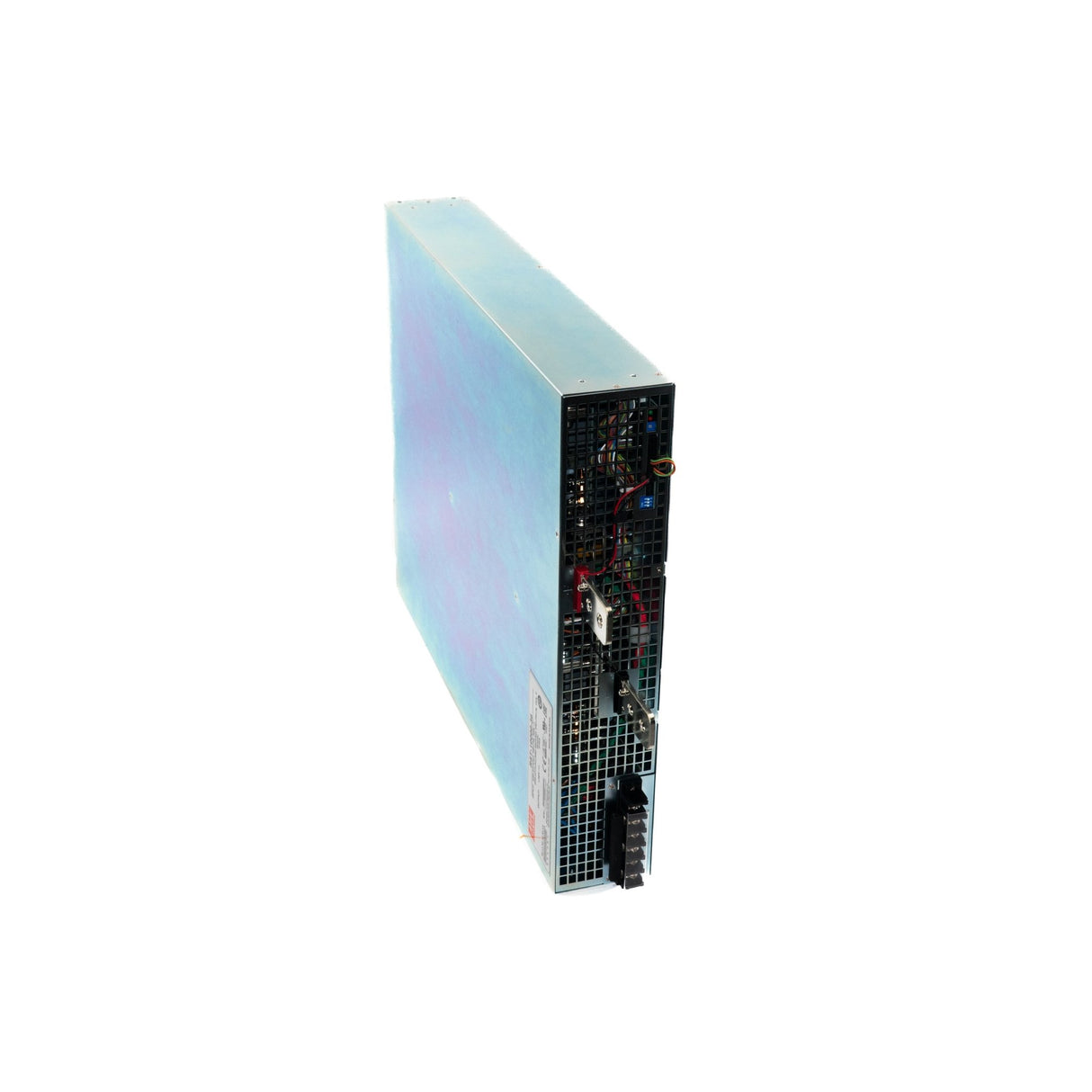

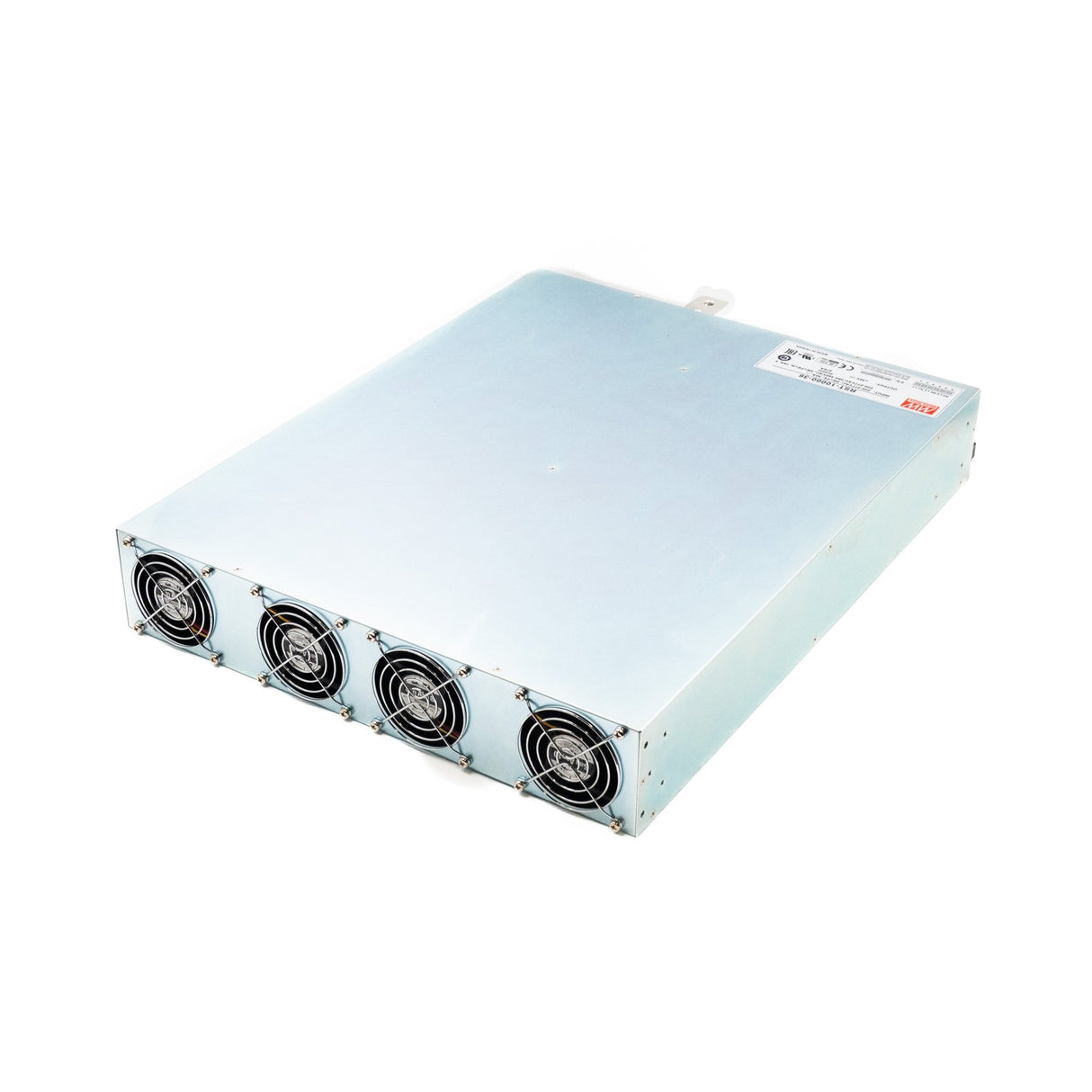

Mean Well RST-10000-48 Power Supply 10080W 48V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RST-10000-48 Power Supply 10080W 48V
Description
Description
Features
| wide input range |
| Built-in active PFC function |
| Protections: Short circuit / Overload / Over voltage / Over temperature / Fan alarm |
| High efficiency up to 91% |
| Built-in fan speed control |
| High efficiency up to 91% |
| Built-in remote sense and ON/OFF control |
| Built-in 12V/0.1A auxiliary power |
| 5 years warranty |
General Specification
| AC input voltage range |
3 3-wire/ 196~305VAC or 3 4-wire/ Y 340~530VAC |
| AC inrush current (max.) | Cold start, 50A (RST-5000); 100A(RST-10000) at 400VAC(3 4-wire/Y) 75A(RST-5000); 150A(RST-10000) at 230VAC (3 3-wire/ ) |
| DC adjustment range | -2%~+20% rated output voltage |
| Overload protection Range | 100%~112% constant current limiting, |
| Overload protection Type | auto-recovery (can adjust to delay shut off) |
| Over voltage protection Range | 125%~140% |
| Over voltage protection Type | Shut down O/P voltage, re-power on to recover |
| Withstand voltage | I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC |
| Working temperature | -30~+70°C (refer to output derating curve) |
| Safety standards | UL60950-1, TUV EN60950-1, CCC GB4943 approved |
| EMC standards | EN55022 class A, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 |
Specifications
Specifications
-
BrandMean Well
-
SeriesRST Series
-
Power Rating10080 Watt
-
Output Voltage48 Volt
-
Rated Current210 Ampere
-
Input Voltage196V~530V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty5 Year
-
Length21.26 in
-
Width16.69 in
-
Height3.29 in
-
Weight51.81 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the RST-10000-48 for a high-capacity 48V DC distribution system?
Yes, this unit provides a 48V constant-voltage output rated for 10080W and 210A. That makes it suitable for large 48V DC distribution systems where the connected equipment is designed for 48V and the total demand remains within those limits.
Is the RST-10000-48 a fit for 48V telecom or network power applications?
It can serve high-power 48V telecom or network-related systems because it delivers 48VDC at up to 210A and 10080W. The wide 196-530VAC input range also supports facilities with higher-voltage AC feeds.
Can this model support large 48V industrial automation loads or DC subsystems?
Yes, it is intended for high-power 48V constant-voltage applications, with 10080W total output capacity. The programmable output voltage and programmable constant current level provide added control for equipment designed around a 48V DC bus.
Is the RST-10000-48 suitable for exposed outdoor service?
The specifications show an operating temperature range of -30C to +70C, which covers a broad industrial ambient range. However, no IP rating is provided, so it is better matched to protected indoor enclosures than to direct outdoor exposure.
What other output classes are available in the related RST series?
The listed sibling models are RST-10000-24 at 9600W, 24V, 400A; RST-10000-36 at 9936W, 36V, 276A; RST-15K-115 at 14950W, 115V, 130A; RST-15K-230 at 14901W, 230V, 64.8A; RST-15K-380 at 15030W, 380V, 39.55A; RST-5000-24 at 4800W, 24V, 200A; RST-5000-36 at 4968W, 36V, 138A; RST-5000-48 at 5040W, 48V, 105A; RST-7K5-115 at 7475W, 115V, 65A; RST-7K5-115L at 7475W, 115V, 65A; RST-7K5-230 at 7452W, 230V, 32.4A; RST-7K5-230L at 7452W, 230V, 32.4A; RST-7K5-380 at 7515W, 380V, 19.77A; and RST-7K5-380L at 7515W, 380V, 19.77A. The RST-10000-48 is the 48V, 10080W, 210A member of the 10000 series.
