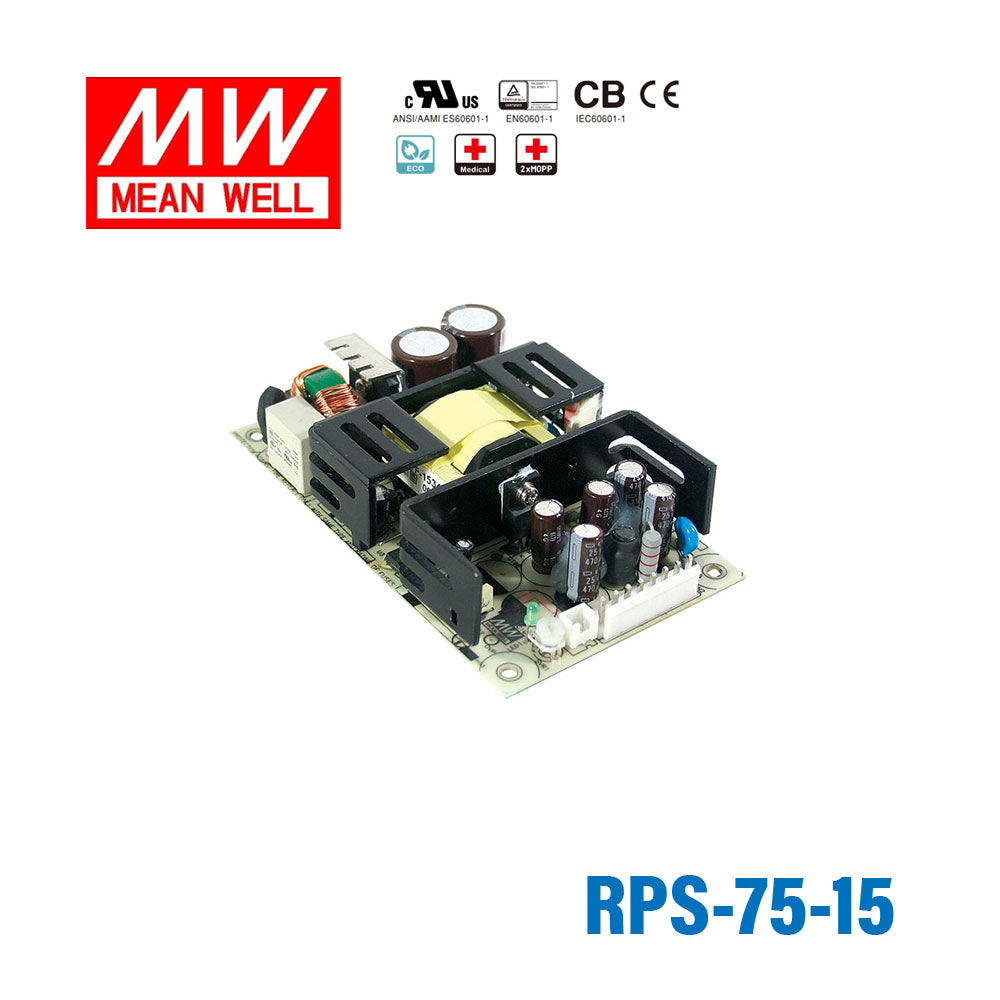

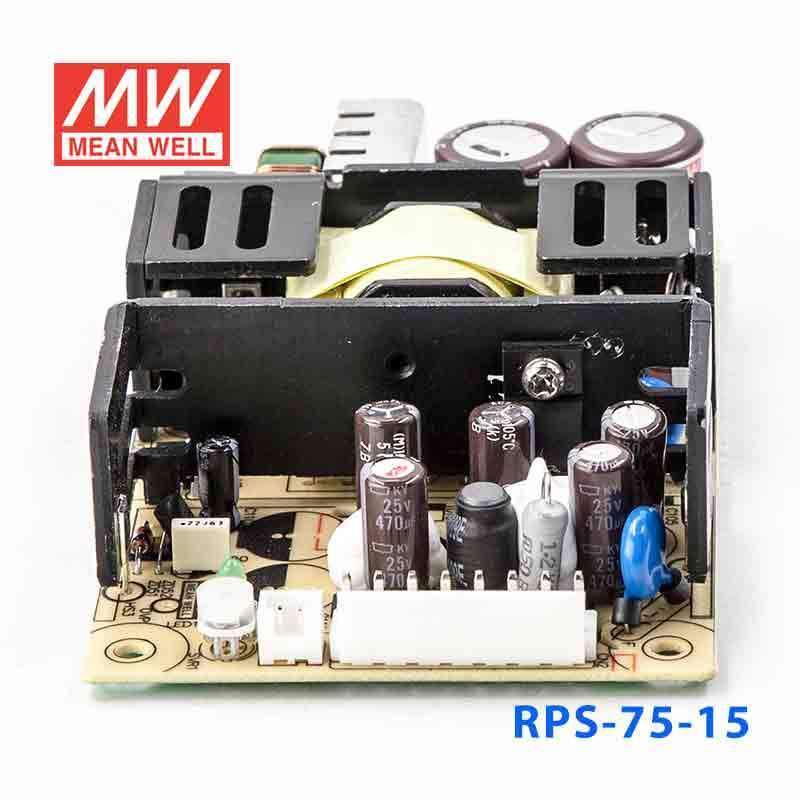

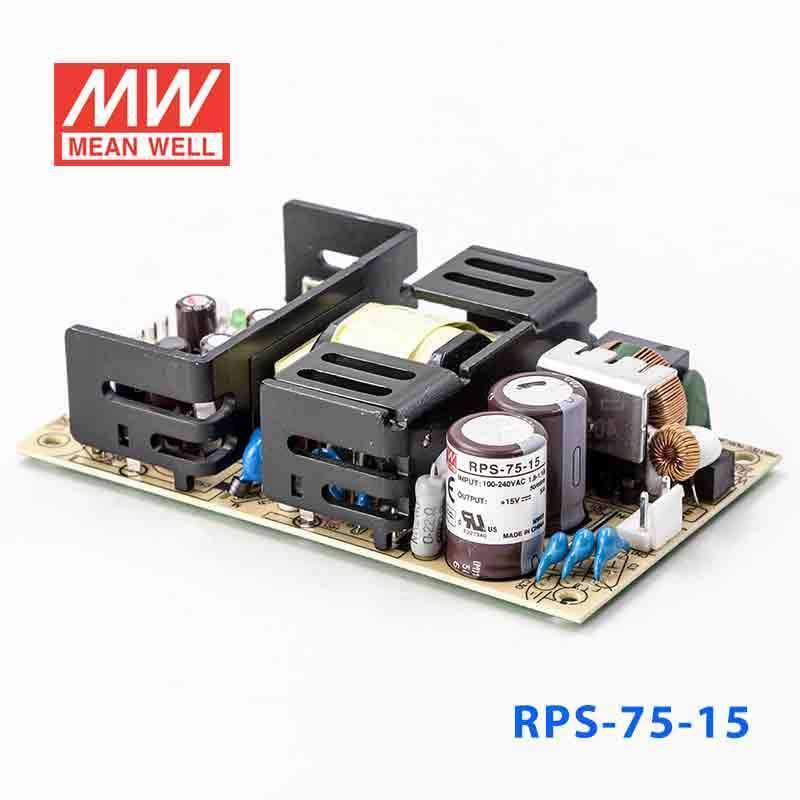

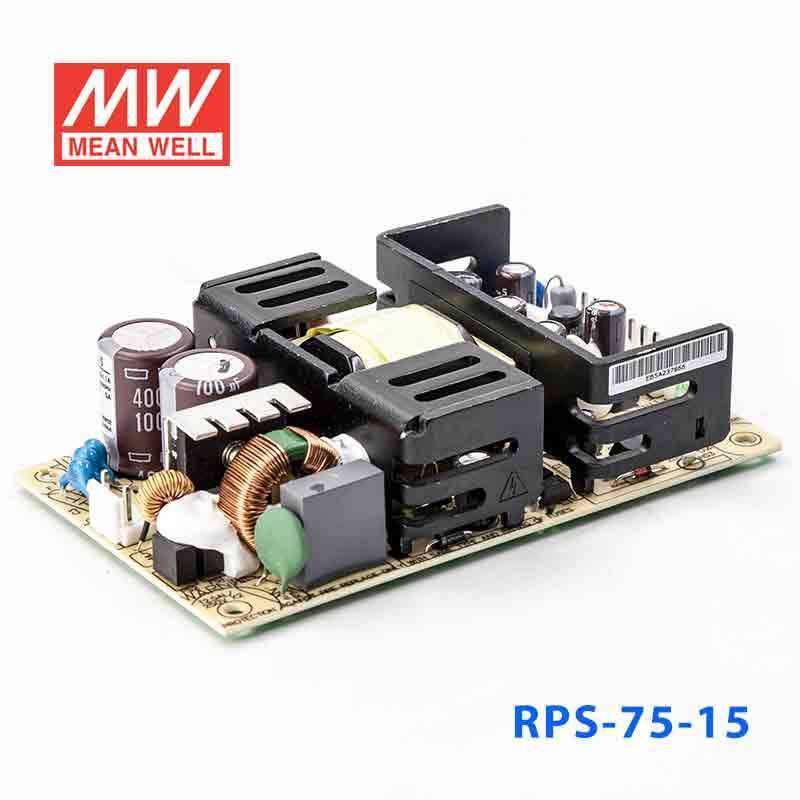

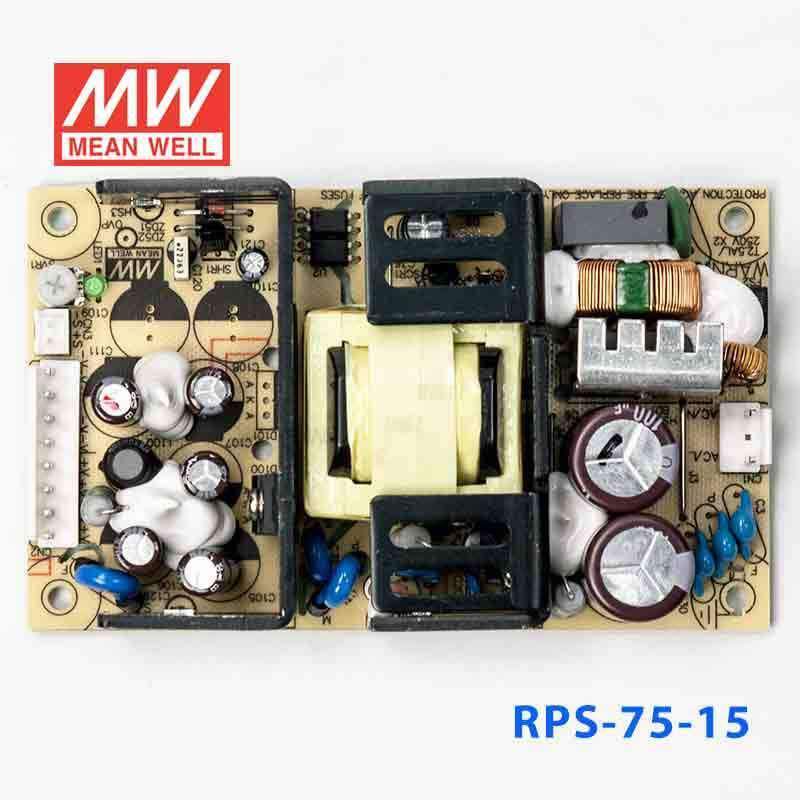

Mean Well RPS-75-15 Green Power Supply W 15V 5A - Medical Power Supply
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RPS-75-15 Green Power Supply W 15V 5A - Medical Power Supply
The RPS-75 is a 75W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 4KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating75 Watt
-
Output Voltage15 Volt
-
Rated Current5 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length5 in
-
Width3 in
-
Height1.22 in
-
Weight0.57 lb
::specification::
Frequently Asked Questions
Can I use the RPS-75-15 for 15V industrial sensors or test equipment?
Yes, if the equipment requires a constant 15V output and the total load does not exceed 5A or 75W. That makes it more suitable for regulated 15V electronics than for loads needing 12V, 24V, or another output.
Is this a good fit for 15V automation or instrumentation electronics?
It can be used for automation or instrumentation devices that specify 15V DC input and stay within the 5A output limit. The 90-264VAC input range also helps when the equipment may be deployed across different AC power standards.
Can the RPS-75-15 power compact medical or diagnostic devices that run on 15V?
It is appropriate for 15V medical or diagnostic electronics that need up to 5A and no more than 75W. Its medical safety approval is relevant for these types of applications, but the load still needs to match the 15V constant voltage output.
What are the main differences between the RPS-75-15 and the other RPS-75 versions?
The RPS-75 family includes 3.3V 15A 49.5W, 5V 14A 70W, 12V 6.3A 75.6W, 15V 5A 75W, 24V 3.2A 76.8W, 36V 2.1A 75.6W, and 48V 1.6A 76.8W models. The RPS-75-15 is the 15V version, rated for 5A and 75W.
Can this 15V model be used in outdoor cabinets or unprotected environments?
The specified operating range is -20°C to +70°C, which supports use across a wide temperature span. Since no IP rating is provided in the product specs, it should be used in protected indoor equipment or enclosed cabinets rather than in exposed outdoor conditions.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other RPS-75 Models
6 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well RPS-75-5 Green Power Supply W 5V 14A - Medical Power Supply | 70W | 5V | 14A | Indoor | $23.50 | View |
| Mean Well RPS-75-48 Green Power Supply W 48V 1.6A - Medical Power Supply | 76.8W | 48V | 1.6A | Indoor | $23.50 | View |
| Mean Well RPS-75-36 Green Power Supply W 36V 2.1A - Medical Power Supply | 75.6W | 36V | 2.1A | Indoor | $23.50 | View |
| Mean Well RPS-75-3.3 Green Power Supply W 3.3V 15A - Medical Power Supply | 49.5W | 3.3V | 15A | Indoor | $23.50 | View |
| Mean Well RPS-75-24 Green Power Supply W 24V 3.2A - Medical Power Supply | 76.8W | 24V | 3.2A | Indoor | $23.51 | View |
| Mean Well RPS-75-12 Green Power Supply W 12V 6.3A - Medical Power Supply | 75.6W | 12V | 6.3A | Indoor | $23.51 | View |
