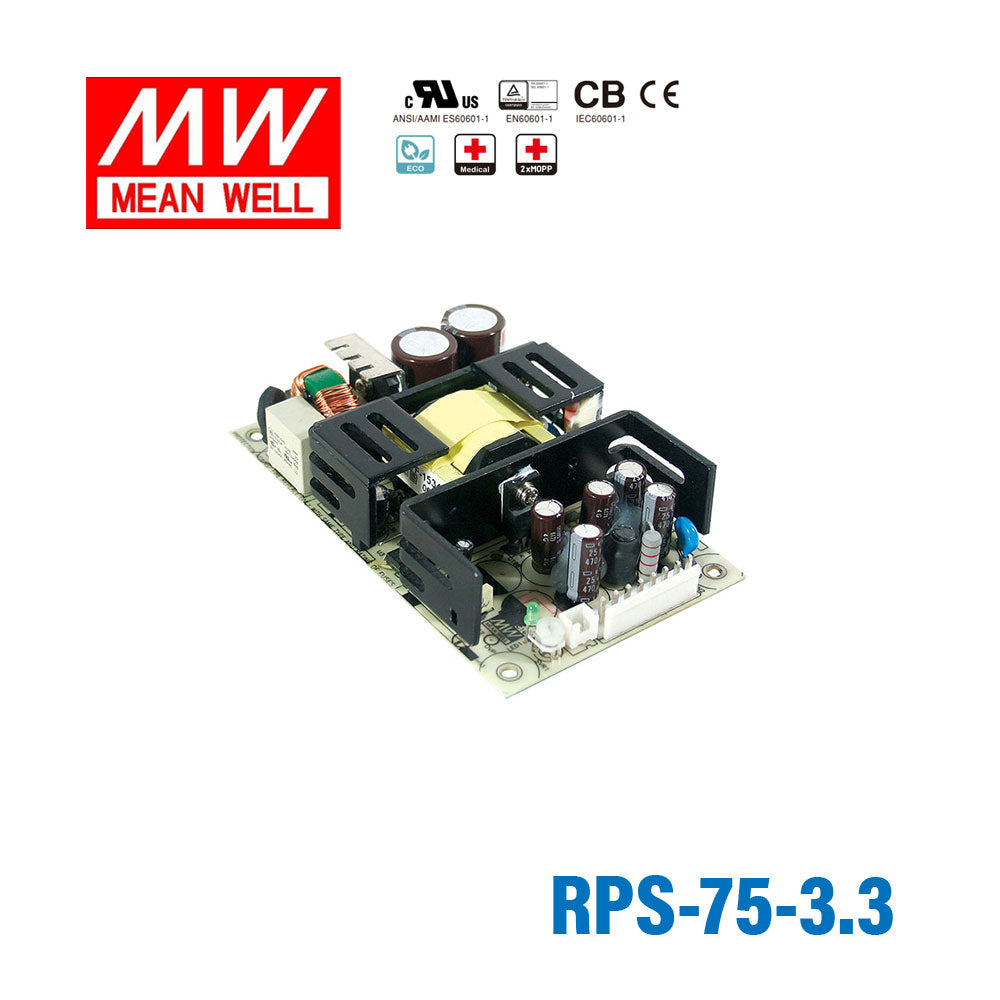

Mean Well RPS-75-3.3 Green Power Supply W 3.3V 15A - Medical Power Supply
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RPS-75-3.3 Green Power Supply W 3.3V 15A - Medical Power ...
The RPS-75 is a 75W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 4KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating49.5 Watt
-
Output Voltage3.3 Volt
-
Rated Current15 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length5 in
-
Width3 in
-
Height1.22 in
-
Weight0.57 lb
::specification::
Frequently Asked Questions
Can I use the RPS-75-3.3 for 3.3V embedded processors or logic boards?
Yes, if the electronics require a constant 3.3V supply and the total load stays within 15A and 49.5W. That makes it better suited to high-current low-voltage logic systems than to equipment needing higher DC outputs.
Is this 3.3V model suitable for FPGA, MCU, or digital control hardware?
It can be a fit for digital control hardware that needs regulated 3.3V DC and draws no more than 15A. The 49.5W rating is the key limit to check when sizing it for dense logic or computing loads.
Can the RPS-75-3.3 be used in industrial or medical electronics that run on 3.3V rails?
It is appropriate for equipment built around a 3.3V power rail, provided the load remains at or below 15A and 49.5W. Its medical safety approval can matter for medical electronics, but the application still needs a true 3.3V constant voltage source.
What is different about the RPS-75-3.3 compared with the other RPS-75 models?
The RPS-75 family offers 3.3V 15A 49.5W, 5V 14A 70W, 12V 6.3A 75.6W, 15V 5A 75W, 24V 3.2A 76.8W, 36V 2.1A 75.6W, and 48V 1.6A 76.8W versions. The RPS-75-3.3 is the lowest-voltage, highest-current option in this subgroup.
Can this 3.3V power supply be used in outdoor equipment?
The operating temperature range is -20°C to +70°C, which supports use in a wide range of protected environments. Because no IP rating is listed in the provided specs, it should not be treated as an exposed outdoor power supply without an enclosure.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other RPS-75 Models
6 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well RPS-75-5 Green Power Supply W 5V 14A - Medical Power Supply | 70W | 5V | 14A | Indoor | $23.50 | View |
| Mean Well RPS-75-48 Green Power Supply W 48V 1.6A - Medical Power Supply | 76.8W | 48V | 1.6A | Indoor | $23.50 | View |
| Mean Well RPS-75-36 Green Power Supply W 36V 2.1A - Medical Power Supply | 75.6W | 36V | 2.1A | Indoor | $23.50 | View |
| Mean Well RPS-75-24 Green Power Supply W 24V 3.2A - Medical Power Supply | 76.8W | 24V | 3.2A | Indoor | $23.51 | View |
| Mean Well RPS-75-15 Green Power Supply W 15V 5A - Medical Power Supply | 75W | 15V | 5A | Indoor | $23.51 | View |
| Mean Well RPS-75-12 Green Power Supply W 12V 6.3A - Medical Power Supply | 75.6W | 12V | 6.3A | Indoor | $23.51 | View |
